FD511HZ GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
FD511HZ is based on ZTE high-performance xPON access chip. The chip supposes three mode:GPON/EPON/P2P, comply with the GPON standard of g.984, g.983, 802.3-2005, CTC EPON equipment technical requirements, have good xPON interoperability compatibility.
FD511HZ provide one GE auto-adapting Ethernet ports. The FD511HZ features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the FD511HZ provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
1. Functional Features
Fully compatible with ITU-T G.984.1/2/3/4
Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s
Support 32 TCONT, 256 GEMPORT
Support bidirectional FEC, supports the RS (255, 239) FEC decoding
Support AES128 encryption and decryption functions with G.984 standard
Support SBA and DBA bandwidth allocation
Support PLOAM, embedded OMCI management with G.984 standard
Support Dying-Gas detection and reporting
Support rogue ONU detection
Support GPON energy saving of G987.3 protocol
Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ
Support CTC2.1, TR156 requirements of flexible tag processing
Support for flexible flow classification, maximum 520 flow classification rules
Support link error monitoring and loop monitoring
Support a variety of multicast forwarding mode, support multicast replication
Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode
UNI interface supports STP/RSTP protocol
Provide QoS guarantees for different priority business through SLA restraining, Policing, queue management scheduling / congestion avoidance, discarding management mode
Support flow control based on entrance , choose Pause frame reaction pressure to Packet loss for the business beyond
Support HQoS function
2. Typical Application
Solution:FTTH
Business:Broadband Internet,IPTV,VOD,IP Camera
Gpon ONT FD511HZ Network Construction

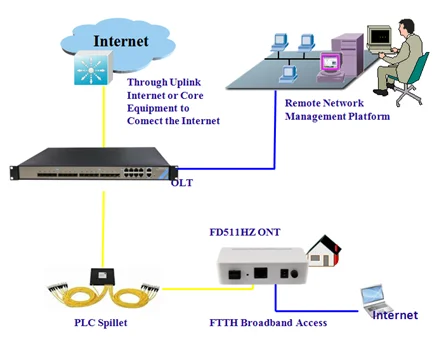

Figure: FD511HZ Application Diagram
3.Specification
Item
Parameters
Specification
Interface
PON Port
1*GPON port, FSAN G.984.2 standard, Class B+
Downstream Data Rate:2.488Gbps
Upstream Data Rate:1.244Gbps
SC/PC single mode fiber
28dB Link loss and 30KM distance with 1:128
Ethernet Port(LAN)
1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance 100 Meter
Power Supply Port
12V DC input
Management
Network Management
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support WEB management
Management
Function
Status monitor, Configuration management, Alarm management, Log management
Environmental Specifications
Shell
Plastic casing
Power
External 12V 0.5A AC/DC power supply adapter
Power consumption: <3W
Dimensions
110mm(L) x70mm(W) x30mm (H)
0.1kg
Environment
Operating Temperature:0~50℃
Storage Temperature:-40~85℃
Operating Humidity:10%~90%(Non-condensing)
Storage Humidity:5%~95%(Non-condensing)

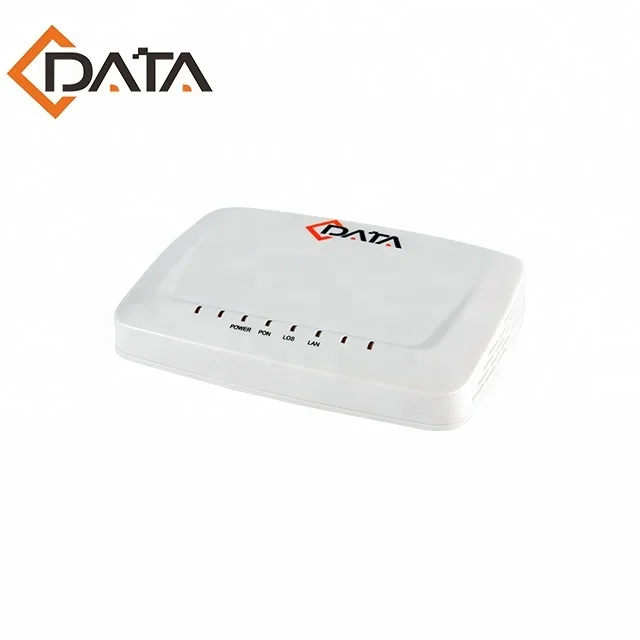

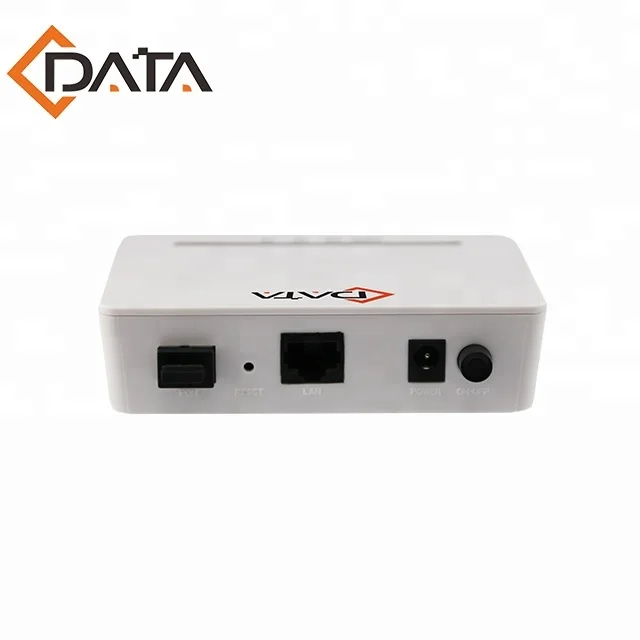

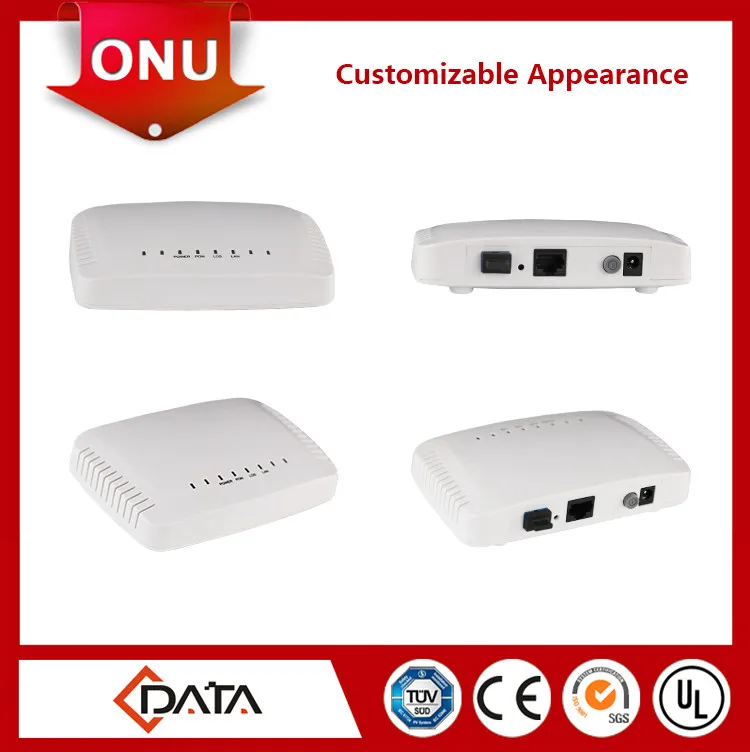

4. Gpon ONT FD511HZ interface and LED definitions
Indicator
Description
1
LAN
LAN port status
On: Ethernet connection is normal;
Blinking: Data is being transmitted through the Ethernet port;
Off: Ethernet connection is not set up;
2
LOS
GPON optical signals
On: Optical power lower than receiver sensitivity ;
