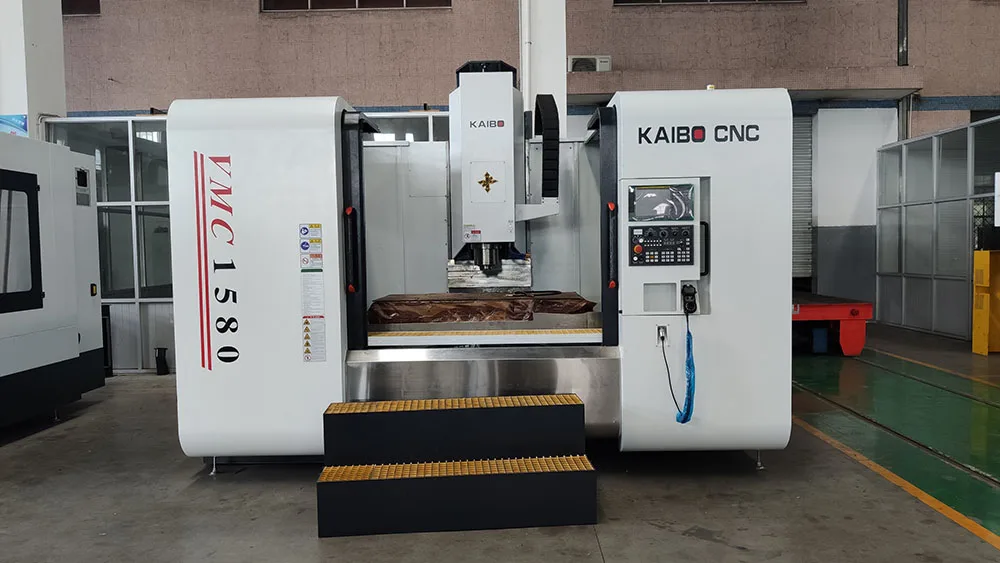

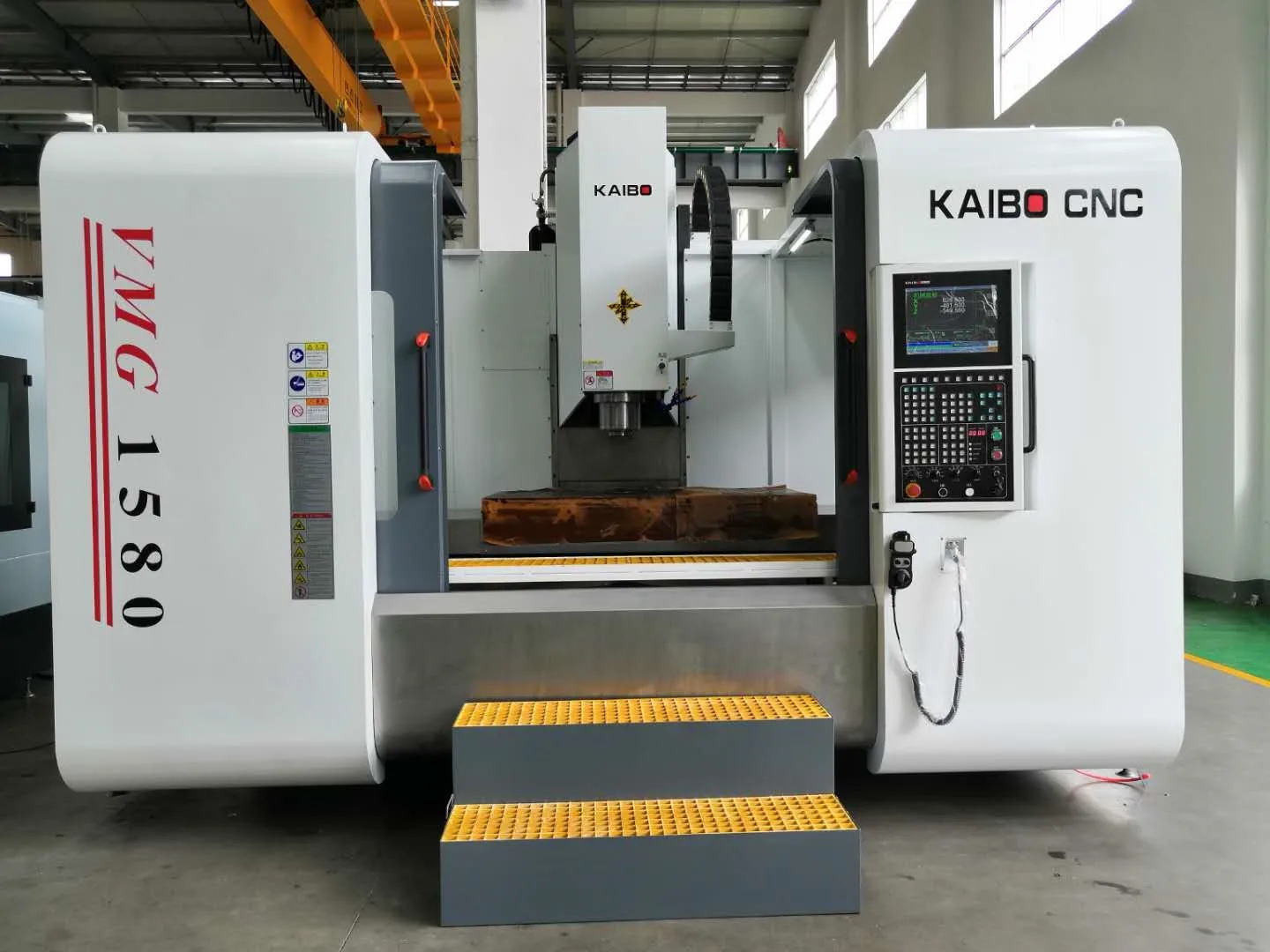

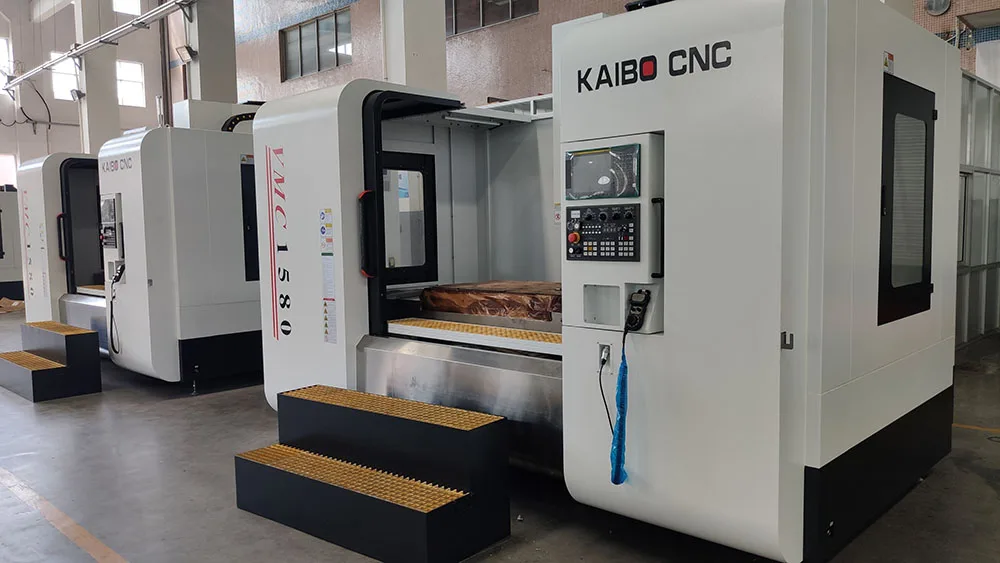

cnc milling machine VMC BT50 spindle vertical machining center
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60776554853):
Product Overview
Description
PRODUCT FEATURES
FH1580L is a big torque CNC vertical milling machine, which can load a plug-on planetary gear with a ratio of 1:4 is mounted between the electric motor and the head of a milling machine to increase the cutting moment.
Big torque CNC vertical milling machine FH1580L is a roller-type linear guideway and it offers a potent mix of speed and rigidity, the toughest applications. High torque spindle motors and servo systems assure smooth, vibration-free cuts in your hardest materials.
Big torque CNC vertical milling machine FH1580L is a roller-type linear guideway and it offers a potent mix of speed and rigidity, the toughest applications. High torque spindle motors and servo systems assure smooth, vibration-free cuts in your hardest materials.
C-frame structure
X/Y/Z axis travel: 1500/800/700mm
BT50 spindle
Optional for the bear box to increase the torque
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
X/Y/Z axis travel: 1500/800/700mm
BT50 spindle
Optional for the bear box to increase the torque
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
PRODUCT PARAMENTERS
Parameter/Model | VMC1580 | ||
Accuracy | Positioning accuracy | 0.01mm | |
Repeat positioning accuracy | 0.005mm | ||
Worktable | Worktable size | 1500*800mm | |
T-slot size | 6T-18-125mm | ||
Max. load | 3000kg | ||
Travel | X/Y/Z axis travel | 1500*800*700mm | |
Spindle nose to worktable | 110-810mm | ||
Spindle center to Column | 850mm | ||
Feed | Max. feeding speed G00 | 20-20-15m/min | |
Max. working speed G01 | 8m/min | ||
X/Y/Z axis motor power | 4.4/4.4/4.4kw | ||
Spindle | Drive type | Direct type | |
Spindle motor power | 18.5-22kw | ||
Spindle Max. speed | 6000rpm | ||
Tool holder | BT50 | ||
ATC type | Arm type | ||
ATC capacity | 24pcs | ||
Common | Power supply and total capacity | 3P/380V/50Hz/40KVA | |
Machine weight | 12000kg | ||
Dimension | 4000*3000*3200mm | ||

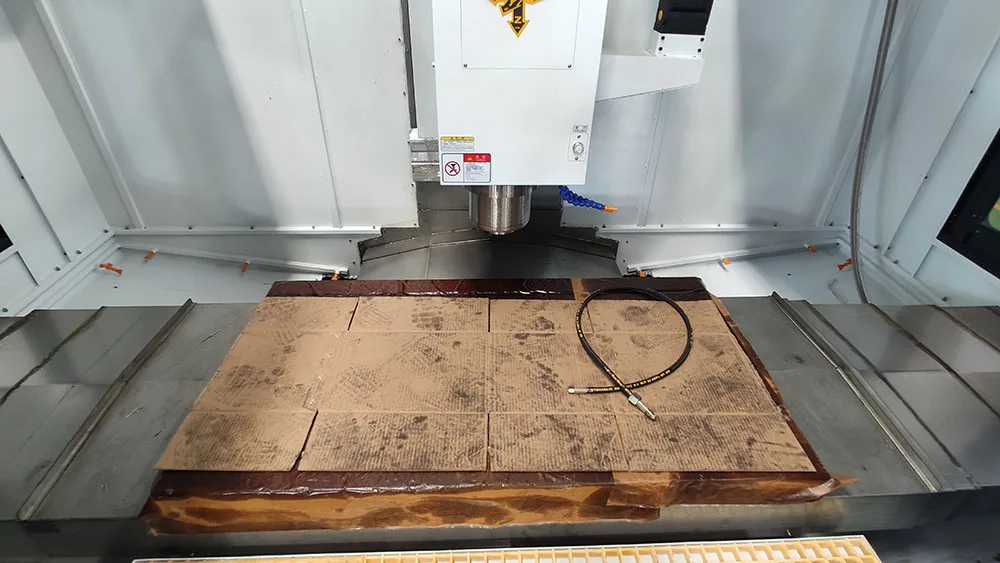

PRODUCT DETAILS
QUALITY INSPECTION

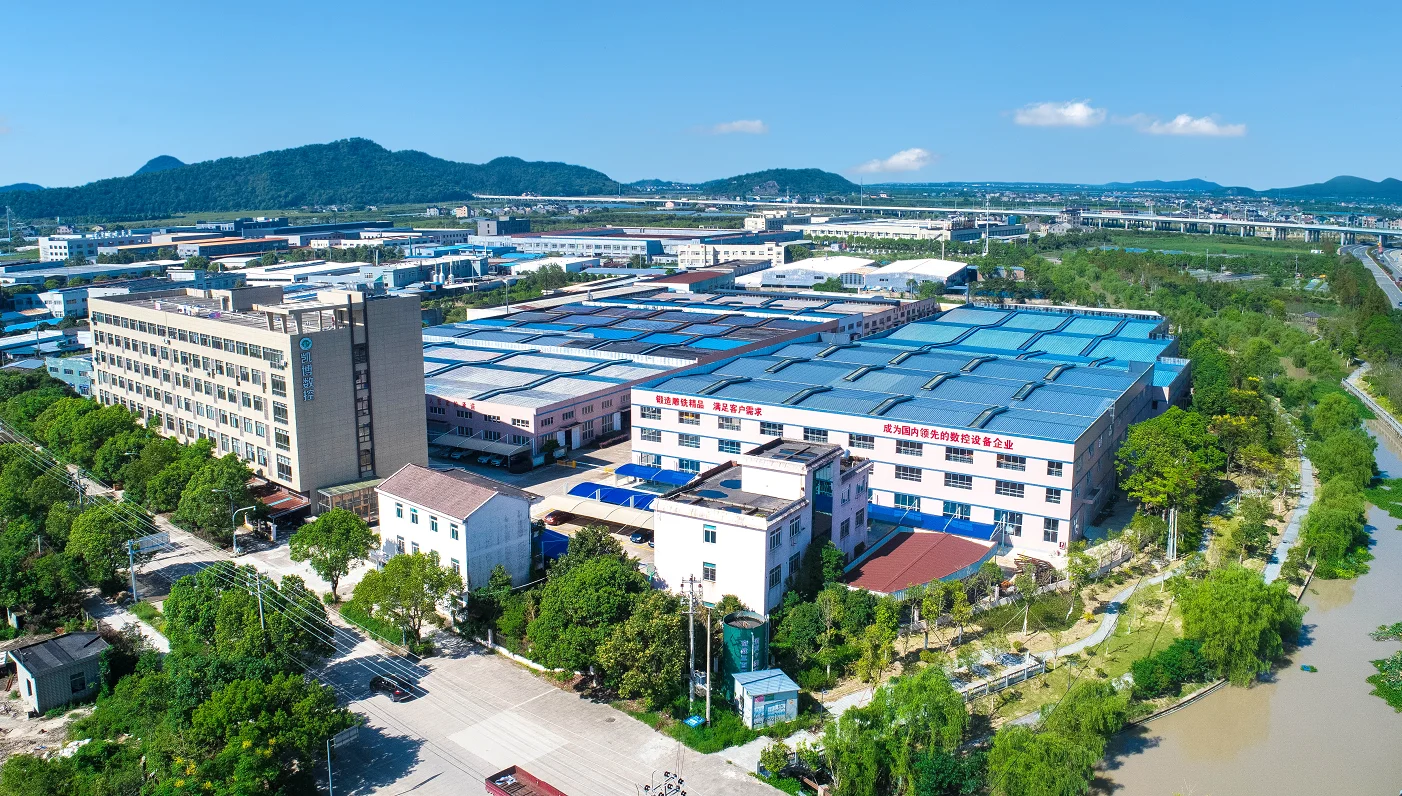

Ningbo Kaibo CNC Machinery Co., Ltd.
Ningbo KAIBO CNC Machinery Co., Ltd. grew out of Ninghai FEIHE Mechanical Engraving Factory which was established in 1994. In 2003, KAIBO CNC was officially established.
KAIBO CNC is a high-tech enterprise integrating R&D, manufacturing, and marketing. KAIBOCNC has more than 52000 square meters of standard factory buildings and more than 360 staff. Specializing in the production of 3/4/5 axis VMC, CNC Engraving Milling Machine, and Customized CNC machines.
KAIBO CNC has more than 26 sales-service offices in various provinces and cities in China and overseas, to provide customers with perfect sales & after-sales service.
As CNC Engraving Milling Machine National Standard Setter, KAIBO get the “Famous Brand” in Zhejiang Province. KAIBO CNC will always be adhering to the purpose of “Research and develop high-quality machines to meet customer’s needs “. Strive to provide high-quality products and high-efficient services.
KAIBO CNC is a high-tech enterprise integrating R&D, manufacturing, and marketing. KAIBOCNC has more than 52000 square meters of standard factory buildings and more than 360 staff. Specializing in the production of 3/4/5 axis VMC, CNC Engraving Milling Machine, and Customized CNC machines.
KAIBO CNC has more than 26 sales-service offices in various provinces and cities in China and overseas, to provide customers with perfect sales & after-sales service.
As CNC Engraving Milling Machine National Standard Setter, KAIBO get the “Famous Brand” in Zhejiang Province. KAIBO CNC will always be adhering to the purpose of “Research and develop high-quality machines to meet customer’s needs “. Strive to provide high-quality products and high-efficient services.
WHY CHOOSE US
1. We are Manufacturer. All machineries from NINBO KAIBO CNC MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2.KAIBO CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong CNC Machine research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
3.We provide our Customers With all the details, including machinery details, their operation, and technical support.
2.KAIBO CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong CNC Machine research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
3.We provide our Customers With all the details, including machinery details, their operation, and technical support.
