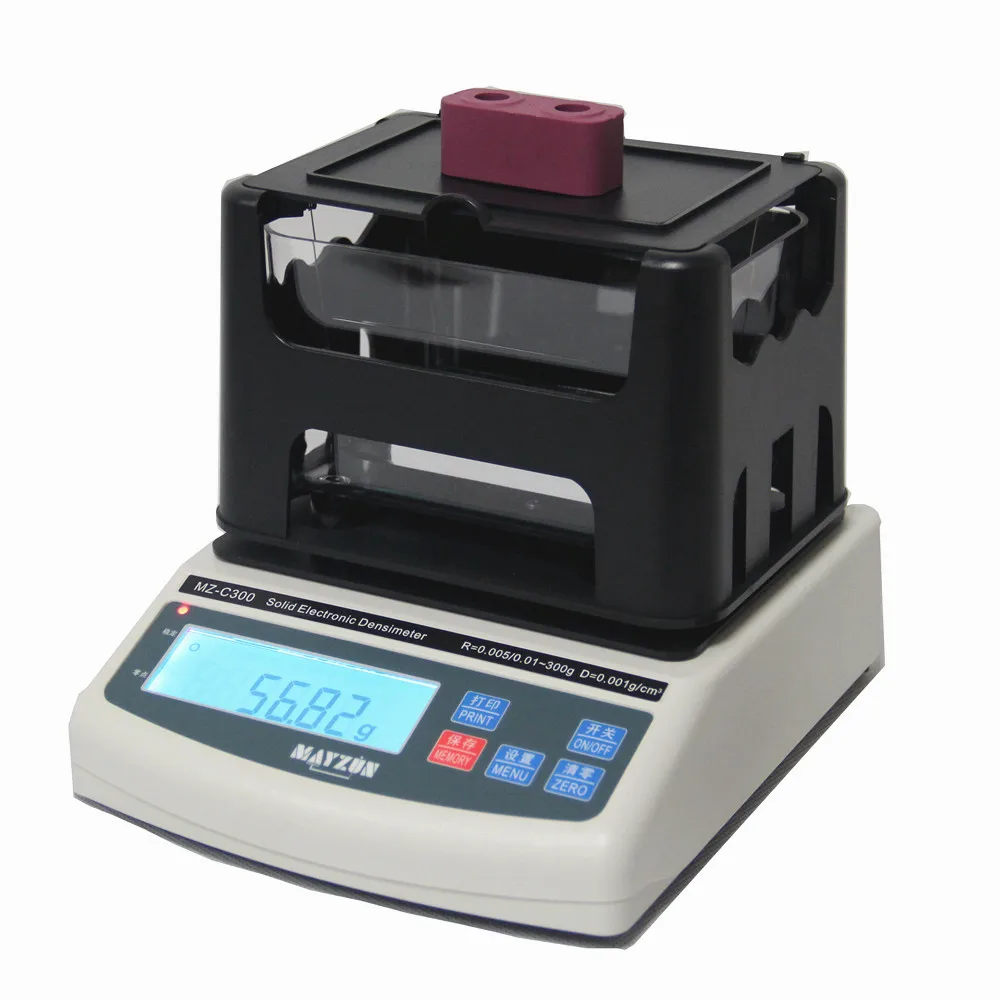

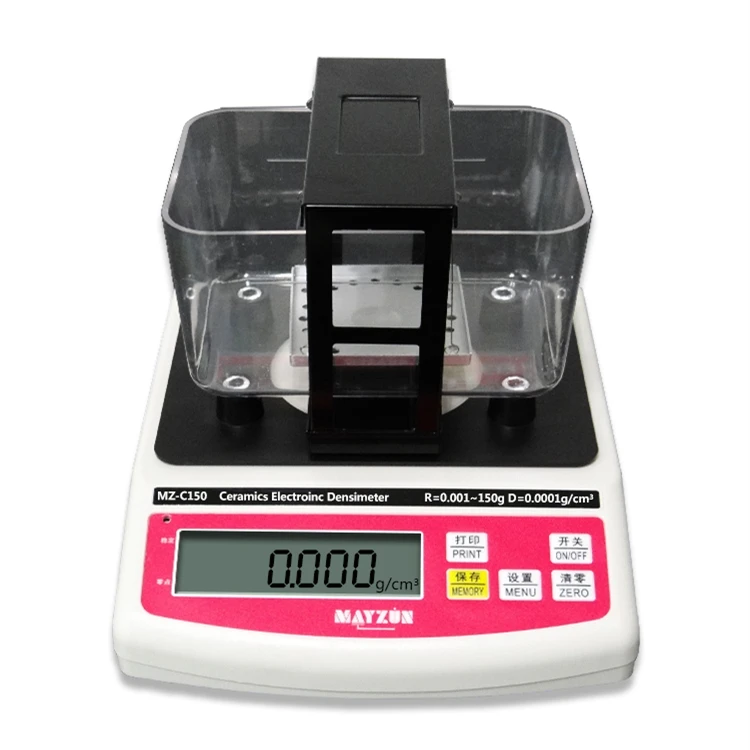

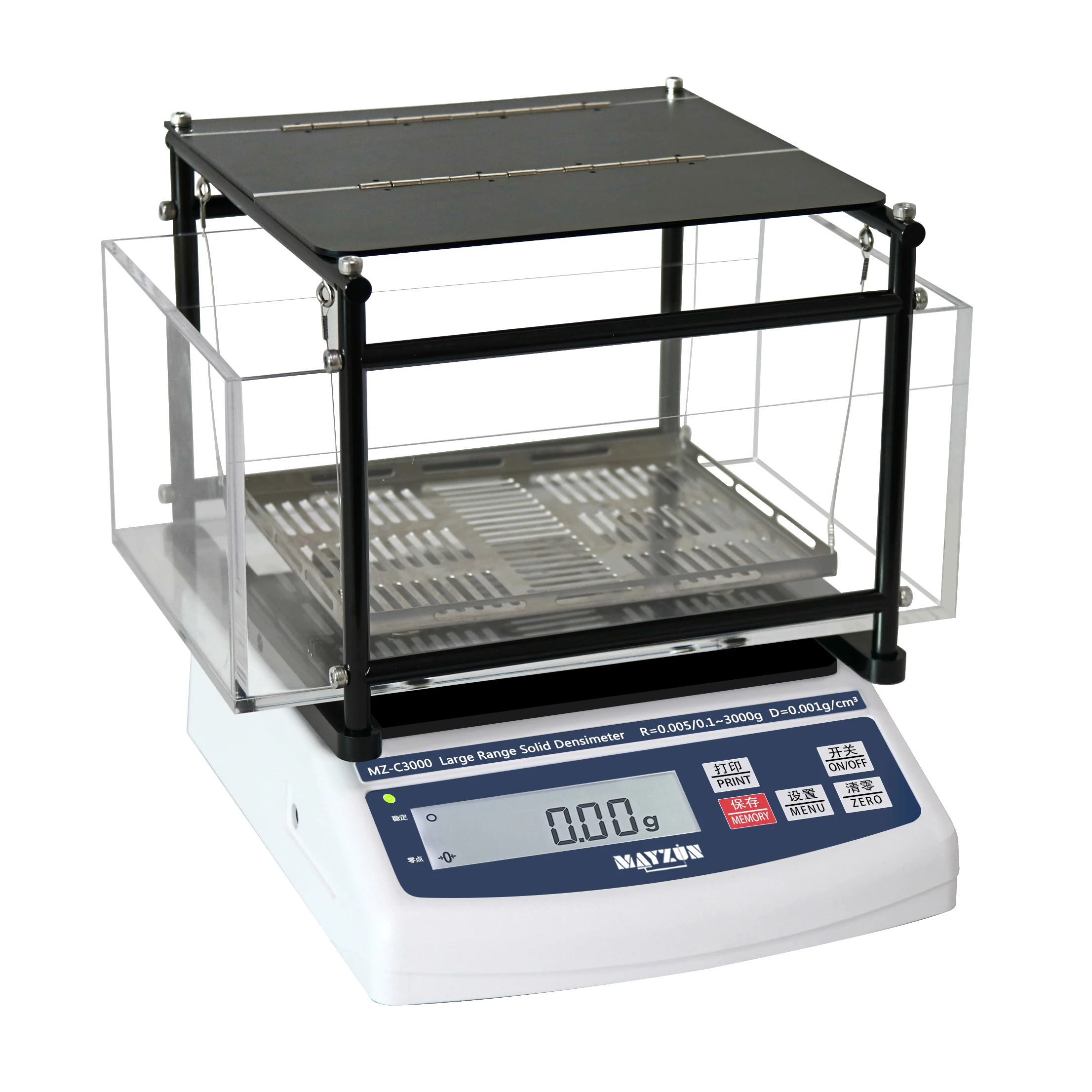

Wide range Electronic Density Meter for Ceramic , Powder Metallurgy , Magnetic Materials

The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.

Principle:

In accordance with ASTM C20/C134/C373/C329, GB/T 2413, 1966, 2834, EN-725, and by adopting the buoyancy method of Archimedean principle, the boiling water method, wax-sealing method and vacuum saturation method can be chosen to use, it can show the measuring result accurately and fast.

Specifications:

Wide-range Electronic Density Meter for Ceramic , Powder Metallurgy , Magnetic Materials

Notice:Every model but for its difference in accuracy, they are of the same function.

Features:

1. Digital display and direct reading, without manual calculation, directly display density and volume, wet density,water absorption,effective porosity volume,oil content etc.

2. Porous ceramics, dense ceramics,aluminium oxide ceramics,zirconia oxide ceramics and ceramics powder can be quickly measured.

3. Adopt the original German HBM sensor for accurate measurement, simple operation, stable and durable.

4. It has the function of actual water temperature compensation and can adapt to the change of test environment.

5. The media liquid density can be set, water and other liquid media can be used as the medium.

6.Adopt integrated forming large-capacity measuring platform, corrosion resistant and fall resistant, free replacement for life.

7.Adopt special windproof dustproof cover,which makes the structure more convenient and durable.

8. It can be connected to the PC and printer easily by RS-232. Optional mz-p1 printer to print the measurement data.


Functions:

1.For porous water-absorption ceramic products, volume density (medium method). Apparent density, wet density, apparent porosity, water absorption and open pore volume, closed pore volume , total porosity can be directly read .

2.For porous water-absorption ceramic products, volume density can be directly read (sealing wax method).

3.For Non - porous non - absorbent ceramic products, density can directly read.

4.For the powder samples, special pycnometer configuration, powder density can be directly read

Products Additional Function:

1. All measurement results have error correction function. (density, volume, porosity, water absorption rate) One-key compensate error value.

2. The display precision of measurement results can be adjusted depend on customers requirements.

3. One-key to print the measurement report in the specified format and make the report according to customer's report format.

4. Record at least 100 sets of measurement results and export EXCEL/PDF data reports anytime and anywhere.

5. It can provide data interface to connect with ERP and share test data in real time.

Note: Customize the required functions for customers. Please consult for details.

Industrial ceramic,accuracy ceramci,penetrable sintering metal materials,powder metallurgy,magnetic materials,coal and rock,polymer porosity materials,new materials researching laboratory.

Porosity or void fraction is a measure of the void (i.e., "empty") spaces in a material, and is a fraction of the volume of voids over the total volume, between 0 and 1, or as a percentage between 0 and 100%.It can be calculated from the extra increased weight through dipping process.this instrument has been researched and developed by MAYZUN (Our brand);Adopt the high precision weighting sensor;Porosity can be read automatically;it has changed the manual computation method;save time,quick,convenient;function of testing density.

Measuring Procedure：

Ceramic Measuring Procedure：

Step 1:

Place sample on test board to measure weight in air,and then press MEMORY button to memory.

Step 2:

Place the sample into water to measure weight in water,and then press MEMORY button to memory. Density value is displayed.

Results:

1、Density values(unit:g/cm³)
2、Volume value(unit:cm³)
Notice:Press MENU key to show different results

Porous ceramics Messuring Procedure:

Step 1:

Place sample on testing board to measure weight in air.press MEMORY key to memory.

Step 2:

After did containing saturated processing,place sample on testing to measure weight.press MEMORY key to memory.(Vacuum processing)

Step 3:

Place sample into water to measure weight in water.press MEMORY key.porosity will be displayed

Results:

1、Density values(unit:g/cm³)
2、Volume value(unit:cm³)

3、apparent porosity, water absorption, volume of open pores, volume of closed pores, total porosity(unit:%)
Notice:Press MENU key to show different results

Qun Long (Mayzun is our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you

1. Different program functions can be customized according to customer requirements.

2. We can provide OEM service.

3. Looking for brand agent wholesales all over the world.

1.How about quality and warranty of our products?

When you receive a product from Qun Long, it must be debuged by our production staffs,technical staff and warehouse management. And our technical staffs have more than 10 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .


2.How about after-sales Service

(1)If errors occur, please refer to the troubleshooting tips of the instruction manual

(2)Please contact with our after-sales service department or distribution in time if can’t clear fault

(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.

(4)After-sales line : 0755-82596242

(5)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:

a:Wrong operation

b:Fixed or refitted personally

c:The machine itself is not the reason caused breakdown

d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.

e:Move or transportation as soon as installed

f:Consumables and easy-loss components

g:Natural disaster


3.How many days can you receive the products?

Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.


4.How to shipping the product?

Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.


5.What is our return policy?

You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.


6.Are we manufacturer made copy product or original product?

We are the original manufacturer for densimerter, Mayzun is our own brand. The model starts with DH is belongs to us generally.


7.Why choose us?

Qun Long have been specialized in density field since 2009. Qun Long as a professional density meter supplier , has maintained a constant belief：First - class quality , professional technology team and services team，ample supply and prompt delivery.
