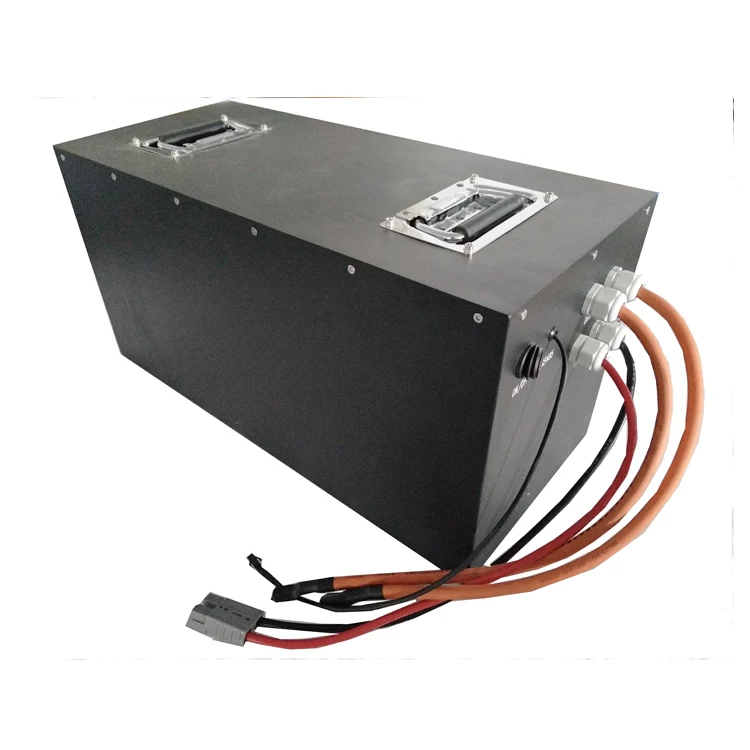

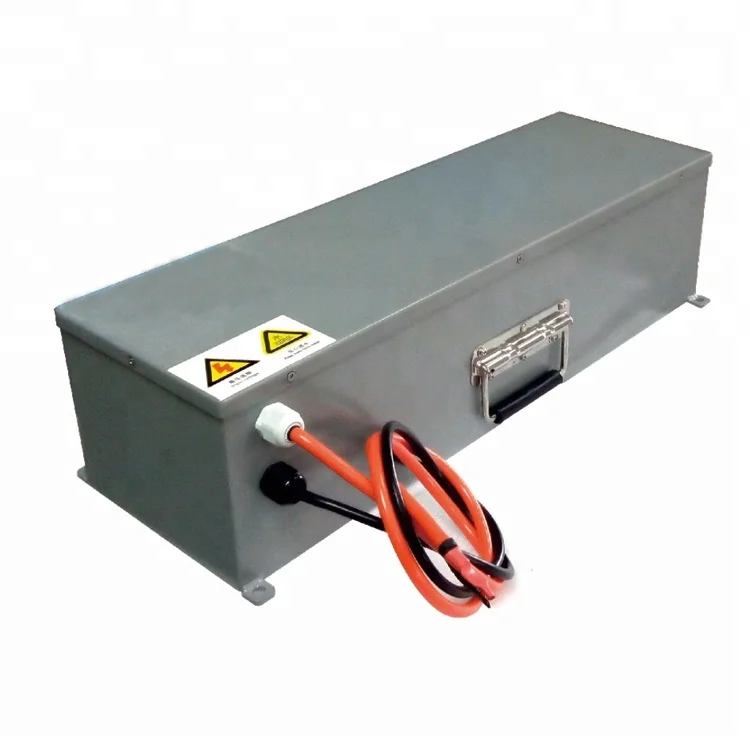

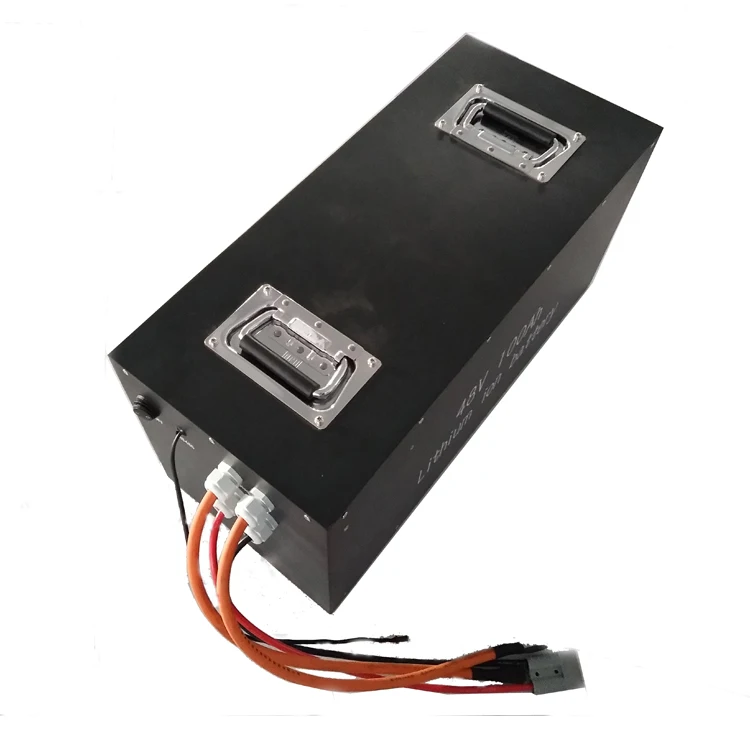

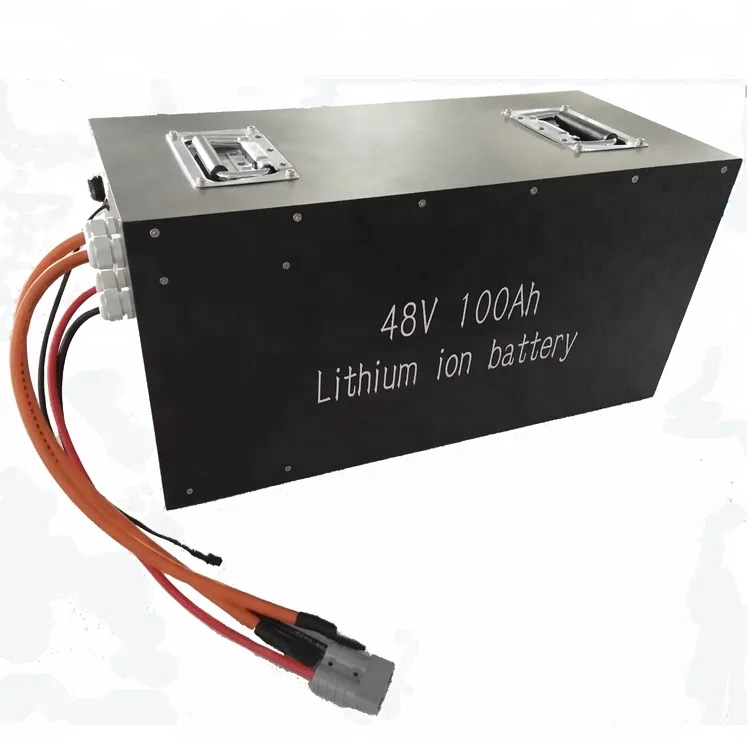

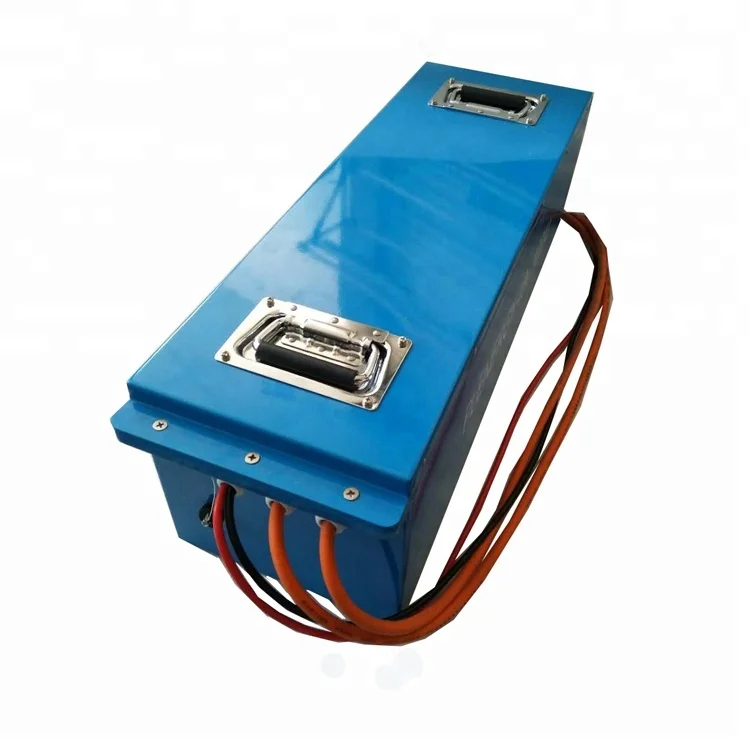

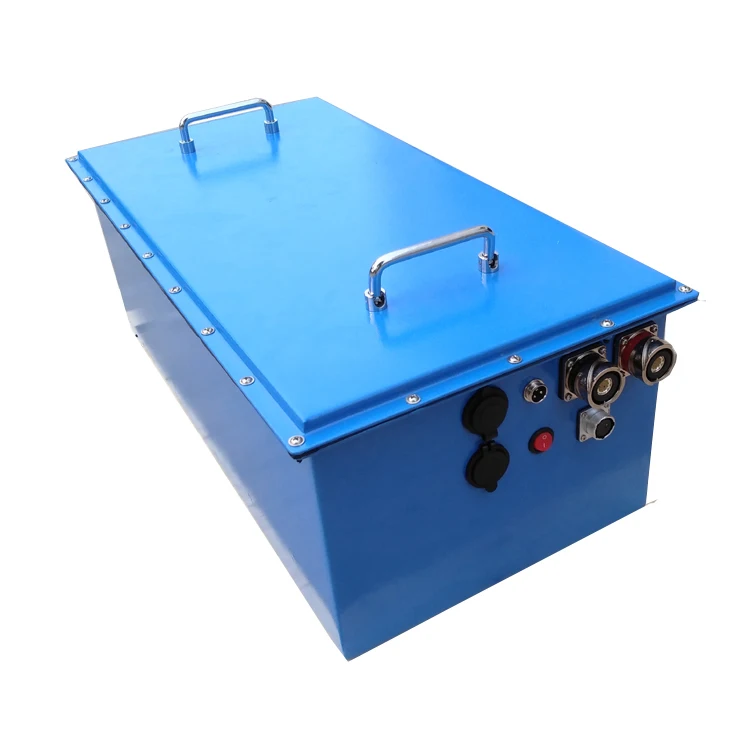

Golf cart lithium battery 48v 100ah is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
Basic Specification
ItemsItems
Parameter
Battery Type
Lithium ion NCM
Nominal Voltage
51.8V
Nominal Capacity
100Ah
Energy
5.18Wh
Internal Resistance
≤20mΩ
Limited Charge Voltage
58.8±0.2V
Floating Charge Voltage
44±0.2V
Charge Method
CC/CV
Discharge Cut-off Voltage
10.0V
Standard Charge Current
20A
Max. Charge Current
80A
Standard Continuous Discharge Current
10A
Max. Continuous Discharge Current (<30min)
150A
Pulse Discharge Current (<3s)
350A
Cycle Life
> 1000 cycles
Dimension (mm)
Length: 508±2 Width: 280±2 Height: 230±2
Weight
52.5±0.2Kg
Charge Temperature Range
0~45℃
Discharge Temperature Range
-20~60℃
Recommended Operating Temperature
15~35℃
Self-Discharge Rate (Residual capacity)
≤3%/month; ≤15%/years
Self-Discharge Rate (Reversible capacity)
≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range (Less than 1 month)
-20~35℃, 45~75%RH
Storage Temperature & Humidity Range (Less than 3 months)
-10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range
15~35℃,45~75%RH
ADVANTAGES
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
SAFETY
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
APPLICATIONS
1.Energy Storage --Solar-Wind Power System / City Grid (On/Off) / Community and Family 2.Back-up System and UPS --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment 3.Other Applications --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard --LED Backup / Engine Starting Battery,etc.
