2018 Silent Electric Motor Mid Drive motor Brushless Geared Hub Motor for electric bicycle

Product Overview

Description

2018 Silent Electric Motor Bafang Mid Drive Brushless Geared Hub Motor

Position	Front Motor	Weight (kg)	1.7
Wheel Diameter (Inch)	26/700C/28	Noise Grade (dB)	< 50
Construction	Gear drive	Operating temperature	-20-45℃
Rated Voltage (DCV)	36/43	Color	Silver
n0 (Rpm)	240/265	IP	IP65
Rated Power (W)	250	Certifications	ROHS / CE
nT(Rpm)	211/235	Salt Spray Test Standard(h)	96
Max Torque	42 Nm	Efficiency (%)	≥ 80

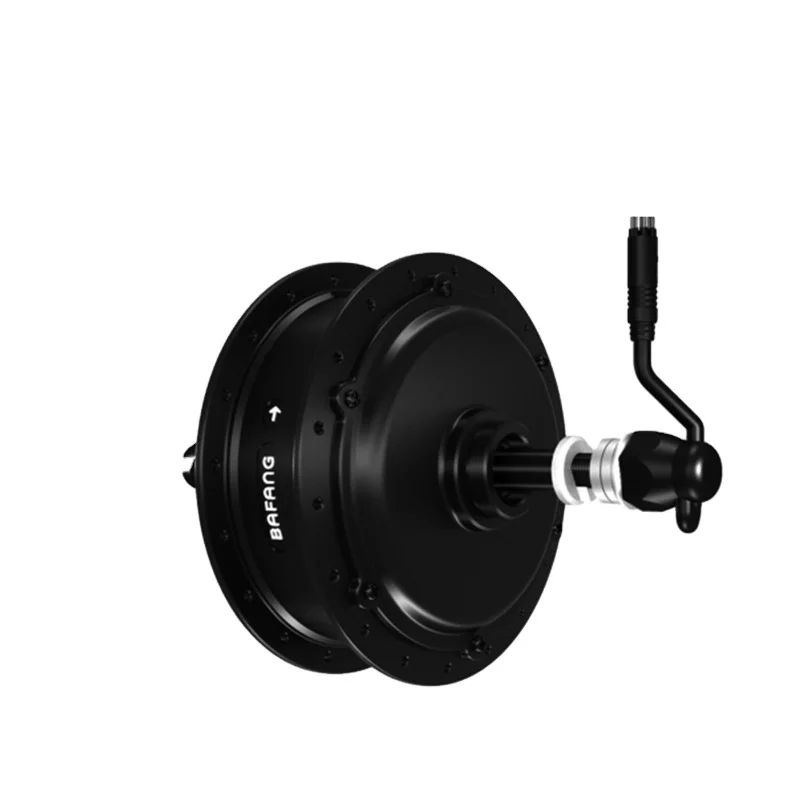

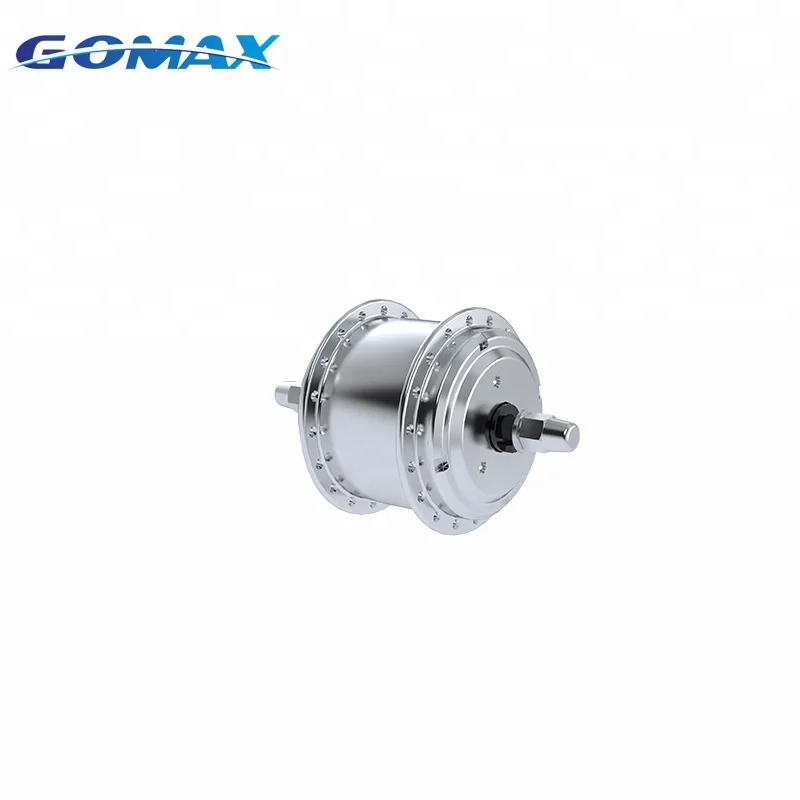

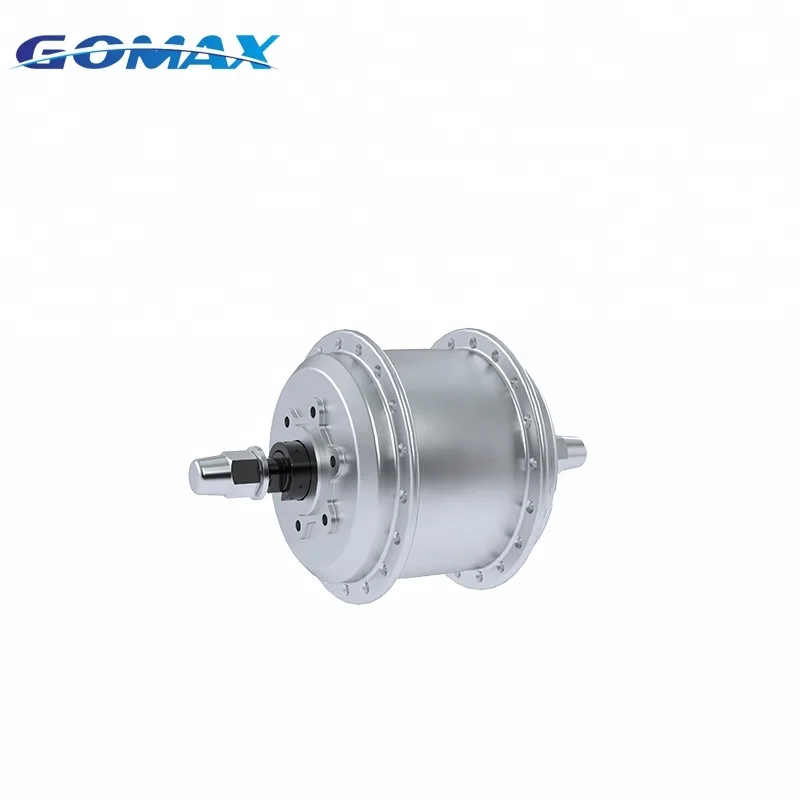

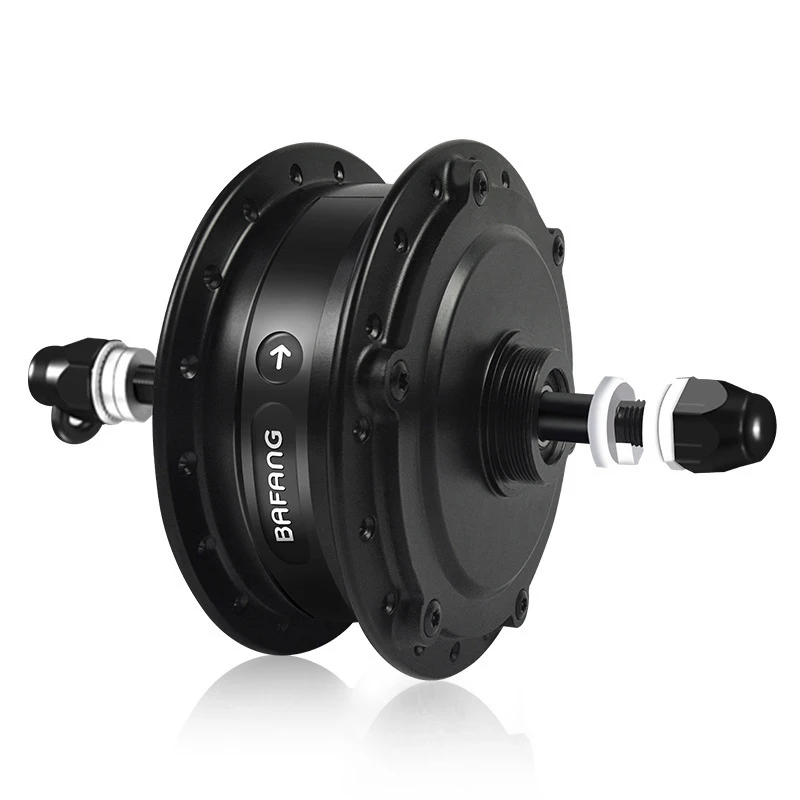

This front-drive motor, which has an inner rotor, is compatible with a disc or a V brake and has a rated power of 250W. Because of its inner rotor design and a large reduction ratio (1:12.5), the motor's power can be effectively released. Small in size, light in weight, high in efficiency, and smooth & quiet in running, this motor is suitable for city bikes. This motor is silver.
