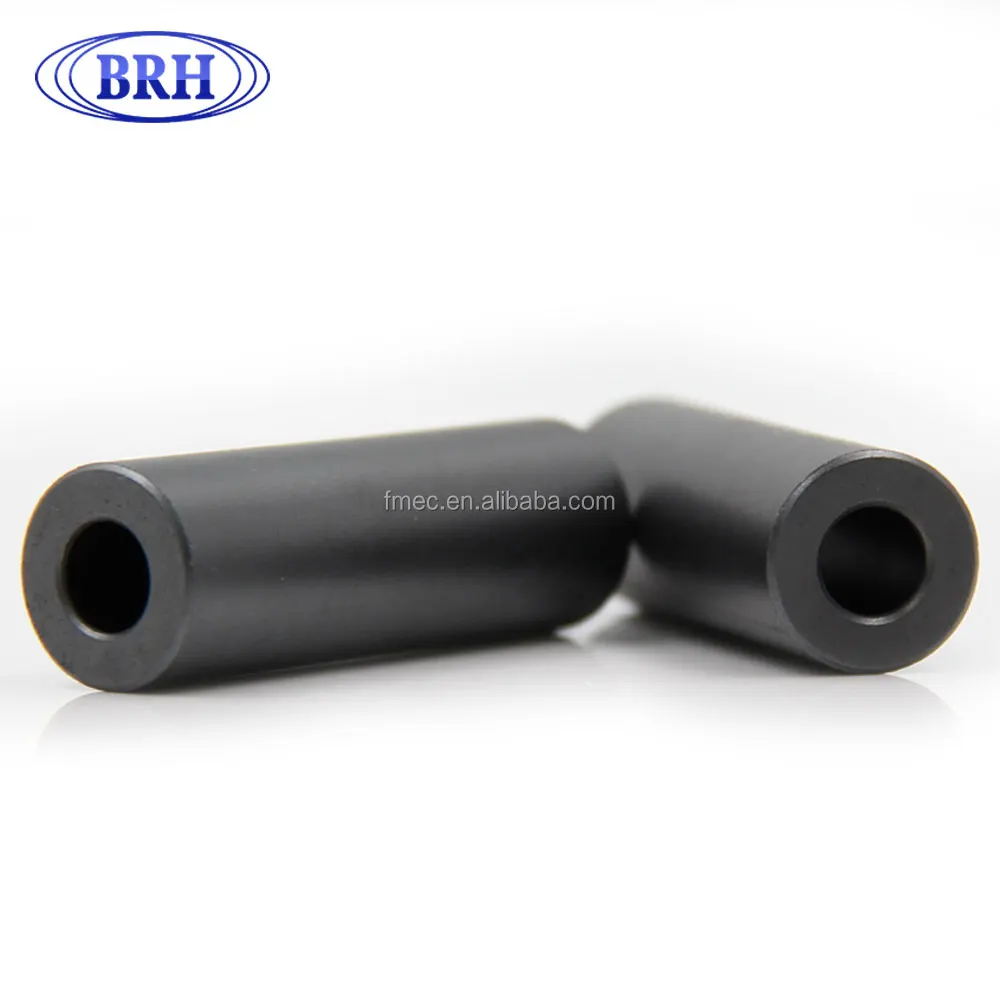

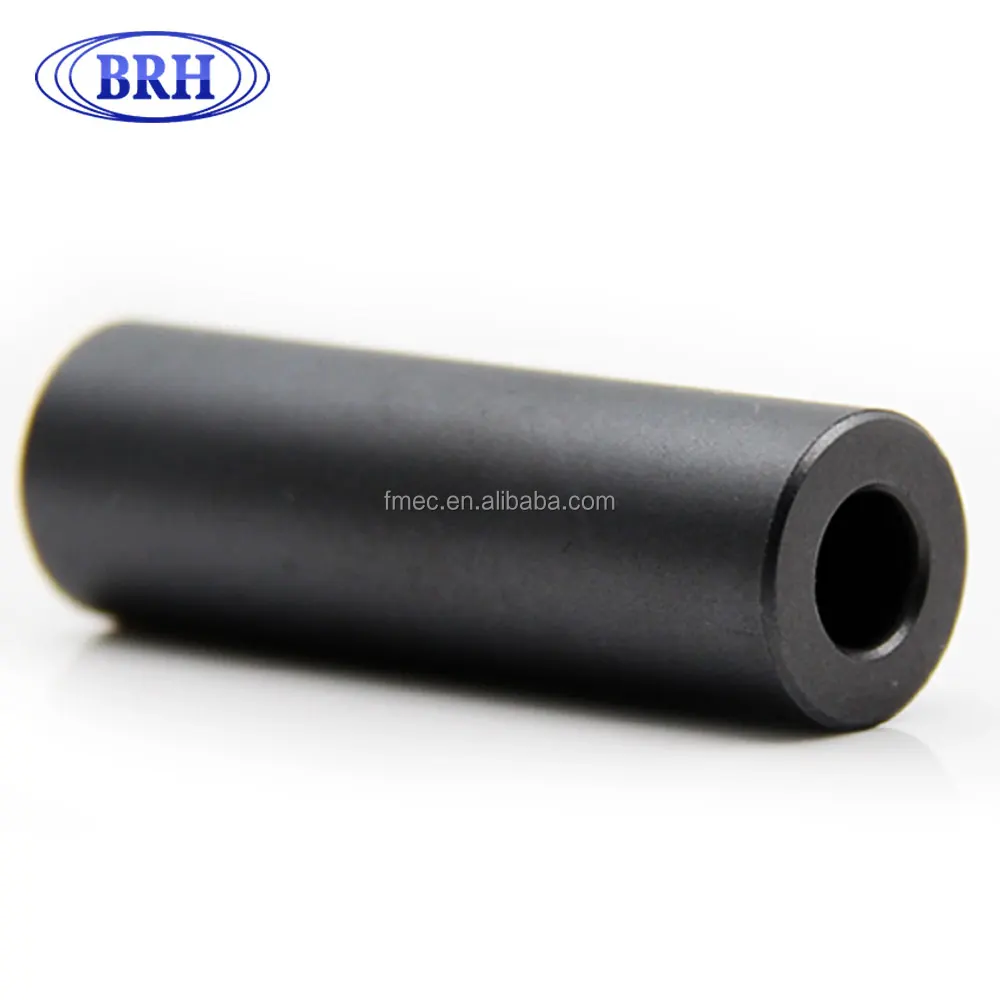

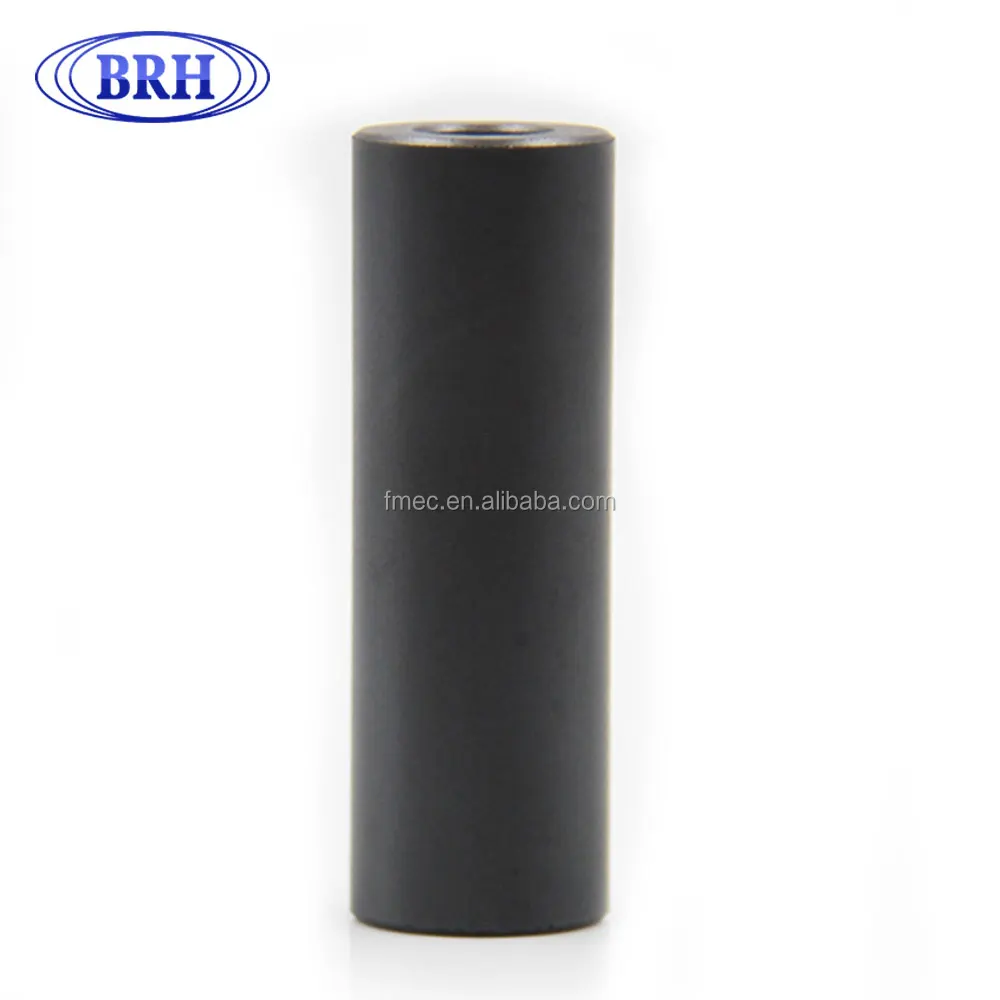

High frequency ferrite ring magnet for emc
High frequency ferrite ring magnet for emc
High frequency ferrite ring magnet for emc
High frequency ferrite ring magnet for emc
High frequency ferrite ring magnet for emc

High frequency ferrite ring magnet for emc

Share on (60776602455):


Price:

Quantity:


Product Overview

Description


Description
\t
SIZE CODE （mm)
\t
A
\t
B
\t
C
\t
A2 RH 16.25*50.8*7.9
\t
16.00±0.90
\t
50.80±2.5
\t
7.90±0.50
Parameter
\t

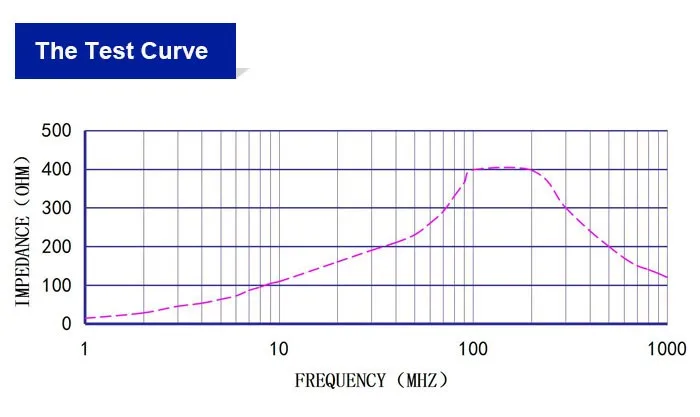

Electrical Requirements
\t
SIZE CODE （mm)
\t
A2 RH 16.25*50.8*7.9
\t
25 MHz
\t
155Ω MIN
\t
100 MHz
\t
340Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
155Ω MIN
\t
340Ω MIN
\t
16.00±0.90
\t
50.80±2.5
\t
7.90±0.50
\t
1
\t
180.01
\t
399.05
\t
16.23
\t
50.66
\t
7.95
\t
2
\t
170.12
\t
397.05
\t
16.29
\t
50.63
\t
7.92
\t
3
\t
175.02
\t
397.05
\t
16.15
\t
50.66
\t
7.94
\t
4
\t
180.23
\t
398.07
\t
16.23
\t
50.71
\t
7.81
\t
5
\t
170.23
\t
397.58
\t
16.08
\t
50.63
\t
8.01
\t
6
\t
173.02
\t
398.45
\t
16.23
\t
50.45
\t
7.95
\t
7
\t
182.01
\t
398.12
\t
16.29
\t
50.55
\t
7.92
\t
8
\t
180.04
\t
398.86
\t
16.18
\t
50.66
\t
7.93
\t
9
\t
173.02
\t
398.45
\t
16.12
\t
50.71
\t
7.94
\t
10
\t
175.02
\t
397.65
\t
16.15
\t
50.59
\t
7.98
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
175.87
\t
398.03
\t
16.20
\t
50.63
\t
7.94
\t
R
\t
11.89
\t
2.00
\t
0.21
\t
0.26
\t
0.20
\t
The above test data for reference，Actual results may differ due to different production batches
