3 Phase Dual Power Generator Change Over Automatic Tranisfer Switch AC DC 200 AMP 50/60HZ AC400V CN;ZHE 63 2P HOLSO WHITE 400V

Product Overview

Description

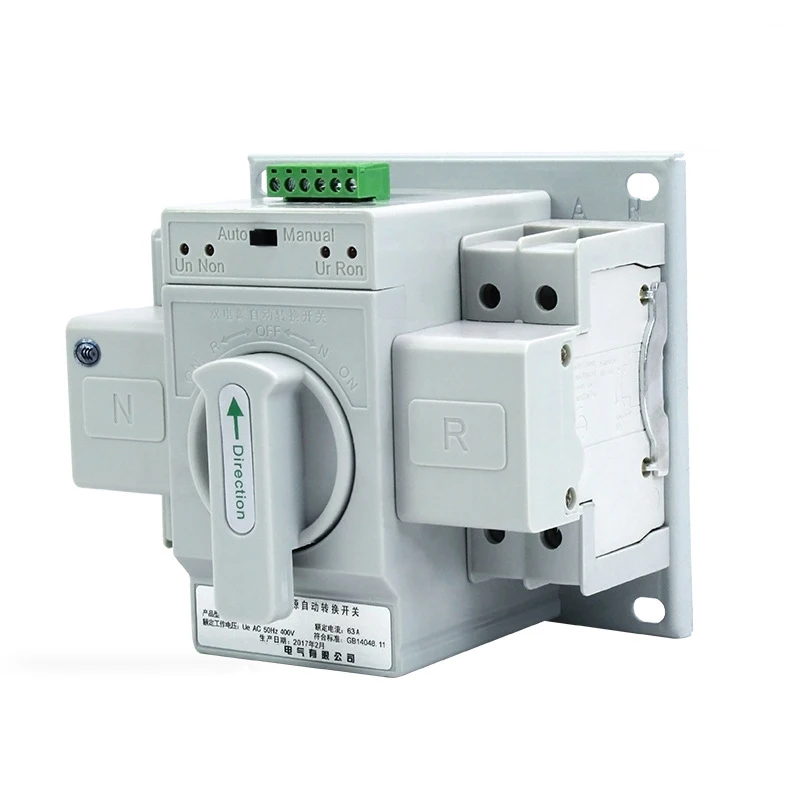

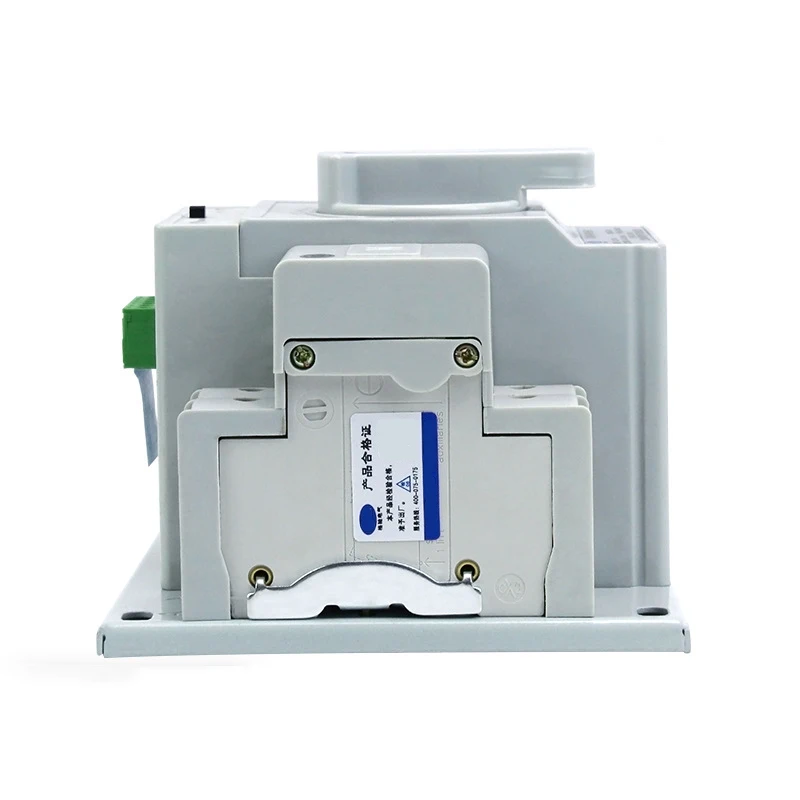

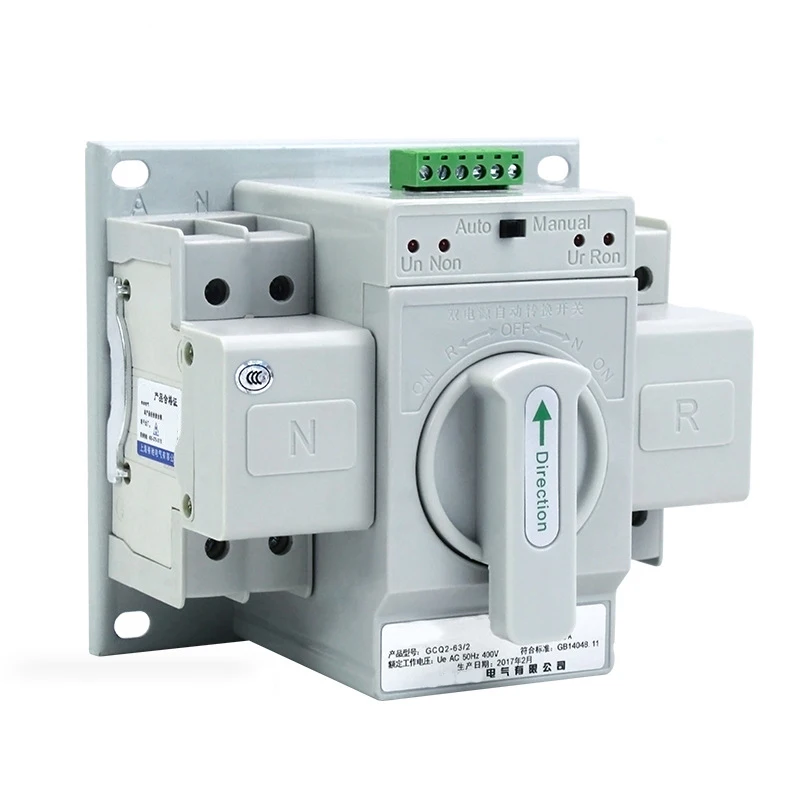

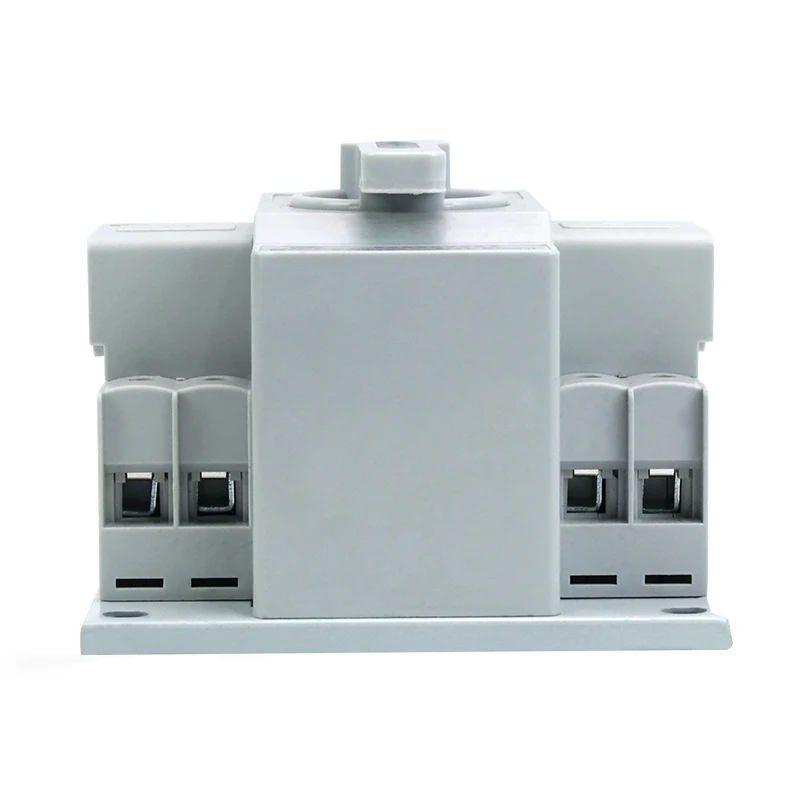

AC DC 200 AMP 3 Phase Dual Power generator change over Automatic Tranisfer Switch

    Dual Power Automatic Transfer Switch (A.T.S for short) applies to the terminal double-loop power supply system that 50Hz/60Hz, rated operating voltage 220V(2p),380V (3p and 4p), rated current 10 ~ 63 A. It can automatically switch the normal power to reserved power to prove the reliability of power supply, mainly used for fire pumps, smoke fans, elevators, pumps, lighting in high-rise buildings, shopping malls and other places.
    When the main power supply is normal,using the automatic model,the circuit breaker of reserve power supply is off,the circuit breaker of main power supply is on.When one phase or all three phase of the main power supply is off,the ATS will convert to the reserve power supply(the reserve power is normal),when the main power is normal,the reserve power will recover back to main power again.

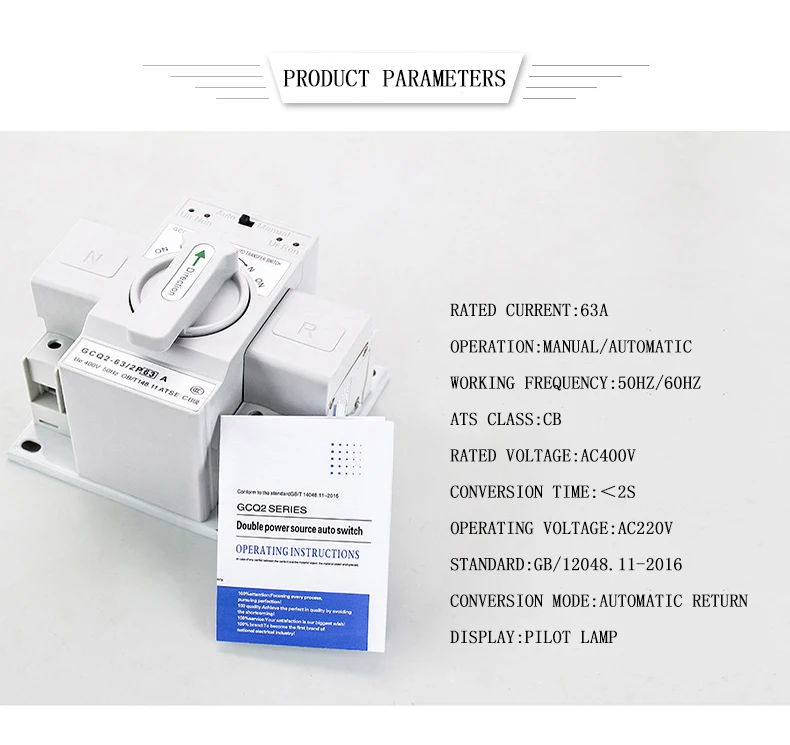

PRODUCT PARAMETERS



Rated Current	63A
Operation	Manual/Automatic
Working Frequency	50HZ/60HZ
ATS Class	CB
Rated Voltage	AC400V
Conversion Time	<2S
Product Size	185*138*115(mm)
Conversion Mode	Automatic Return
Display	Pilot Lamp

CHANGE OVER SWITCH

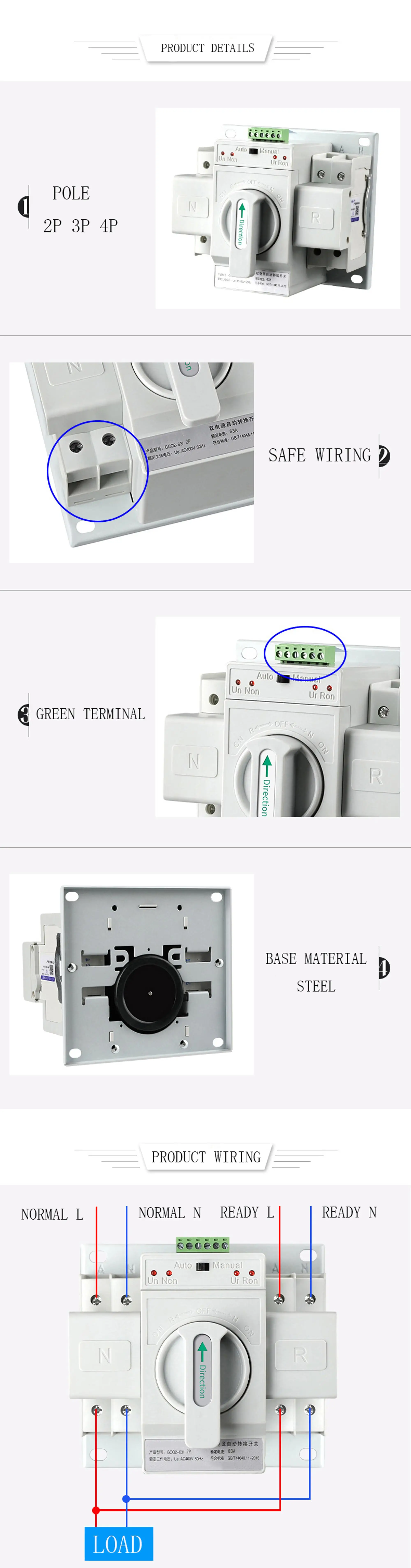

   PRODUCT DETAILS



  CHANGE OVER SWITCH













Packing & Shipping

1. By Express: DHL, UPS, Fedex, normally 4-5 working days for delivery, (suitable for samples)

2. By Air: if package gross weight is over 45KGS, 5-7 days for delivery, (suitable for trial order)

3. By Sea: the most economic shipping method for bulk order, (suitable for bulk order)

4. We can arrange all shipment matters or you arrange your shipping agent or forwarder
