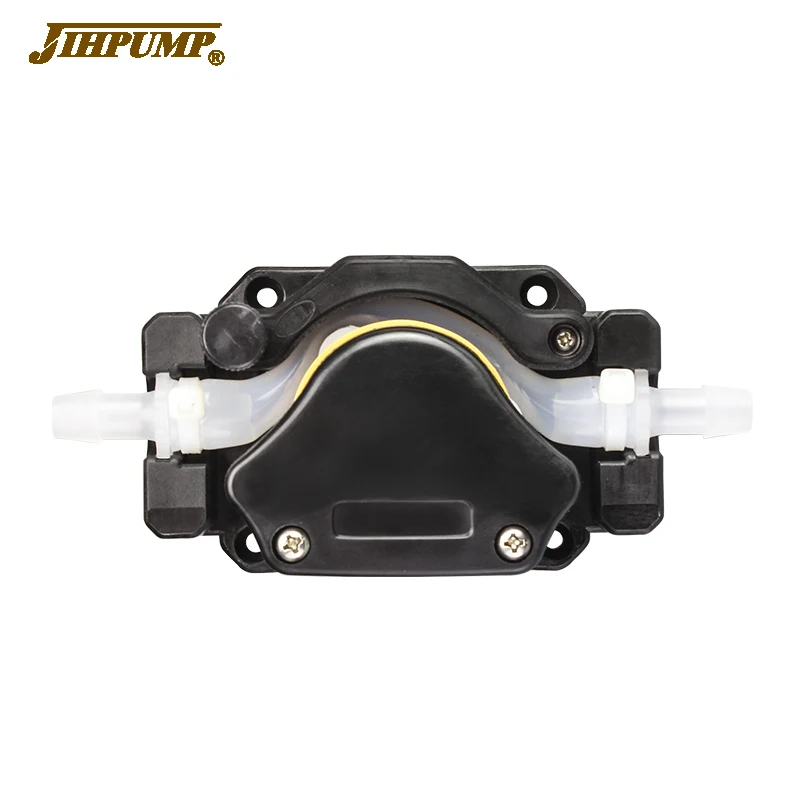

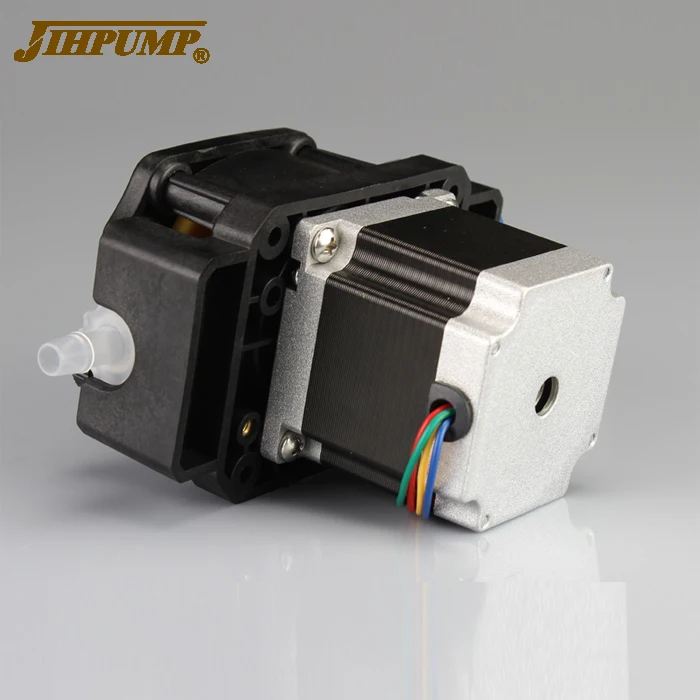

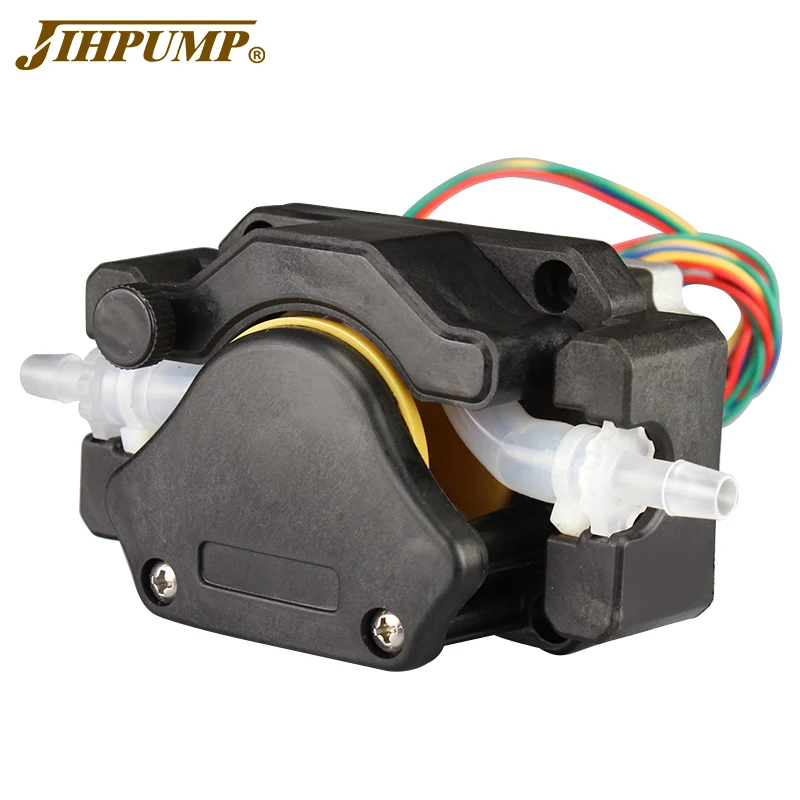

JIHPUMP Small Coffee Beverage Vending Machine DC Peristaltic Pump 12V 24V with Food Tubing peristaltic dosing pump
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60776642379):
Product Overview
Description
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1. China leading manufacturer of peristaltic pumps.
2. 18+years of experience in peristaltic pumps.
3. More than 20,000 cooperative customers.
4. Sold over 2 million peristaltic pumps.
2. 18+years of experience in peristaltic pumps.
3. More than 20,000 cooperative customers.
4. Sold over 2 million peristaltic pumps.
Lilian He(Europe , North and South America) :
WhatsApp:+8618983834629
Skype：+8618983834629
Email：alan@jihpump.com
Skype：+8618983834629
Email：alan@jihpump.com
April Huang(Asia and Africa) :
WhatsApp:+8615703016080
Skype：jihpump
Email：april@jihpump.com
Products Description:

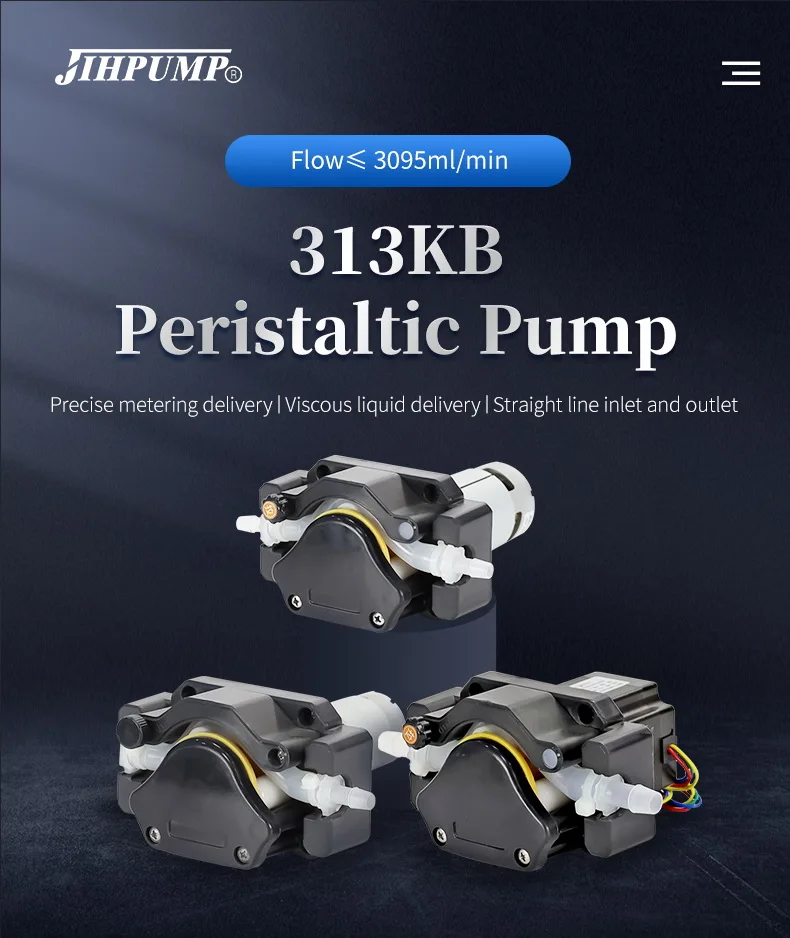

Features | ||||||
Straight inlet and outlet | Quick disassembly and easy installation pressure block | Viscous Fluid Delivery | More powerful suction | |||

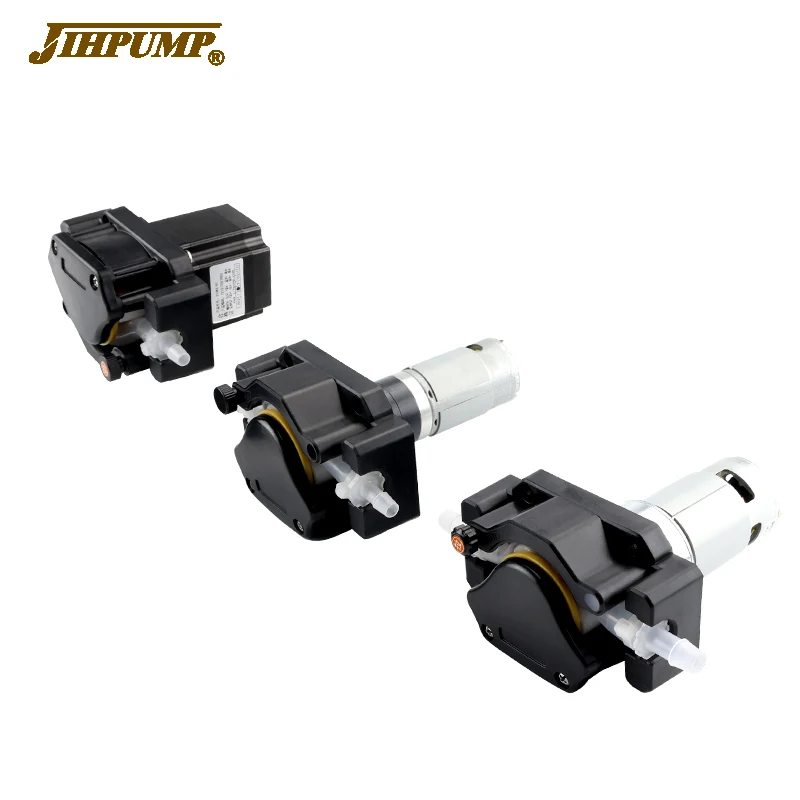

3 types of motors are available | 2 hose diameters | Precise metering and conveying | Mature, stable and reliable | |||
Hot Sale Products ：
Product Parameters | ||||||
Product name | Small Liquid Dosing Food Grade pumps peristaltic dosing pump Peristaltic Pump 12v 24v for Coffee Syrup wine transfer pump | |||||

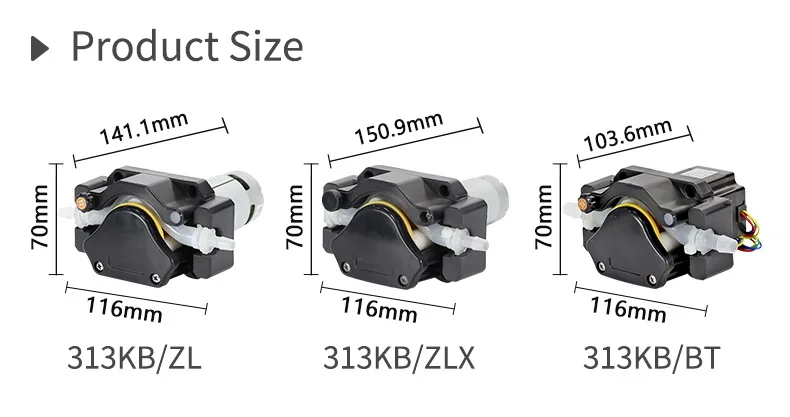

Product number | 313KB/ZL | 313KB/ZLX | 313KB/BT | |||
Motor type | DC gear motor | DC planetary gear motor | Stepper motor | |||
Use electric | DC 12V,6A/24V,3A | DC 12V,4A/24V,2A | DC 24V，4A | |||
Use power(W) | ≤36W | ≤24W | ≤60W | |||
Weight | 734g | 607g | 910g | |||
Outlet pressure | ≤0.17MPa | |||||
Main material | Upper support: Polyamide; Wheels: Polyacetal; Base: Polyamide | |||||
Reference flow： Unit(ml/min） | ||||||||||||
Product numbe | 313KB/ZL | 313KB/ZLX | 313KB/BT | |||||||||
Motor speed Hose model | 166rpm | 326rpm | 507rpm | 150rpm | 300rpm | 300rpm | ||||||
24# | 625 | 1190 | 2030 | 535 | 1045 | 1065 | ||||||
35# | 940 | 1880 | 3095 | 805 | 1590 | 1600 | ||||||
Flow rate description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, using 2 pumps to deliver clean water. | |||||||||||

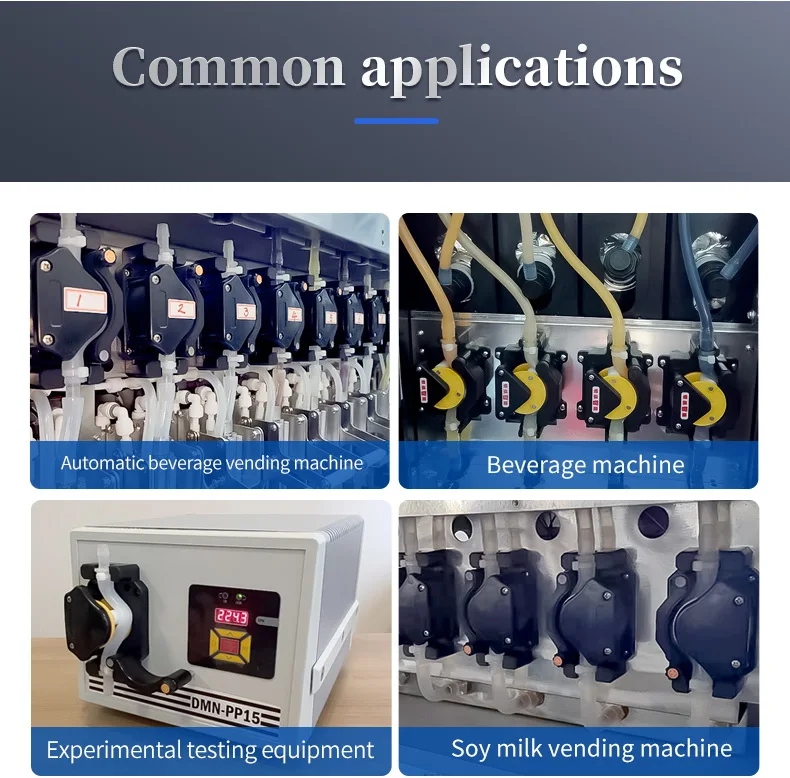

Common Applications: Automatic beverage vending machine, Beverage machine , Experimental testing equipment
, Analysis and testing instruments , Soybean milk vending machine , Yogurt machine equipment ，Ketchup, honey, coffee delivery etc.
Applications Industry: washing cleaning industry, Analytical Instruments, Analytical Instruments, Inkjet Ink, Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances etc.
① Upper support | ②Wheel set:Imported wear-resistant bar Precision lathe processing |

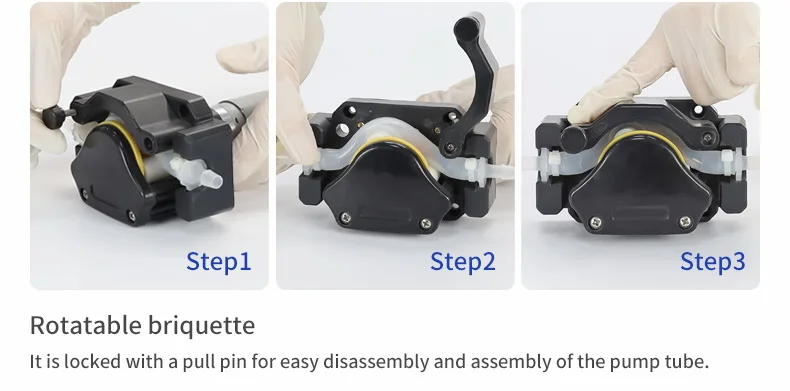

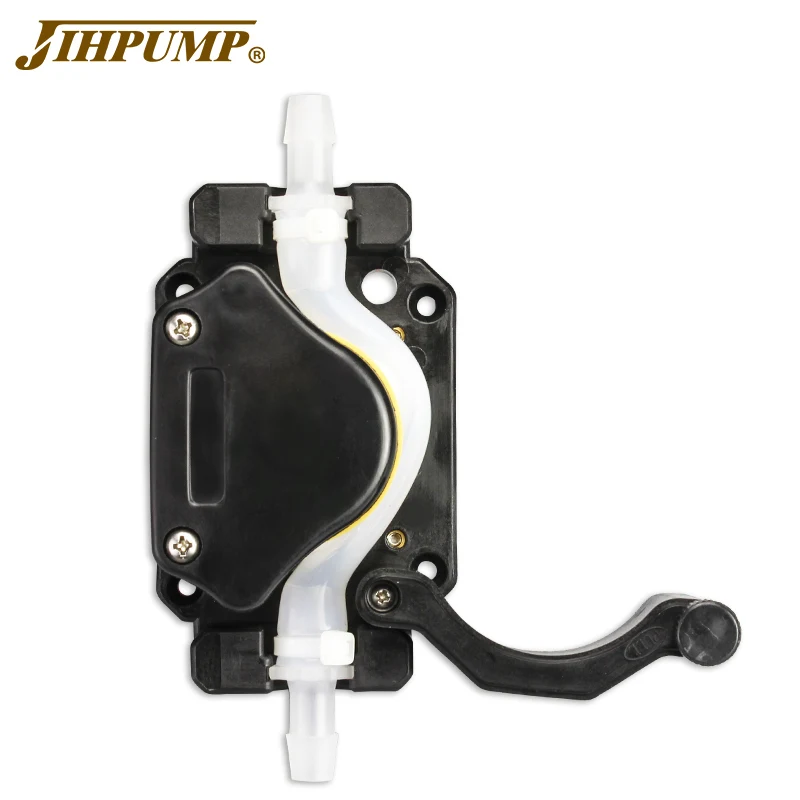

③Pump tube: Two diameter hoses are available | ④Hose pressure block: Pull out the rotary pressure block Easy to remove pump tubing |
⑤Base:import material High performance and high reliability | ⑥Motor:DC motor available DC Planetary Motor stepper motor |

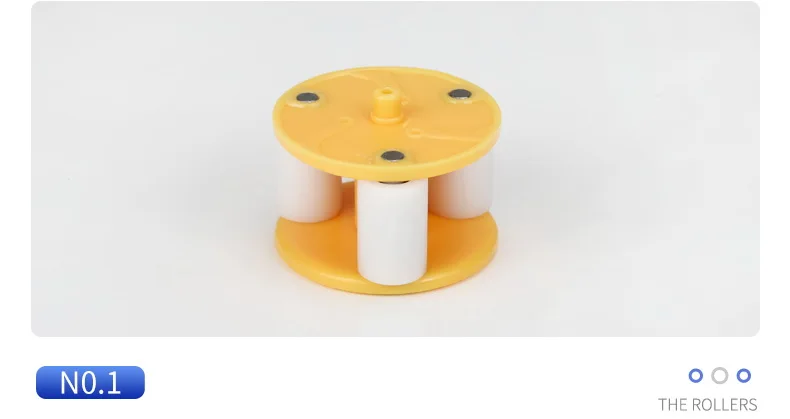

Working wheel set
Imported wear-resistant self-lubricating bar material and rollers processed by high-precision CNC lathes are more ccurate and durable for the peristaltic pump.

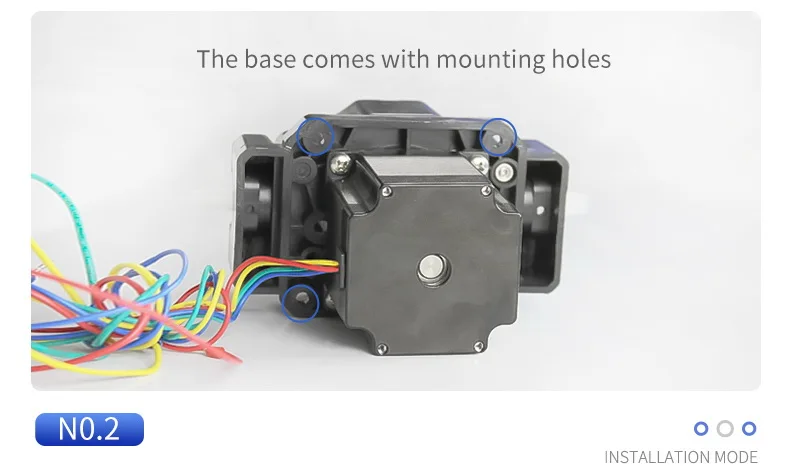

Installation method
The base comes with mounting holes, the peristaltic pump can be fixed in the position of these four holes.

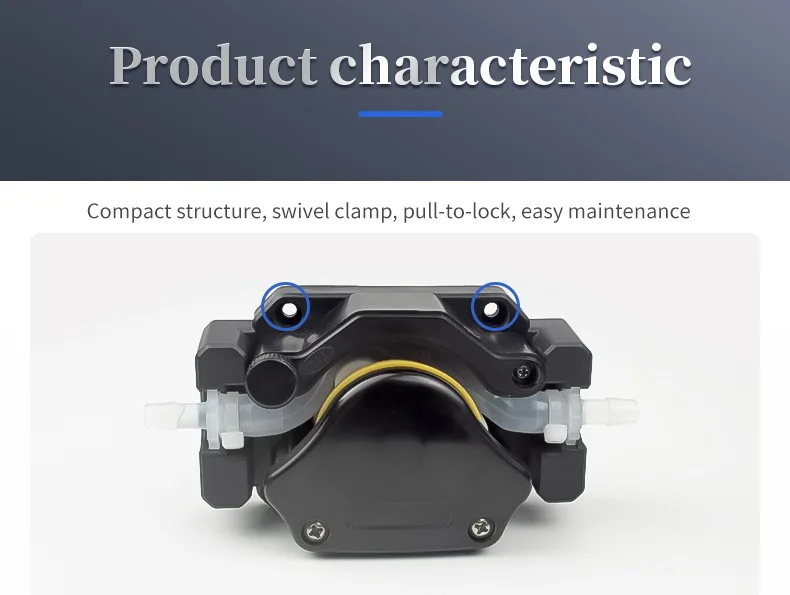

Compact structure design
Compact structure, swivel clamp, pull-to-lock, easy maintenance，The peristaltic pump structure is compact, and the bottom seat comes with mounting holes.

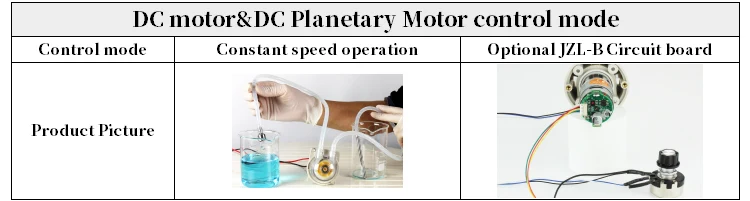

Product Function | Product functions: start and stop, forward and reverse rotation, speed regulation Power supply power: DC 12 ~ 24V, 2A Speed regulation mode 1: built in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Suitable motors: 28, 32, 36, 37, tt-555, rg50 |

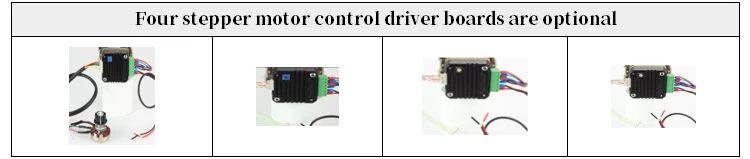

①Optional JBT-AM | ②Optional QBT-M2 | ③Optional JBT-AT | ④Optional JBT-AP |
Optional JBT-AM：Start and stop, forward and reverse, speed regulation Speed regulation mode 1: built-in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Speed regulation mode 3: analog signal (preset 4-20mA, optional: 0-5V, 0-10V) | Optional QBT-M2：Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: pulse frequency to adjust the speed | Optional JBT-AT：Product function: start and stop, forward and reverse, speed regulation Speed regulation mode: MODBUS-RS485 digital communication control | Optional JBT-AP：Product function: start and stop, forward and reverse, speed regulation. Speed regulation mode 1: PWM pulse to adjust the speed Speed regulation mode 2: external potentiometer to adjust the speed |
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile:
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
Contact Us :
FAQ:
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
