Gold refining equipment separating shake table/zircon ore shaking table/concentration shaking table

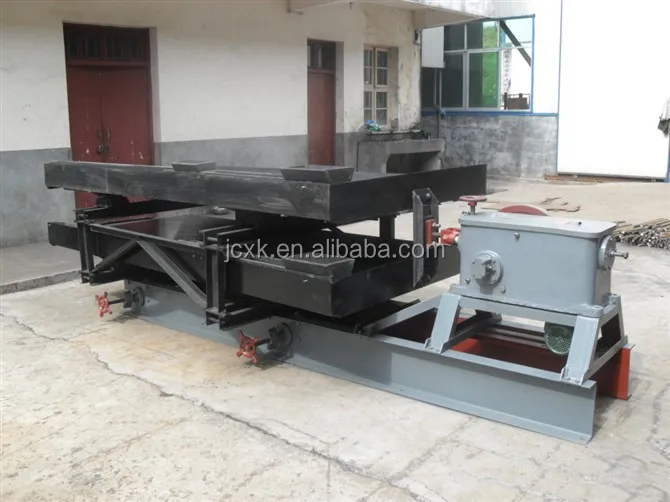

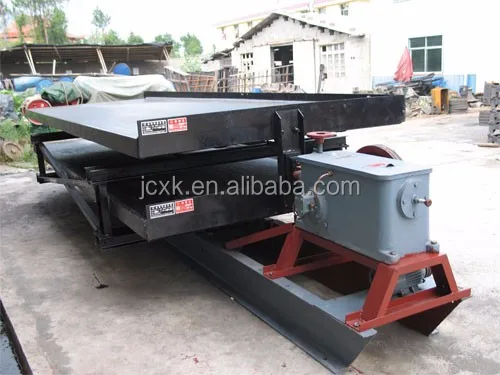

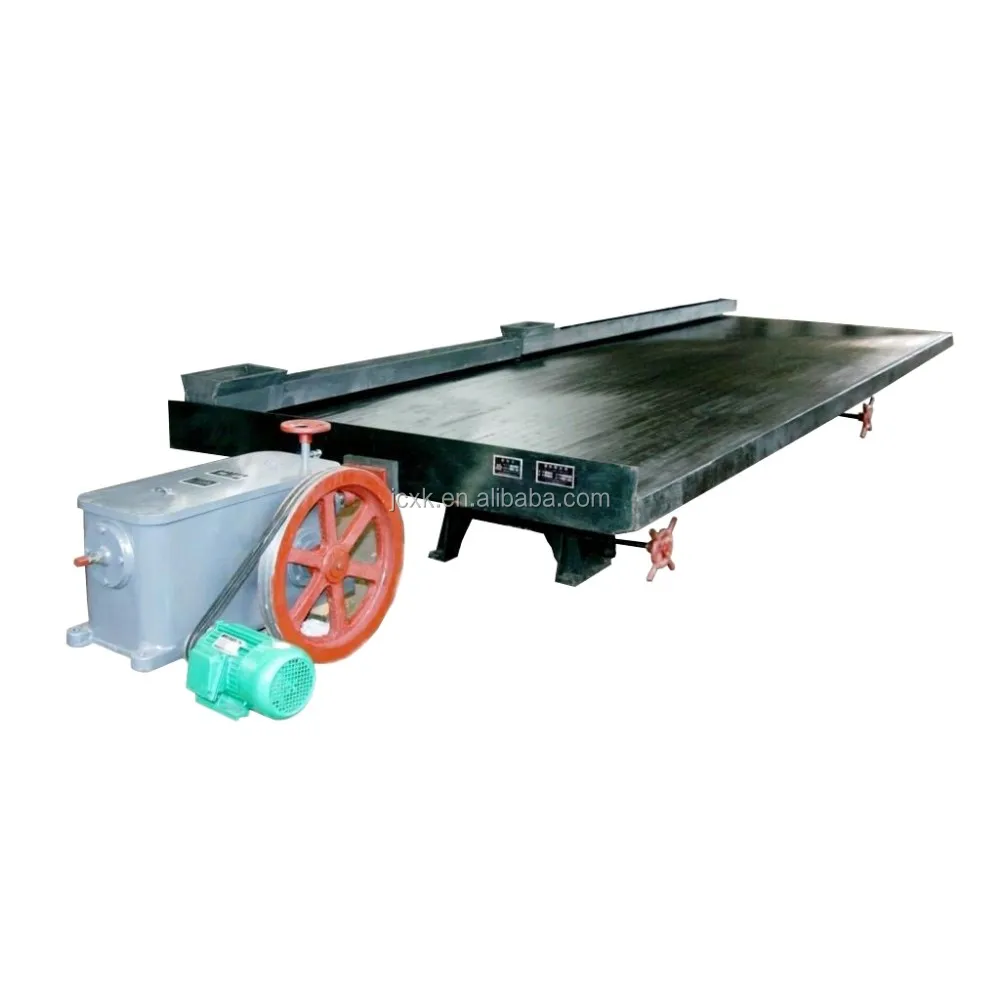

6-S Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver,Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome,Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.

Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.

Main Features of rotary vibrating separator machine in ore industry

1.High recovery ratio;
2.High concentration ratio;
3.Easy installation;
4.Simple operation;
5.Deck constructed of fiber glass;
6.Seven different decks to choose;
7.Long working life;
8.Adjustable stroke length and speed.

Working principle

The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),
to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

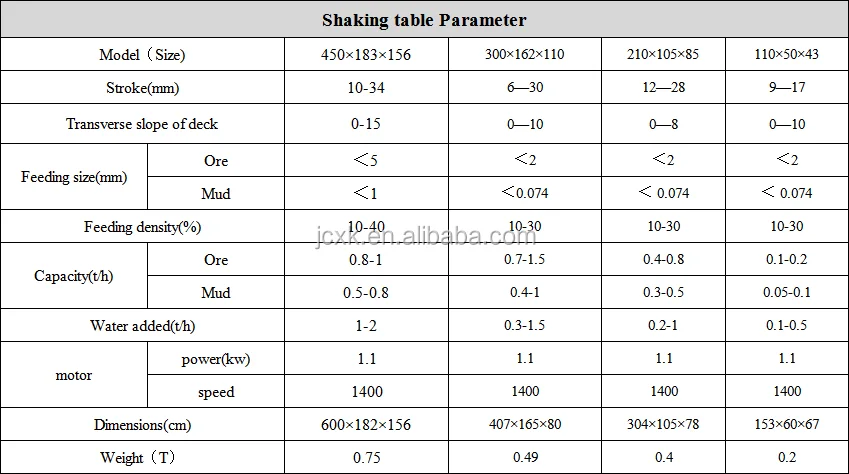

Table zise of Shaking table
Four size:4.5*1.83 m, 3.0*1.62 m,2.1*1.05 m,1.1*0.5m
