N3919BZ Горячая продажа настольное или vesa настенное крепление Intel NUC barebone Celeron J1900 Linux небольшой форм-фактор ПК
- Category: Desktops >>>
- Supplier: Yentek,(shenzhen),Technology,Co.,Ltd.
Share on:
Product Overview
Description
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2008 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Procssional R&D Team

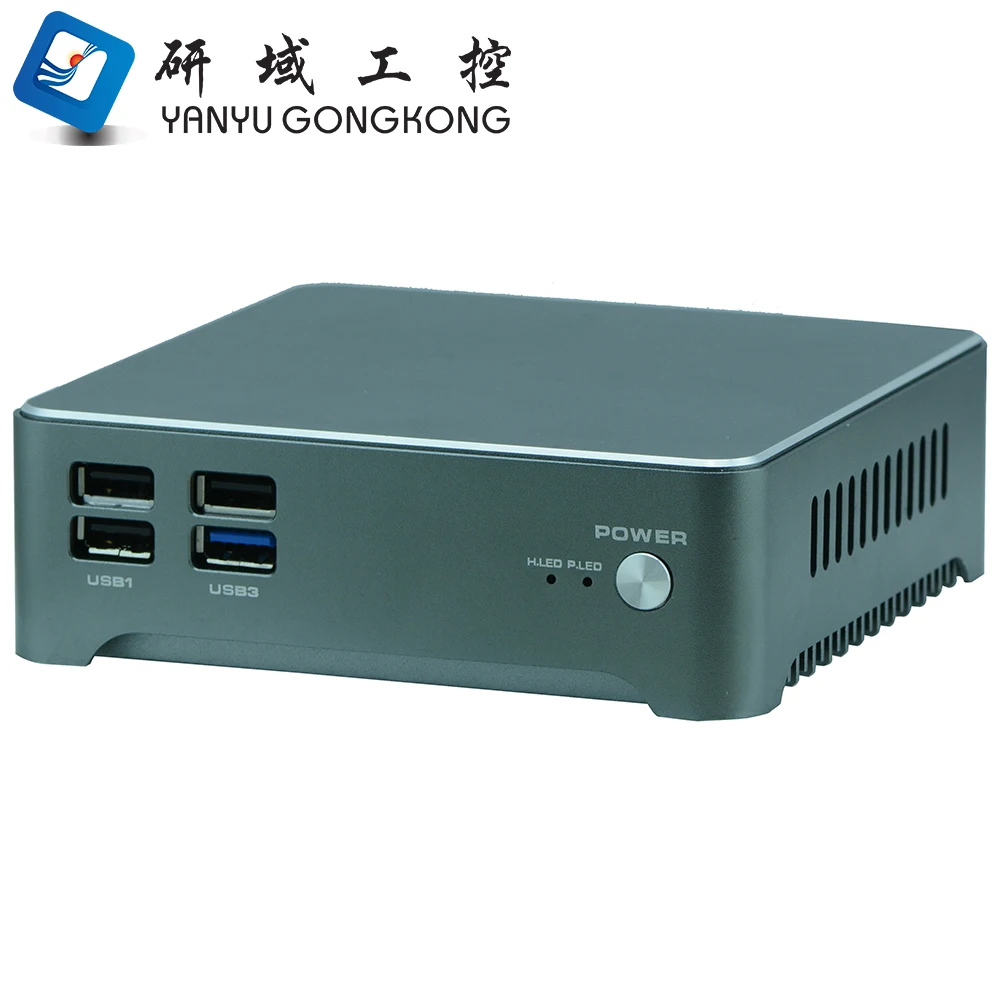

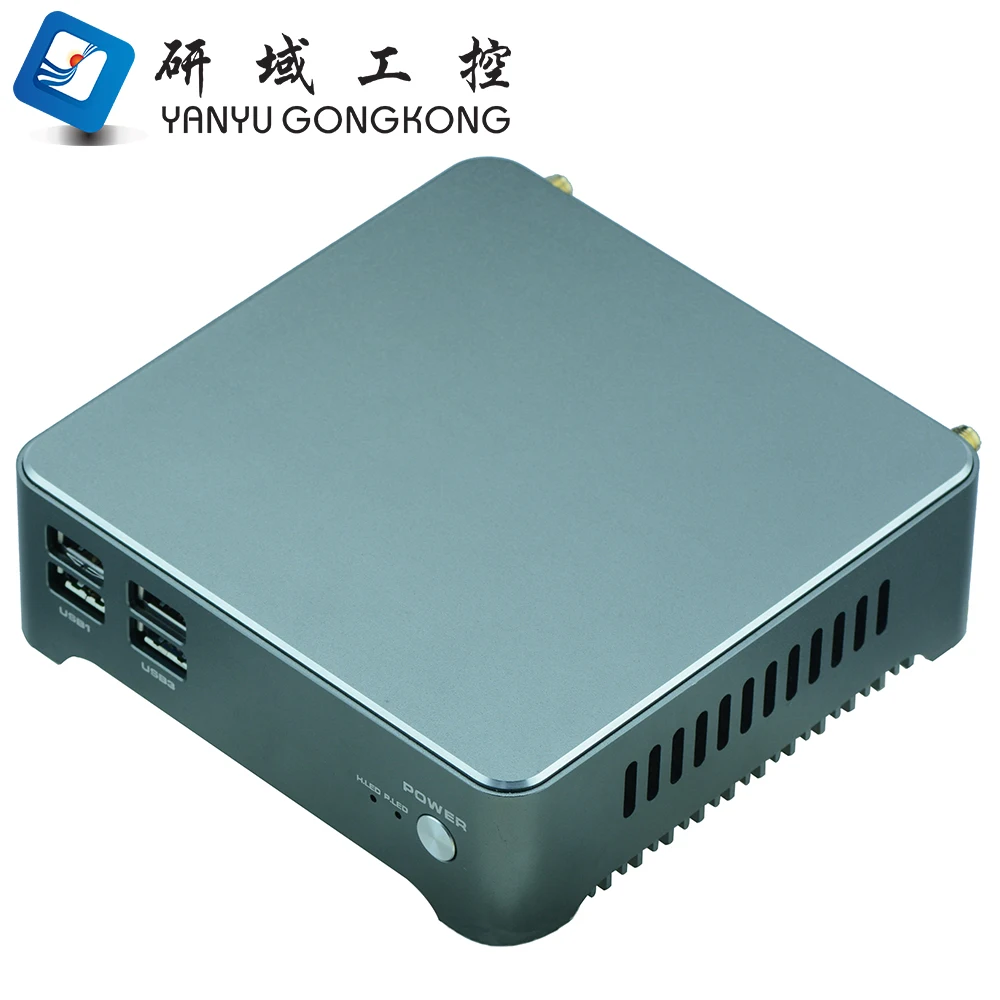

N3919BZ Hot sale desktop or vesa wall mount Intel NUC barebone Celeron J1900 Linux small form factor pc
Product Description
Features
Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation
1xVGA, 1xHDMI, support synchronous/asynchronous display
Integrated Intel® Celeron J1900 quad core processor
1 Gigabit Ethernet port, support Wake On LAN

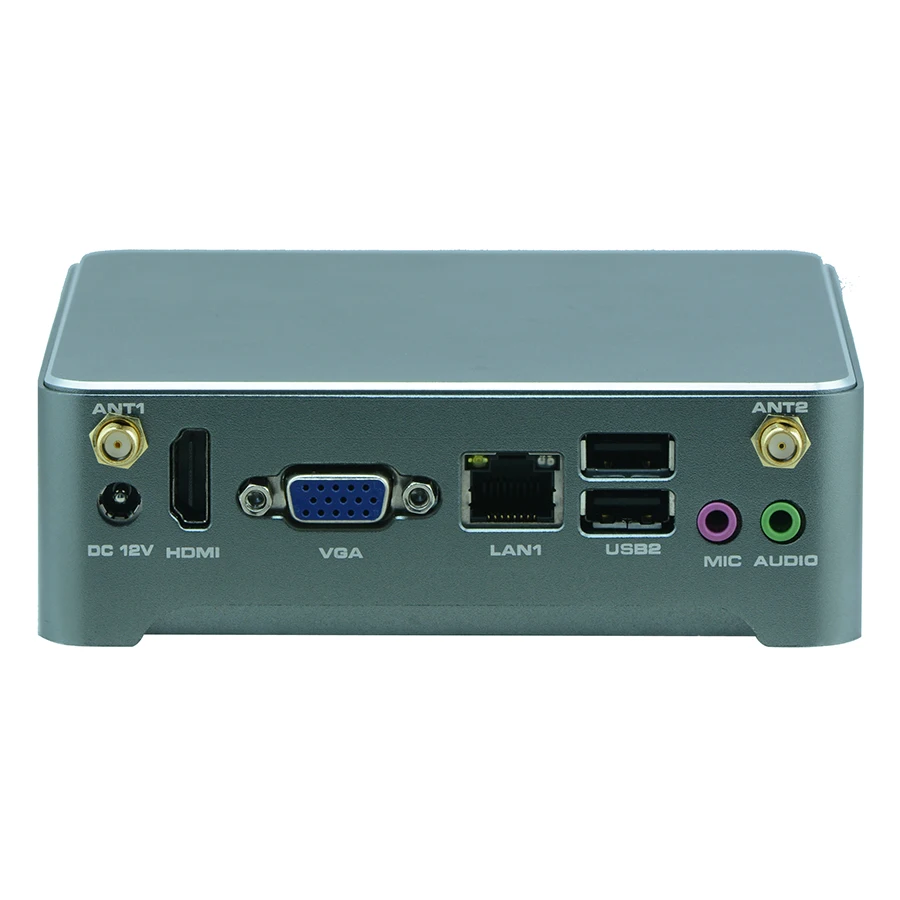

Rich IO: 1*DC Jack, 6*USB, 1*HDMI, 1*VGA, 1*Audio, 1*LAN
Specification
| Model No. | N3919BZ | |
| Chassis | Color | Iron gray |
| Dimension | 128mm*128mm*41mm(L*W*H) | |
| Structure | Full aluminum fanless cooling structure | |
| Material | Aluminu alloy | |
| Installation | Desktop type or mounted installation | |
| Motherboard | Model | STX-N39 |
| Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz quad core processor | |
| Chipset | Intel® Bay trail SOC chipset | |
| Graphics | HD Graphics | Integrated Intel® HD Graphics, support DirectX 11.1, OpenGL3.2, support VGA, HDMI synchronous/asynchronous display. |
| Resolution | VGA: max support 2560 x 1600 @ 60HZ HDMI: max support 1920 x 1080 @ 60HZ | |
| Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| SATA | N/A | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | Integrated ALC662 6 channes Hi-Fi audio controller, support MIC, Line_out |
| Network | Ethernet | 1*RTL8111F Gigabit LAN, support Wake On LAN /PXE |
| WiFi | Provide 1xMini-PCIE slot, support WiFi / 3G module | |
| System Features | Serial Port | 1*CISCO standard serial port |
| USB | 5* USB2.0, 1*USB3.0 | |
| Power Switch | 1* Power switch | |
| LED indicator | 1*HDD LED, 1*Power LED | |
| LAN | 1*RJ45 Gigabit network interface | |
| Display | 1*VGA, 1*HDMI | |
| Power | 1*12V DC IN Jack | |
| Antenna | 2*WiFi/3G SMA antenna (optional) | |
| Audio | 1*Line-out, 1*MIC | |
| Power | Power Adaptor | 12V/5A adaptor |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows 7, Windows 8, Windows 10, Linux OS | |
Order Information
| No. | Model | Processor | Motherboard | Memory | SSD | LAN | USB | WiFi | Adaptor | OS |
| 1 | N3929SZ | J1900/2.00GHz | N39_19 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 2 | N3923SZ | 4020Y/1.50GHz | N92_I3 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 3 | N3925SZ | 4210Y/1.50G | N92_I5 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 4 | N3919SZ | J1900/2.00GHz | N39 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
| 5 | N3905SZ | N2805/1.46GHz | N39_05 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
Company Information
YANYUGONGKONG(HANZSUNG)
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard,
firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,
Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC
Computer,OEM / ODM available.
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 5-7 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box, ten or sixteen neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Our Services
1. As a professional manufacturer/ OEM Factory and supplier of mini pc/ motherboard,firewall appliance over 11 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 3years maintenance warranty for our products.
FAQ
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

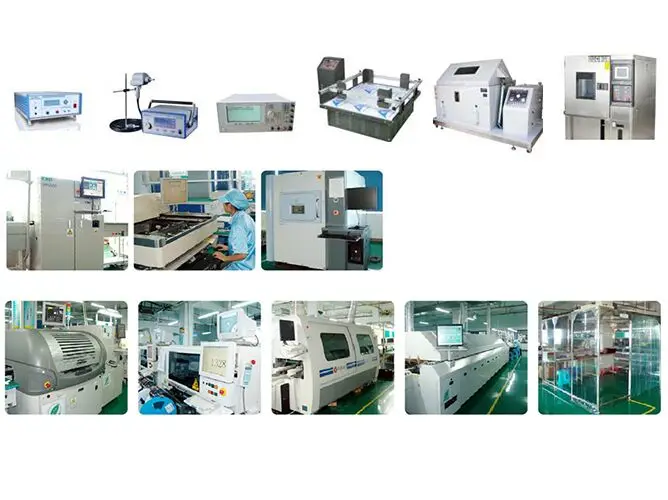

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can keep working 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.
9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
