AWS D1.5 shear stud stock shear connector stud welding fastener with welding ferrules

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

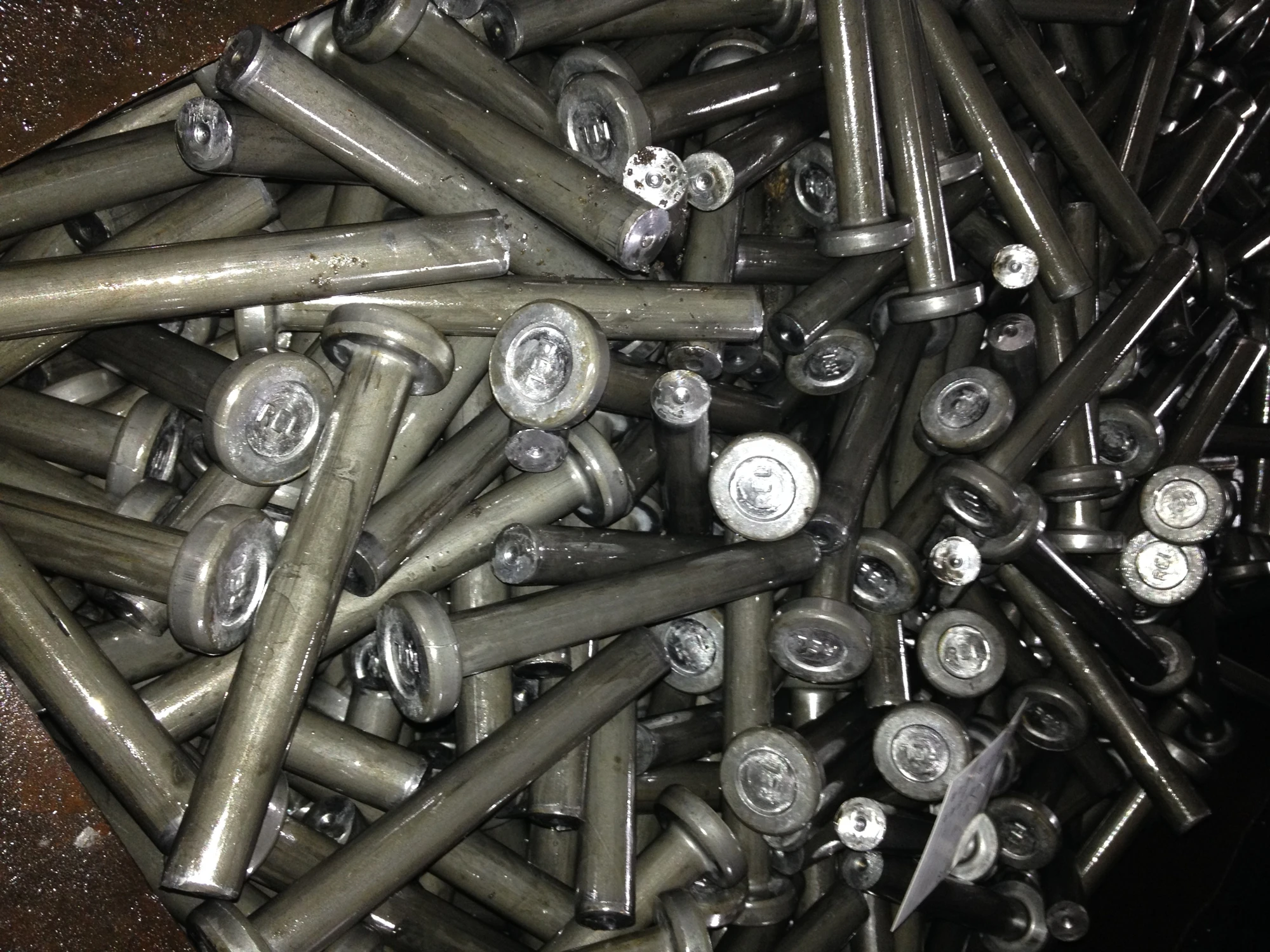

Shear Connector are typically used in composite steel construction to tie the concrete slab to steel members and resist shear forces between the concrete slab and steel members.
It’s one of a classic apply of drawn arc stud welding technology. Widely used in steel constructions, bridges, power station,
traffic station, oil and gas station, etc.




Main Features

1) Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.

2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

3) All our products meet the current standards and specifications.



Products Drawing




Type SD (ISO13918:2008) Dimensions (mm)
d1-0.4
10
13
16
19
22
25
d5±0.3
19
25
32
32
35
41
d3±0.3
13
17
21
23
29
31
h3±0.5
7
8
8
10
10
12
h4
2.5
3
4.5
6
6
7
l1±1.5
40~105
40~160
40~200
40~250
60~250
60~250
Burn off
3
3
4
5
5
6
Ferrule
UF10
UF13
UF16
UF19
UF22
UF25


Type SC (AWS D1.1) Dimensions (inch)
1/2
5/8
3/4
7/8
1
d5
1±1/64
1-1/4±1/64
1-1/4±1/64
1-3/8±1/64
1-5/8±1/64
h3
9/32
9/32
3/8
3/8
1/2
l1
±1/16
±1/16
±1/16
±1/16
±1/16
d1
(1/2-0.01)~1/2
(5/8-0.01)~5/8
(3/4-0.015)~3/4
(7/8-0.015)~7/8
(1-0.015)~1
Ferrule
UF13
UF16
UF19
UF22
UF25


Mechanical Properties Of Shear Stud Connector
Hot sell Standard
Tensile strength
Yield strength
Elongation
EN ISO 13918 SD1
≥450 Mpa
≥350 Mpa
≥15%
AWS D1.1
≥450 Mpa
≥350 Mpa
≥15%
BS 5400
≥495 Mpa
≥385 Mpa
≥18%


Chemical Component Of Material (%)
Material
C
Si
Mn
P
S
Al
SWRCH15A
0.13-0.18
≤0.10
0.30-0.60
≤0.035
≤0.035
≥0.020
SWRCH18A
0.15-0.20
≤0.10
0.60-0.90
≤0.030
≤0.035
≥0.020
Q345D
≤0.18
≤0.50
≤1.70
≤0.030
≤0.025
≥0.015


Processing Capacity


Surface Treatment

Polish: Polished by wood shave.

1: Surface is shining and be good for welding quality.

2: Surface with small bruises,easy to be rust for stocking.

Advice:Suit for using in a short time or keep in dry condition.



Phosphating:

1.Surface with phosphating coating,rust-proof and avoid bruises,and can stock long time;
2.Surface is not shining,easy to burn gun sleeve.



Plain + Special heat treatment:

1.Surface is smooth,good weld quality, no big bruises,rust-proof, and can stock long time;
2.Surface is not shining,take more long time for production;



Base treatment

We provide two type base treatment for your choose:
1: Slightly curve
2: Chamfer

For Slightly curve, 68% customers to choose it!

For Chamfer, 32% customers to choose it!



Application

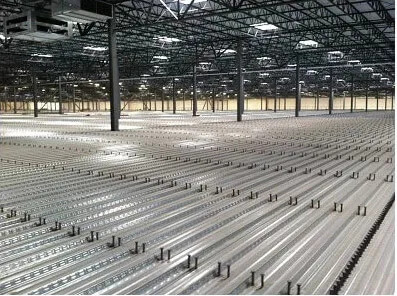

Our shear shud used for Mulit-floor&High rising buildings, bridge construction, airport, stadium, exhibitions,conference
centre,railway station.We dedicated to be expertise in structure connection solutions.Now, we have participated in a number of major steel structure projects at home and aboard, you are welcome to discuss with us.






Packing & Delivery


Packaging:1.Carton+pallet
Size
100cm (L) * 100cm(W) * 79cm (D)
Weight
1.5 T



Packaging Details
1.Usually 1x20"GP container can hold 16-20 pallets,
2.But the customs of different countries have different requirements about the weight of container.
3.So we according to the customers requirement.



Packaging:Drum+pallet
Size
100cm(L) * 100cm (W) * 66cm (D)
Weight
1.3T



Packaging Details
1.Usually 1x20"GP container can hold 16-20 pallets,
2.But the customs of different countries have different requirements about the weight of container.
3.So we according to the customers requirement.


Certifications




FAQ


Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:



Ordering information


For inquiring and ordering, please give us the following details:

Product name + standard + material + specification + quantity + special request (if any), for example:

Shear connectors, ISO 13918, SWRCH15A, 19 X 100, 60,000Pieces slightly curve with standard UF ceramic ferrules.
