GSI UK original technology for Catalytic , GSI original inflation formula for co2 gas, PERFECT LASER SOPOT, Negative High Voltage Structure,More Stable &longlife, Excellent beam profile at all power levels, High Stability output,12 Months lifetime, High vacuum technology for longlife time,Laser tube and combined laser beam system as option, Easy integration, HV POWER SUPPLY hv, Algnment beam option, Diffusion colled design.
Economy Type Laser ELC Series
Laser specificagtions
Laser Tube Only

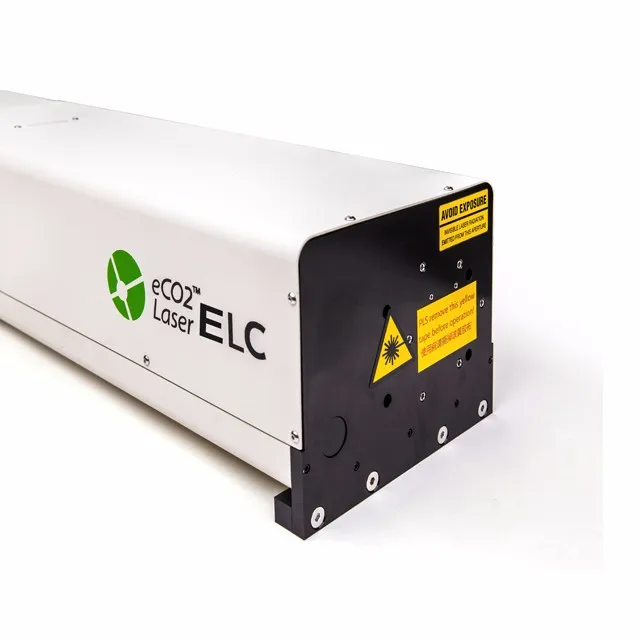

Combined Beam Laser
Model
E140
E180
E200
E240
E280
E350
Output Power (W)
(Rated Power/Max Powder)
140W/170W
180W/200W
200W/240W
240W/260W
280W/310W
350W/380W
Beam Quality (m2)
《1.1
《1.1
《1.1
《1.1
《1.1
《1.1
"N" Type
Waist located at output coupler
Beam Waist(2W.)(mm)
5.8
5.9
5.8
5.9
5.9
5.9
mard
2.6
2.5
2.6
2.6
2.6
2.6
“B”Type
Waist located 1.1m outside the output coupler
Beam Waist(2W.)(mm)
4.8
4.9
4.8
4.8
4.8
4.8
Beam Divergence(mrad full angle)
3.1
3.1
3.1
3.1
3.1
3.1
Pointing Stability (Mrad)
〈0.2
〈0.2
〈0.2
〈0.2
〈0.2
〈0.2
Typical Power Stablility ( %after warm up)
4
4
5
5
5
5
Polarisation
Random polarization/liner polarization
Maximum Strike Voltage(KV)
40
40
40
40
40
40
Rated Operating Current /Absolute max.(mA)
32/35
35/38
32/35
35/38
35/38
35/38
Dynamic Range
Negative high voltage
Electrical Requirements
8:1
8:1
8:1
8:1
8:1
8:1
Single Phase 110V/60HZ
6
7
13
14
14
14
230V/50HZ
3
4
7
8
8
8
Cooling Requirements
Water Temperature 15-25
Min/Max.Pressure(bar)
2/5
2/5
2/5
2/5
2/5
2/5
Cooling (I/min)
(de-ionized water)
3.6
3.6
3.6
3.6
3.6
3.6
Water cooling(W)
650
700
1300
1400
1400
1400
Dia(mm)
80
80
80
80
80
80
L(mm)
1660
1905
1737
1748
1934
2179
W(mm)
206
206
206
206
H(mm)
166
166
166
166
Weight(kg)
5
5
5
5
5
5
Warranty
20Months
20Months
12 Months
12 Months
12 Months
12 Months
Remarks:
1) Waist located at output coupler
2)Waist located outside the output coupler
3) linear polarization
4) Random polarization
Performance

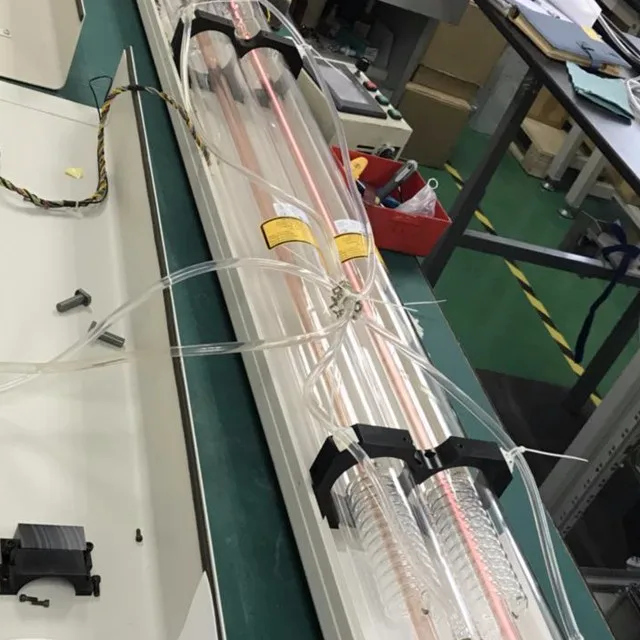

perfect production

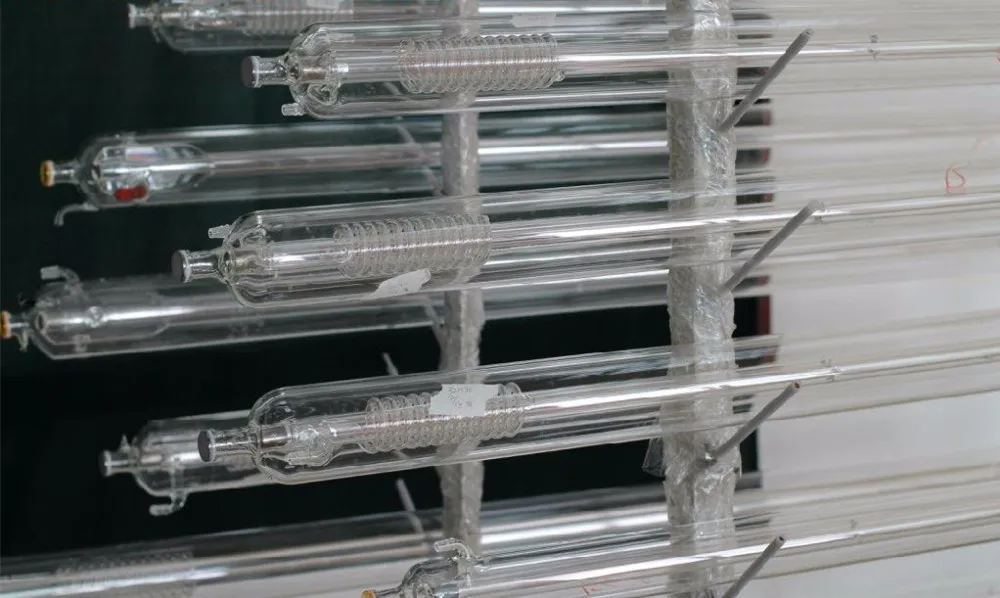

strict testing
perfect laser spot on arcylic
patent design
Packing & Delivery
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.
