Best sell China Manufacturer 12r22.5 truck tire bus tire
Features of 12r22.5 truck tire bus tire:
1) Use double tread structure makes tire less heat
2) Optimzed belt structure designing, which strengthens the rigidity and flex at crown area, guarantees tire unifrom wear
3) Optimized tread recipe designing improves tire applicability on the bad road
4) Deeper pattern height makes tire service longer
5) Wider tread cap wideth makes tire contact patch bigger and wear better
6) Optimized tread profile designing makes tire contract pressure more uniform
Specifications of 12r22.5 truck tire bus tire:
| Tyre Size | Ply Rating | Load Index | Speed Symbol | Type | Pattern | Section Width (mm) | Overall Diam. (mm) | Infl. (psi) | Max.Load (kg) | Design Rim Width | Trend Depth (mm) |
| E10.00R20 | 16 | S146/D143 | K | TT | GL288A | 275 | 1052 | 120 | S3000/ D2725 | 7.50 | 14.0 |
| E10.00R20 | 18 | S149/D146 | J | TT | GL288A | 275 | 1052 | 135 | S3250/ D3000 | 7.50 | 14.0 |
| E11.00R20 | 16 | S150/D147 | K | TT | GL288A | 293 | 1085 | 120 | S3350/ D3075 | 8.00 | 14.5 |
| E11.00R20 | 18 | S152/D149 | J | TT | GL288A | 293 | 1085 | 135 | S3550/ D3250 | 8.00 | 14.5 |
| E12.00R20 | 18 | S154/D151 | K | TT | GL288A | 313 | 1122 | 120 | S3750/ D3450 | 8.50 | 15.0 |
| 11R22.5 | 14 | S144/D142 | M | TL | GL288A | 279 | 1050 | 105 | S2800/ D2650 | 8.25 | 13.5 |
| E11R22.5S | 16 | S148/D144 | M | TL | GL288A | 279 | 1050 | 120 | S3000/ D2725 | 8.25 | 13.5 |
| E12R22.5 | 16 | S150/D147 | M | TL | GL288A | 300 | 1084 | 125 | S3350/ D3075 | 9.00 | 14.5 |
| E13R22.5 | 18 | S154/D150 | K | TL | GL288A | 320 | 1124 | 125 | S3750/ D3350 | 9.75 | 15.0 |
| E13R22.5 | 20 | S156/D150 | J | TL | GL288A | 320 | 1124 | 130 | S4000/ D3350 | 9.75 | 15.0 |

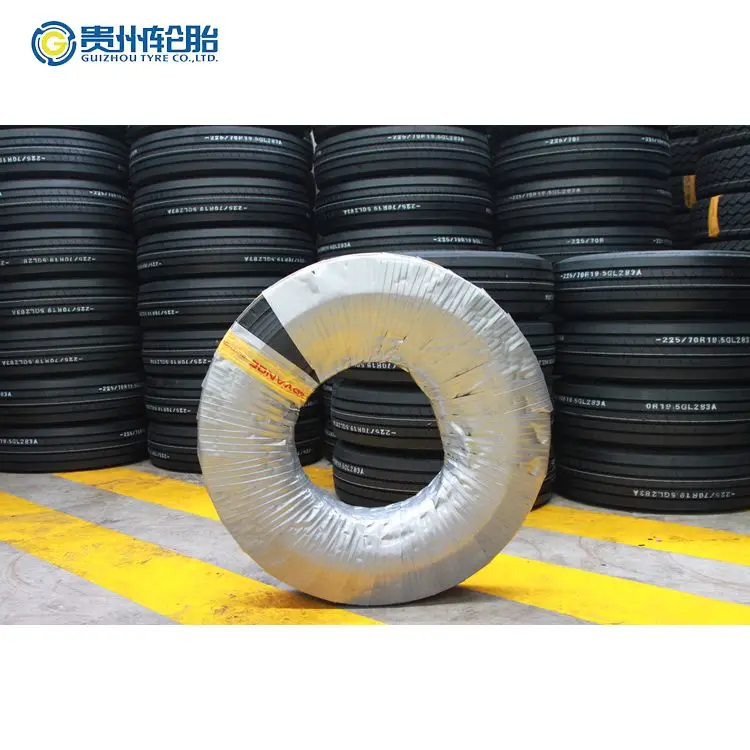

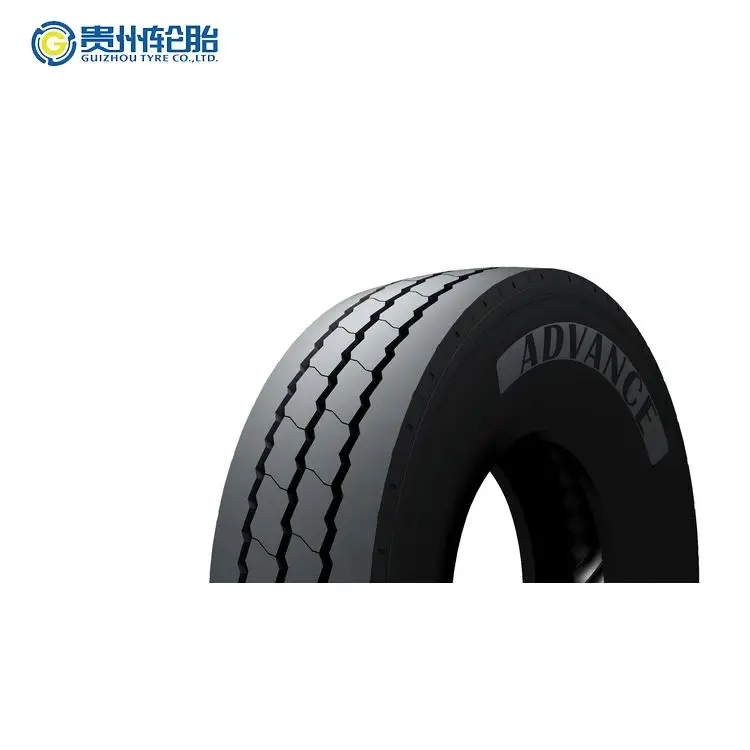

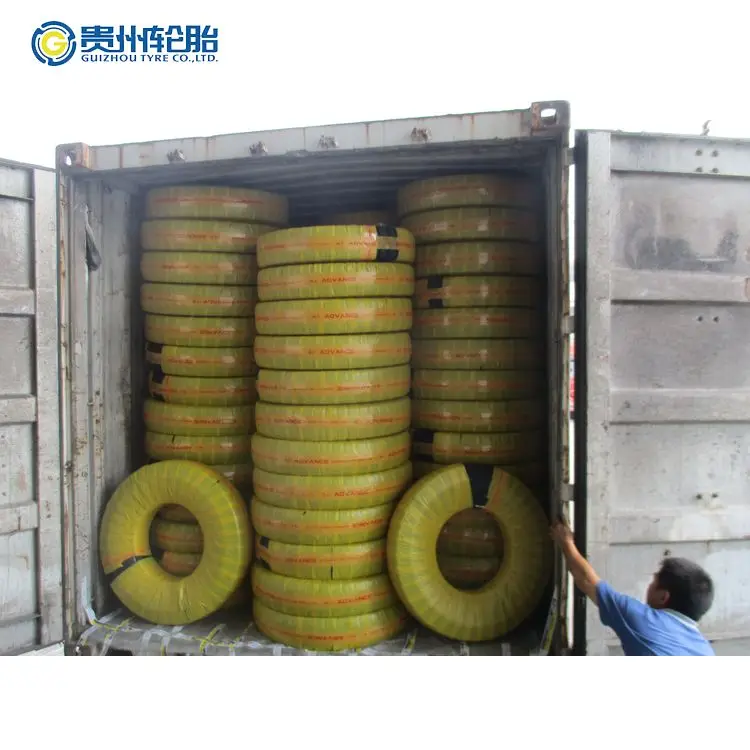

Pictures of 12r22.5 truck tire bus tire:
