Product Overview

Description


Product Details

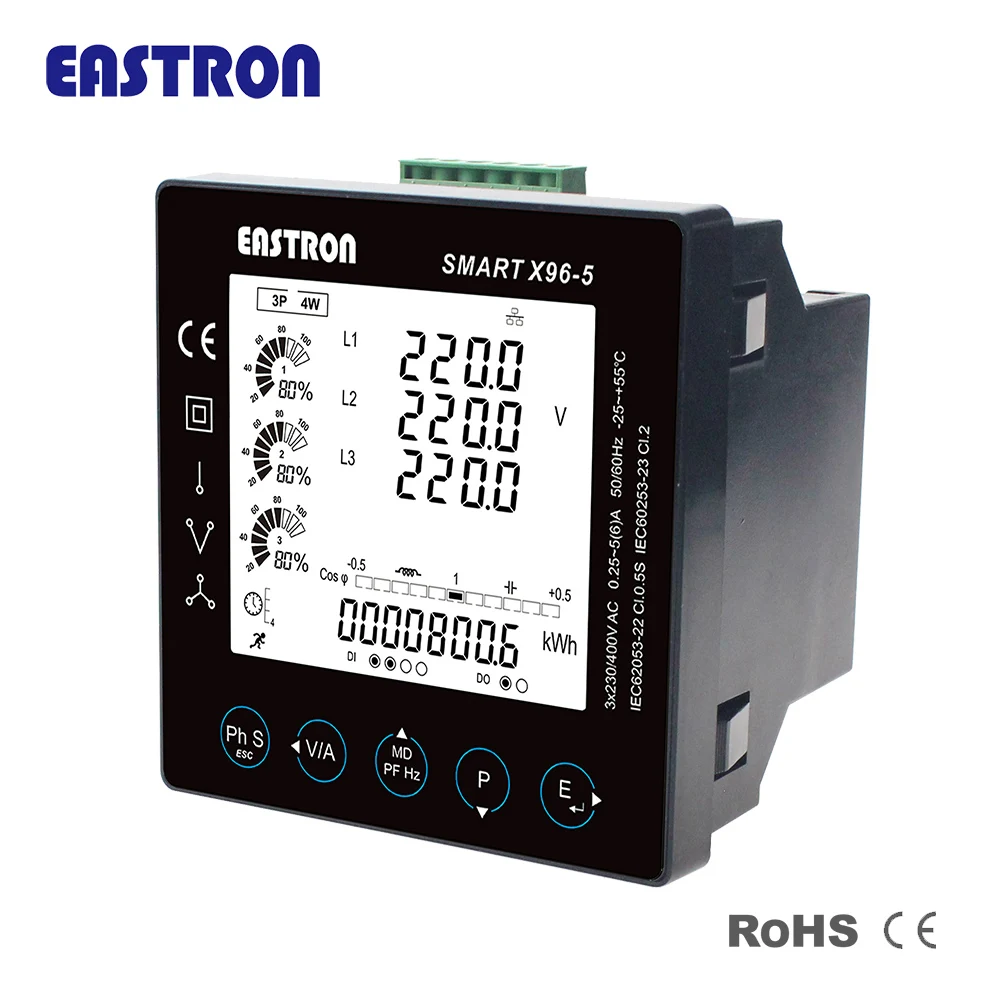

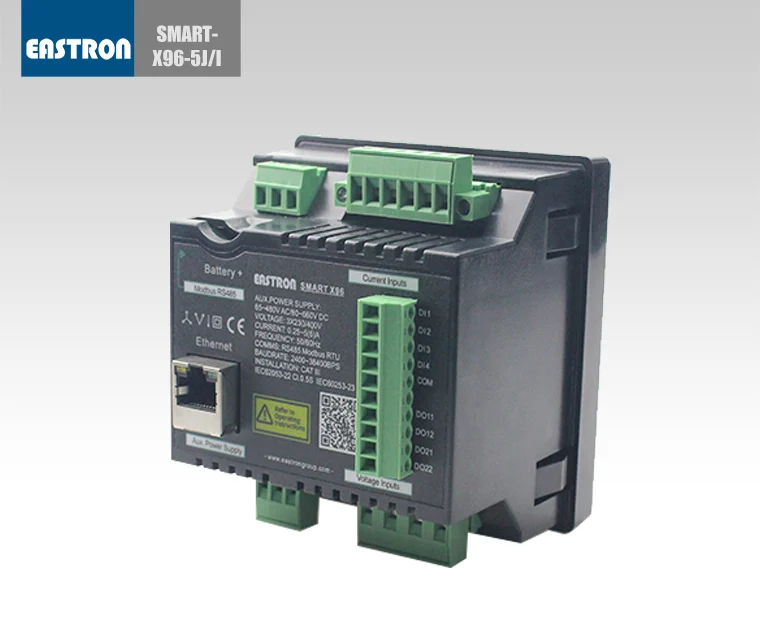

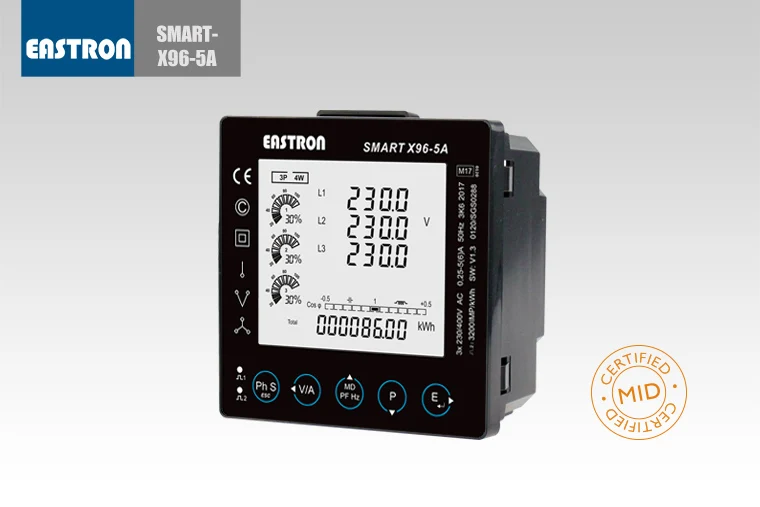

This document provides operating, maintenance and installation instructions for the Eastron SMART X96 series. The unit measures and displays the characteristics of 1p2w, 3p4w and 3p3w supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, Harmonic, Power factor, Max. Demand etc. Energy is measured in terms of kWh, kVArh and kVAh. Maximum demand current can be measured over preset periods of up to 60minutes.

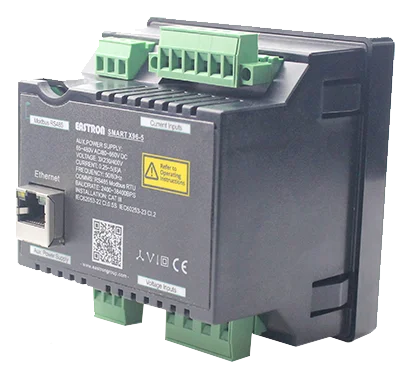

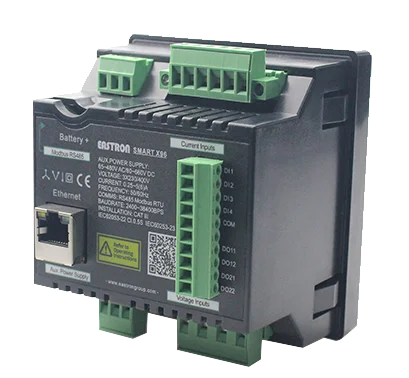

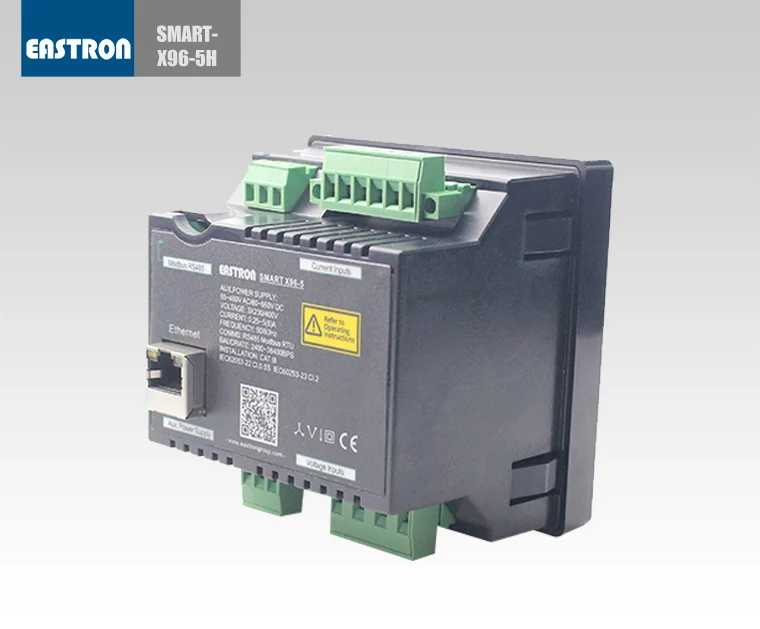

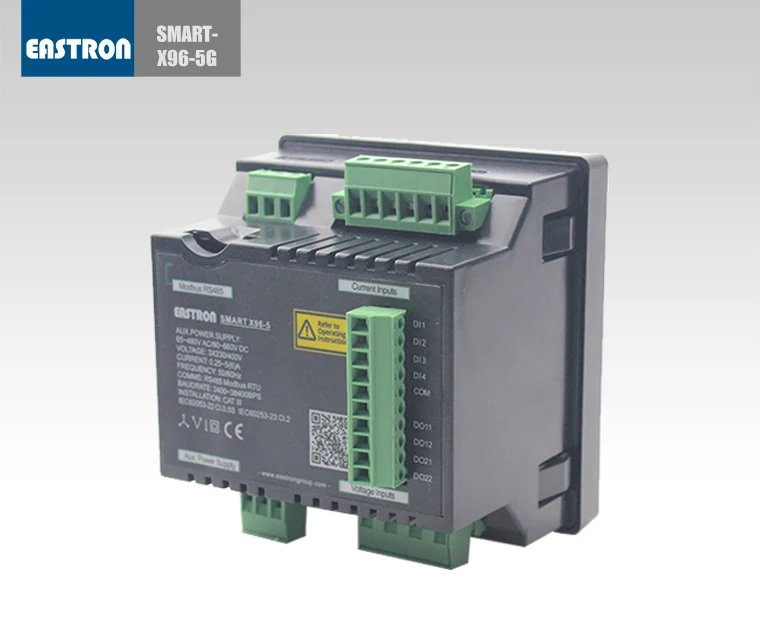

In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. The requisite current input(s) are obtained via current transformers. The SMART X96 can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides RS485 Modbus RTU and Ethernet TCP/IP communication. Digital input and outputs are provided for external signal counting and external device control. 30 types parameters can be set for alarm.

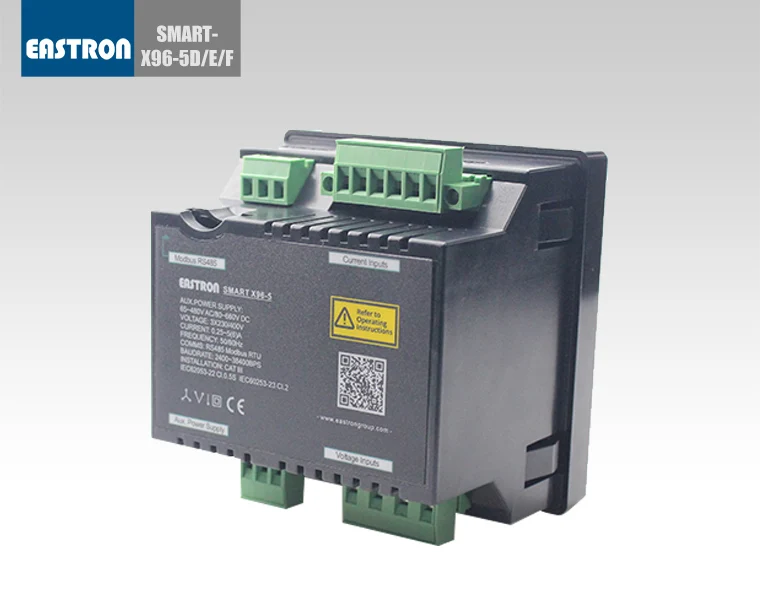

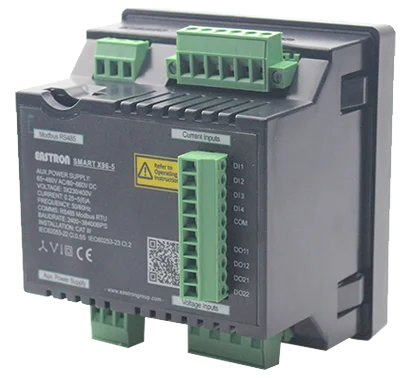

The unit uses plug-in terminals for easy wiring and push-in mechanism for quick installation

Product Introduction

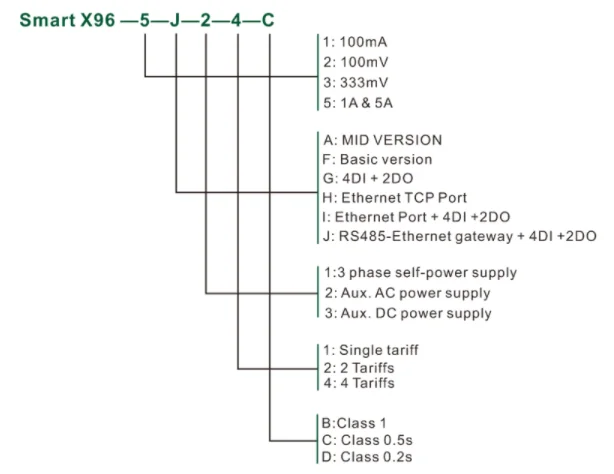

OPTIONS

Product Parameters
\t
Electrical characteristics
\t
Type of measurement
\t
RMS including harmonics on three phase AC system        (3P, 3P+N)
128 samples per cycle
\t
Measurement accuracy
\t
Power
\t
IEC 61557-12 Class 0.5
\t
Active Energy
\t
IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5
\t
Reactive Energy
\t
IEC62053-23 Class 2, IEC 61557-12 Class 2
\t
Frequency
\t
±0.1%
\t
Current
\t
±0.2%
\t
Voltage
\t
±0.2%
\t
Power Factor
\t
±0.01
\t
Harmonic Distortion
\t
2
\t
Data Update Rate
\t
1 second nominal
\t
Input-Voltage
\t
VT Primary
\t
100~500000V ac
\t
Un
\t
230 V L-N
\t
Measured Voltage with Over-range and Crest Factor
\t
100 to 480Vac L-L

100 to 276Vac L-N
\t
Permanent Overload
\t
490V L-L
280V L-N
\t
Impedance
\t
1M Ω
\t
Frequency Range
\t
45~66Hz
\t
Input- Current
\t
CT Ratings
\t
Primary
\t
1~9999A
\t
Secondary
\t
1A / 5A
\t
Measured current with Over-range and Crest Factor
\t
5mA~6A
\t
Withstand
\t
Continuous 8A
120A for 0.5Seconds
\t
Impedance
\t
＜1 mΩ
\t
Frequency Range
\t
45~66Hz
\t
Burden
\t
<0.036VA at 6A
\t
Auxiliary Power Supply
\t
Operating Range
\t
65~480V AC / 80~660V DC
\t
Power Consumption
\t
< 7VA/3.5W.
\t
Frequency
\t
45 to 65 Hz
\t
Digital output
\t
Number/Type
\t
2 - electromagnetic relay
\t
Output Frequency
\t
1 Hz maximum
\t
Switching Current
\t
250 Vac at 3.0 Amps, 100k cycles,
\t
Isolation
\t
2.5 KVac for 1min
\t
Digital Input
\t
Number
\t
4
\t
Input Resistance
\t
10 kΩ
\t
Maximum Frequency
\t
1kHz
\t
Response Time
\t
10 milliseconds
\t
Isolation
\t
2.5 KVac for 1min
\t
Mechanical Characteristics
\t
Weight
\t
250g
\t
IP Degree of Protection  (IEC 60529)
\t
IP51 front display
\t
Dimensions (WxHxD)
\t
96x96x70.3
\t
Mounting Position
\t
Vertical
\t
Panel Thickness
\t
1~5mm
\t
Material of meter case
\t
Self-extinguishing UL 94 V-0
\t
Mechanical environment
\t
M1
\t
Environmental Characteristics
\t
Operating Temperature
\t
-25 to 55°C
\t
Storage Temperature
\t
-40 to 70°C
\t
Humidity Rating
\t
<95% RH at 50 °C (non-condensing)
\t
Pollution Degree
\t
2
\t
Altitude
\t
2000m
\t
Vibration
\t
10Hz to 50Hz, IEC 60068-2-6
\t
Electromagnetic Compatibility
\t
Immunity to Radiated Fields
\t
IEC 61000-4-3
\t
Immunity to Fast Transients
\t
IEC 61000-4-4
\t
Immunity to Impulse Waves
\t
IEC 61000-4-5
\t
Conducted Immunity
\t
IEC 61000-4-6
\t
Immunity to Magnetic Fields
\t
IEC 61000-4-8
\t
Immunity to Voltage Dips
\t
IEC 61000-4-11
\t
Radiated Emissions
\t
EN55011 Class A
\t
Conducted Emissions
\t
EN55011 Class A
\t
Harmonics
\t
IEC 61000-3-2
