ELP Low Light Webcam Full HD Built in Microphone Home Security Surveillance Webcam IMX323 Waterproof USB Camera For PC Laptop
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60776857332):
Product Overview
Description

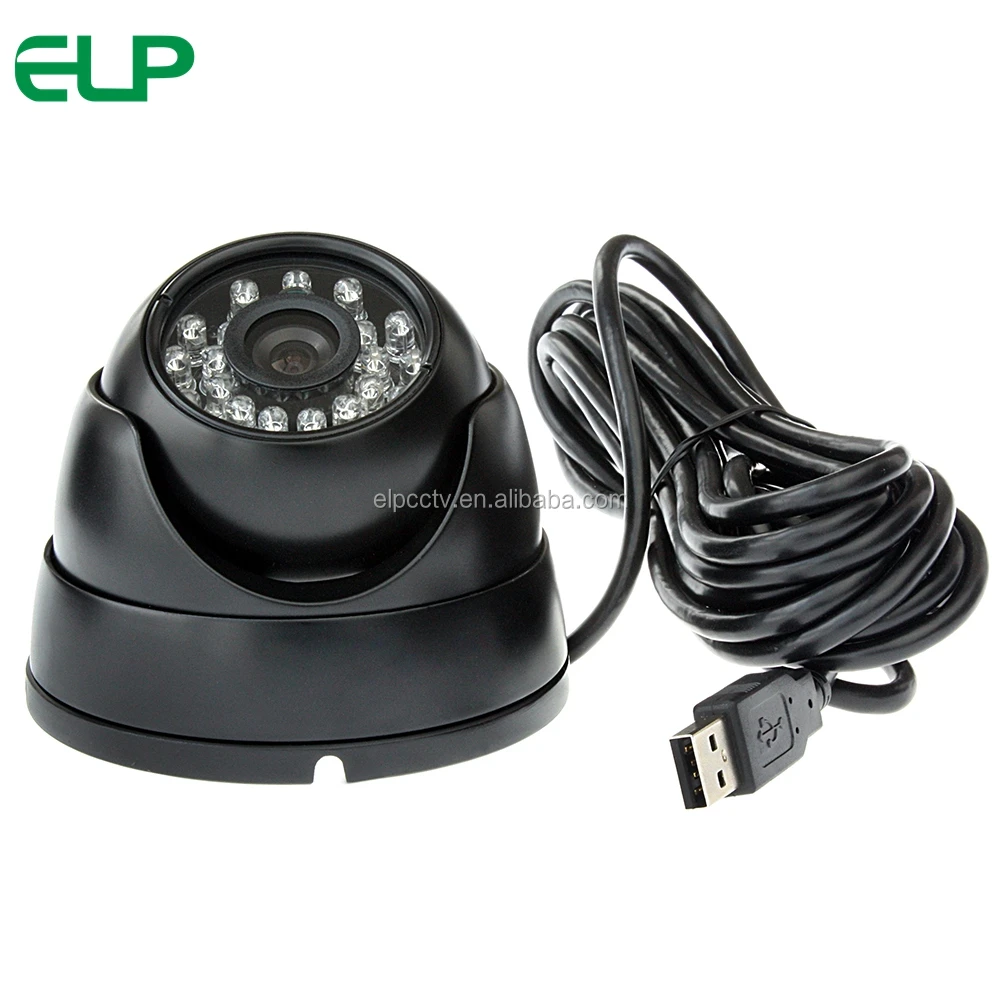

ELP 0.01 LUX Low Illumination Full HD Audio Home Security Surveillance CCTV Waterproof USB Camera With Sony IMX323
Model:ELP-USBFHD06H-DL36 is 2.0megapixel 1920(H)X1080(V) High resolution USB cameras with 3.6mm fixed focus lens for Linux Android Windows etc. OS system.

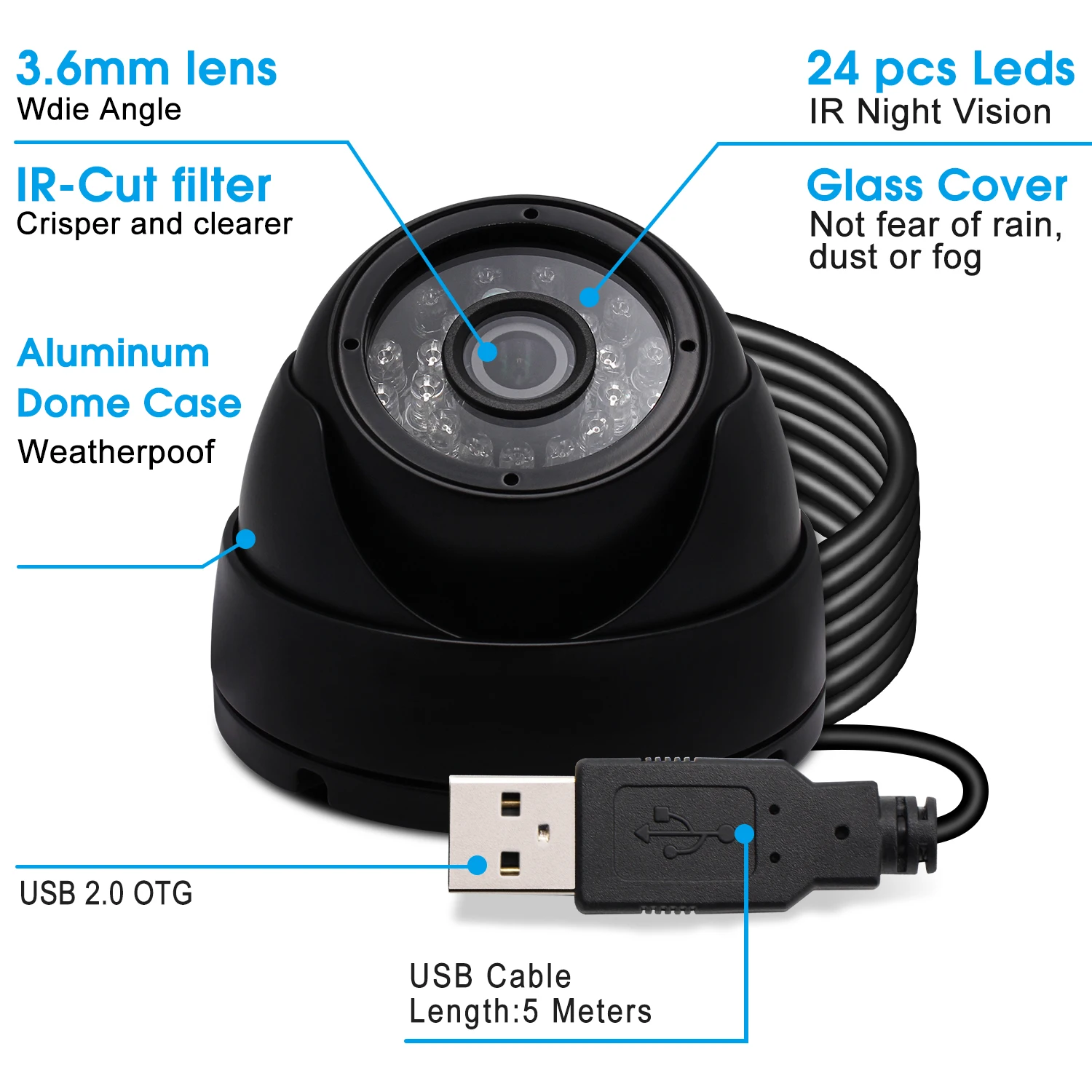

Features
*Ultra Low light Camera, Minimum illumination 0.01lux
*Highly advanced Sony IMX323 Sensor
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)
*Come with microphone on the board which support single channel and dual channel.
*Support IR Cut, optional to add IR LED Board for night vision
*Equiped with 3.6mm lens ,24pcs IR LED Board for night vision

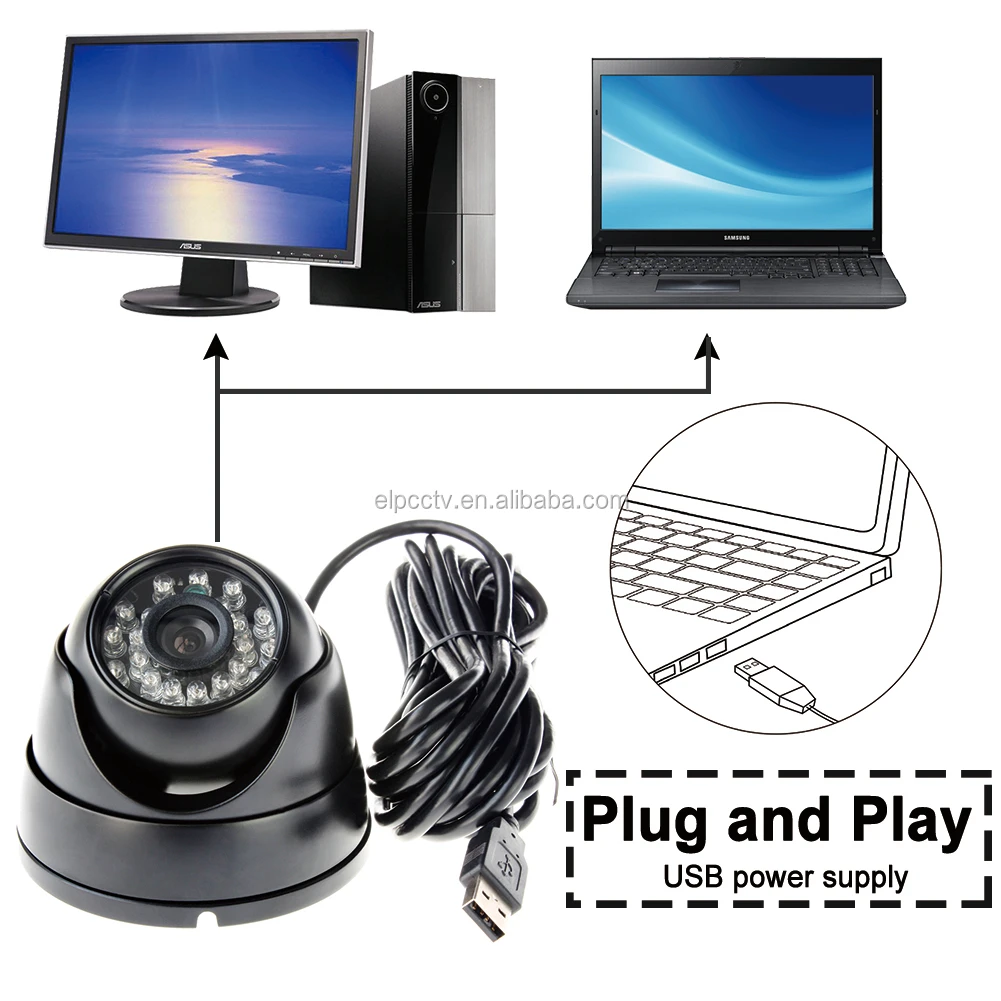

*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues
Specification
| Model : ELP-USBFHD06H-DL36 | |||
Resolution & frame rate | H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps | ||
| Sensor | 1/29 inch SONY IMX323 | Picture format | H.264/MJPEG / YUY2(YUYV) |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels | Lens Parameter | Standard 3.6mm, FOV(D) 170/180 Degree |
| Pixel Size | 12.8μm x 11.6μm | USB Cable | Standard 1M/ Optional 2m,3m,5m |
| Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional / about 30g |
| S/N Radio | 42dB | Mini illumination | 0.01lux |
| Dynamic Rangde | 86dB | Sensitivity | 5V/lux-sec@550nm |
| Interface | USB2.0 High speed | Shutter Type | Electronic rolling shutter / Frame exposure |
| Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Exposure White balance, Backlight Contrast, |
| USB Protocol | USB2.0 HS/FS | Digital Audio | High quality digital MIC, support single, dual channel |
| OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort |
| Power Supply | DC 5V | Working temperatur | -10~70 degree |
| Working Current | 130mA~190mA | Storage temperatur | -20~85 degree |
LED board power connector | With IR LED Board | IR CUT Connector | Support |

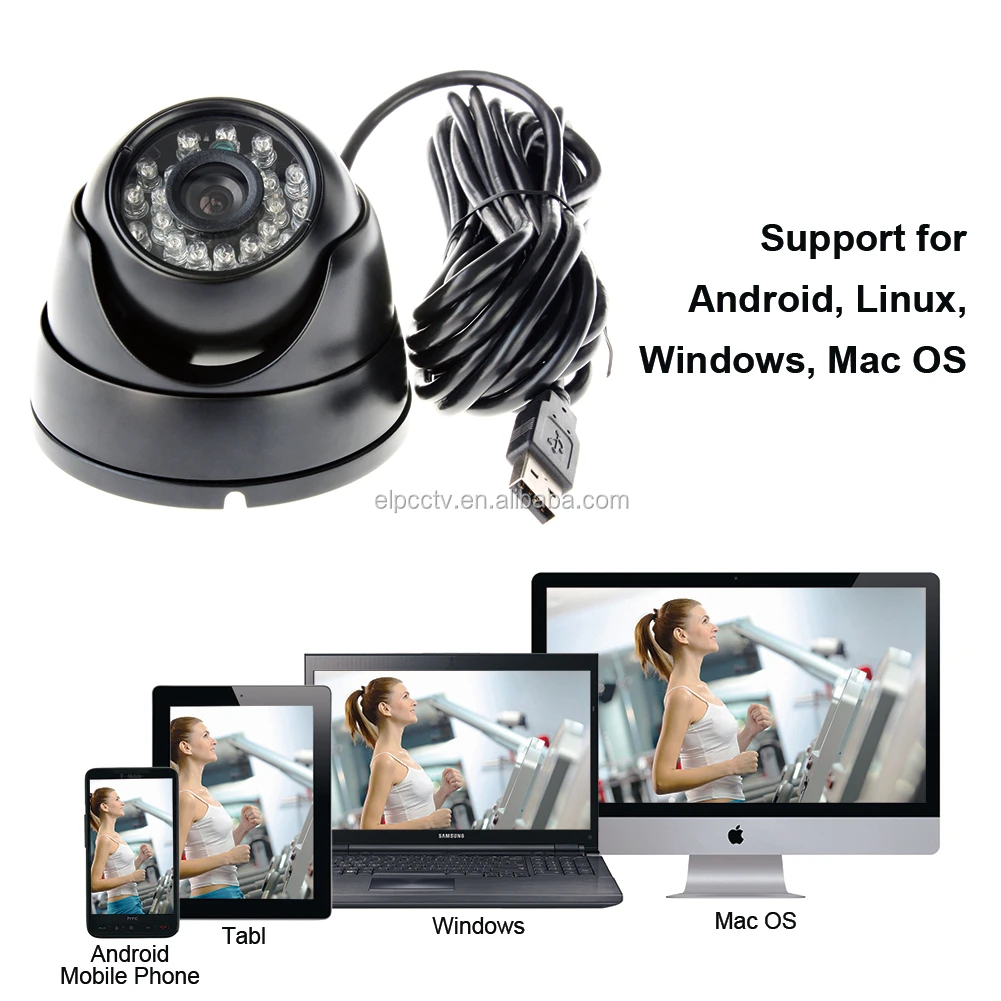

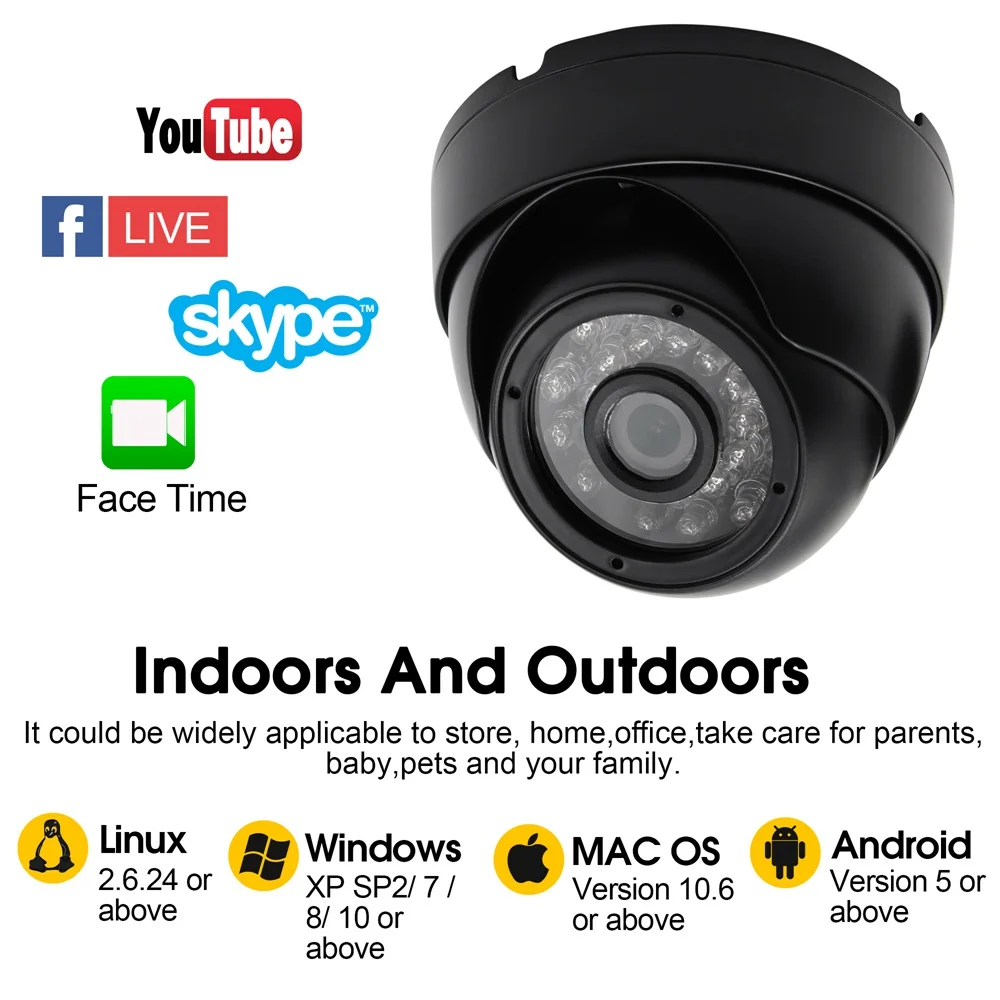

| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||

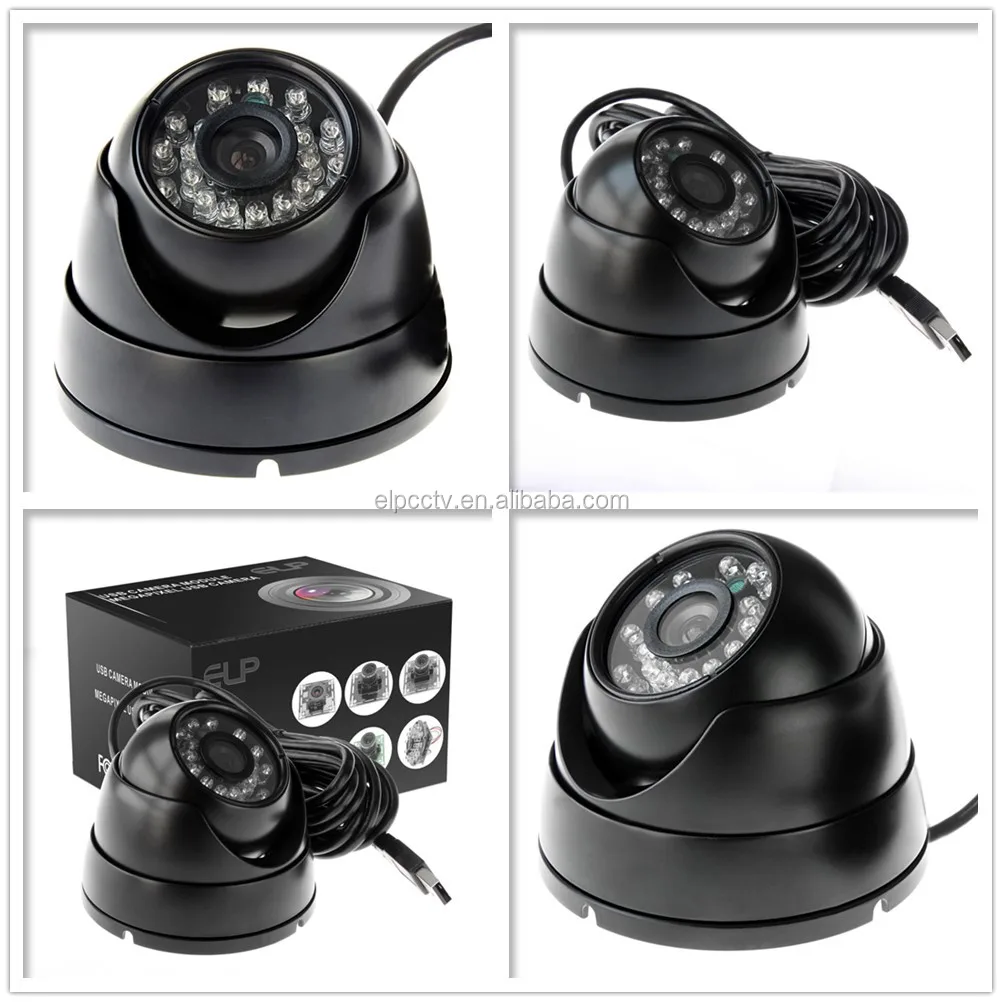

Products Display

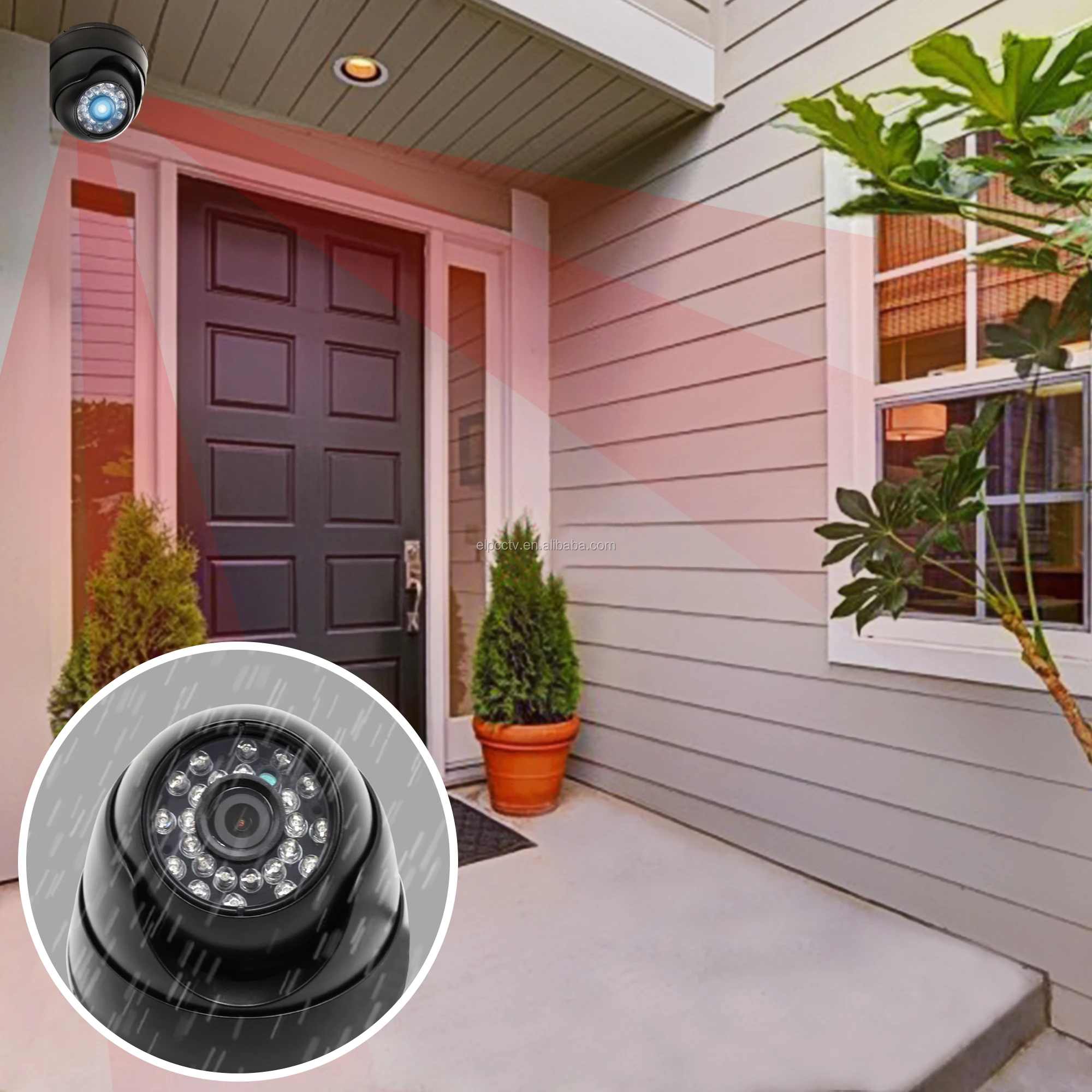

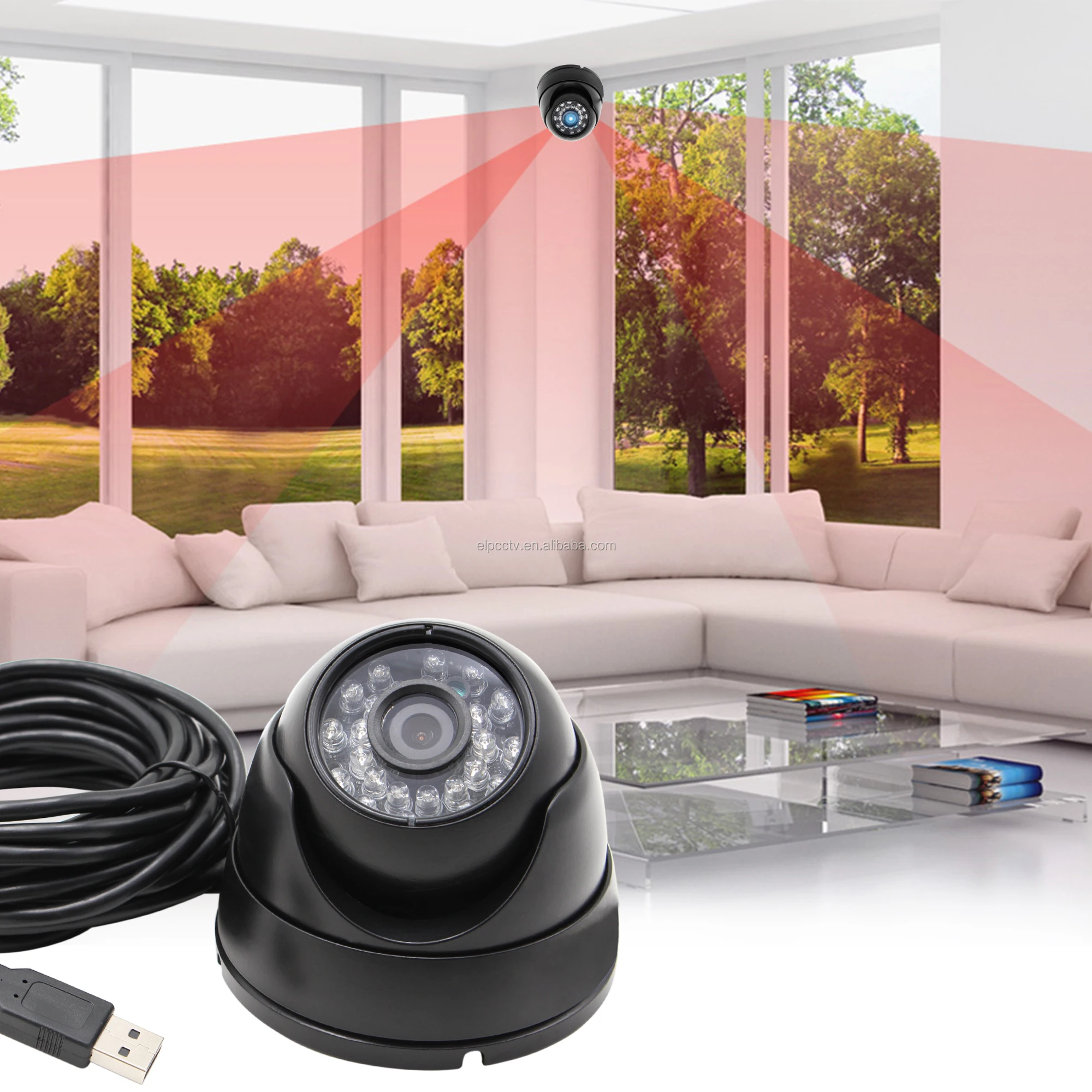

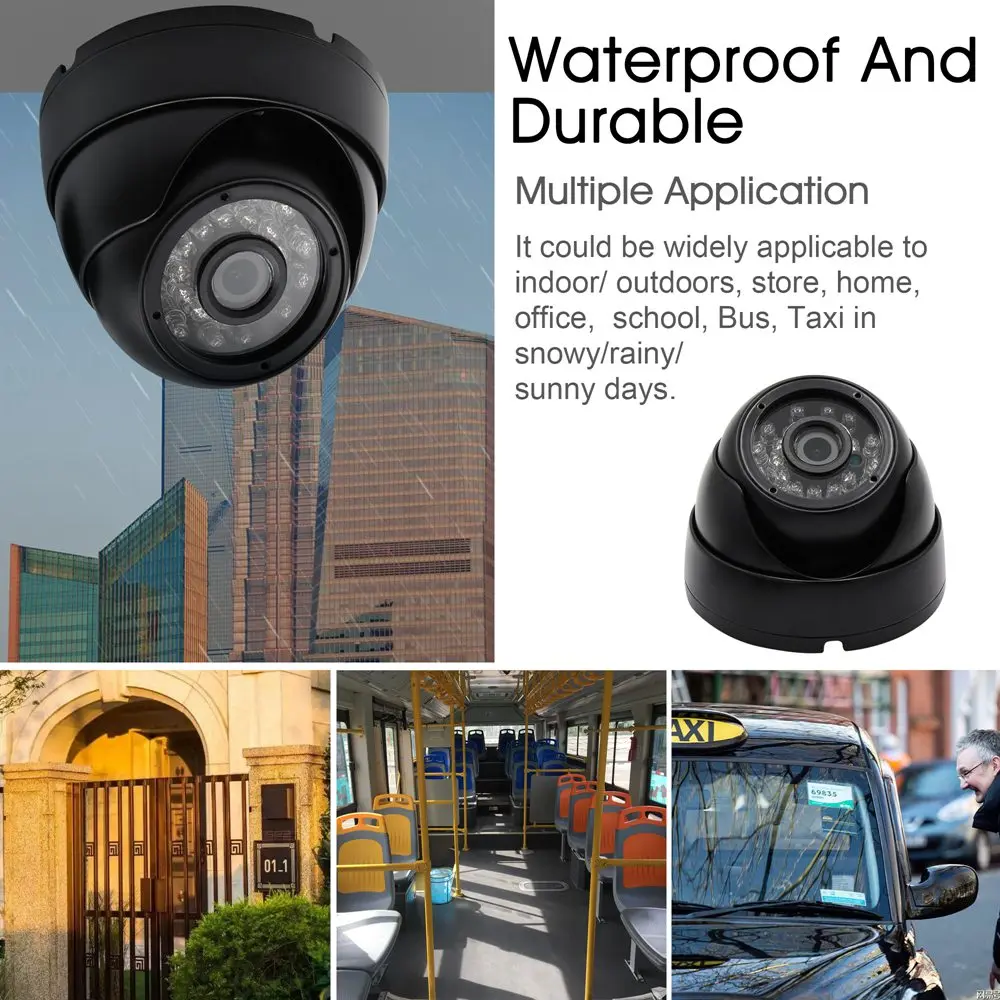

Applications
Related Products
USB3.0 Camera Module 2MP 120fps/260fps USB Camera
2MP H.264 Sony Low Light USB Camera 1.3MP Low Illumination USB Camera
2MP 1080P H.264 Audio USB Camera 1MP 720P Audio USB Camera
Auto Focus USB Camera 5MP Mini USB Camera Dual Lens USB Camera
3MP WDR USB Camera 8MP USB Camera VGA USB Camera
Face Detection USB Camera USB Camera With Enclosure IP Camera
Company Information
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
