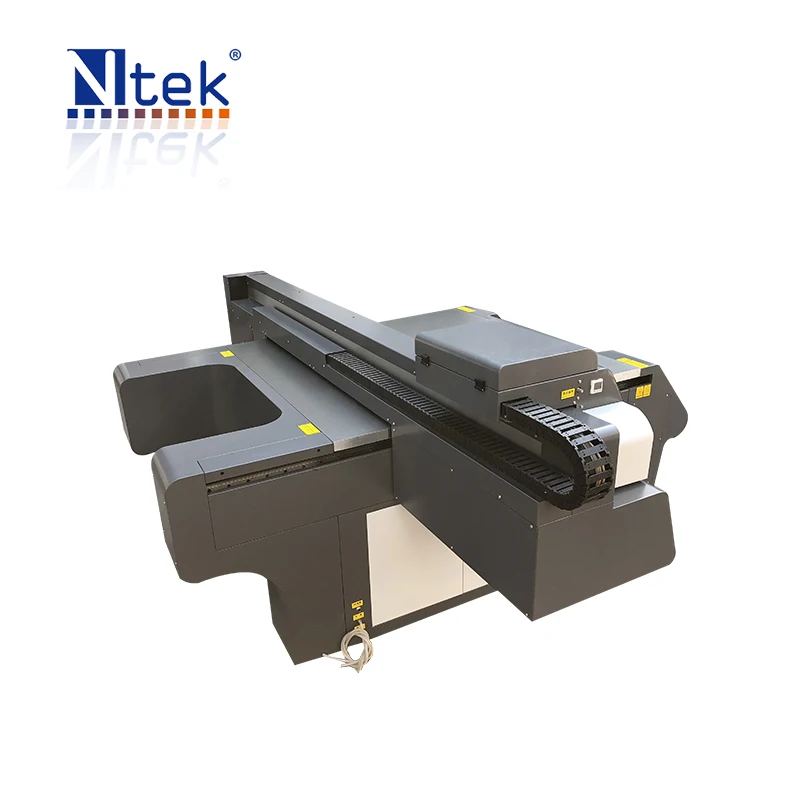

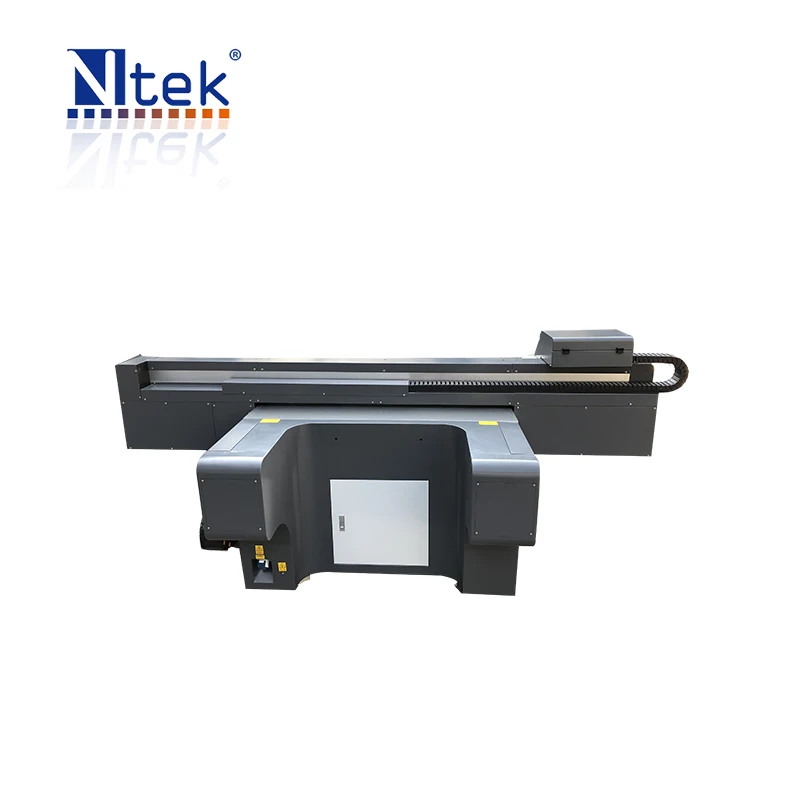

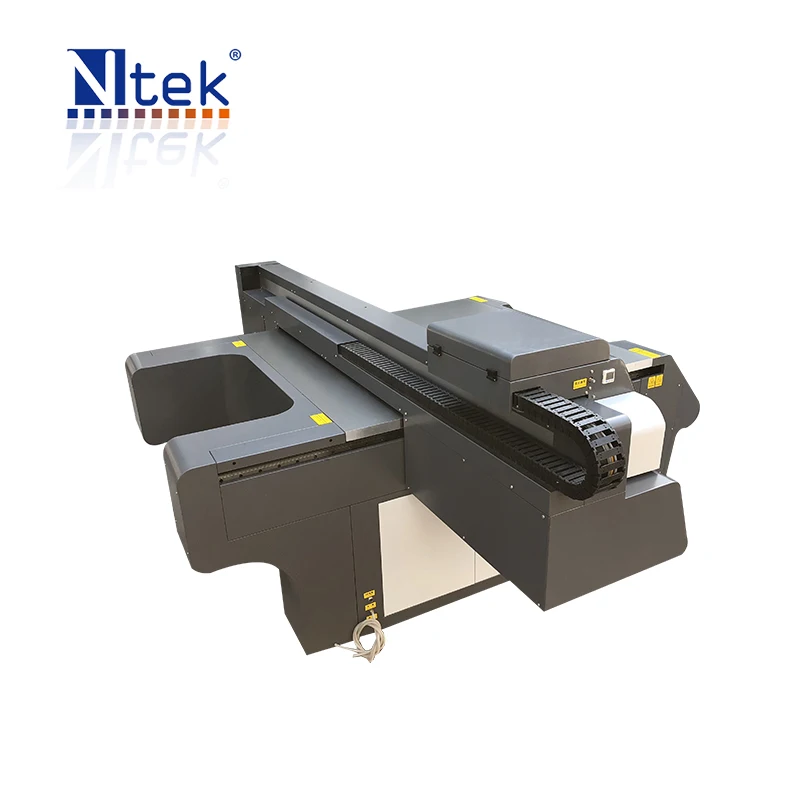

Ntek Metal Photo Printing Machine Instagram Crystal 3D Photo Printing Machine
- Category: >>>
- Supplier: Linyi Win-Win Machinery Co. Ltd.
Share on (60776884744):
Product Overview
Description

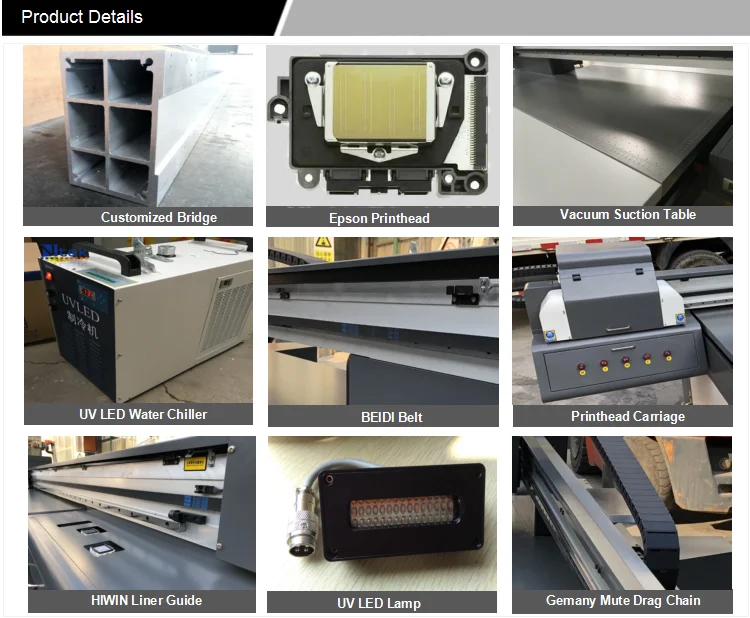

Product Details

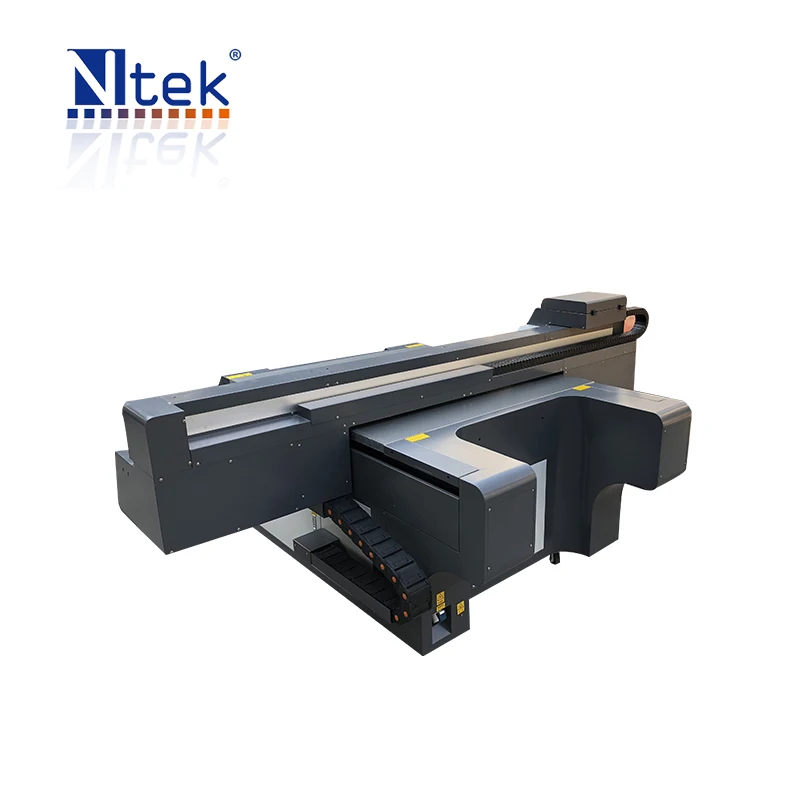

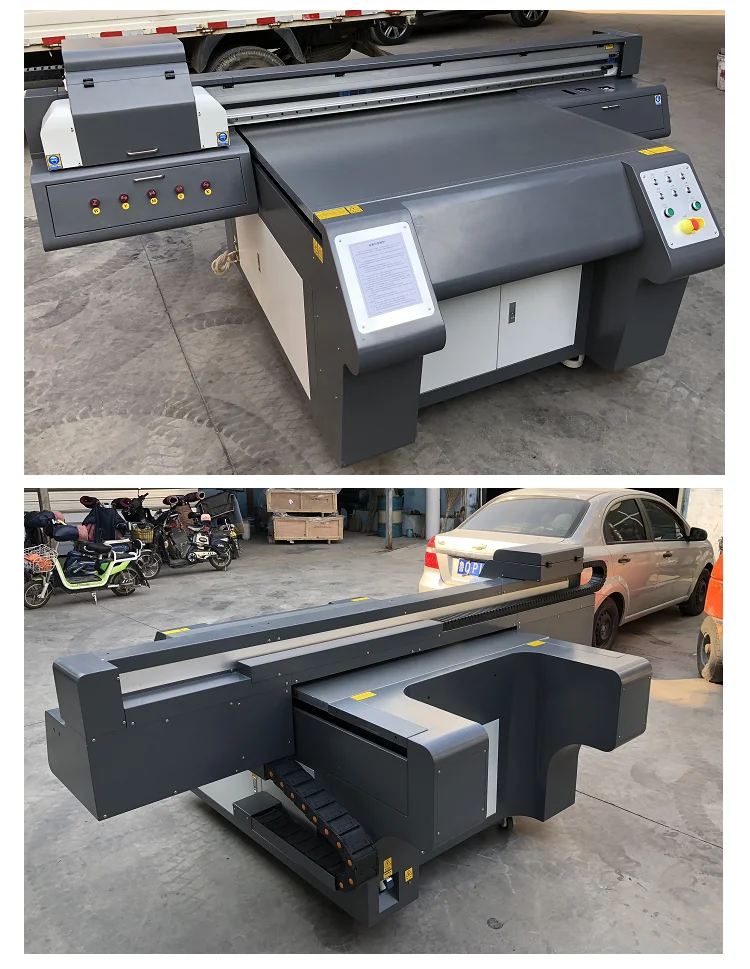

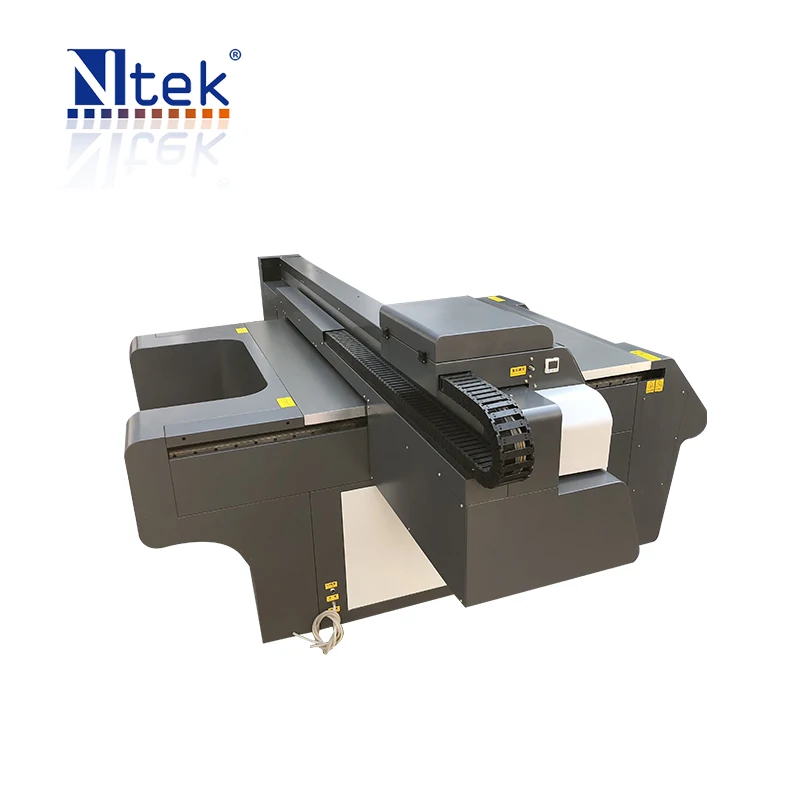

Ntek Metal Photo Printing Machine Instagram Crystal 3D Photo Printing Machine

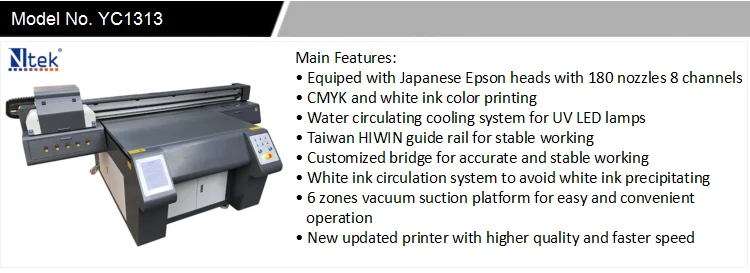

| Product Model | YC1313 |
| Printhead Technology | Drop-on demand piezo eletric |
| Printhead Control | Printhead voltage is software adjustable |
| Printhead Type | EPSON Printhead 180 nozzles*8 lines |
| Printhead Number | 2 |
| Ink Characteristics | UV Curing Ink |
| Ink Reservoirs | Refillable on the fly while printing/1000ml per color |
| LED UV Lamp | More than 20000-hours life |
| Color Control | ICC based color, curves and density adjustment |
| Printhead Aarrangement | CMYKW Vanish optional 6-12sqm/h |
| Printhead Cleaning System | Automatic Cleaning System, Automatic Dry-preventing System |
| Guide Rail | Taiwan HIWIN |
| Working Table | Vacuum Sucking |
| Printing Size | 1300*1300mm |
| Print Interface | USB2.0 |
| Media Thickness | 0-100mm, higher can be customized |
| Print Resolution | 360dpi, 720dpi, 1440dpi, 2160dpi |
| Life of Printed Image | 3 years (outdoor),10years (indoor) |
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. |
| RIP Software | UltraPrint/ Photoprint/ Onyx |
| Power Supply | 220V 50/ 60Hz (10%) |
| Power | 1100W |
| Operation Environment | Temperature 20 to 30℃, Humidity 40% to 60% |
| Machine Dimension | 2750*1750*1350mm |
| Packing Dimension | 2900*2250*1670mm |
| Weight | 700kg |
| Warranty | 13 months exclude the consumables |
Finished Products
Applicable Areas & Materials:
A.Decoration industry B.Glass, Ceramic industry C.Advertising&Sign industry D.Furniture and personalized products
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather, etc.
Company Information
Exhibition & Team
Packaging & Shipping
Seaworthy Packing: Inner packing with strech plastic film, and outside packing with export plywood case.
