The backhoe loaders are mainly used for municipal, building, water conservancy, road, water, electricity, garden and other departments, engaged in agricultural construction, pipe laying, cable laying, landscaping and other jobs.
Specification

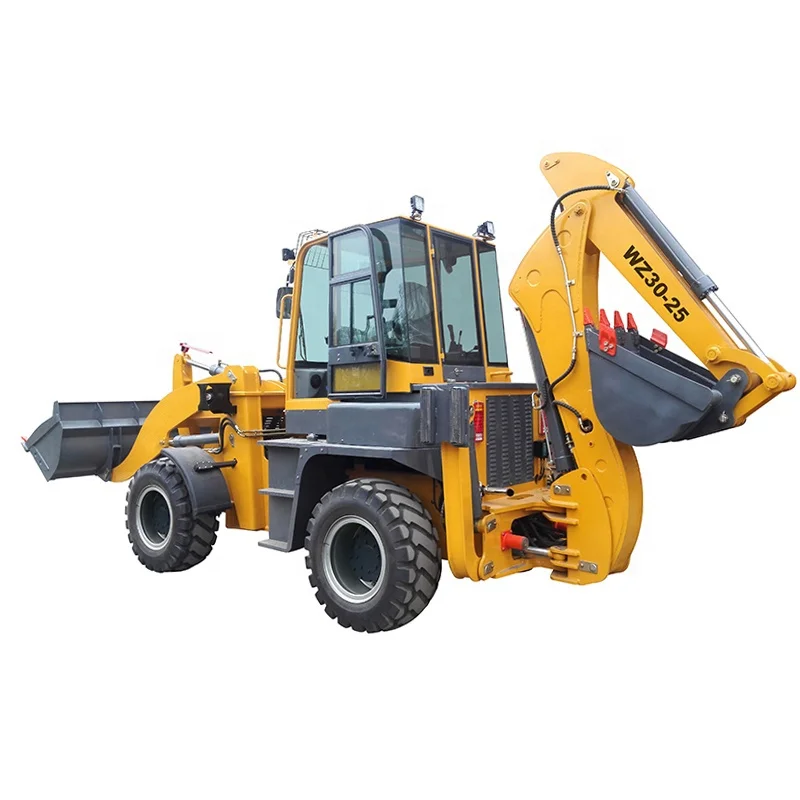

SPECIFICATIONS FOR WZ30-25 BACKHOE LOADER
Engine
Standard/Option
YuChai, Cummins
Power
Kw
85,74
Operating Weight
kg
7000
Rated Loading
kg
2500
Loading Bucket Capacity
m³
1.0
Backhoe Bucket Capacity
m³
0.3
Min. Turning Radius
mm
5200
Max. Raise Height
mm
4500
Max. Dumping Height
mm
3500
Min. Dumping Distance
mm
1000
Max. Digging Depth
mm
4050
Max.Digging Height
mm
5000
Type of tyre
16/70-20
Main Features
1). Full hydraulic transmission. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the machine working efficient and easy to maintenance.
2). High productivity. Super lifting force and automatic leveling at high position.
3). Operation flexible. Center-point frame articulated and small turning radius makes it convenient to work in confined places.
4). Safe and reliable. Single-line air-assisted brake system.
