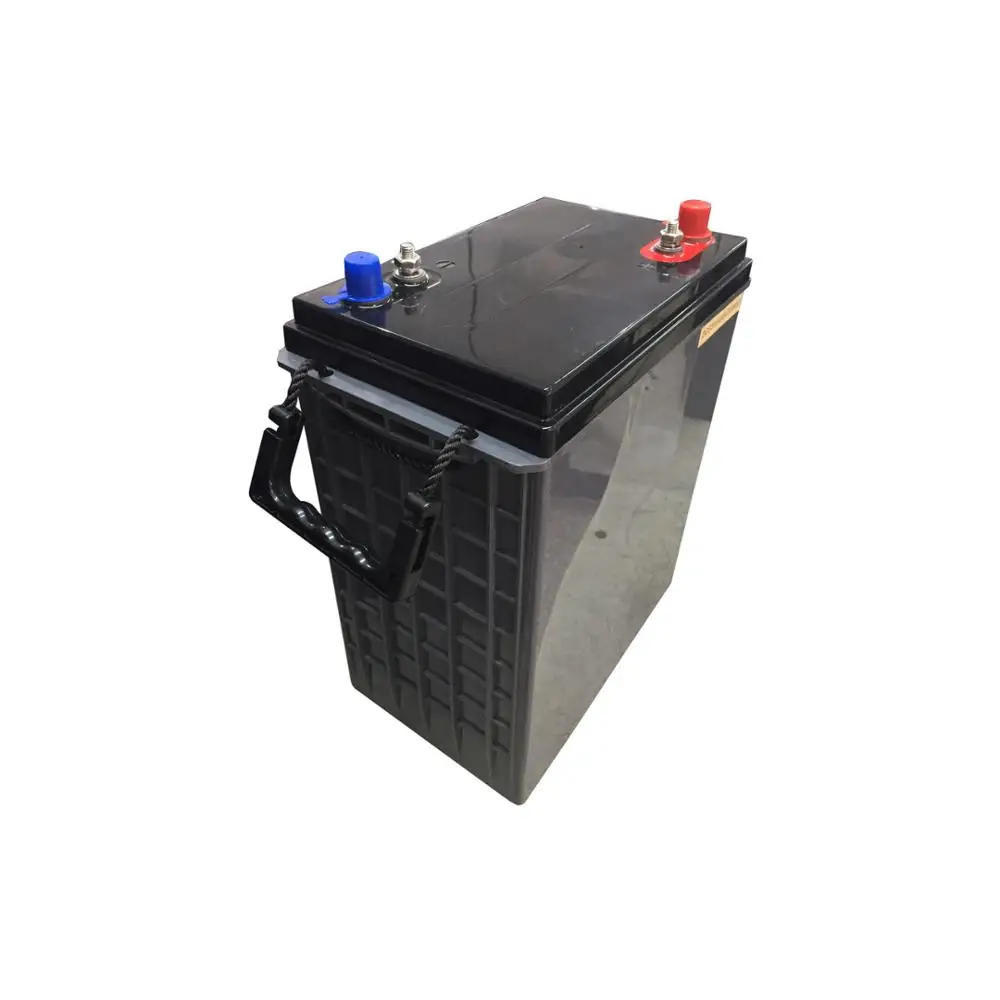

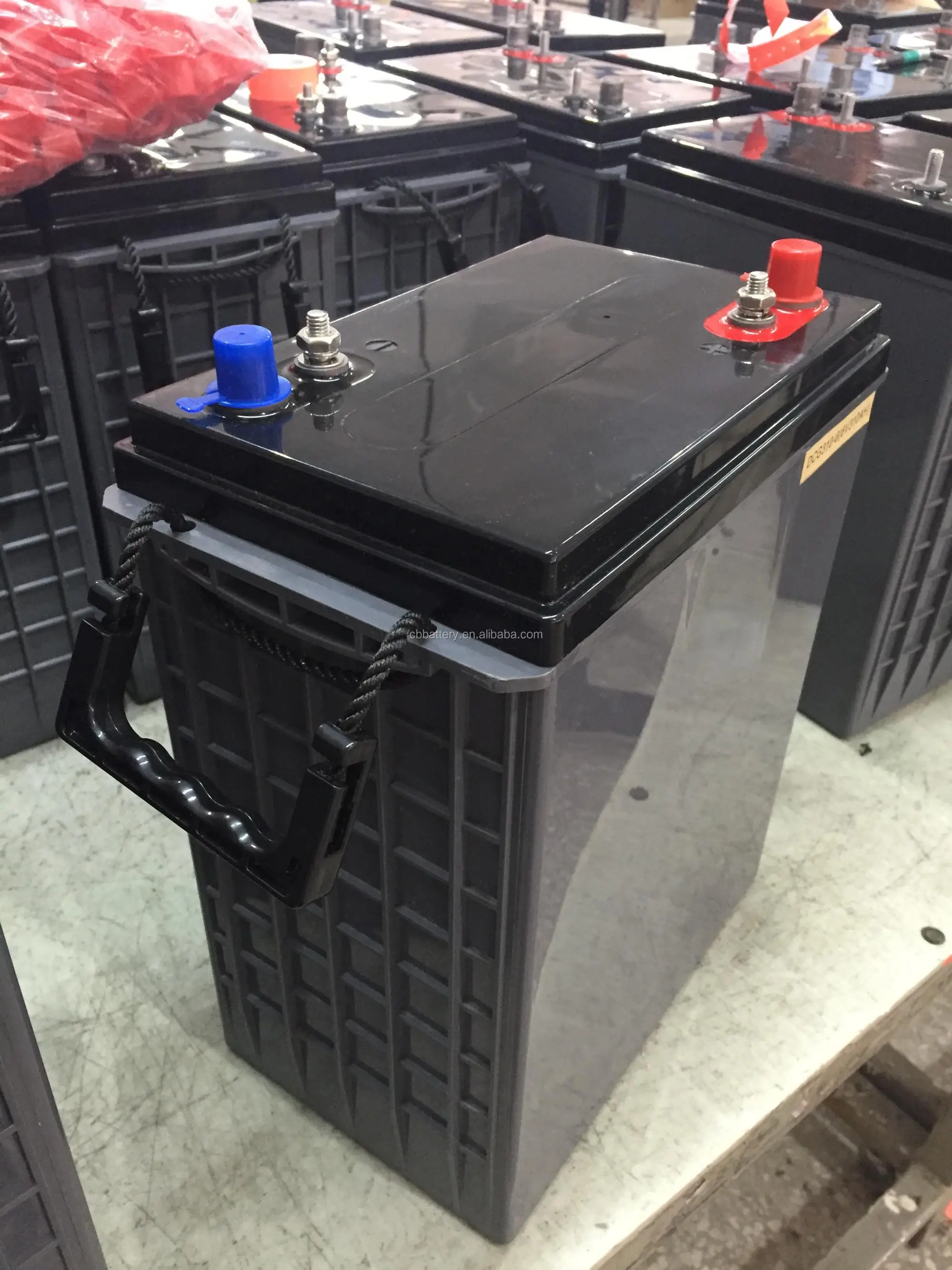

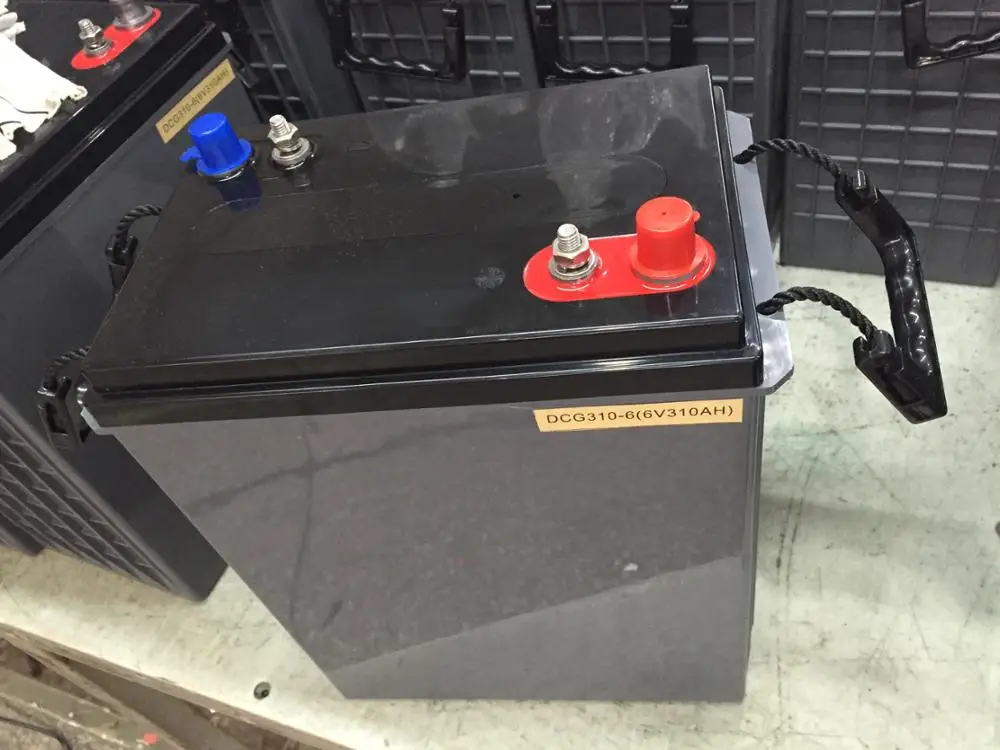

6V 310AH Lead Acid Deep Cycle Gel Battery Auto Terminals

Product Overview

Description



CBB 6V 310AH Lead Acid Deep Cycle Gel Battery For Marine

DCG Series Deep Cycle Gel Battery –gel battery for deep cycle service

CBB DCG(Deep Cycle Gel) batteries are maintenance free and require no watering , while providing you the unmatched quality and power of CBB ‘s  advanced deep cycle technology.

It offers superior deep cycle discharge capacity with a longer life and much better thermal stability than normal battery .  It owns both advantages of deep cycle batteries and gel batteries



Description:



CBB Battery offers a completePortfolio of Deep Cycle Gel(DCG)products, featuring these benefits: Long-lasting runtime and battery life .In the most demanding of applications; Proprietary Gel formulation prevents

stratification;Superior engineering offers exceptional durability.



Features:

-the success of Deep Cycle Gel Batteries comes from the internationally superior gel technology

-excellent energy storage capacity combined with high reliability

-designed in accordance with IEC60254-1 700 CYCLES at 75% DOD

-8-10 years design life at 20°Cambient temperature (80% remaining capacity from C20).

-Grid plate construction consisting of a lead calcium alloy

-Very low gassing due to the internal gas recombination .

-High cycle service life

-Better temperature resistance performance.

-Excellent deep cycle performance

-superior low current discharge performance

-Better charge acceptability

-Better safety performance and reliability

-High performance price ratio and lower yearly operating cost

-Non-spillable construction design

-Safety valve installations makes it explosion proof

-Low self discharge characteristic

-ABS containers and covers( U L94HB,U L94V-0 Optional)

-Gel batteries are designed to be operated within a wide termperature range -40 and +55

-Maintenance –free(no topping up)motive power batteries in gel technology

-completely recyclable



Extra Benefits



-Long-lasting runtime and battery life in the most demanding of applications

-Properietary gel formulations prevents stratification

-Superior engineering offers exceptional durability

-Sealed containers ensure safe use in schools, hospitals,office buildings and other health and safety-sensitive(HSE) environments



Charging



Item	Charge  voltage	Charging current
Float Voltage	2.30Vpc	10-35A per 100Ah
Voltage on boost charge stage	2.35VPC-2.45VPC
Max.switch mode voltage	2.45VPC
Equalizing charge voltage(max.values)	2.45VPC



Applications:



-Aerial Work Platform(AWP)Access

-Material Handling

-Floor Machine

-Recreational Vehicle (RV)

-Industrial

-Electric Boats

-Golf/Utility/Neighbourhood Electric Vehicle(NEV)

-wheel chairs

-Remote Monitoring & Instrumentation

-Renewable Energy(Solar,Small Wind and small Hydro )





Technical Details:





Model No	Rated Voltage(V)	Capacity (Ah)	Dimension								Weight		Terminal
			Length		Width		Height		Total Height		kg	pound
			mm	inch	mm	inch	mm	inch	mm	inch

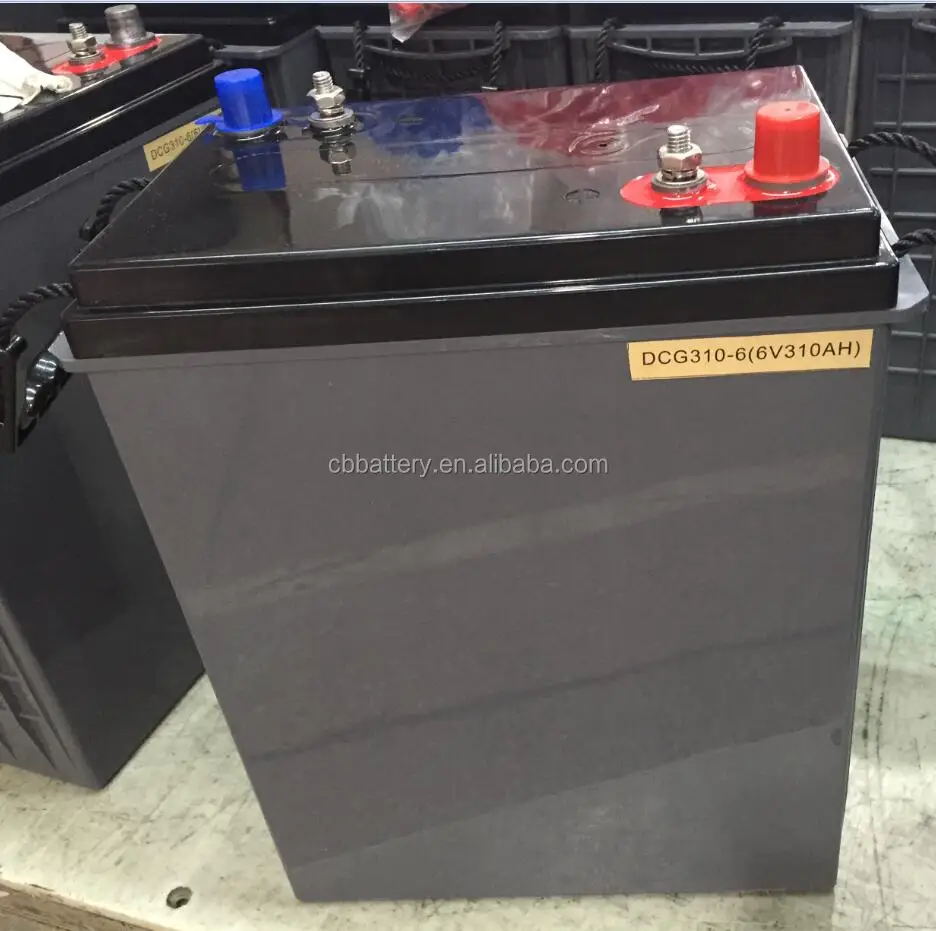

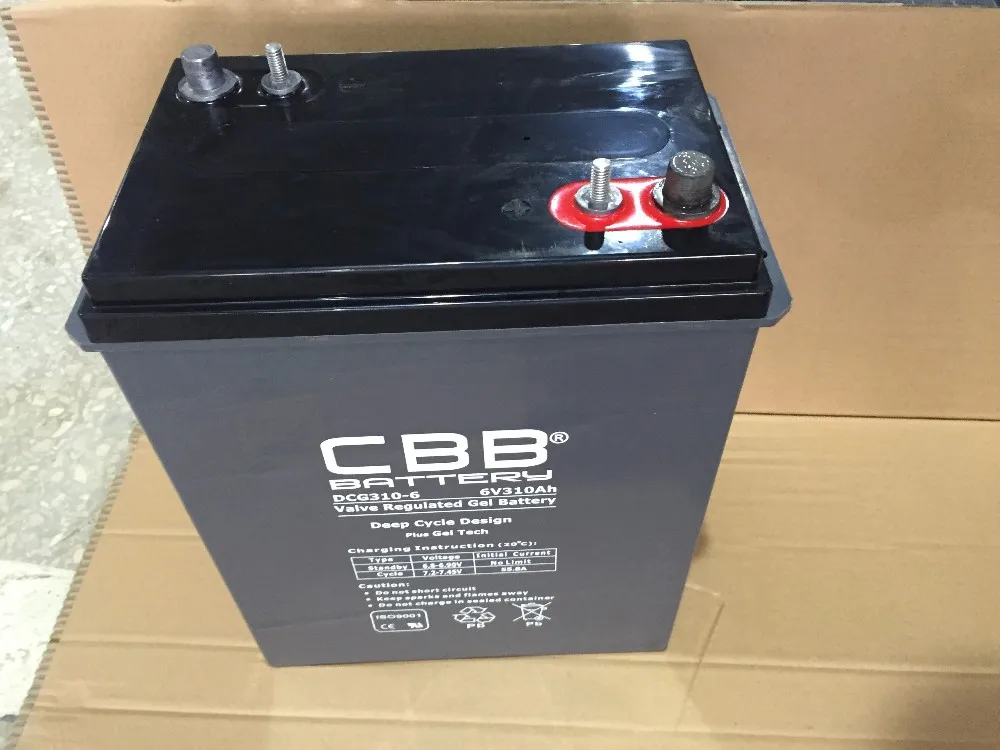

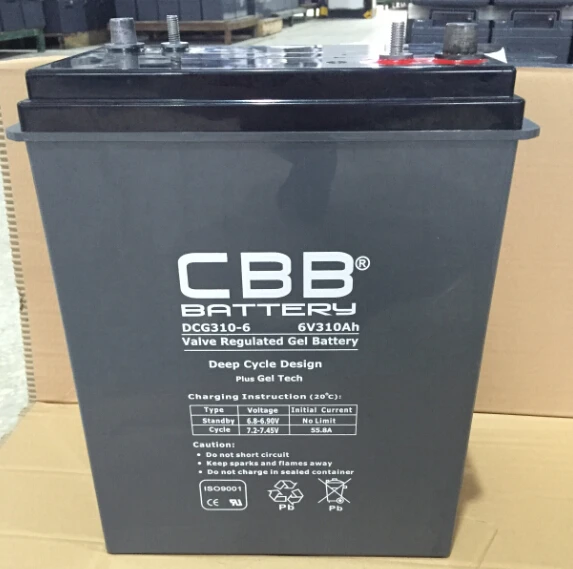

DCG310-6	6	310	295	11.61	178	7.01	354	13.94	360	14.17	46.3	101.86	T5/T6
DCG330-6	6	330	295	11.61	178	7.01	354	13.94	360	14.17	47.0	103.40	T5/T6
DCG380-6	6	380	295	11.61	178	7.01	404	15.91	410	16.14	55.6	122.32	T5/T6
DCG420-6	6	420	295	11.61	178	7.01	404	15.91	410	16.14	57.5	126.50	T5/T6











Payment terms:

1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash
Trade terms: ex works or Fob Guangzhou/Shenzhen

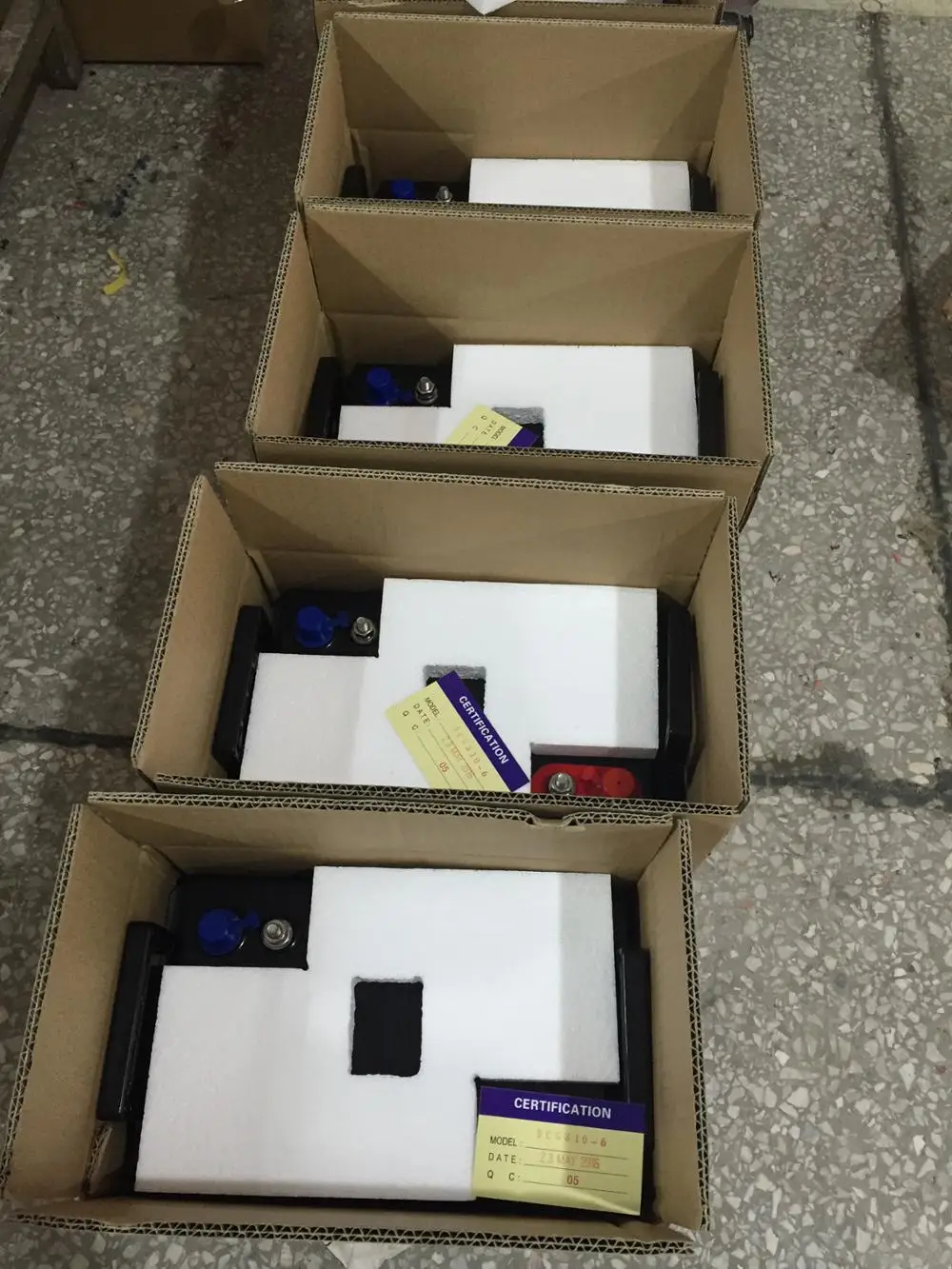

Package details:
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.

Delivery time :
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.

Minimum order quantity:
1. if battery is smaller than 17ah,MOQ would be 200-1000pcs as per actual battery size if battery is bigger than 17ah, MOQ would be 50-200pcs as per actual battery size
2. if order is big quantity or 1*20’fcl load , the price would be much competitive
