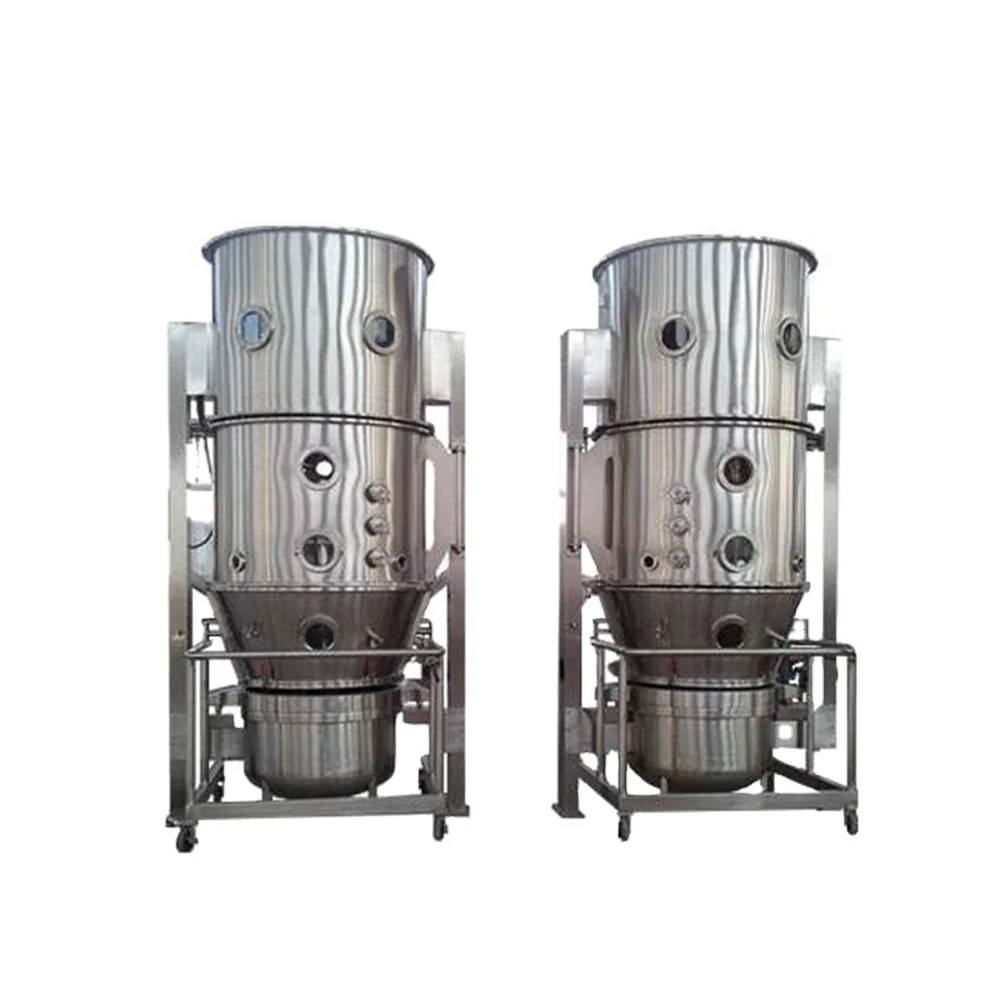

The machine is mainly used for drying powder or granules from pharmaceutical, foodstuff, chemical and some other industries.
Certificate
Working Principle
Fresh air is filtered by 2 or 3 filters and then enters the heating system for heating. After heated, the hot air enters into the drying chamber and blows up the material in the bowl of the FBD and lets the material into fluidization conditions. During this period, the material is dried. When customers use the machine, they can set the procedure and parameters according to the process requirements, and then start the machine.

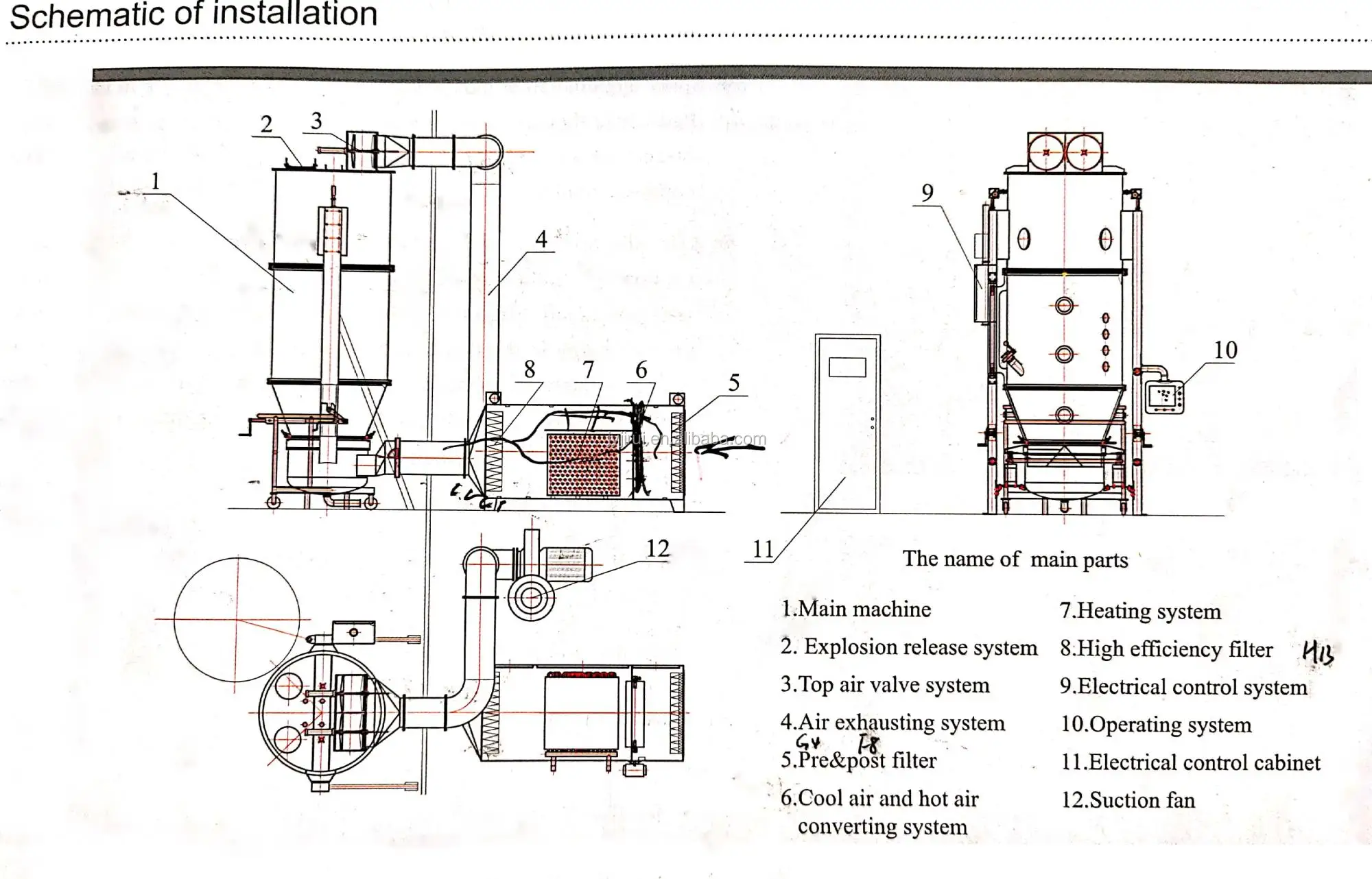

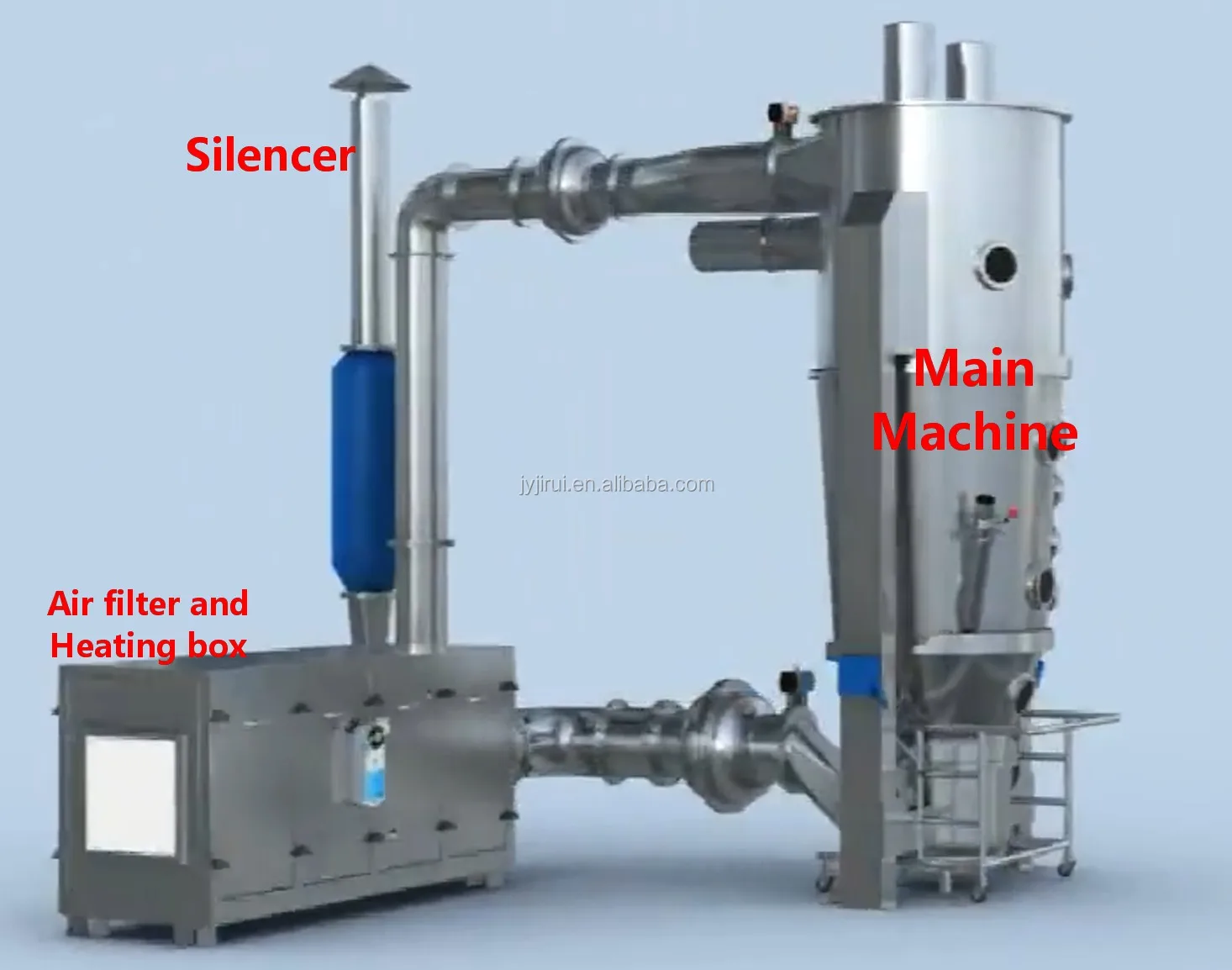

The main structures

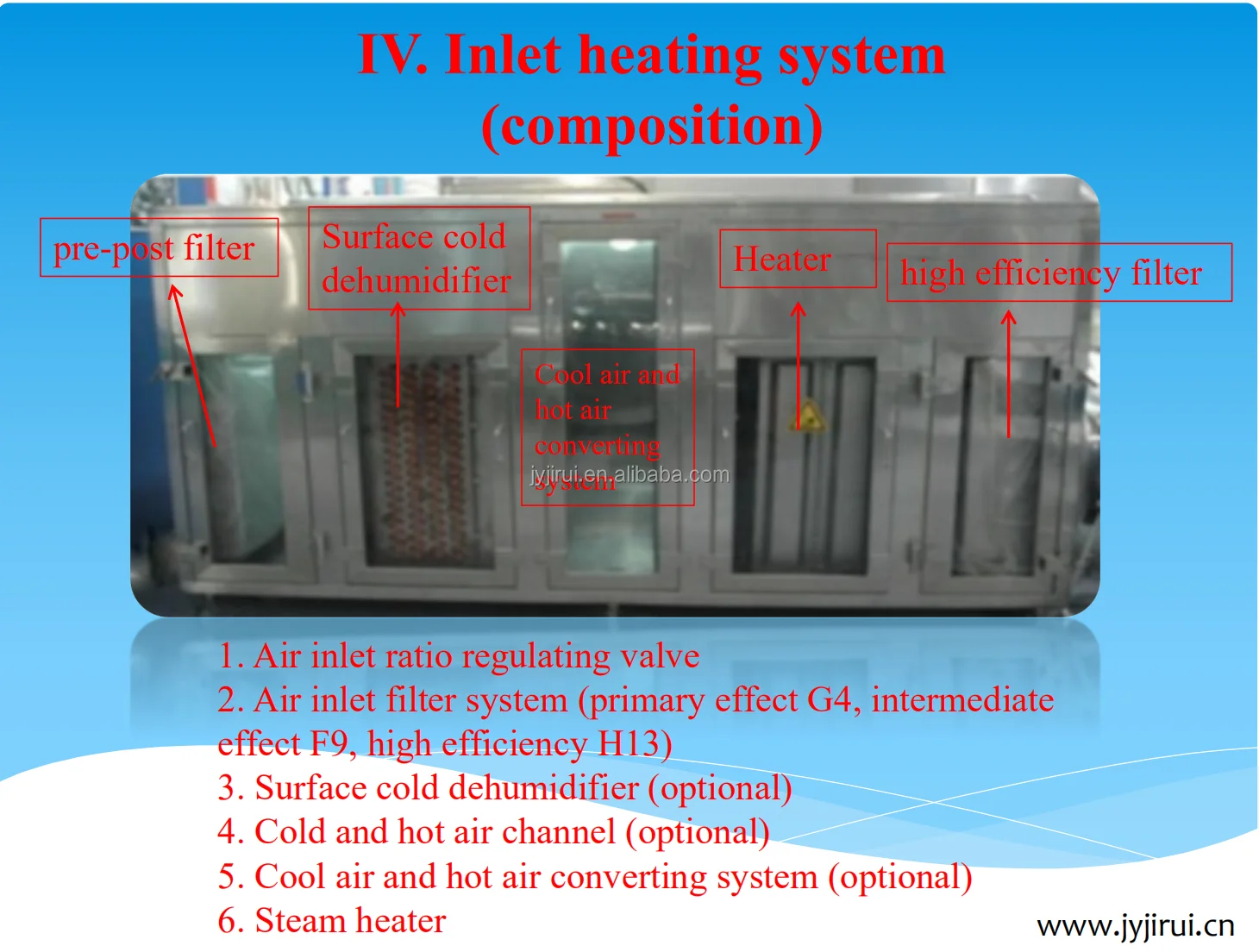

1. INLET AHU

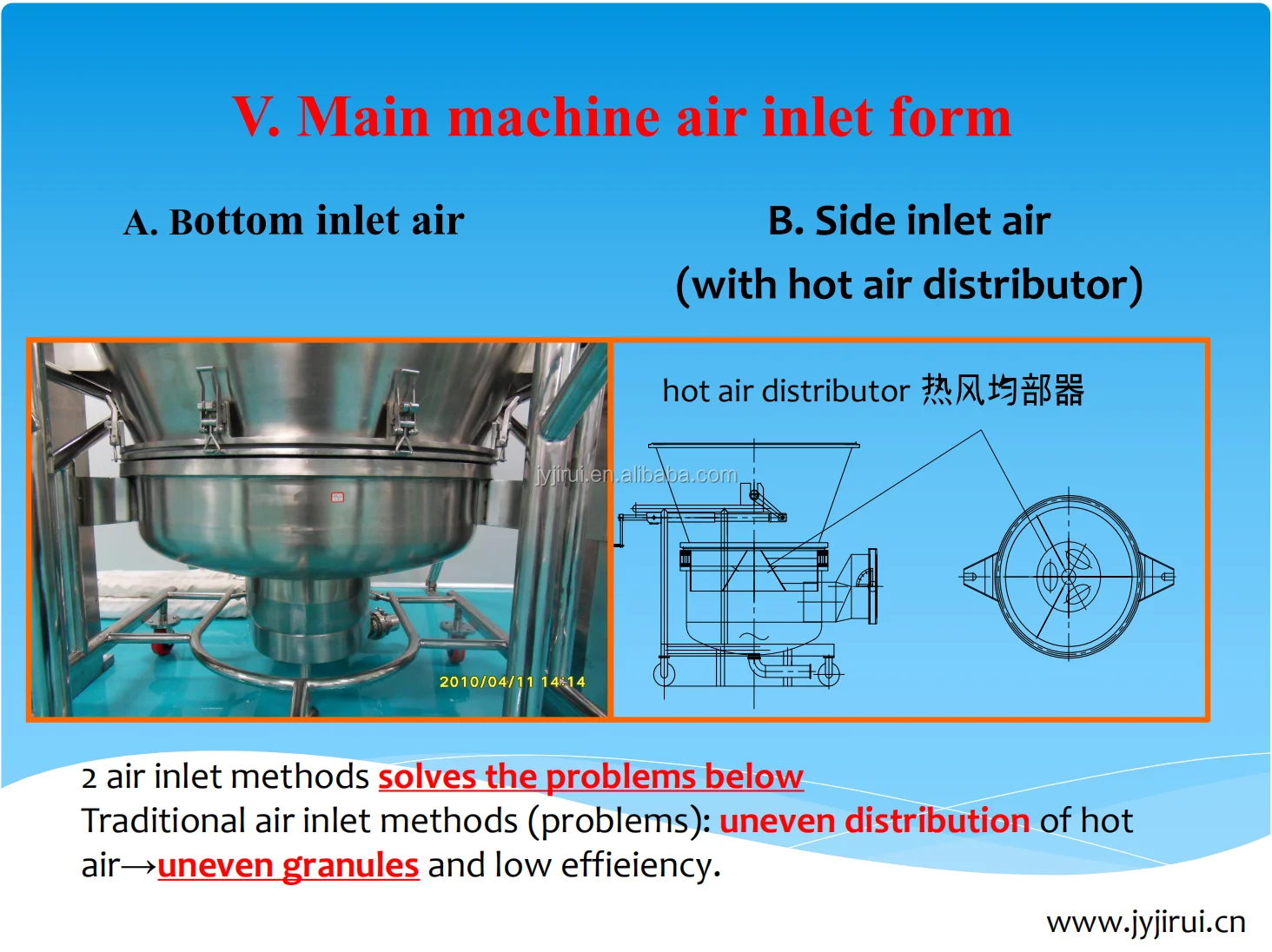

The inlet AHU consists of Primary filter(G4), Post filter(F8), high efficiency filter(H13) and heater with accurate temperature control. The inlet air flow, speed and pressure are variable and controllable. For the heater, it can be steam radiator, electrical heater, gas furance and so on.
2. MAIN BODY STRUCTURE

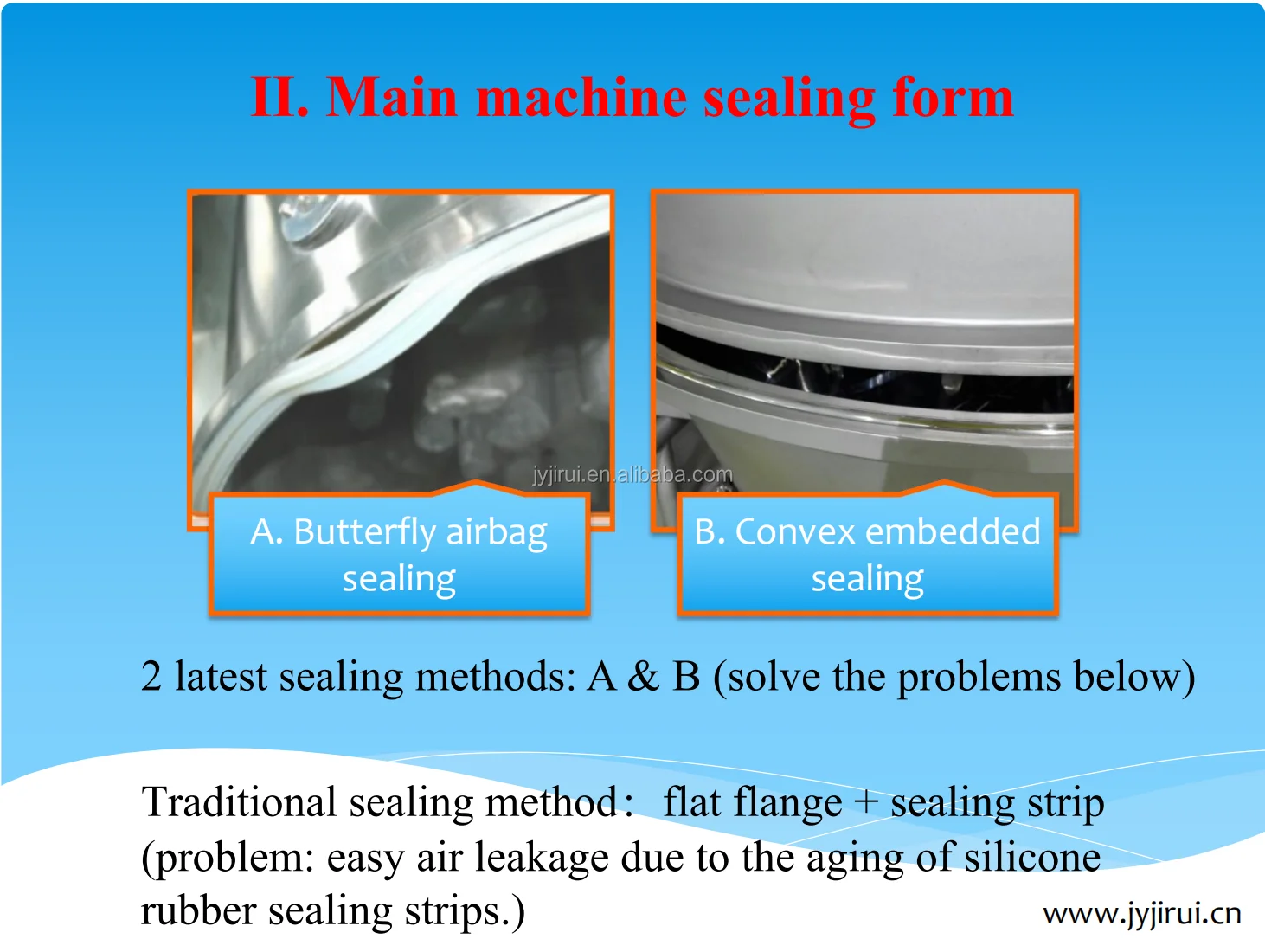

The main body structure consists of bottom bowl, movable product bowl with trolley,fluidized chamber, expansion chamber/filter housing. The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.

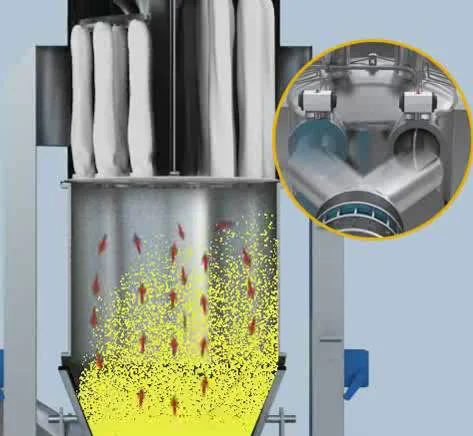

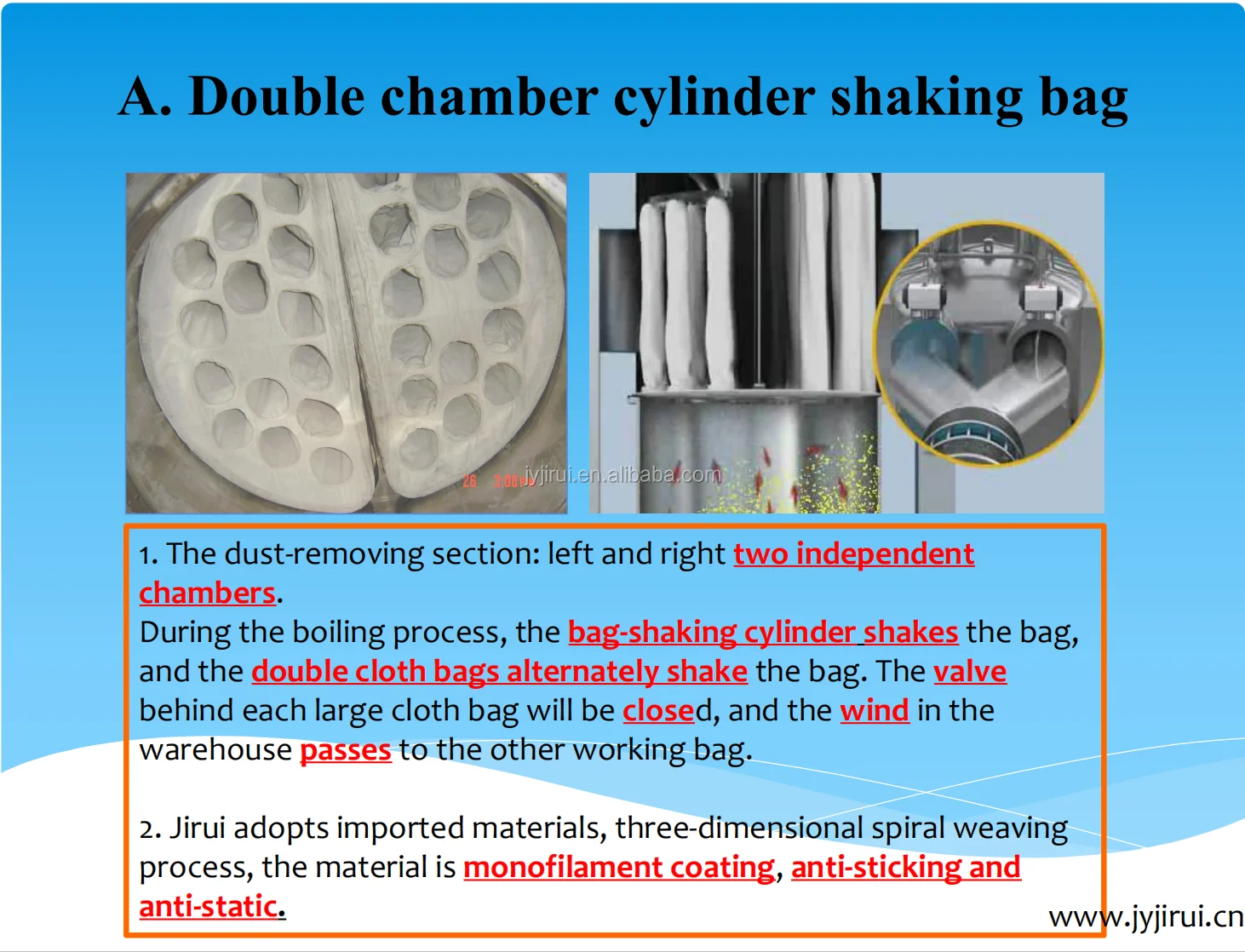

3. PRODUCT FILTER
The double structure bag filter in 2 pieces( in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control system to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is environment-friendly designed.
Options
1. 2Bar & 10Bar POWDER EXPLOSION
The 2Bar & 10Bar powder explosion proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.

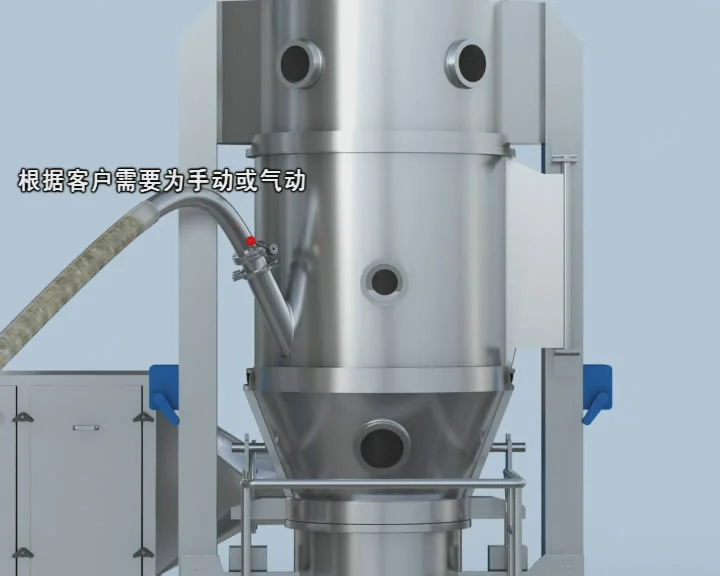

2. PRODUCT CHARGING BY THE LIFTING MACHINE
Product charging by the vacuum transfer machine
3. THROUGH-WALL STRUCTURE for the machine in on request.

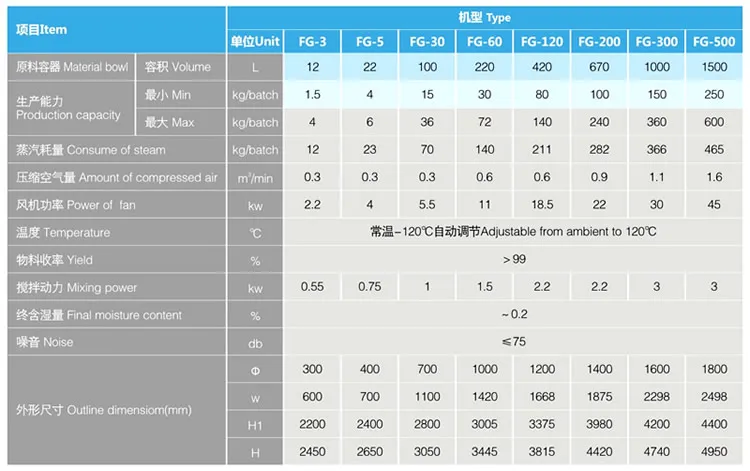

Techincal parameter

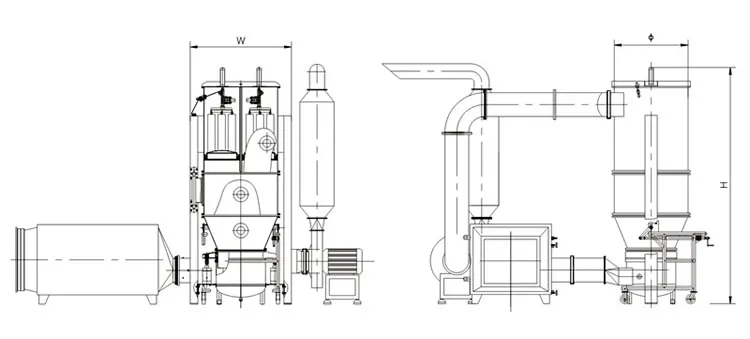

Equipment detail
Packaging & Shipping
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Air bubble film and stretch film.
Delivery Details: about 40-60 workdays after payment.
Our Services
Pre-sales service
1) Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1) Training how to install and use the machine
2) Engineers available to service machinery overseas.
3)one year guarantee,whole life service.Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
