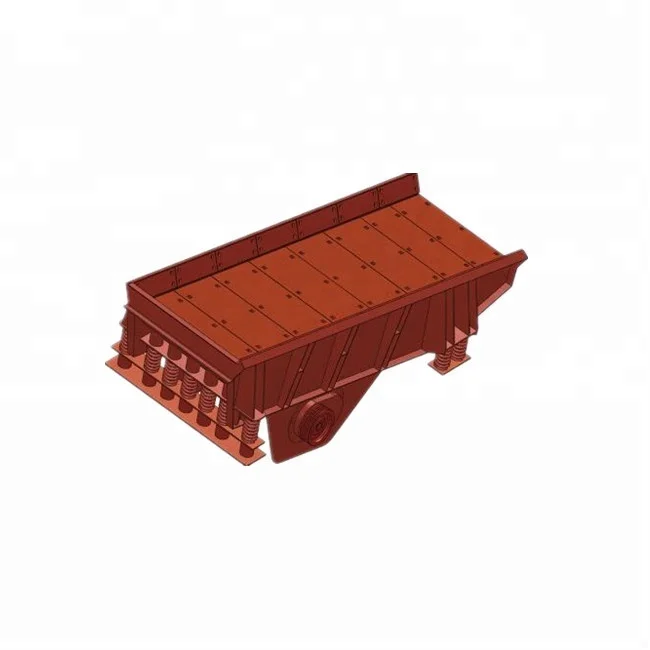

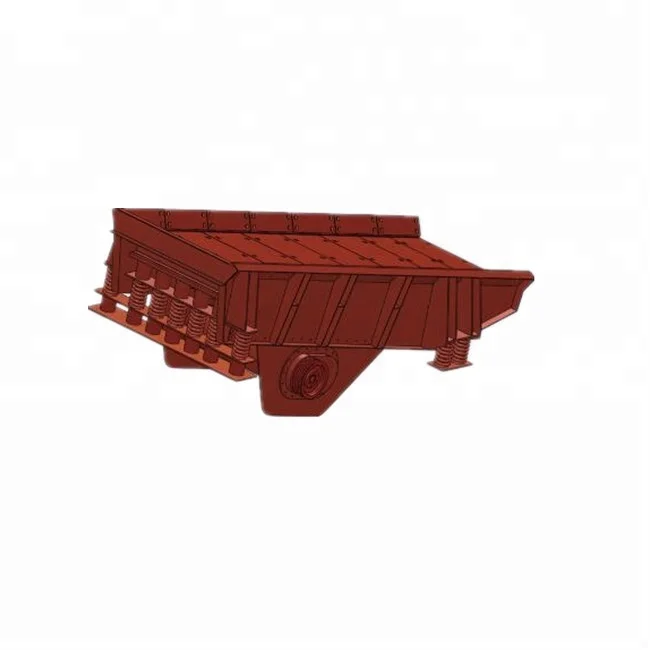

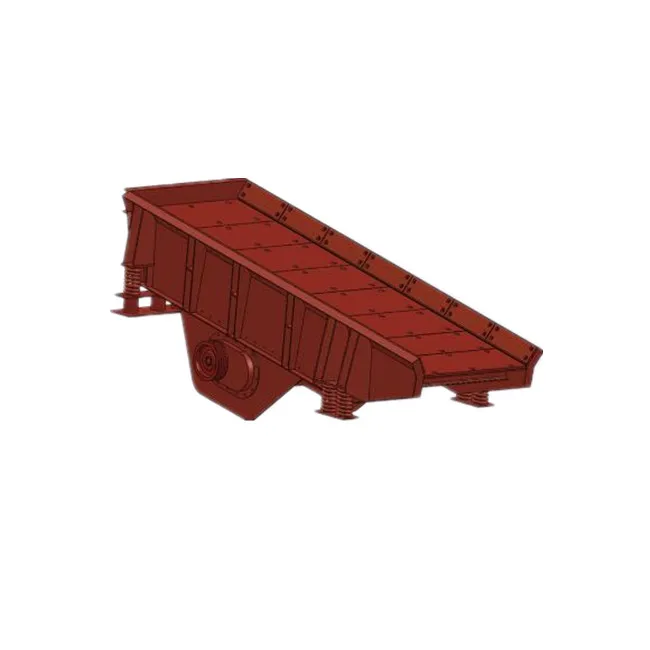

High Efficiency Durability Vibrating Feeder

Product Overview

Description



Technical Specification of Vibrating Feeder
Specification and model	Maximum feed size(mm)	Speed(r/min)	Productivity(t/h)	Motor power(kw)	Weight(exclusive of motor)(t)	Overall dimensions (L×W×H)(mm)
ZSW3895	500	500~750	100~160	11	4.1	3800×2150×1990
ZSW4211	600	500~800	150~250	15	4.3	4270×2350×2210
ZSW4913	750	500~750	250~450	22	6.8	4910×2610×2720
ZSW4914B	1000	700~980	300~650	37	7.7	5000×2670×2230
ZSW5013B	1000	700~980	400~600	37	7.5	5020×2660×2110
ZSW5014B	1100	700~980	500~800	37	8	5000×2780×2300
ZSW5016B	1200	700~980	600~1000	45	9	5050×2980×2450

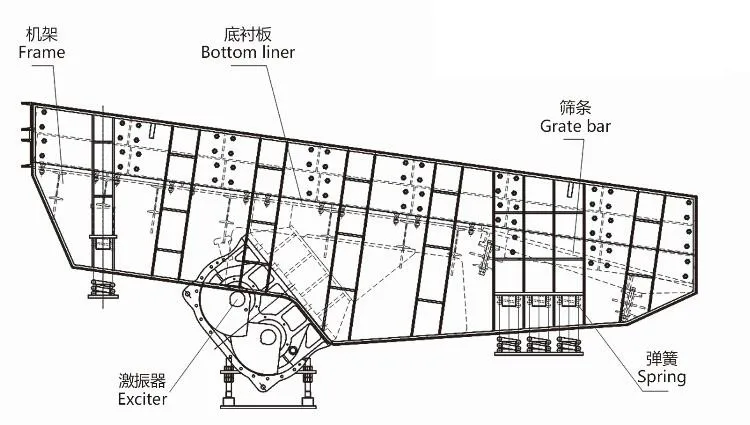

1.Technical parameters are subject to change without further notice. 2.A model number wiht "B" denotes eccentric block exciter and a model number without "B"denotes double eccentric shaft exciter.



Feature:Vibrating feeder is one assorted device for large-sized crushers.With the advantages of simple structure,convenient maintenances,

high stiffness and durability,high carrying capacity,high efficiency,low energy consumption,and uniform feed. It's extensively applied in the

construction,transportation,energy,cement,mining,and chemical industries.



Note:

1.Custom per client's requirements are available.

2.Parts are traceability

3.Dimension reports,chemical analysis reports,mechamical test report and microstructrure testing reports are provided before shipments

 4.Non-destructive testing are acceptable ,but all the costs will be for customer's account.
