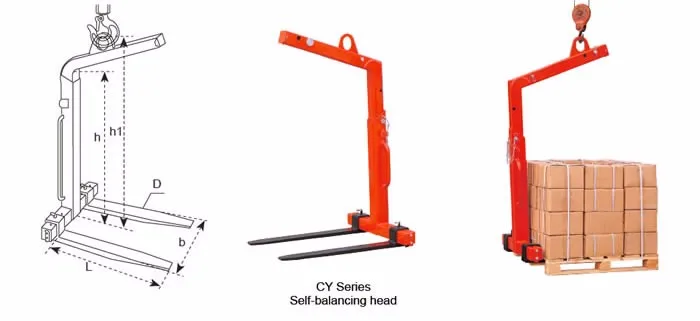

Crane Fork  CY series




 No slings or chains necessary.
 Crane operator will not need to leave cab of lorry or crane.
 Forks will remain horizontal when loaded and unloaded.
 Adjustable fork width.
 Adjustable height.


 Passed the testing of EN 13155:2003+A2:2009 & EN ISO12100:2010 by SGS

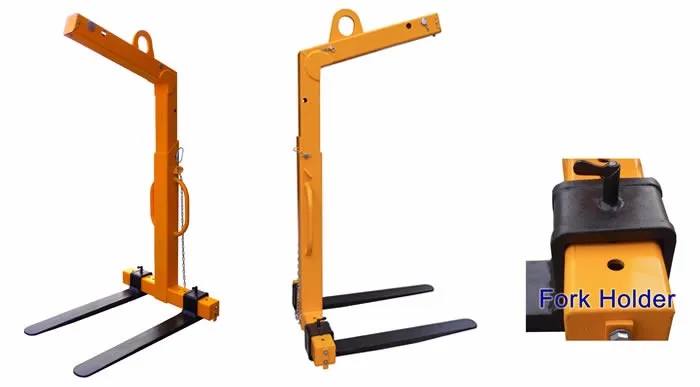

Detailed Images

Detailed Images














Packing & Delivery

Packing & Delivery









































































Model


Work Load Limit


Adjustable Fork Width


Hook Height


Effective Height


Fork Length


Fork Cross


Overall Size


Net Weight


WLL(tonne)


b (mm)


h1 (mm)


h (mm)


L(mm)


D(mm)


L×W×H (mm)


(kg)

CY10     1  350~900  1420~1920  1100~16001000  100×30  1120×920×1530
140

CY20
   2


400~900

  1655~2355  1300~20001000  120×40  1140×920×1775
220

CY30
   3


450~900

  1720~2420  1300~20001000  120×50  1140×920×1850
280

CY50
   5


530~1000

  1710~2410  1300~20001000  150×60  1160×1020×1850
380
