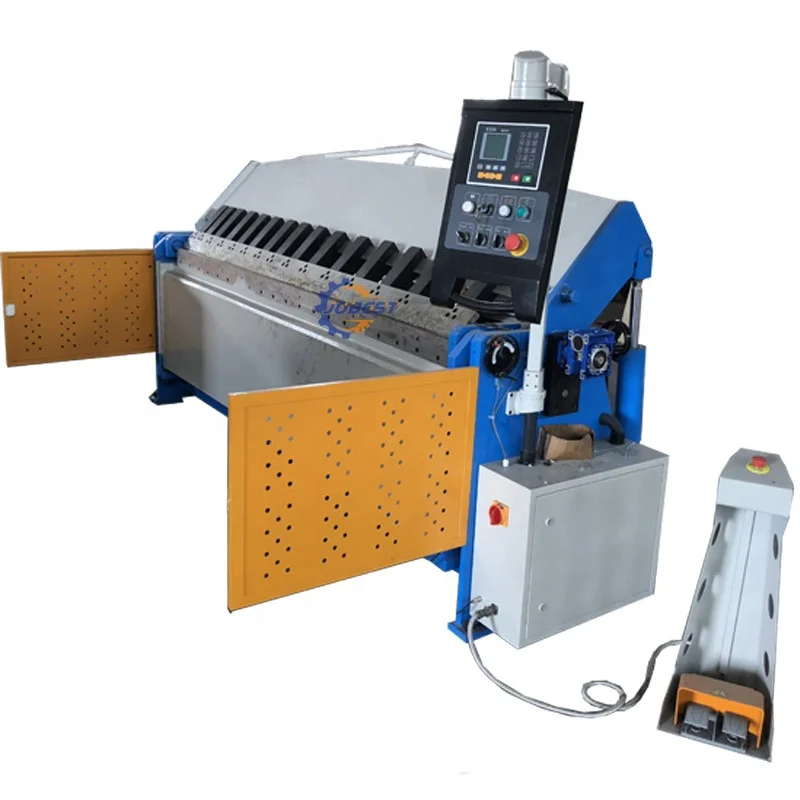

CNC Box And Pan Brake Hydraulic Folding Machine For 4x3200mm MS

Product Overview

Description

CNC Box And Pan Brake Hydraulic Folding Machine For 4x3200mm MS

Pan Brake Hydraulic Folding Machine

Heavy duty steel fabricated frame provides accurate bends;

Roving foot pedal incorporated control for maximum flexibility;

Side safety fence and photoelectrical guards;

Hydraulic operated clamping and bending beam;

Section clampers suitable for producing disk, box etc;

Hydraulic and electric overload production system;

Open height up to 110mm;

Folding angle from 0 to 120°;

Manual adjustment for folding angle;

Includes rear 500mm manual back gauge;

Quick action beam adjustment for varying material thickness;

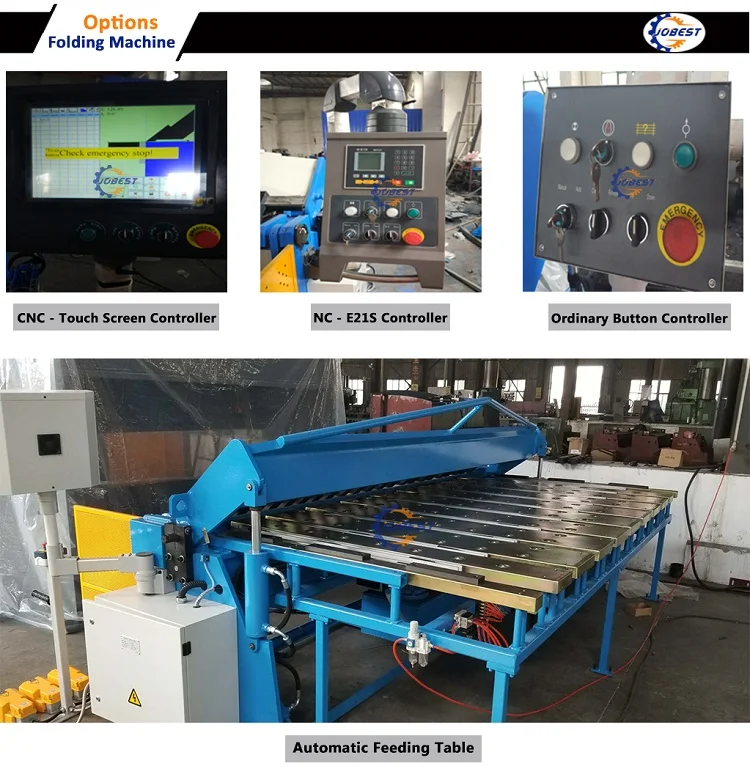

CNC - Touch Sreen Controller Folding Machine + Automatic Feeding Table



NC - E21S ESTUN Controller Folding Machine



Ordinary - Button Controller Folding Machine

Pan Brake Hydraulic Folding Machine

Model	W62Y-3x2500	W62Y-4.5x2500	W62Y-4x3100	W62Y-5x2000
Nominal pressure (KN)	1000	1000	1000	1000
Strokes   (Min-1)	14	14	14	14
Throat depth (mm)	200	200	200	200
Folding length (mm)	2500	2500	3100	2000
Folding thickness (mm)	3	4.5	4	5
Max angle of bending beam	120	120	120	120
Max lifting height of the upper beam (mm)	200	200	200	200
Motor power (KW)	5.5	5.5	5.5	5.5

   WHY CHOOSE US - JOBEST MACHINERY?

Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
Guarantee:
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
All the service is for machine whole life.

Nantong  Jobest Machinery Technology Co., Ltd founed in 1998,  is a leader Manufacturer Factory of Metal Forging Machine. Such as Folding machine, Shearing Machine, Press Brake Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic Press Machine, Notching Mahine, Iron Worker Machine, CNC Laser Cutting Machine, CNC Pipe bending machine, Roll forming machine etc. Meanwhile we're familiar with kinds of Processing Machines to help our clients choose the most suitable machine on the best quality by economically.

1. What kind of Plate /  Sheet can bend?

Carbon steel Plate / Sheet Folding machine

Stainless steel Plate / Sheet Folding bending machine

Aluminum Plate / Sheet Folder bending machine

Copper Plate / Sheet Folder machine

2. How to choose Plate /  Sheet Folder machine?

According following informtaion to choose Plate /  Sheet Folder machine type:

1). Folding Plate / Sheet  materials

2). Max. thickness of your folding Plate / Sheet

3). Max. width  of your folding Plate / Sheet

4). Folding drawings or photos, samples if possible

3. Do you provide training to operation Folding machine?

1). Will provide operatiing video and manual book with our Folding machine.

2). Welcome your operators to our factory, we'll arrange everything at our factory.

4. What about your Folder machine main component?
1). Back gauge ball screw synchronous pulley;
2). Hydraulic system: Japan Yuken
3). Main Motor: Siemens
4). Electric parts: Schneider

5. Any optional functions for Folding edge machine?
1). Control system: CNC touch screen controller /  NC - E21S ESTUN controller / Ordinary Button Controller
2). Bacguard: Electrically adjust / Manual  adjust

3). Feeding table: Higher-precison & Fast-speed

4). Folding angle programme

6. What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
7. What certificate for Bending folding machine?
We have ISO certificate for our factory and CE Certification for our machine.
8. What delivery time for Folder bending machine?
Within 30 working days after received advanced payment.
