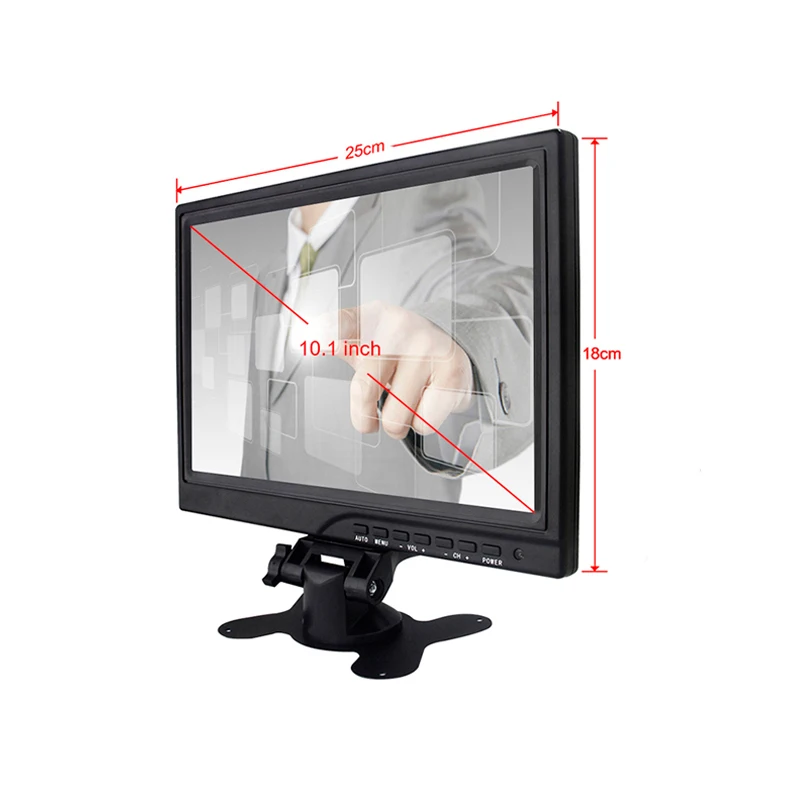

Customized rearview mirror monitor 10.1 inch IPS screen car roof lcd capacitive touch monitor
- Category: >>>
- Supplier: Shenzhen Hopestar Sci-Tech Co. Ltd.
Share on (60776997536):
Product Overview
Description

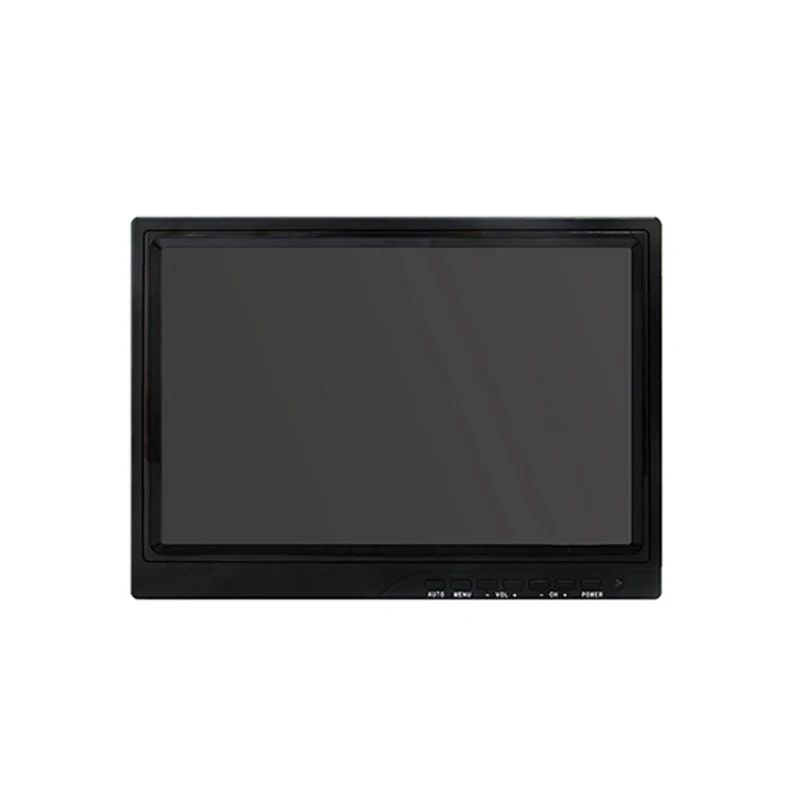

Customized rearview mirror monitor 10.1 inch IPS screen car roof lcd capacitive touch monitor
Product Description

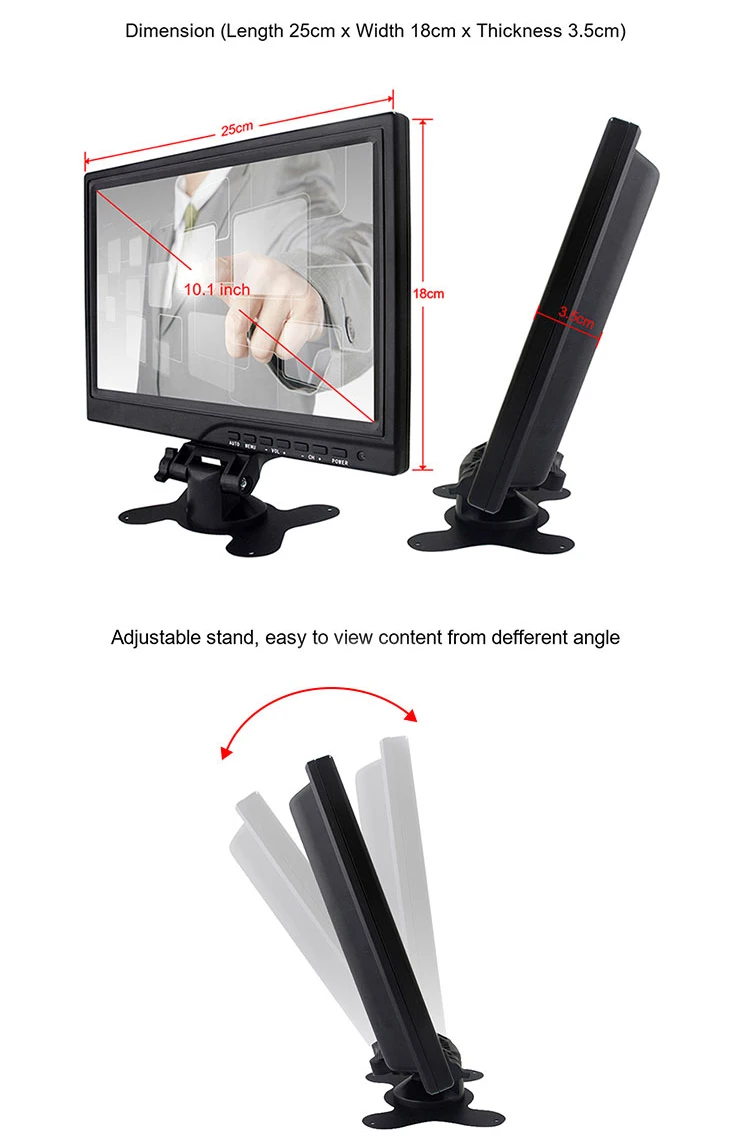

| Monitor Dimensions | Width: 254.8mm Height: 177.5mm Depth: 40mm | |||||
| LCD Type | 10.1” IPS LED | |||||

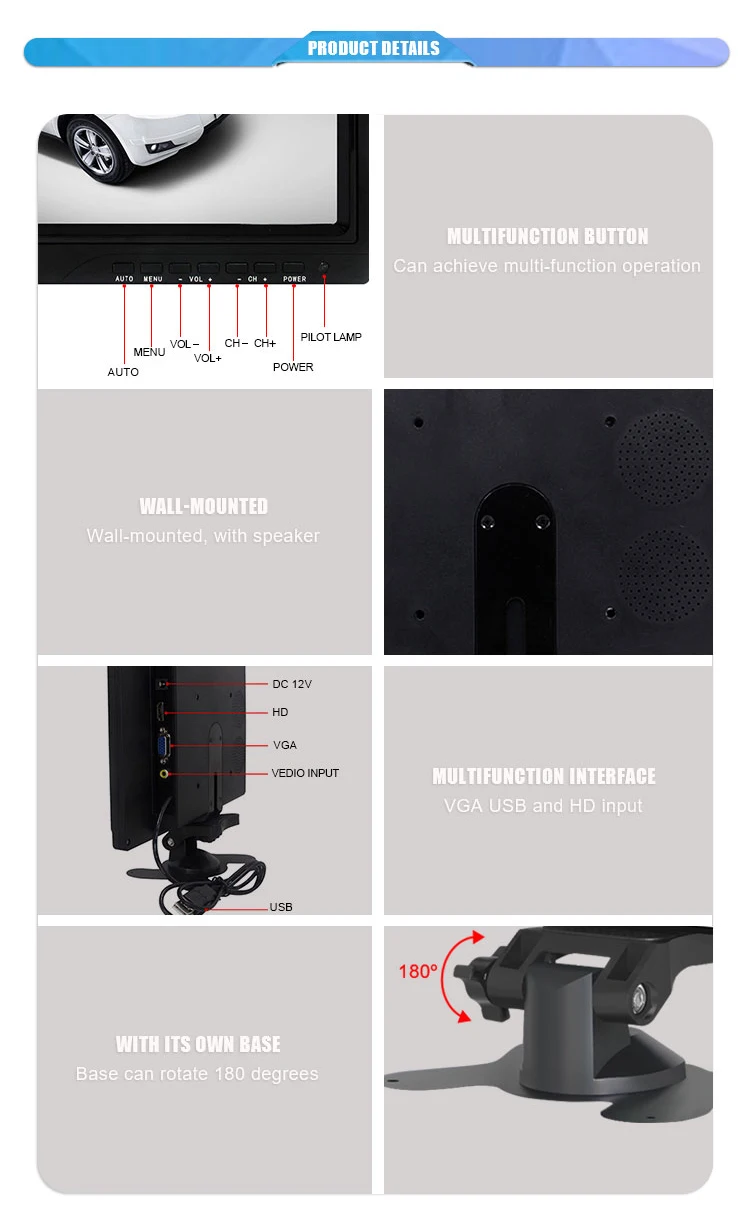

| Video Input | VGA and HD MI | |||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||||
| Power Supply | Type: External brick | |||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||||||
| Output voltage/current: 12 volts at 4 amps max | ||||||

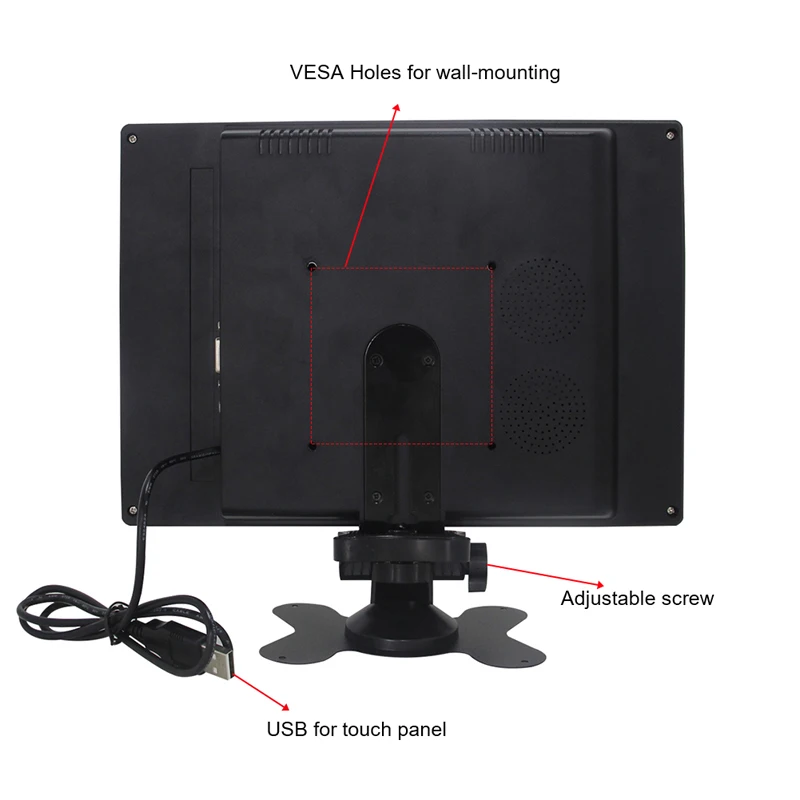

| Mount Interface | 1)VESA 75mm and 100mm | |||||

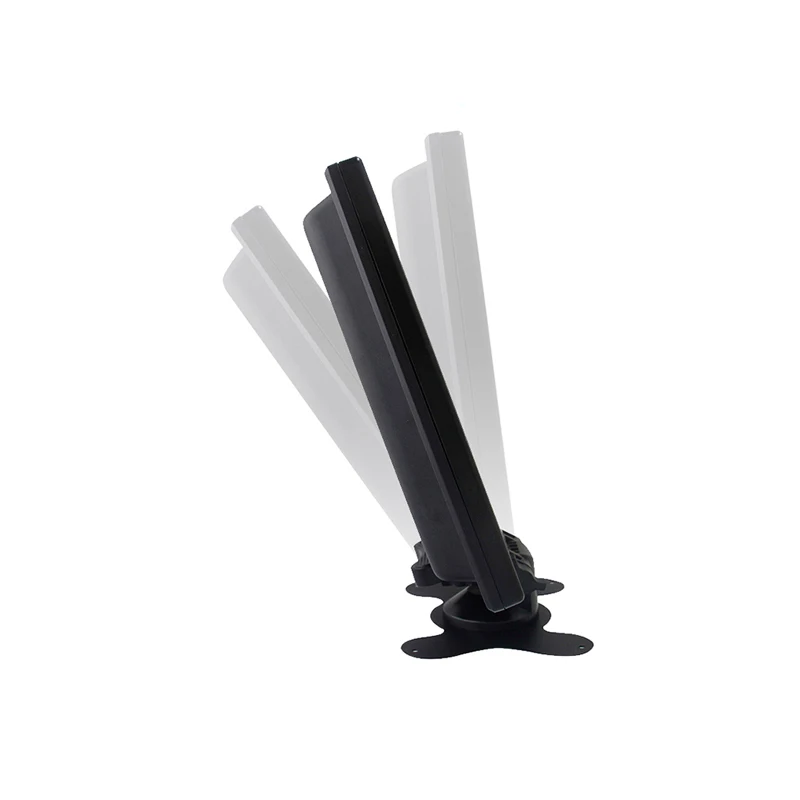

| 2)Mount bracket, horizontal or vertical | ||||||
| LCD Specification | ||||||
| Active Area(mm) | 216.96 (H) x 135.6(V) | |||||
| Resolution | 1280×800 @60Hz | |||||
| Dot Pitch(mm) | 0.1695(H) x 0.1695(V) | |||||
| Nominal Input Voltage VDD | +4V(Max) | |||||
| Viewing angle (v/h) | 89°/89°(CR>10) | |||||
| Contrast | 800:1 | |||||
| Luminance(cd/m2) | 450 | |||||
| Response Time(Rising) | 25msec | |||||
| Support Color | 16.7M colors | |||||
| Backlight MTBF(hr) | 10000(Min) | |||||
| Touchscreen Specification | ||||||

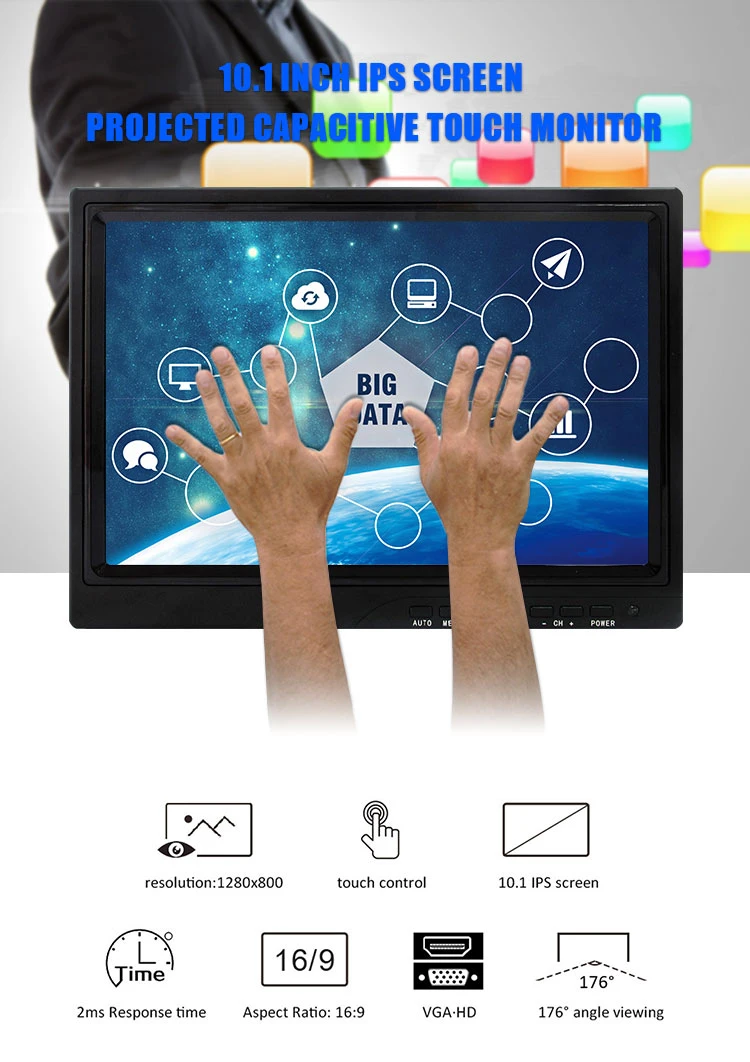

| Type | Projected Capacitive touch screen | |||||
| Multi touch | 10points touch | |||||
| Touch Life Cycle | 10 millions | |||||
| Touch Response time | 8ms | |||||
| Touch System Interface | USB interface | |||||
| Power consumption | +5V@80mA | |||||
| External AC Power Adapter | ||||||
| Output | DC 12V /4A | |||||
| Input | 100-240 VAC, 50-60 Hz | |||||
| MTBF | 50000 hr at 25°C | |||||

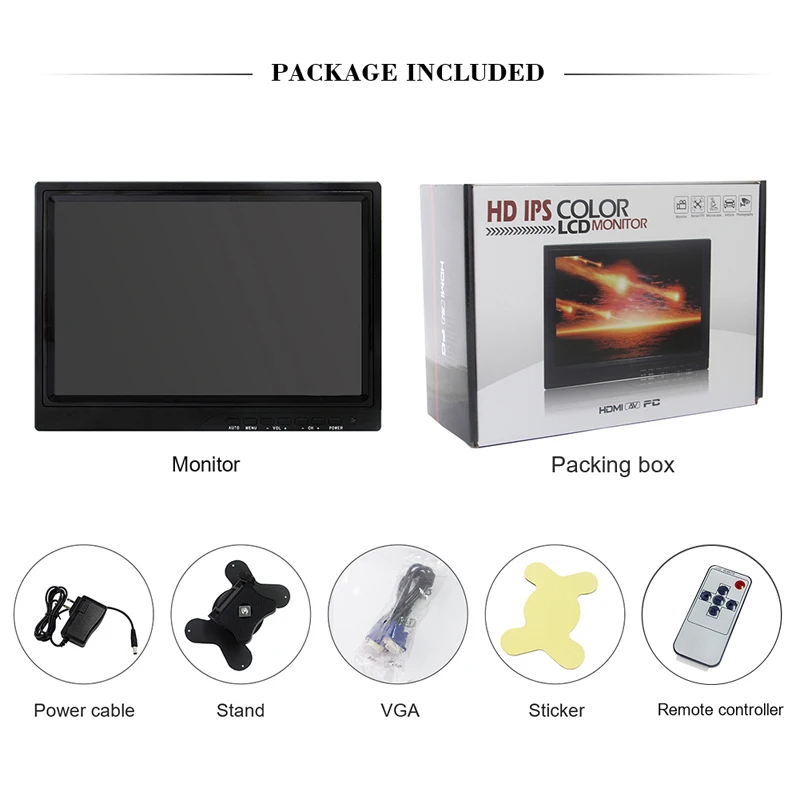

Packaging & Shipping
Hot selling Products
Company Information
FAQ
1. What is your company's main product?
A:Our main product is LCD Monitor, TV monitor,CCTV monitor, touch screen monitor. Also We have many models with our own mould
2. Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
3. Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Paypal,Western Union.
4. Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for 12,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, Alibaba On site checkcertificate.
5. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
6. Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing
