magnetic field sensor for education Physical lab experiment equipment
- Category: >>>
- Supplier: Beijing Weichengya Laboratory Equipment Co. Ltd.
Share on (60777014140):
Product Overview
Description

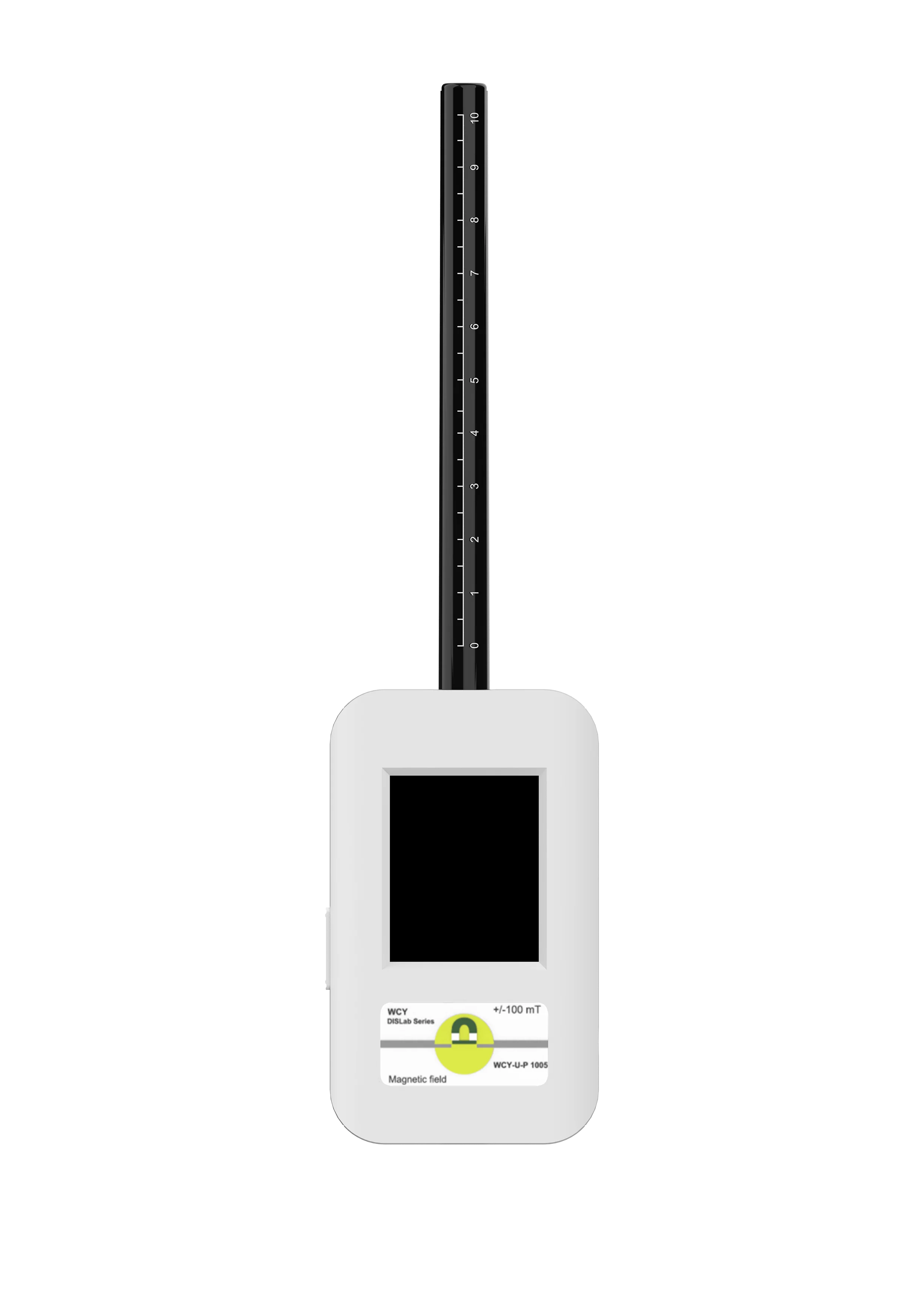

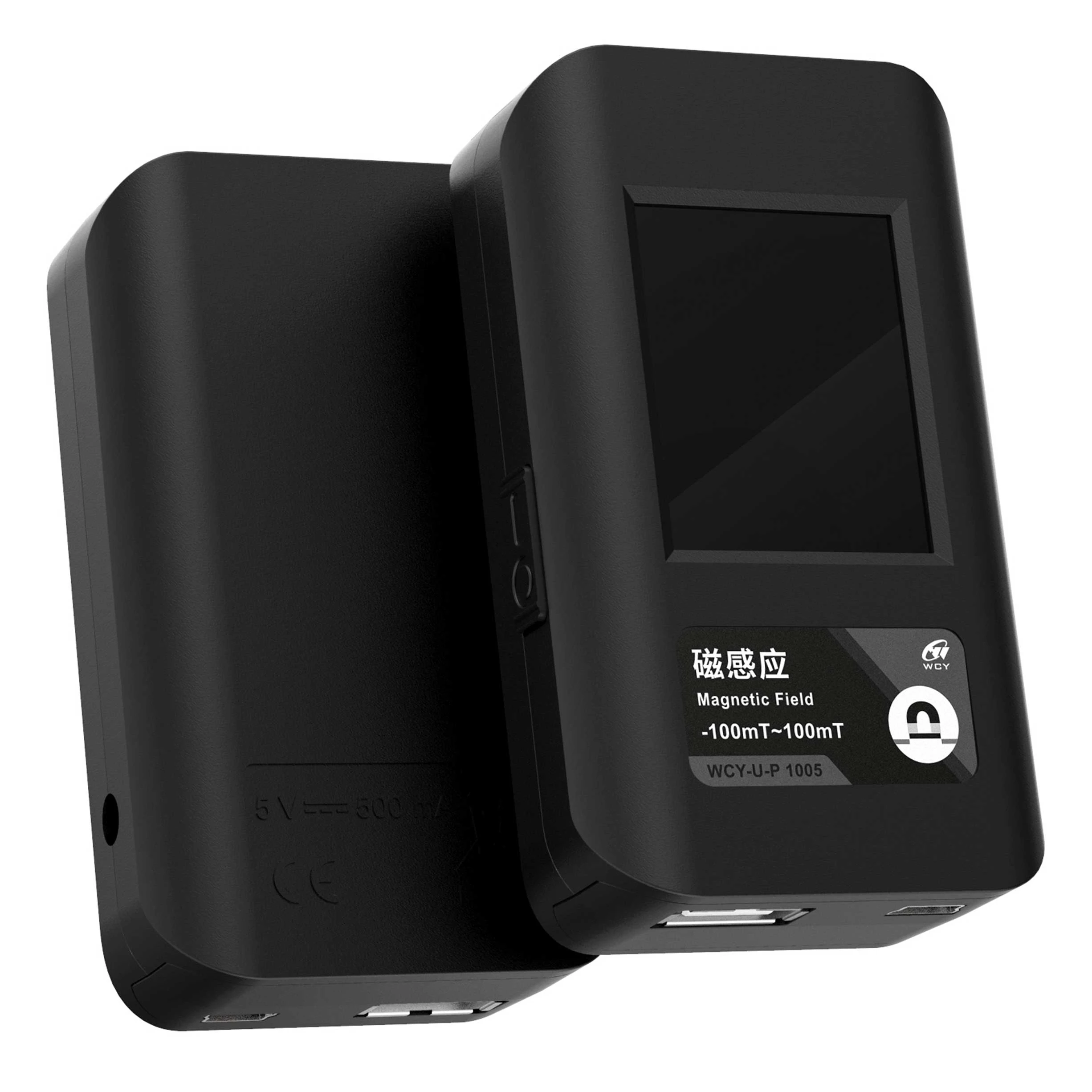

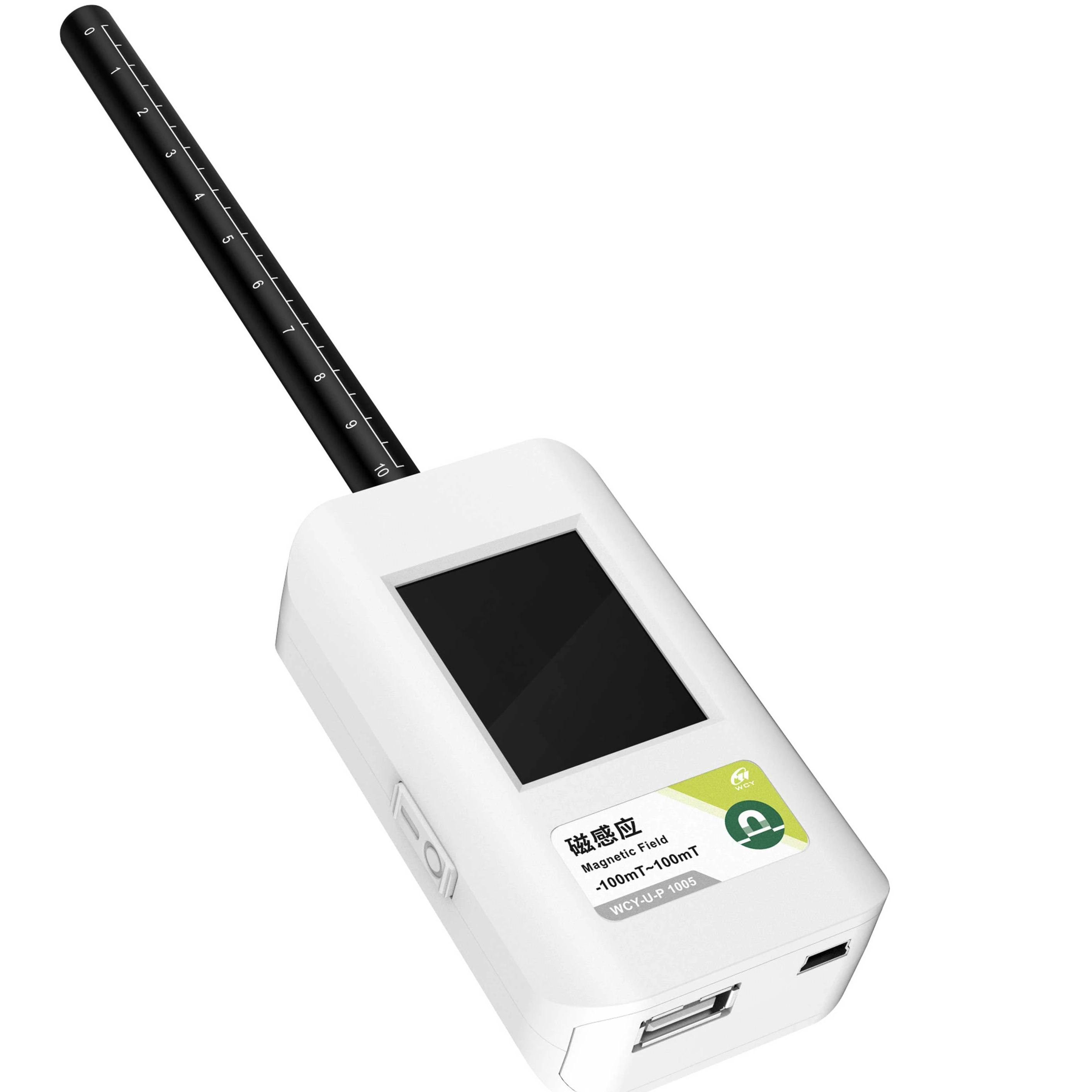

magnetic field sensor for education Physical lab experiment equipment
Product Picture
Product Description
Measure Range: | -100mT~100mT |
Accuracy: | 0.01mT |
Resolution: | 0.01mT |
Application
1. Explore the magnetic field around a linear current
2. Study of uniform magnetic field
3. Explore the magnitude and direction of the Earth's magnetic field
4. Exploring the relationship between the magnetic induction intensity of the energized spiral tube and the current, distance and number of turns
Instructions:

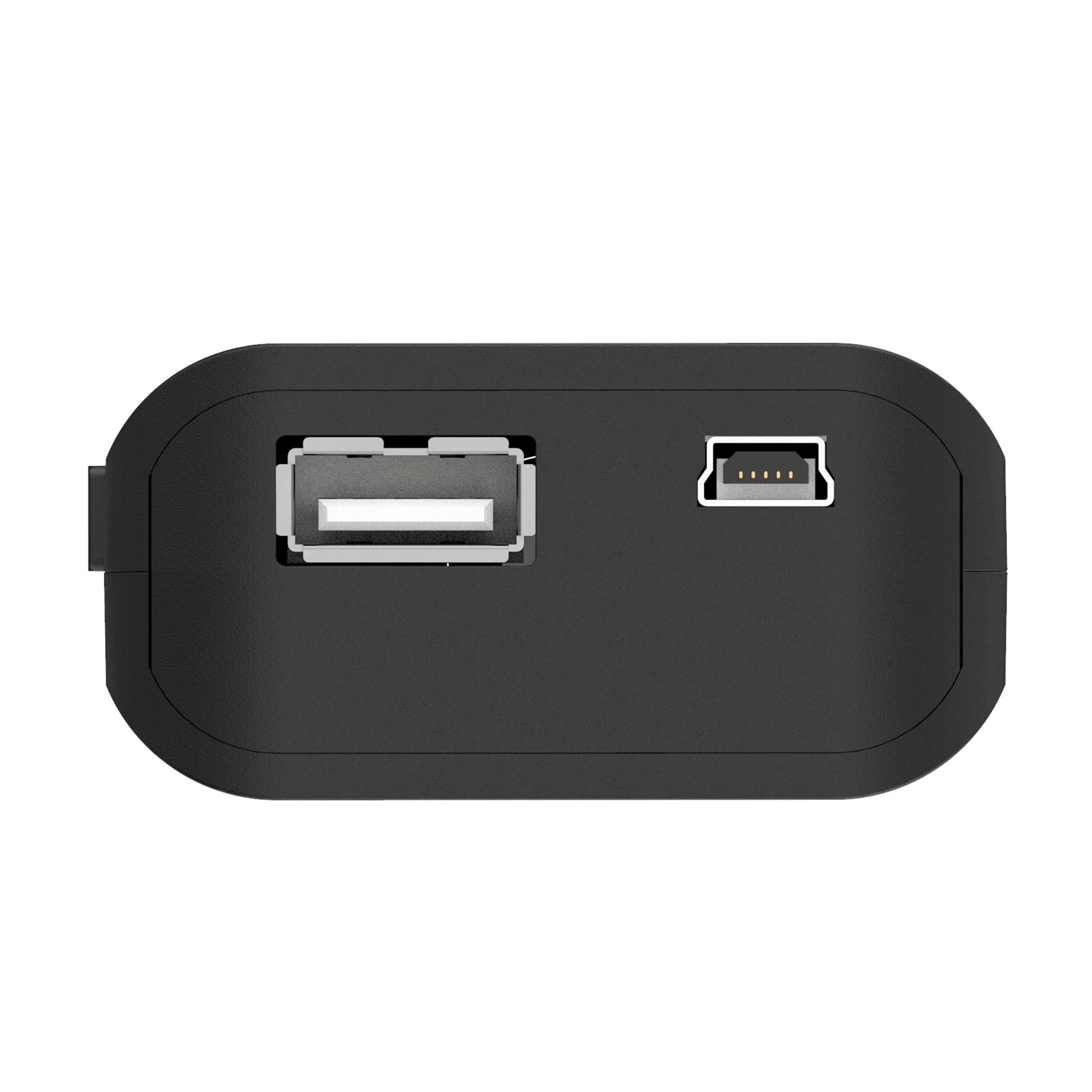

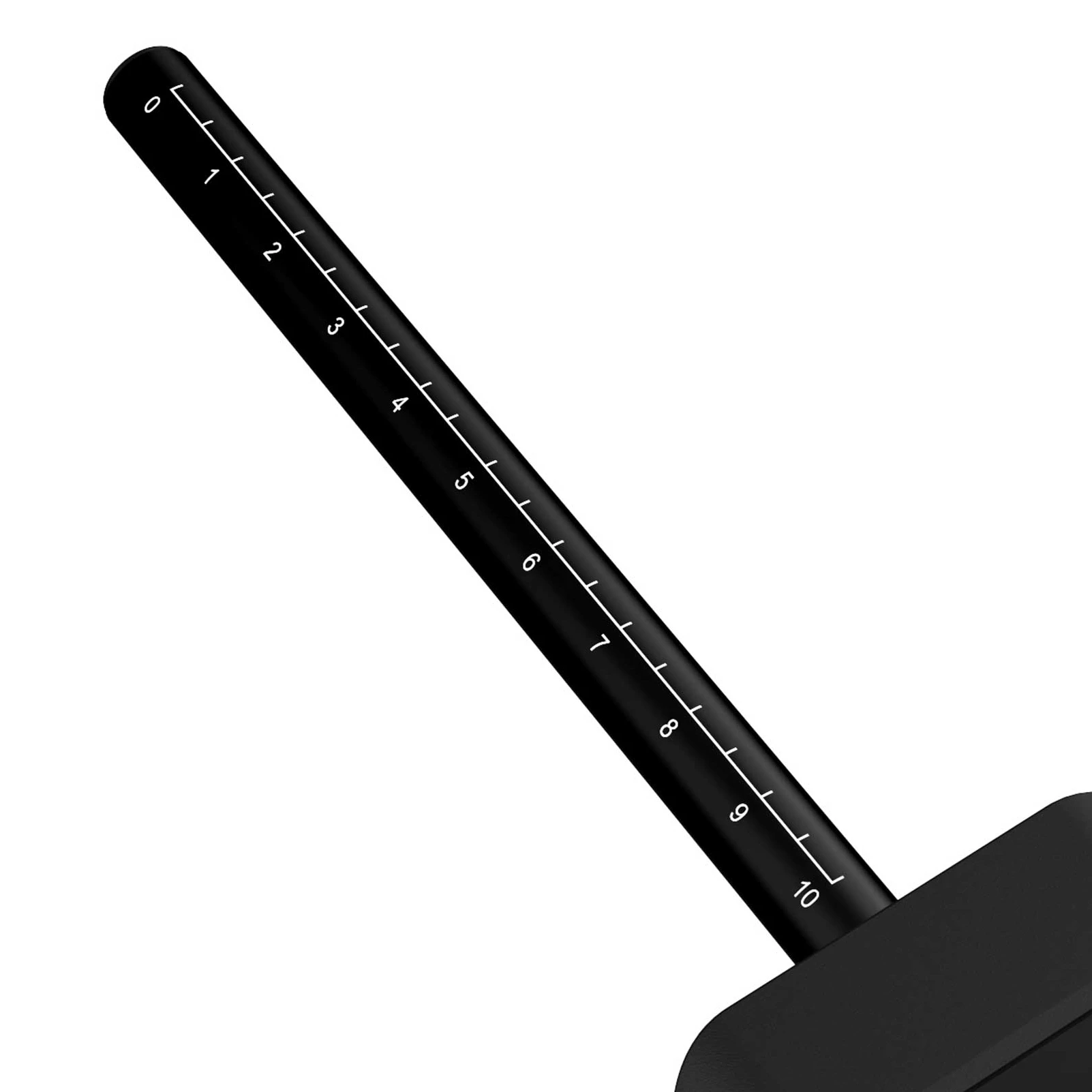

Press and hold the ‘1’ button for three to five seconds to turn on the battery. After the battery is fully charged, the data can be displayed independently and connected to the intelligent collection terminal using the data cable. The magnetic induction sensor has a built-in magnetic sensor on the front end of the tube. When it is used, it needs to be connected to the data collector to wait for the reading to stabilize and then measure. A scale is printed on the outside of the probe tube to facilitate the measurement of the magnetic induction intensity inside the solenoid. The software stipulates that when the sensor's detector tube moves toward the N pole of the magnetic field, the reading is positive; when moving to the S pole of the magnetic field, the reading is negative. The absolute value of the reading is the magnetic induction component parallel to the direction of the probe at the measurement point.
Note: Before the measurement, the sensor should be software zeroed outside the range of the measured magnetic field. The unit of magnetic induction is “T”, which is “Tesla”. The unit of counting of this sensor is “mT”, ie “Matts” Pull".
