CNC High speed Tube plate Drilling machine/ Drilling Machine for heat exchanger

Product Application

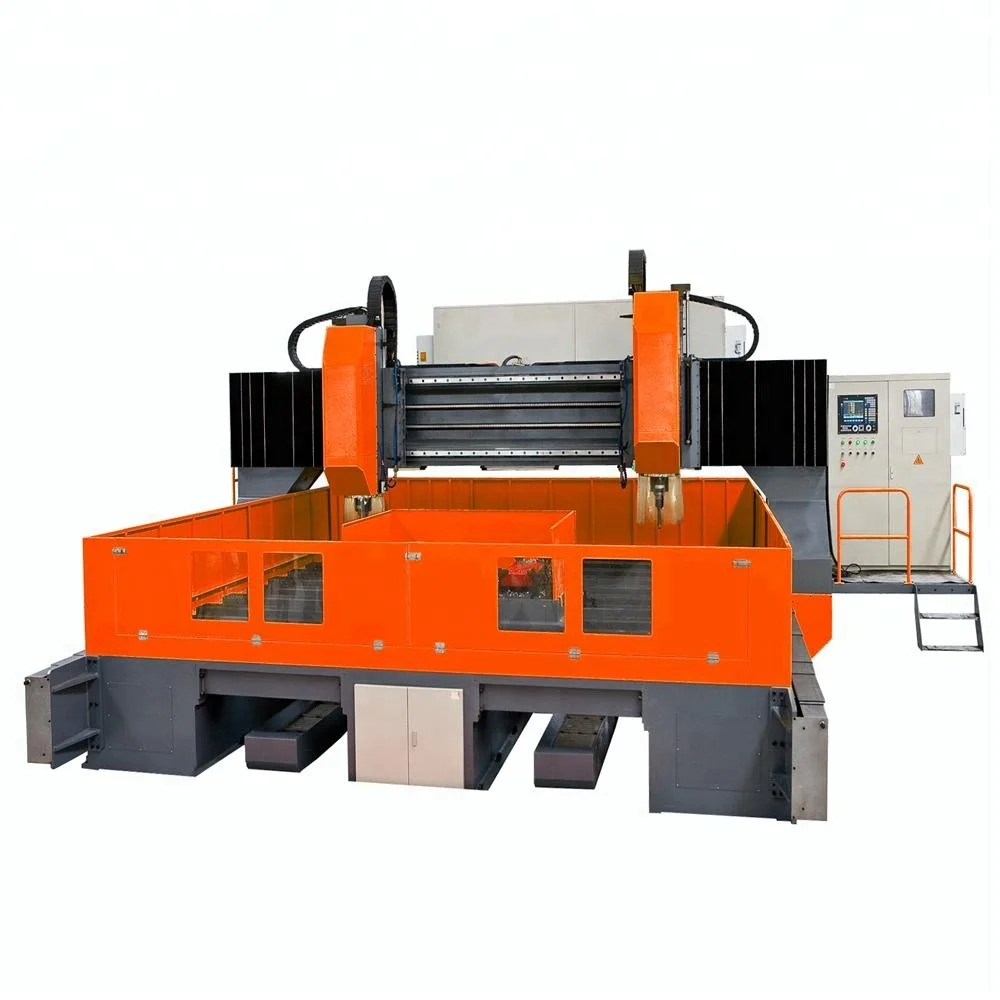

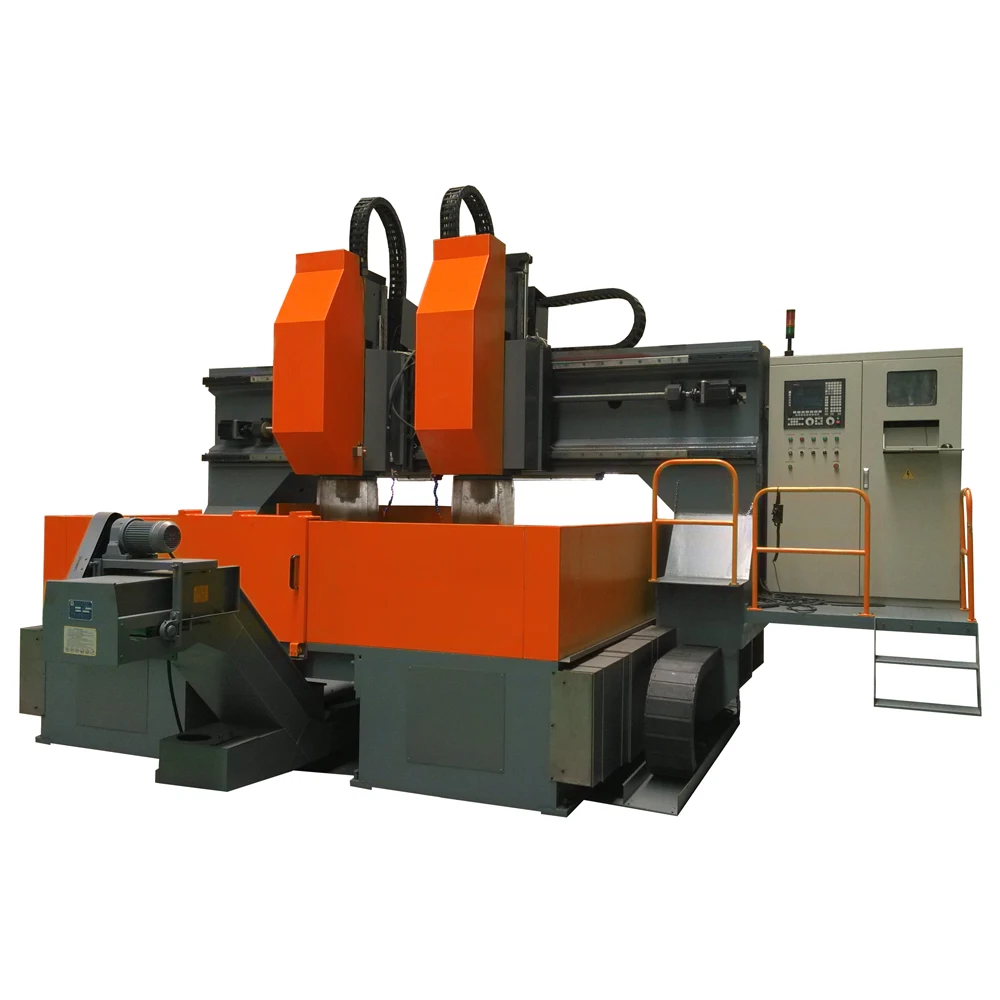

PHD machine is a High-speed Drilling & Milling machine for Tube-sheet up to diameter 3000mm thickness by 400mm. This machine is mainly used for processing holes on tube sheet, flange, heat-exchanger and other steel plate, also it can do light milling for the groove on the plates. The positioning, feeding of three spindles are all driven by servo motors. It adopts Taiwan Precision Spindle, controlled by SIEMENS 828D CNC Control system, and Gantry movable type, the gantry and worktable are independent, high efficiency, and high precision. Both of external cooling twist drills and internal cooling carbide drills can be adopted on this machine. CNC control, very easy to operate, the automation, high precision, economic of scoop and mid/small production can be realized.

Machine Specification of CNC Plate Drilling Machine:

Main Features

1-Machine Body- Welded by iron, Strong Structure, High rigidity & High Stability

2-Worktable- With T-slot for clamping the tube sheet or flange

3-Edge Finder-Equip hand wheel and edge finder to find the position of workpiece

4-Drilling Unit-Precision Spindle, High Speed, Carbide Drill, Inner Cooling

5-Lubrication System-Equip auto lubrication device for linear guide & ball screw

6-Electric System- CNC，Easy Programming & Operate, Read AUTOCAD Files

7-Double Spindles-Two spindles drilling together with more efficiency

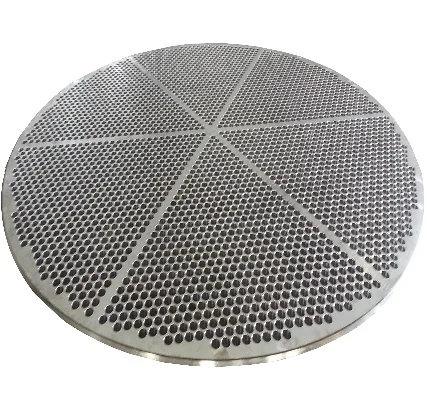

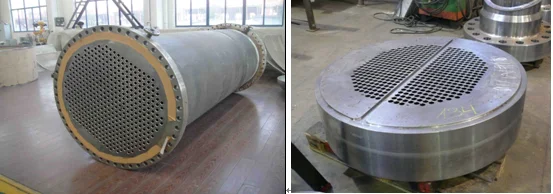

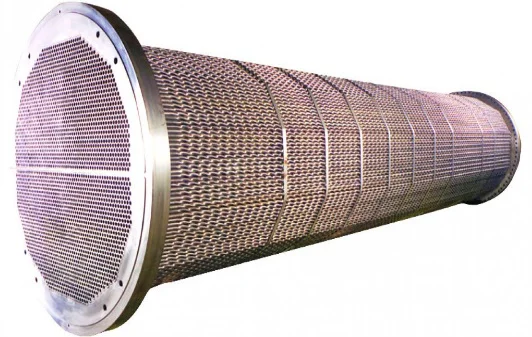

CNC Drilling Macine workpiece Type:

Company Introduction:

SHANDONG FINE CNC EQUIPMENT CO., LTD., located in high-tech development zone of Jinan city in China, is a high-tech enterprise engaged in development, designing and selling CNC machines used for H-beam, Angle Steel, Channel Beam, Box beam, Round Steel, Steel Plate, Flange Plate, Tube Sheet in Steel Construction, Angle Tower, Telecom Tower, Air Conditioner, Automobile, Bridge, Boiler and Heat-exchanger Industry.

FINECM, which already makes exportations to 55 countries in 5 continents with Angle Punching, Marking & Cutting Machines, Angle Notching Machine, Angle Milling Machines, Angle Bending Machine, Angle strengthening Machine, H-beam Drilling & Sawing Machine, H-beam Plasma & Flame Cutting Machine, Steel Plate Punching & Drilling Machines, Plate Plasma & Flame Cutting Machines, Tube Sheet Drilling Machines, and Spare Parts.

FINECM, which adds new achievements to its success story for many years, successfully transfers it high quality machines and best service to the customers in the world. FINECM continually develop our equipment range to enable us to keep at the forefront of technology and in step with any new developments in the market.

Machine Parts

Name: Drilling Spindle

Features:

Drilling box is rigid precise spindle, BT50 inner cooling from Taiwan, attaches blowing device in spindle taper hole, able to adopt carbide drill with inner cooling head, high precision. Equips with hydraulic tool cylinder from Taiwan, using hydraulic spring to do auto tool loosing, tool pulling, also set tool tightening monitoring device, and co-locking protecting device. Very easy to load/unload tools. Spindle is driven by high-power motor especially designed for spindle.

Main Features

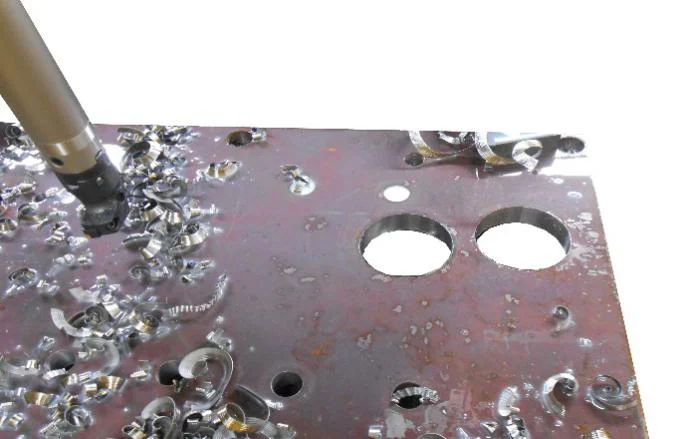

Name: Drilling bit
Features:

The Spindle can make milling for the grooves with a milling tool up toΦ30mm, can do milling up to thickness 5-8mm one time.

Machine Parts

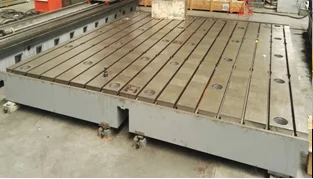

Name: Worktable
Features:
The worktable has several T-slot, and can be placed the workpiece on it, through the T-slot clamping the workpiece.
The machine body & Gantry is welded by iron, and reinforces the iron where stresses much, it treated by artificial aging after finishing welding, all of these can ensure the stability of the machine body, so the precision of the whole machine is secured.

Main Features

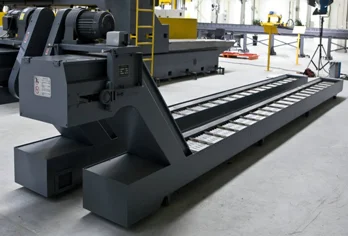

Name: auto chip removal
Features:
Equips with plate chain type chip conveyor, chip and coolant are collected into conveyor, and transport to cart, very easy to operate; coolant can be recycle used. Also equips with inner cooling and external cooling, there is liquid level checking device in the cooling box.
