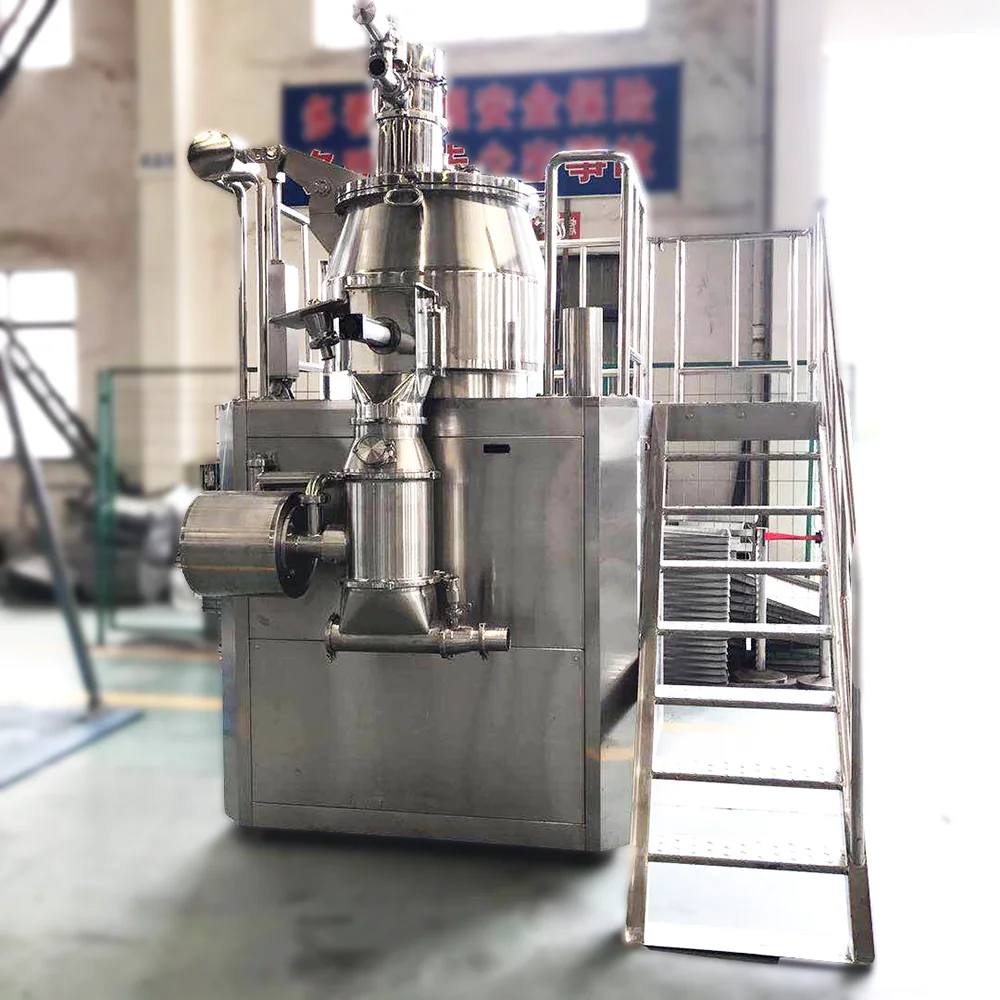

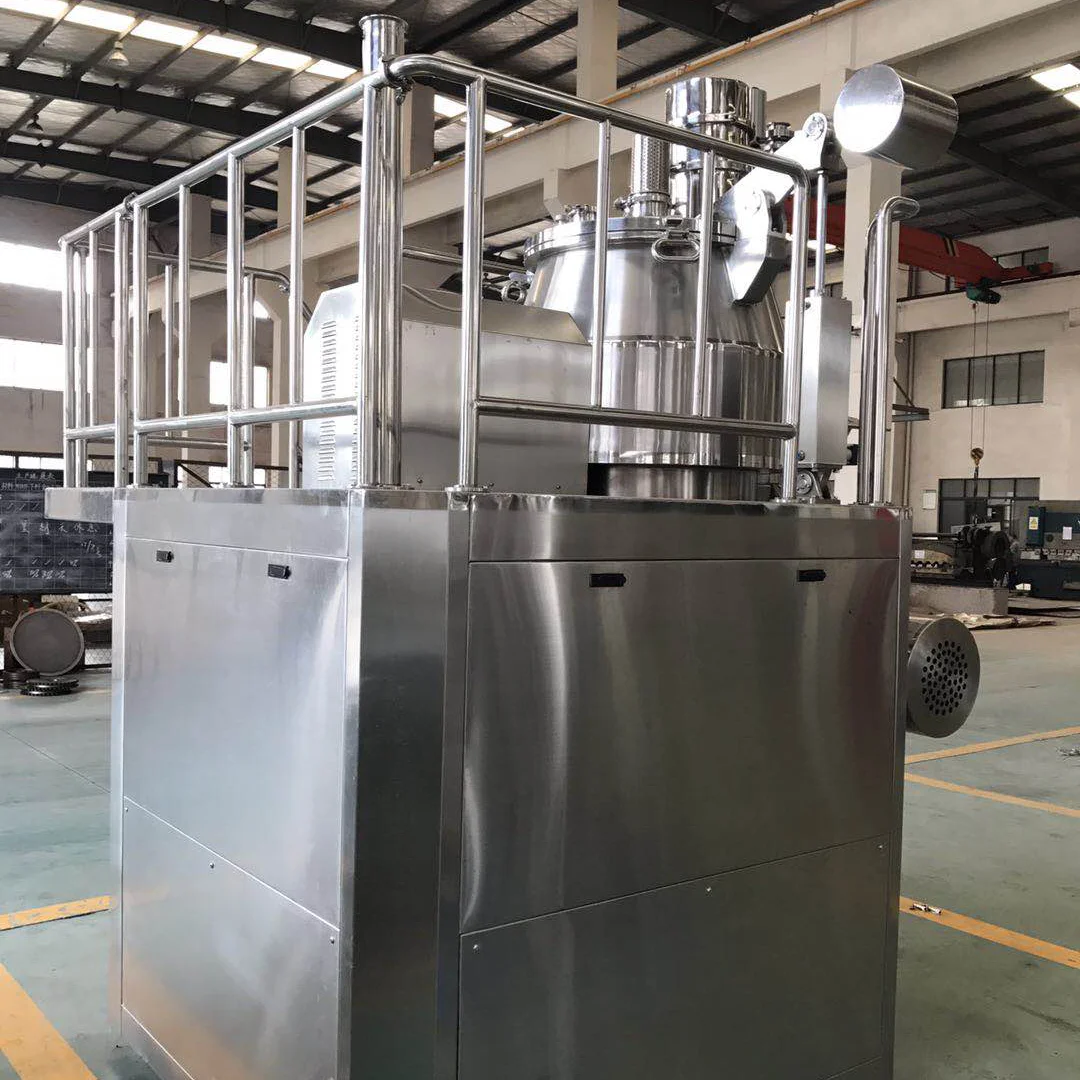

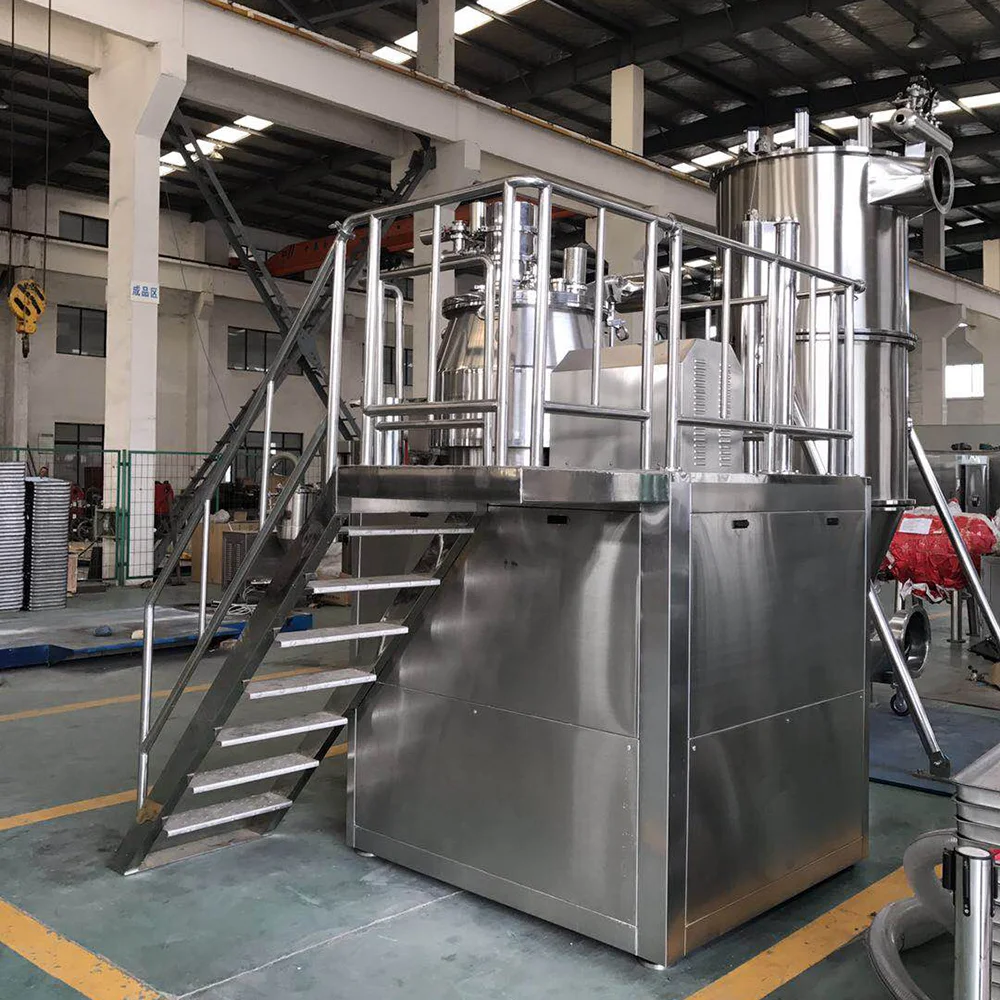

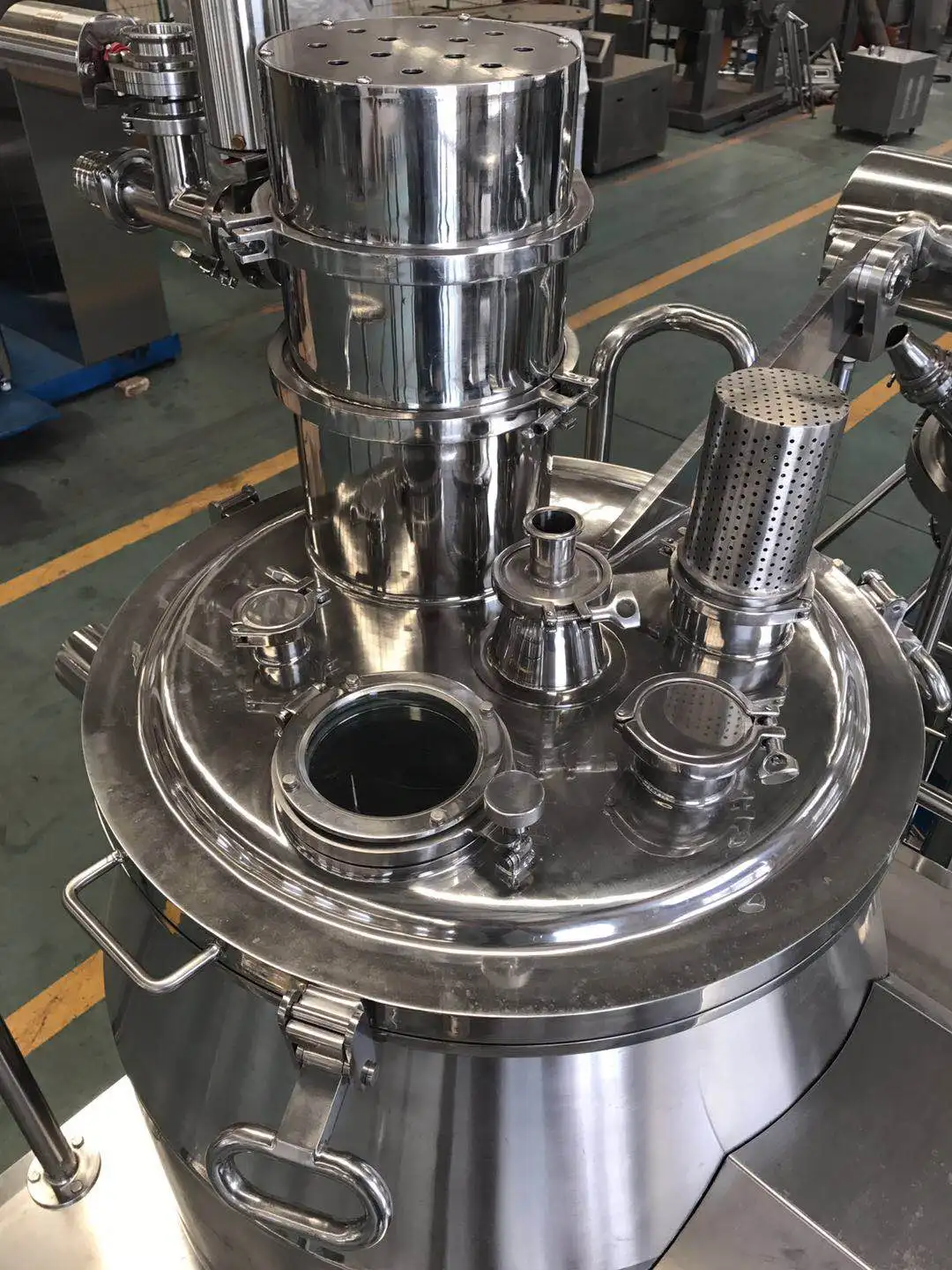

The powder material and adhesive are mixed fully at the bottom to become humid soft material, the nit is cut through high speed crusher and become uniform granules.

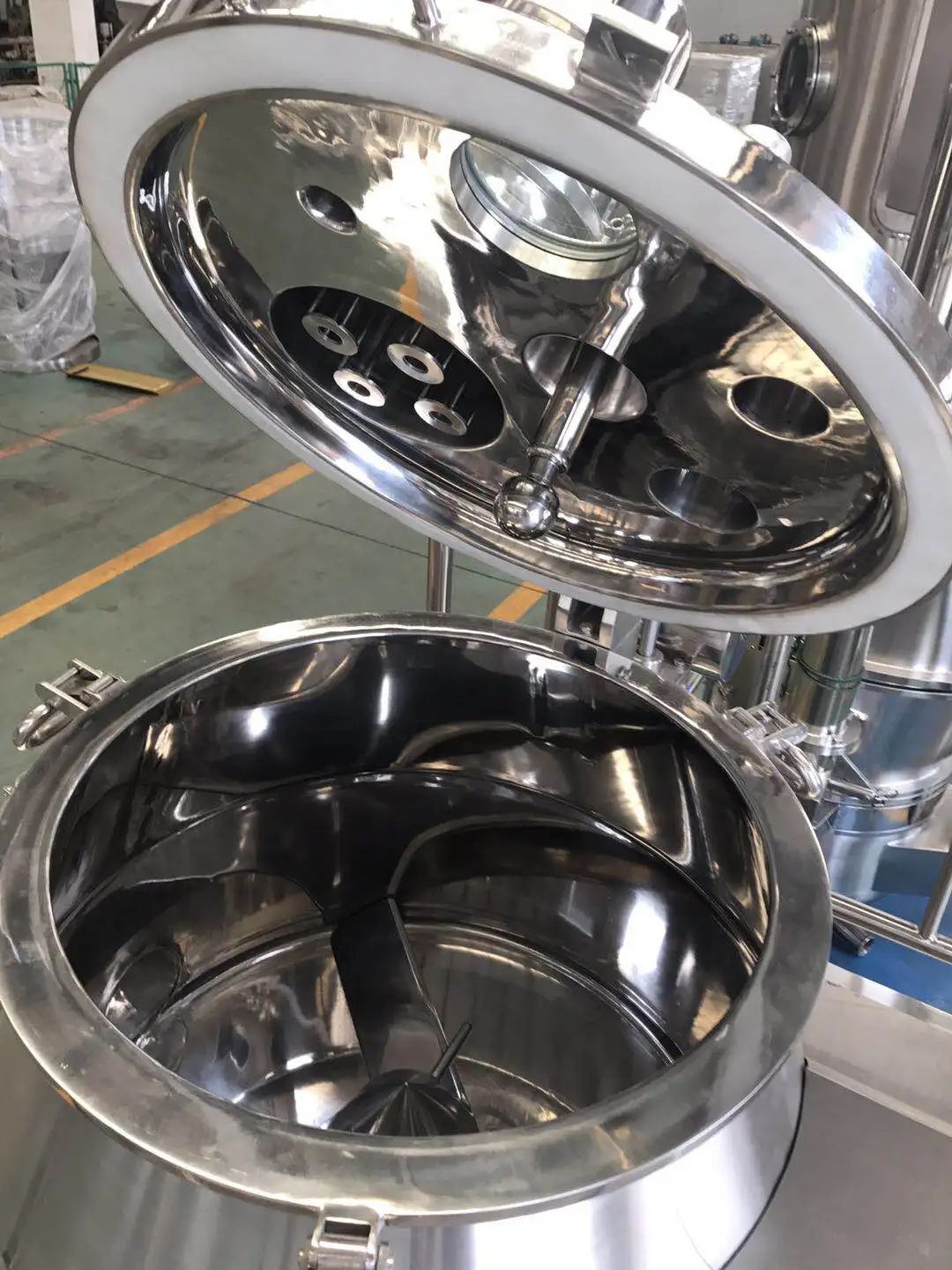

Under the mixing action of the mixing paddle in the vessel, the powder materials are under the semi-flowing status and are mixed thoroughly. Then the bonds( Chinese patent medicine liquid extracts or other fluids)are injected to turn them into wet soft materials, which will be cut into even wet granules by the granule sizing paddle(granulating knife).
Features
1. The machine adapts horizontal cylinder structure. Its structures is reasonable;
2. Use air filled seal shaft to drive. When washing, it can be changed to water;
3. Use fluidization to Granulate and the granule is like ball. lts flowability is good;
4. Compared with the traditional process,25%) of adhesive can be reduced and the drying time can be shorted;
5. The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;
6. In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP;
7. The whole operation has strict safe and protective measures.
8. The mixing and cutting speed are controlled through frequency change, so the granules are more even.
Options
• Lifting machine feeding
• Vacuum feeding
• Material pot jacket design, used for heating and cooling
• Equipped with wet type granule sizing machine or oscillating granulator.
• Bond liquid supply metering system
• Data online printing system
• WIP cleaning system
• Explosion-proof function
Services
Pre-sales service After-sales service
1) Professional advice and rich experience help to 1) Training how to install and use the machine. choose machine. 2) Engineers available to service machinery overseas.
2) Inquiry and consulting support 3)one year guarantee,whole life service.
3) View our factory
Packaging & Shipping
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Air bubble film and stretch film.
Delivery Details: about 40 workdays after payment.
