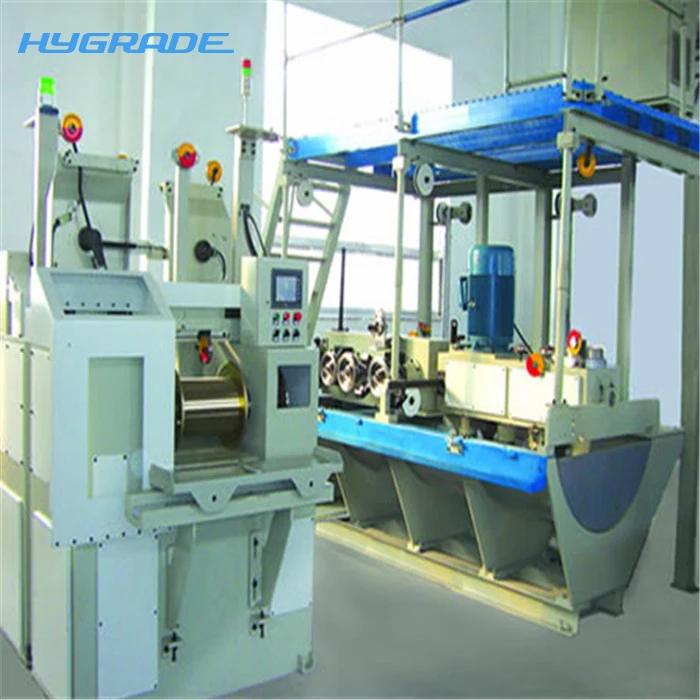

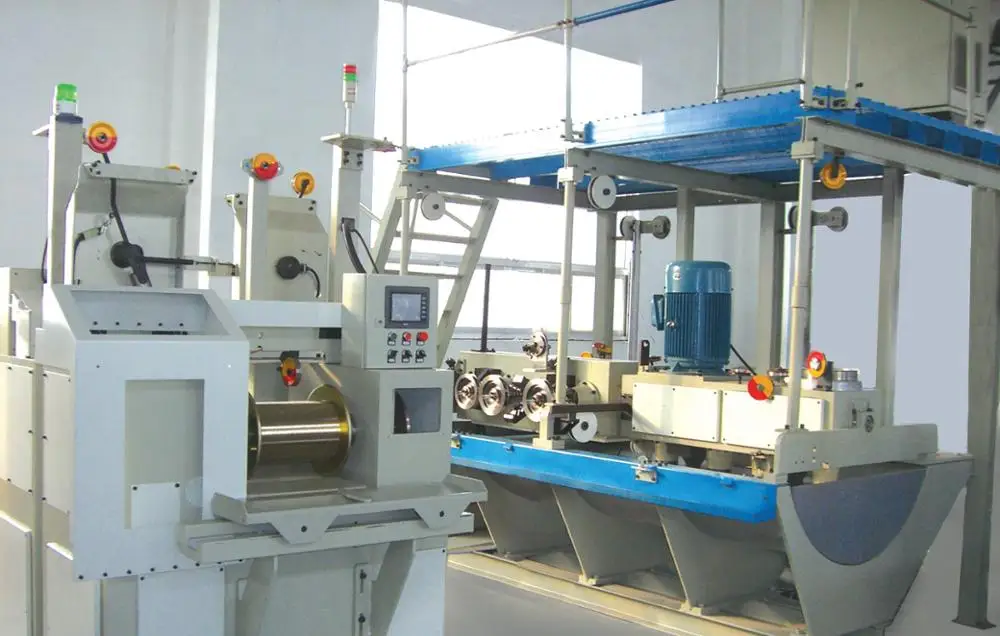

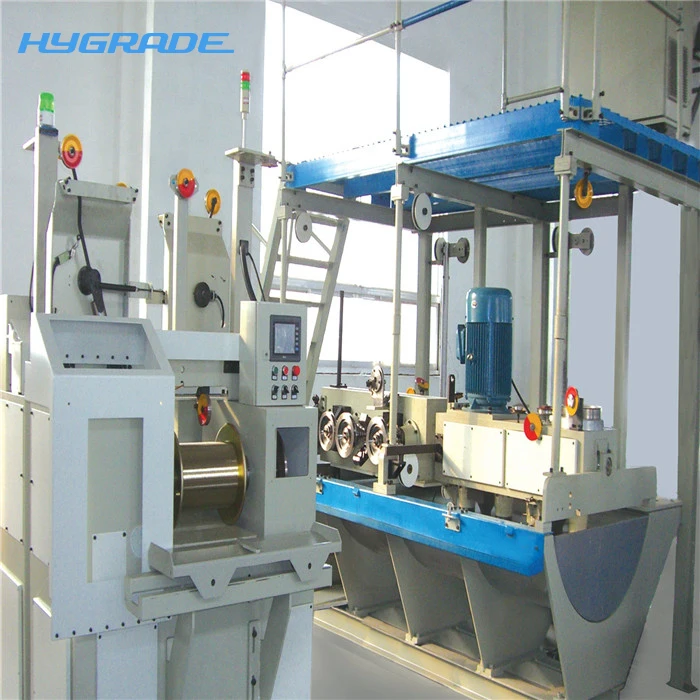

Steel Wire Wet Wire Drawing Machine

\tType: LT242 Wet Wire Drawing Machine
\tMaterial: High Carbon Steel Wire C%: 0.70-0.96%
\tWire Diameter: Inlet Diameter: ø0.8-ø1.5mm   Outlet Diameter: ø0.10-ø0.25mm
\tDrawing Speed: 16m/s
\tDrawing Pass: 23
\tCapstan Diameter: ø242mm
\tMotor Power: Main motor: 22KW,Take up motor:1.5KW
\tTake Up: Individual Take up units control
\tProduction Name: Steel Wire Wet Wire Drawing Machine
\tCertificate: CE,IAF,ISO9001
\tTrade Mark: Hygrade
\tOrigin: Wuxi, China

\tEuropean and American advanced technology.
\tSimple and safe to operate and maintain. Beautiful construction.
\tHigh efficiency, energy-saving.
\tAdvanced PLC control, convenient for operation and maintenance.

  -- Steel wire for transport belt, tire bead wire, High-pressure hose wire, Steel cord, Gas shielded welding wire, Staples, Spring steel wire, Steel wire rope, etc.
-- Undertake the following projects, and manufacture the related complete sets of equipment.

\tSteel Wire Treatment Line:
1. Surface Pre-treatment of dry drawing (first dry-drawing) production line
2. Intermediate Patenting production line
3. Bead wire production line
4. Galvanizing production line
5. Brass / Copper plating production line
6. Phosphating production line
\tRelated complete sets of equipment:
1.\tPay-off & take-up machine and units
2.\tMechanical descaling device & brush descaling machine
3.\tNatural Gas Furnace
4.\tPickling Tank
5.\tWire drawing machine
6.\tCabling machine
7.\tDouble Twister Machine
8.\tSpiral Machine
9.\tOther auxiliary equipment

\tProvide the technical design and solutions;
\tNew plant construction guidance;
\tDesigning and manufacturing of non-standard equipment;
\tProfessional technical training and guidance on site according to the contract;
\tSupply accessories at any time;
\tTele-technical consulting and services;
\tOther special technical service according to client’s requirements.

Jiangyin Hygrade Electromechnical Technology Co.,Ltd.
Address：No.22, Zhuwen Road, Zhutang Town, Jiangyin City, Jiangsu Province, China
Zip code：214415
Tel：0086-510- 86175601-8500
Fax：0086- 510-86382925
Mobile: 0086-15852606969
