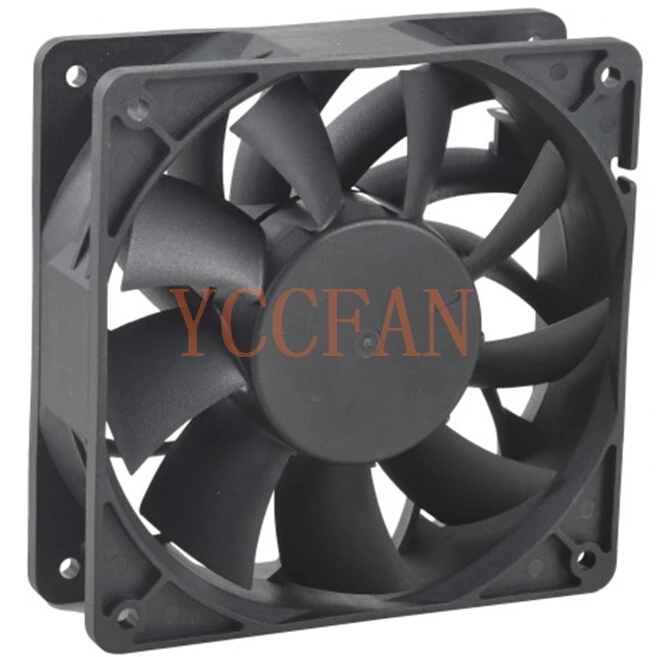

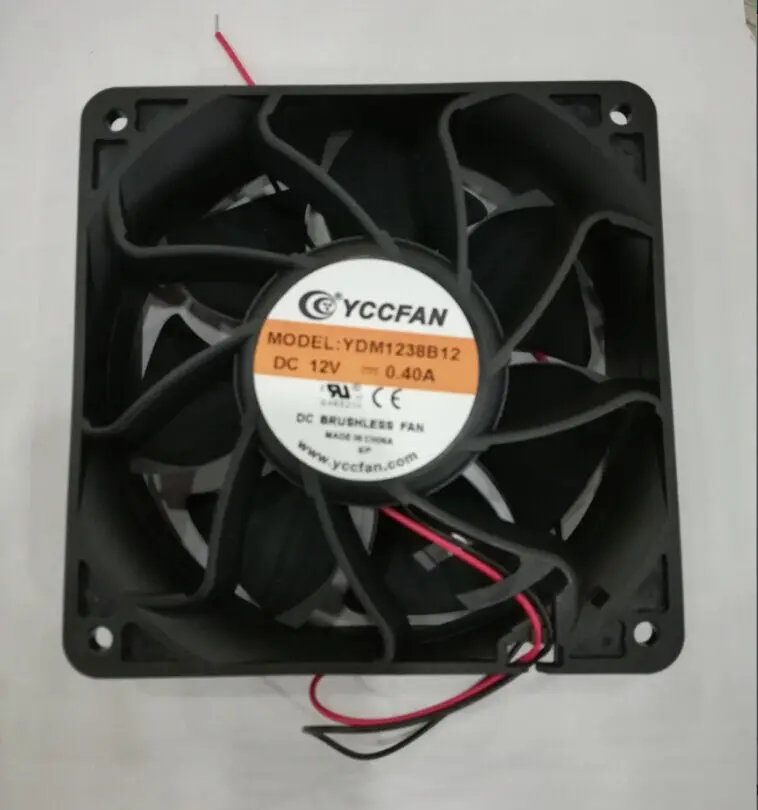

12v 24v dc fan 120x120x38 12038 high cfm powerful fan

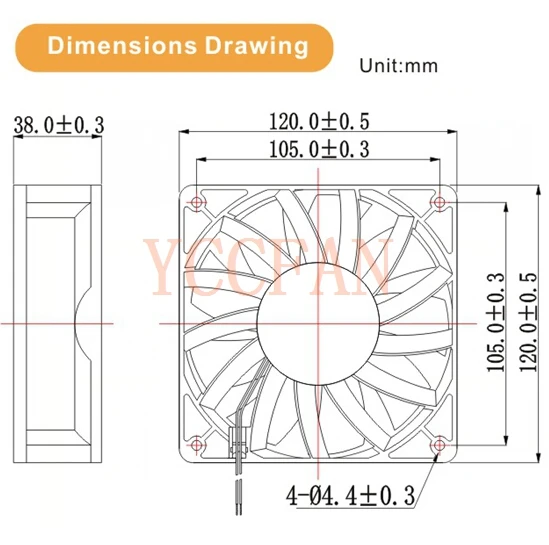

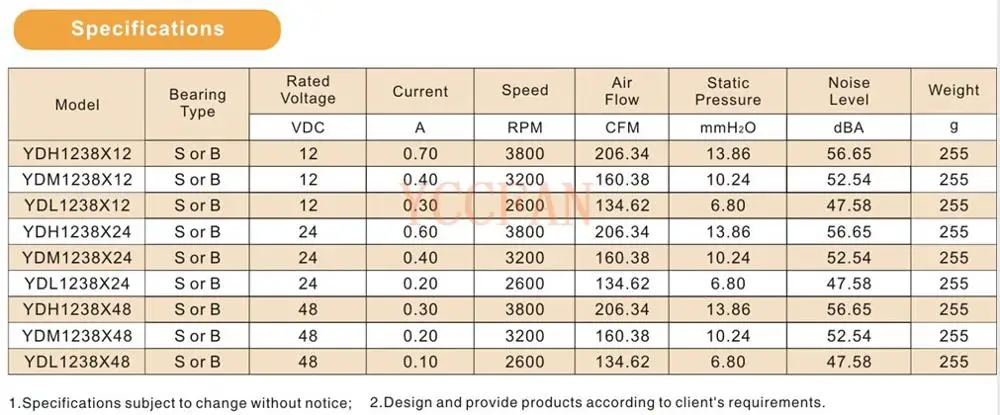

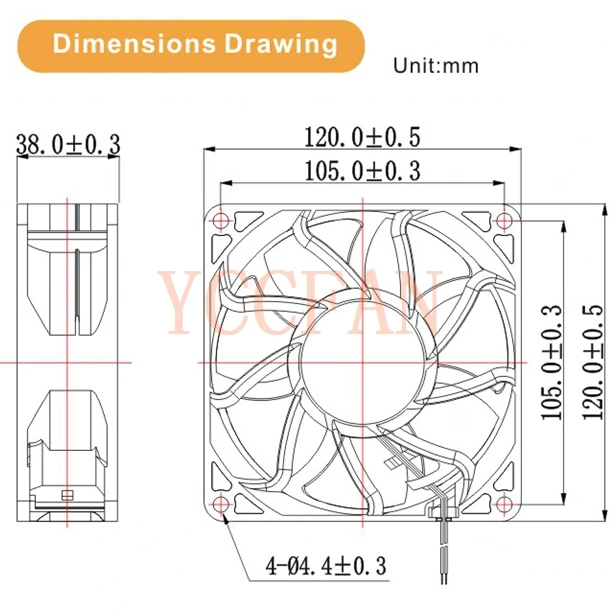

     120x120x38mm dc fan specifications

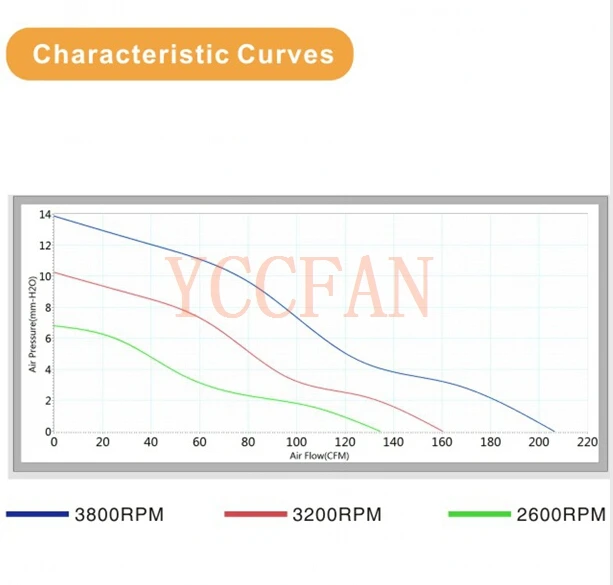

  blade shape and numbers will influence the air flow,air pressure.

 4inch 120x120x38mm fan, we have 4 type different tools .

 better noise , high cfm/powerful ,different fan blade and frame will be  decided on your  application situation.

Customized

1. Rated voltage: 3v  5v  9v  12v 18v 24v 48v dc voltage can be made if need.

2. Air flow, air pressure, speed and rated voltage can be customized as customer's requirement

3. Privated Labelling: All of axial fan are able to be Private labeled.

4. 2 wires, 3 or 4 wires (PWM / FG / RD function ) can be made if needed.

5. Sleeve bearing : 30000hours @ 25°C temperature

    Hypro bearing :  30000hours @ 40°C temperature

    NMB Ball bearing :50000hours @ 40°C temperature

DC FAN is powered by 3.3v 5v 12v 18v 24v 48v,AC FAN powered by 110v 125v 220v 240v 380v,

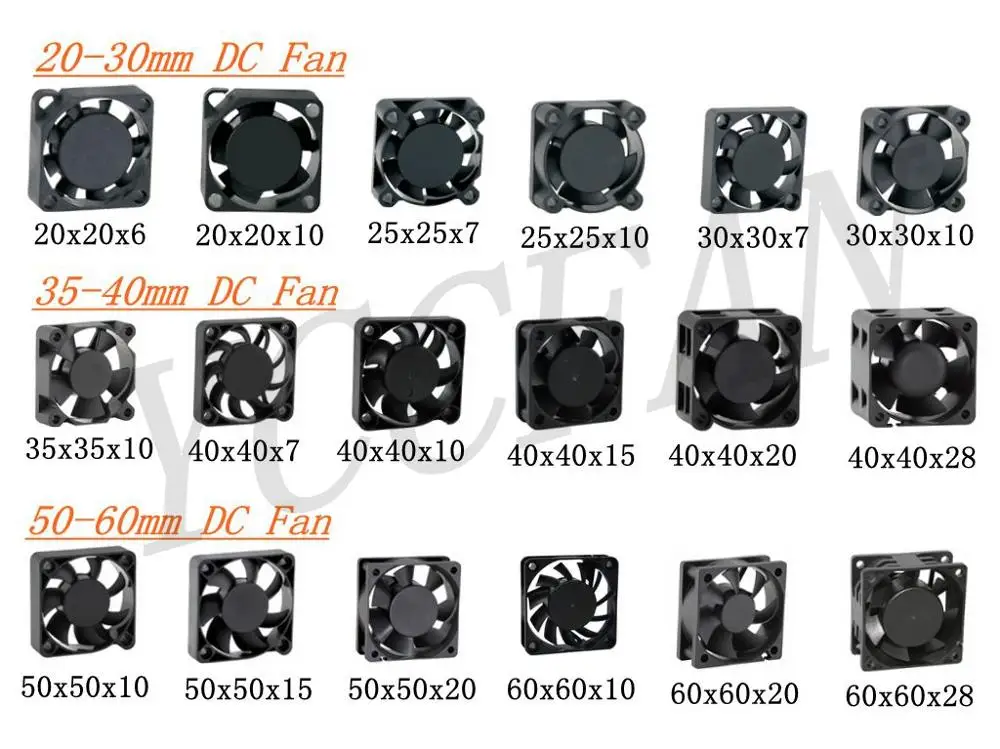

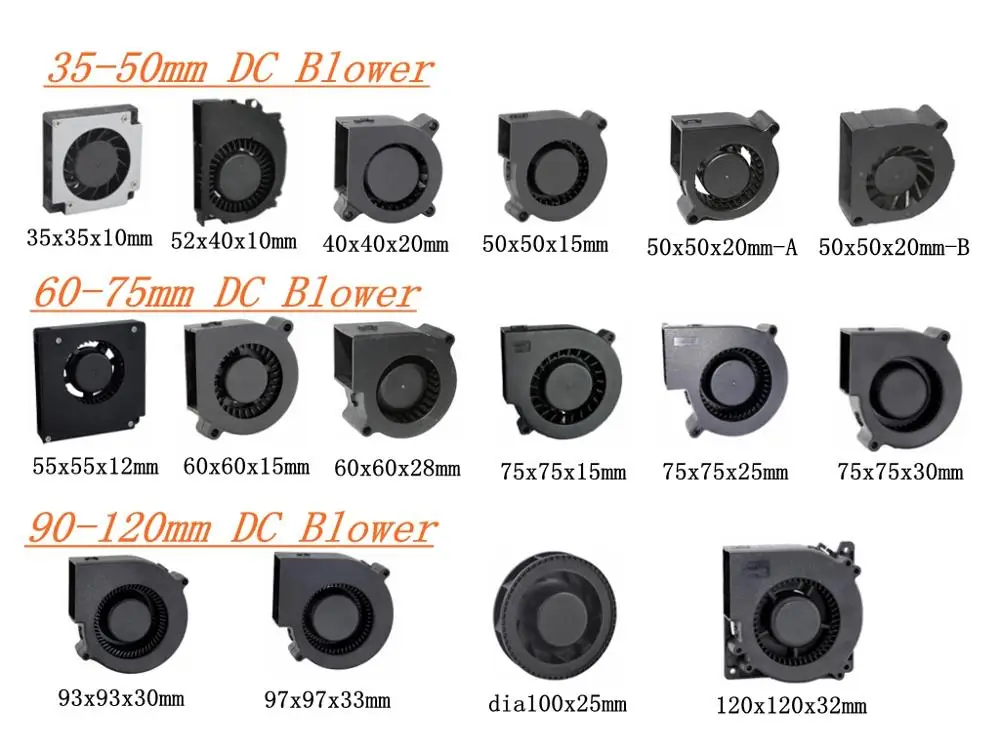

YCCFAN manufacture DC/AC fan from 20mm - 254mm.

For more information,pls check below lists to find you need, feel free to e-mail me questions.

 12v 24v dc fan 120x120x38 12038 high cfm powerful fan

---------------------------------------------------------------------YCCFAN-------------------------------------------------------------------------------------

--------------------------------------------------------------------Your Correct Choice-----------------------------------------------------------------------

-------------------------------------------------------------------YCCFAN'S SERVICE-------------------------------------------------------------

12v 24v dc fan 120x120x38 12038 high cfm powerful fan

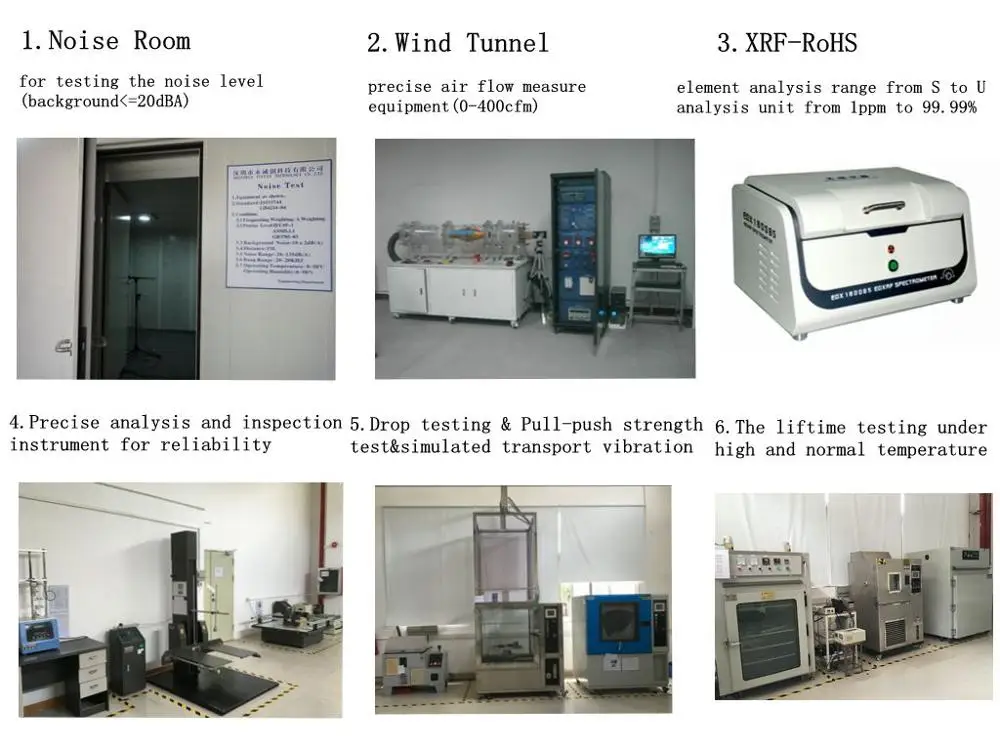

Every year, YCCFAN invest 50% of turnover to purchase experimental and detecting instrument.

Meanwhile we R&D new products and improve structure and performance.

 12v 24v dc fan 120x120x38 12038 high cfm powerful fan

  UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.

  10 + Exhibitions in Mainland yearly    /    4 Exhibitions in HongKong Yearly
   Also attended the exhibitions in Europe,USA,Korea,Russia......

12v 24v dc fan 120x120x38 12038 high cfm powerful fan

Quality Assurance

1. 100 %  testing before the fan leave our factory

2. Good after services to every customer

3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.

4. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS.

Environmental protection and fireproofing material.

5. For any questions, pls contact me freely. I will reply you in 10 minitues.

6. 12v 24v dc fan 120x120x38 12038 high cfm powerful fan

Help us to provide preferably product fan for you:
1    Fan Type, DC/AC
2    Case Size (Dimensions)
3    Speed
4    Air Flow
5    Noise Level if situation needs
6    Rating Voltage, 3v/3.3v/5v/9v/12v/48v/115v/220-240v/380v
7    Bearing, Sleeve/2Ball/VAPO
8    Wire, 2 lead wires/3 lead wires/4 lead wires (PWM control/FG signal output/RD Alarm)
9    Wire Length
10   Connector or not
11   Target Price
12   Just contact me freely if any request,I will get back to you soon.
