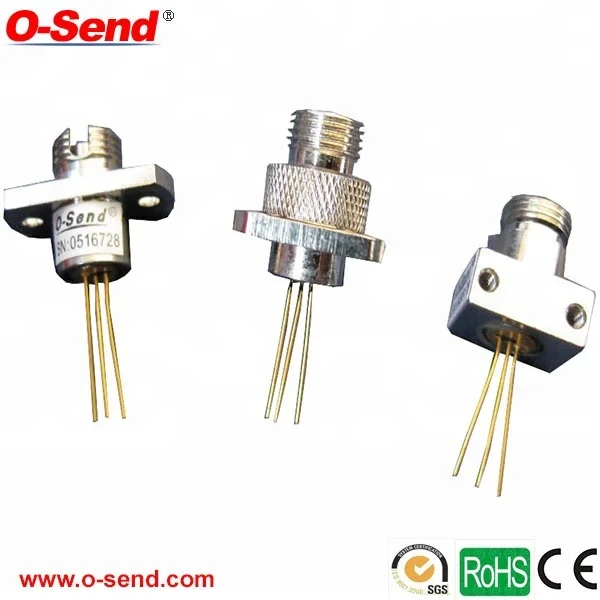

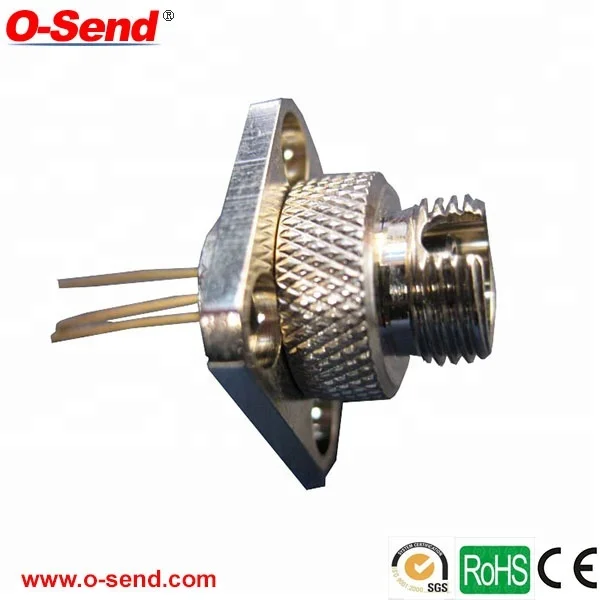

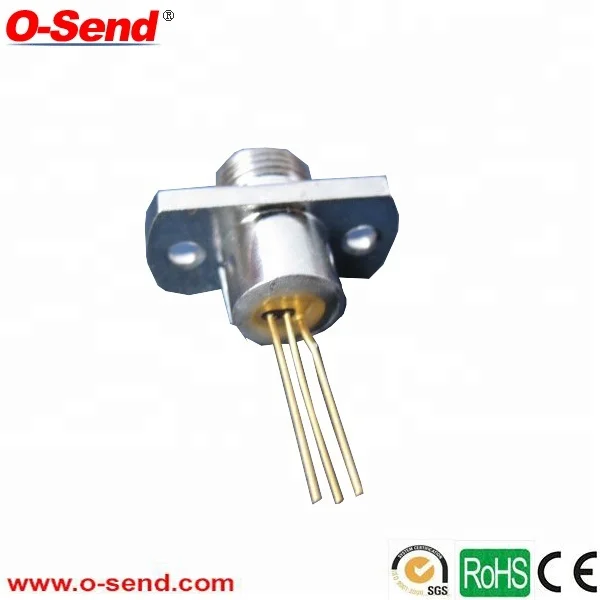

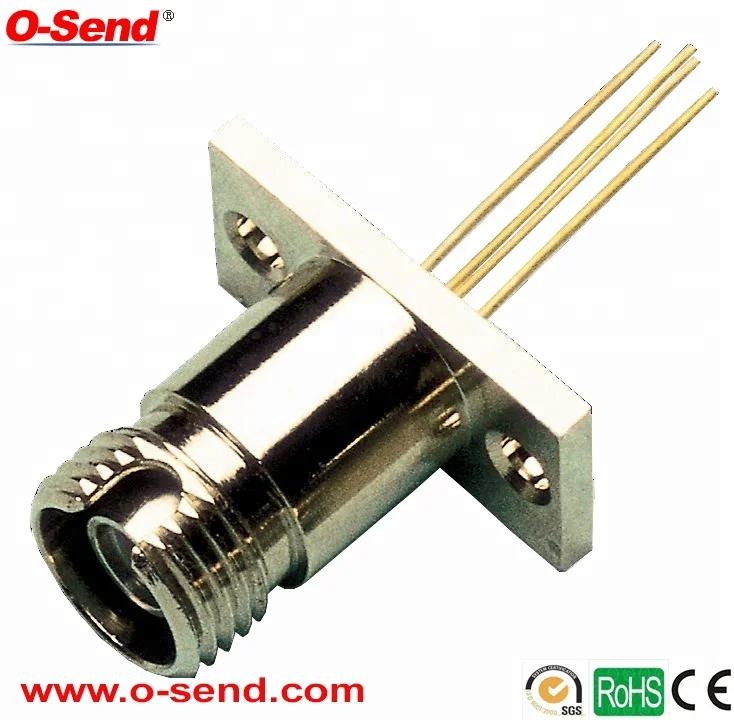

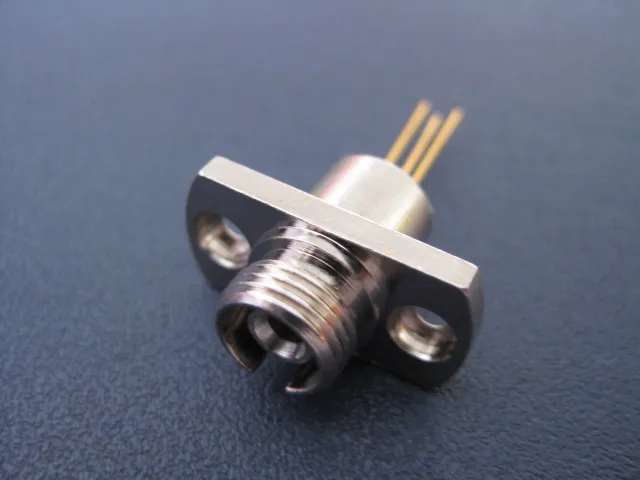

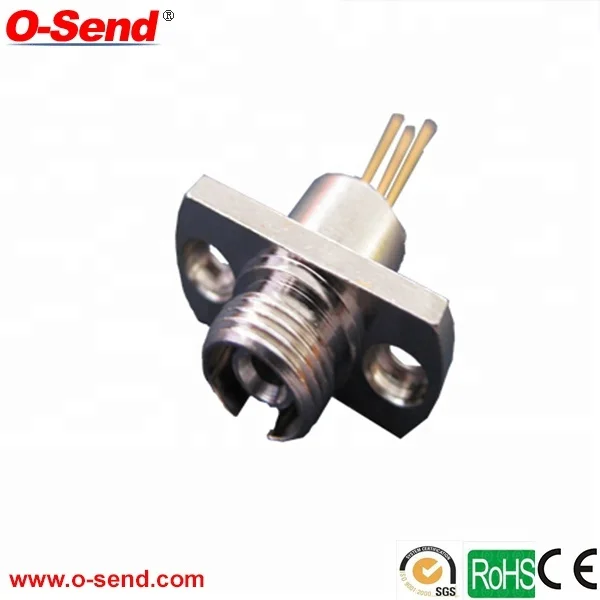

O Send 650nm 1~20mW Red TOSA Receptacle With Universal Adapter
- Category: >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60777218851):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Features
MQW 635/650nm FP LD
Low threshold current
High output power
Built-in InGaAsP monitor PD
Wide temperature range operation
(Tc=-10to+65℃)
Applications
Light Source
Data Transmit
Absolute maximum ratings
| Parameter | Symbol | Ratings | Unit |
| LD Forward current | IF(LD) | 100 | mA |
| LD Reverse voltage | VR(LD) | 2 | V |
| PD Forward current | IF(PD) | 2 | mA |
| PD Reverse volltage | VR(PD) | 30 | V |
| Operating temperature | Top | -10~+65 | ℃ |
| Storage temperature | Tst | -40~+85 | ℃ |
| Soldering temperature/time | - | 240/10 | ℃/S |
Optical&Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Test condition |
| Center wavelength | λc | 640 | 650 | 660 | nm | 25℃ |
| 630 | 635 | 640 | ||||
| Threshold current | lth | 15 | 20 | 40 | mA | 650nm,25℃ |
| Spectral width | Δλ | - | - | 5 | nm | CW,lth+15mA |
| Output power | P | - | 1.0 | 12.0 | mW | CW,lth+15mA,650nm |
| Operating voltage | Vop | - | 2.15 | 2.5 | V | CW,lth+15mA |
| Monitor current | lm | 0.05 | - | 0.5 | mA | CW,lth+15mA |
