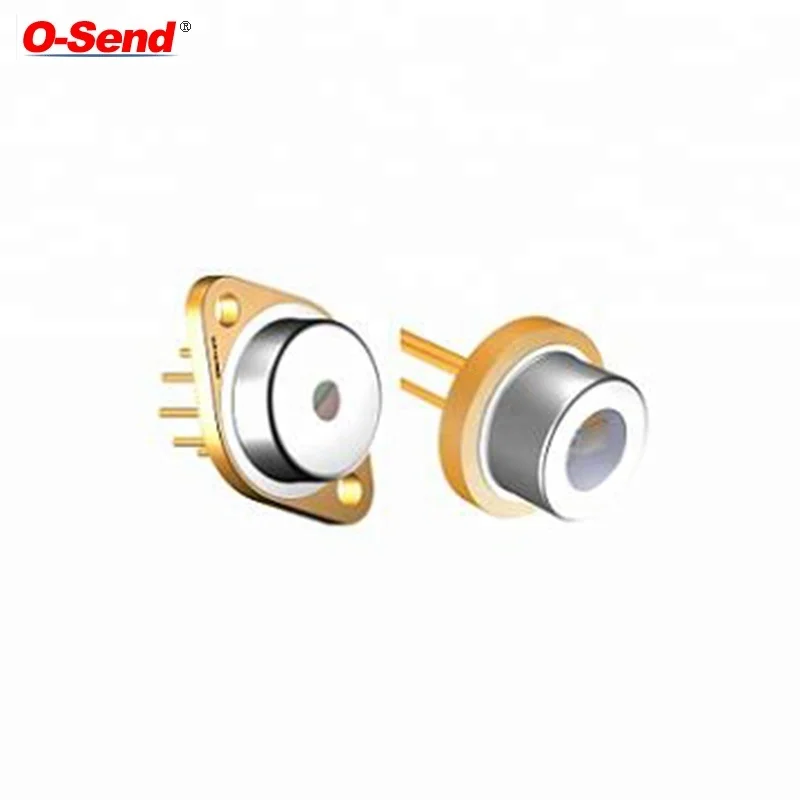

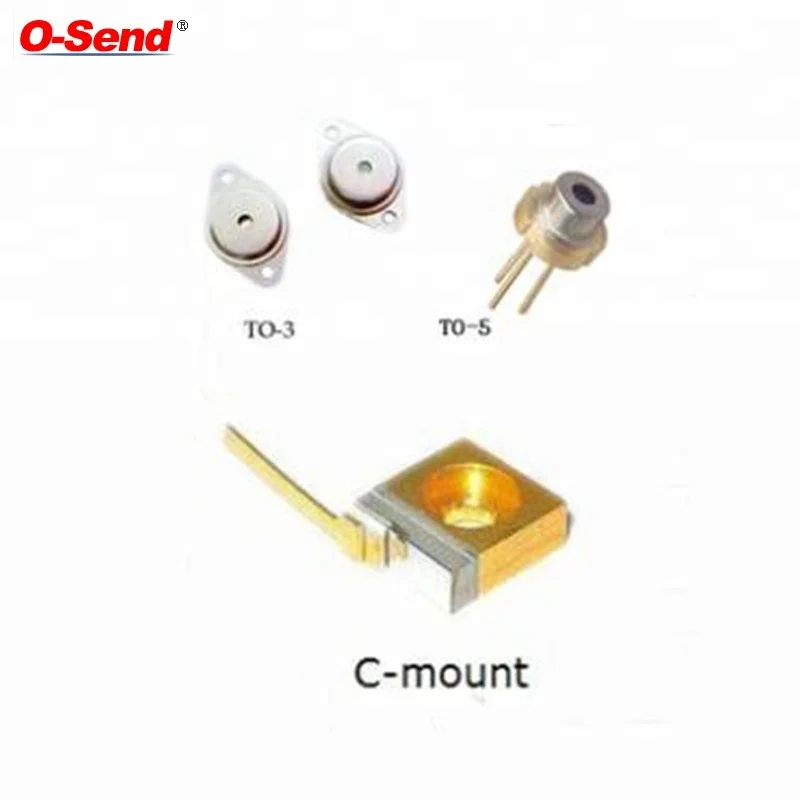

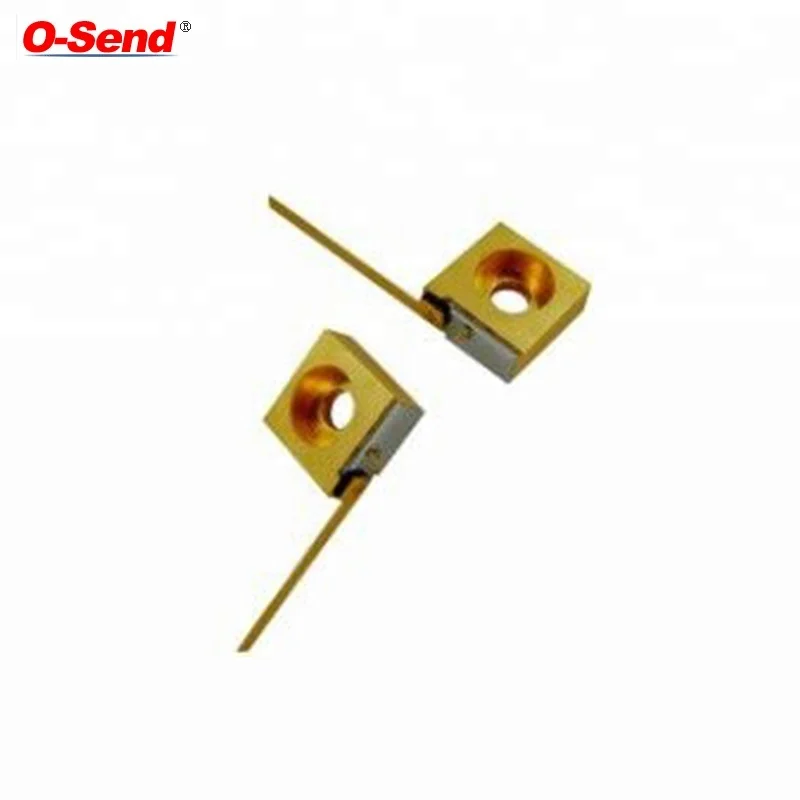

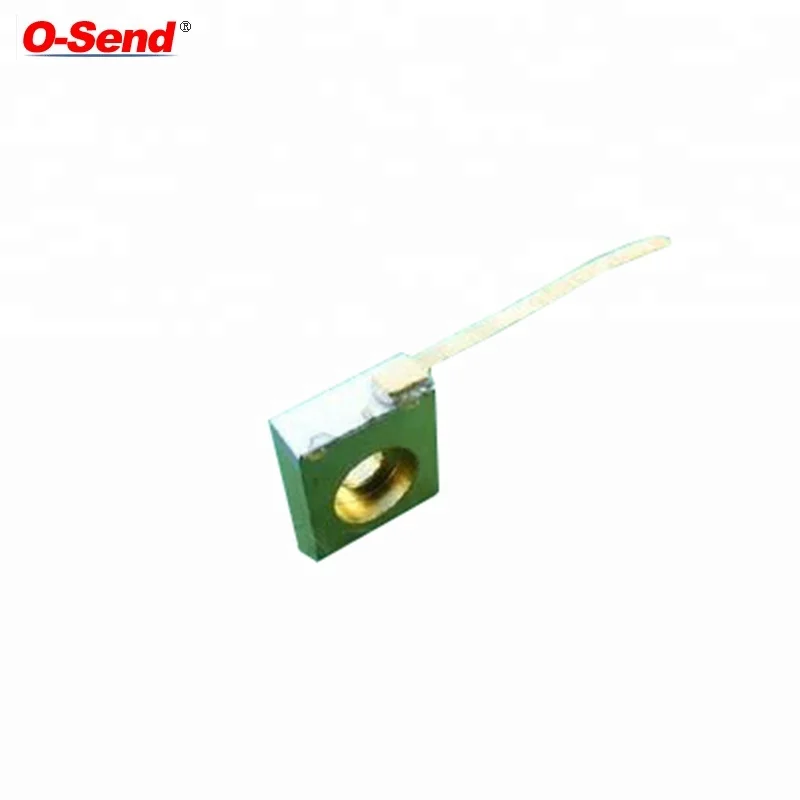

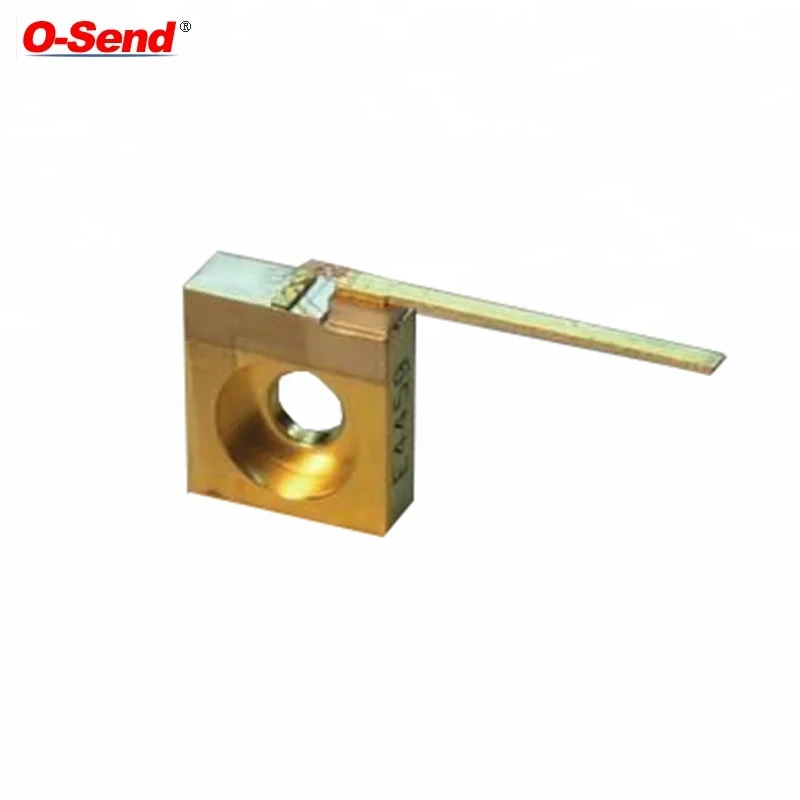

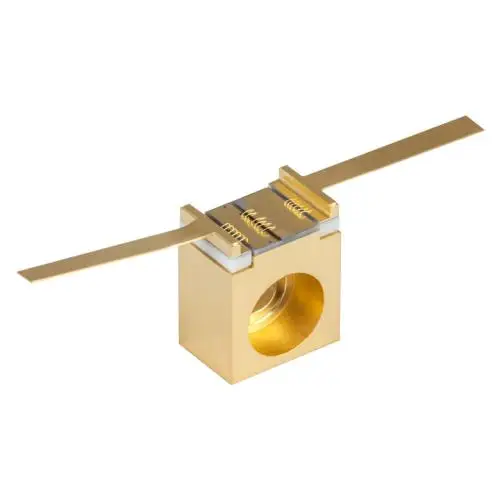

O Send 808nm /3nm 1w c mount infrared ir laser diode
- Category: >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60777218856):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Electro-Optical Characteristics(T=25℃)
| Parameter | Symbol | Unit | Min | Typ | Max | Test Condition |
| Optical output power | Po | mW | 1000 | - | - | Iop=1300mA |
| Center wavelength | λc | nm | 803 | 808 | 813 | Po=1000mA |
| Spectral width | Δλ | nm | - | - | 5 | FWHM,Po=1000mA |
| Threshold current | Ith | mA | - | 220 | 300 | |
| Operating current | Iop | mA | - | 1150 | 1300 | Po=1000mW |
| Operating voltage | Vf | V | - | 1.8 | 2 | Po=1000mW |
| Slope Efficiency | η | W/A | - | 1.05 | - | |
| Beam divergence | θxθ | . | - | 40x12 | - | FWHM |
| Wavelength temperature coefficient | d1/d | nm/℃ | - | 0.3 | - | - |
| Emitting area | - | μm | 80X1 | - | ||
| Polarization | - | - | TE | - | ||
