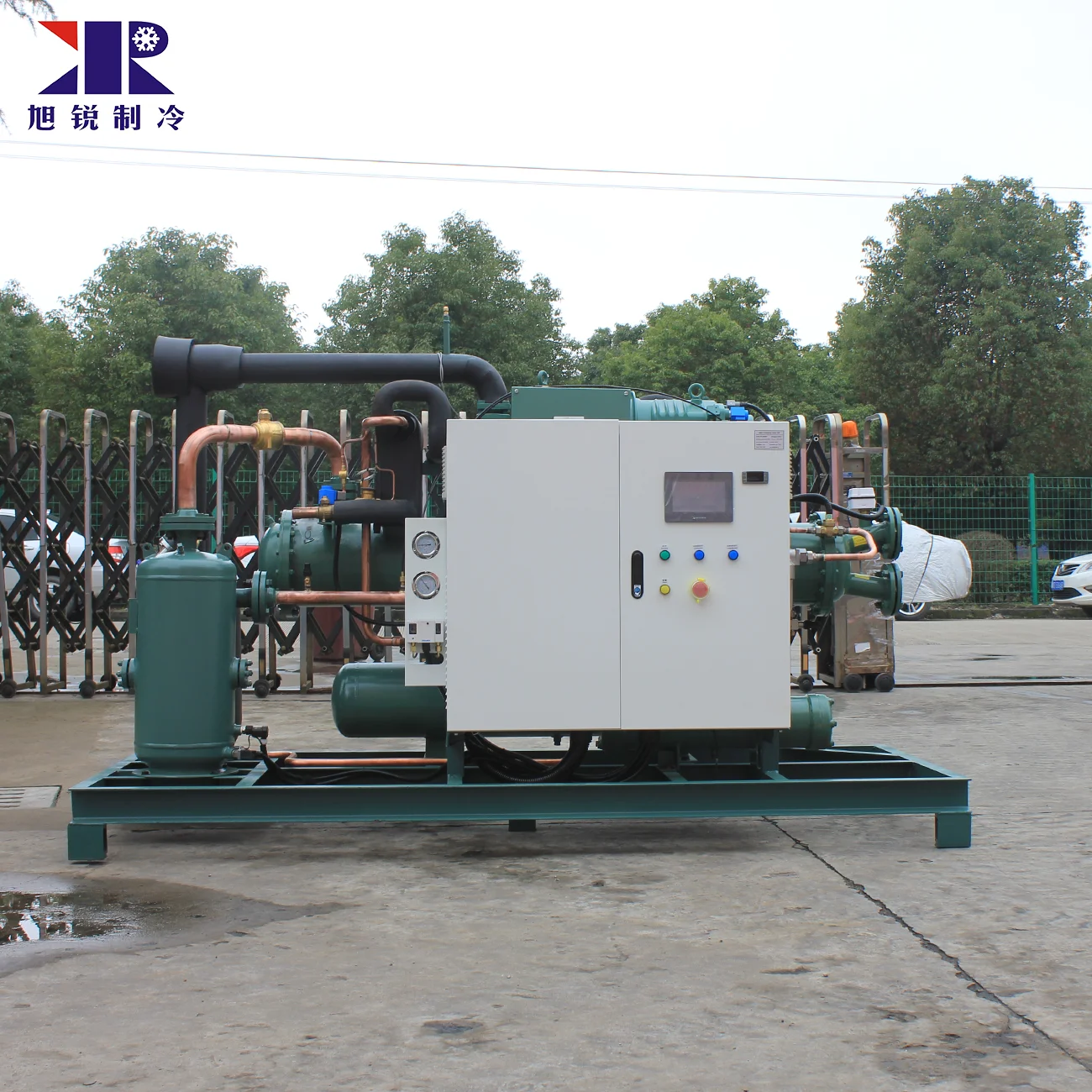

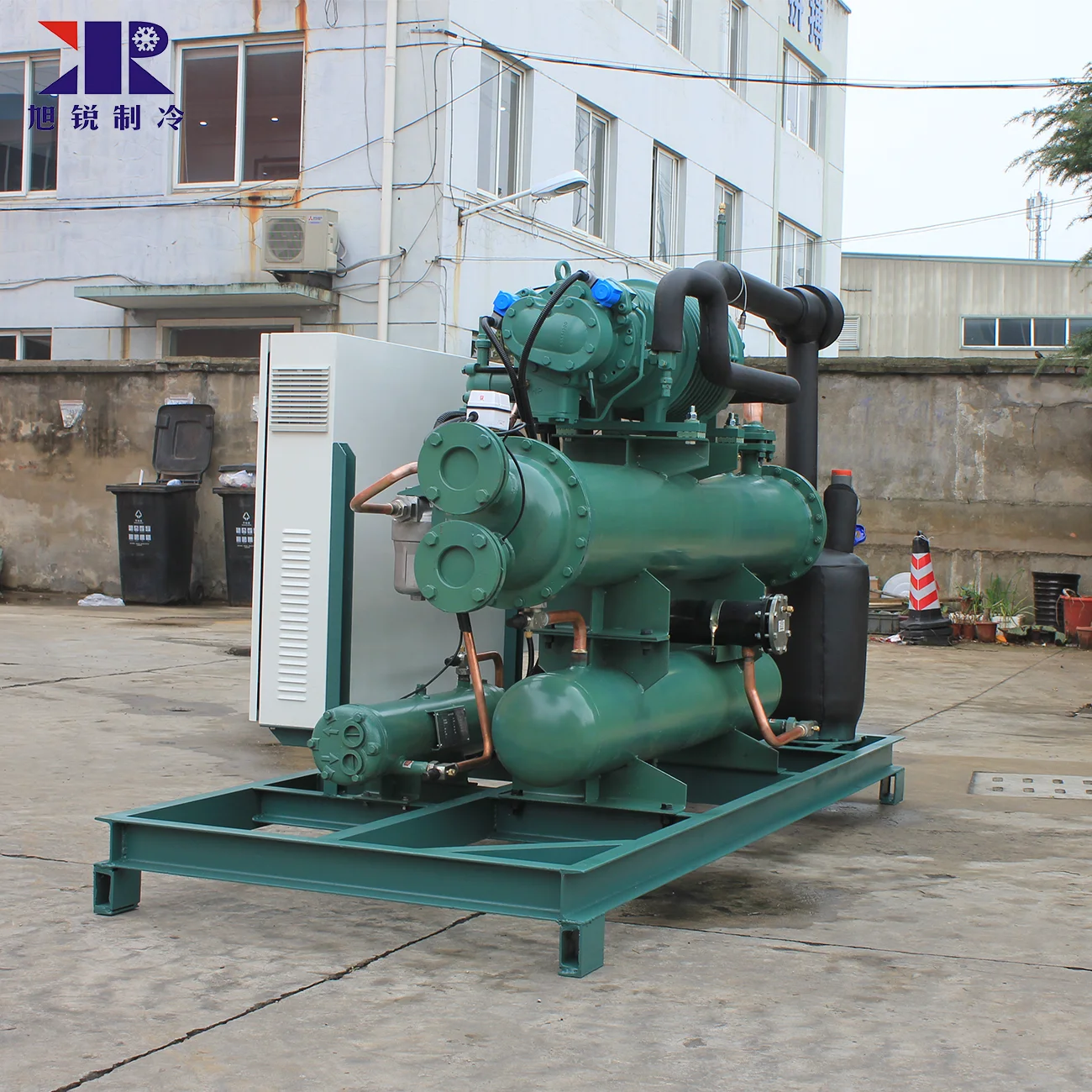

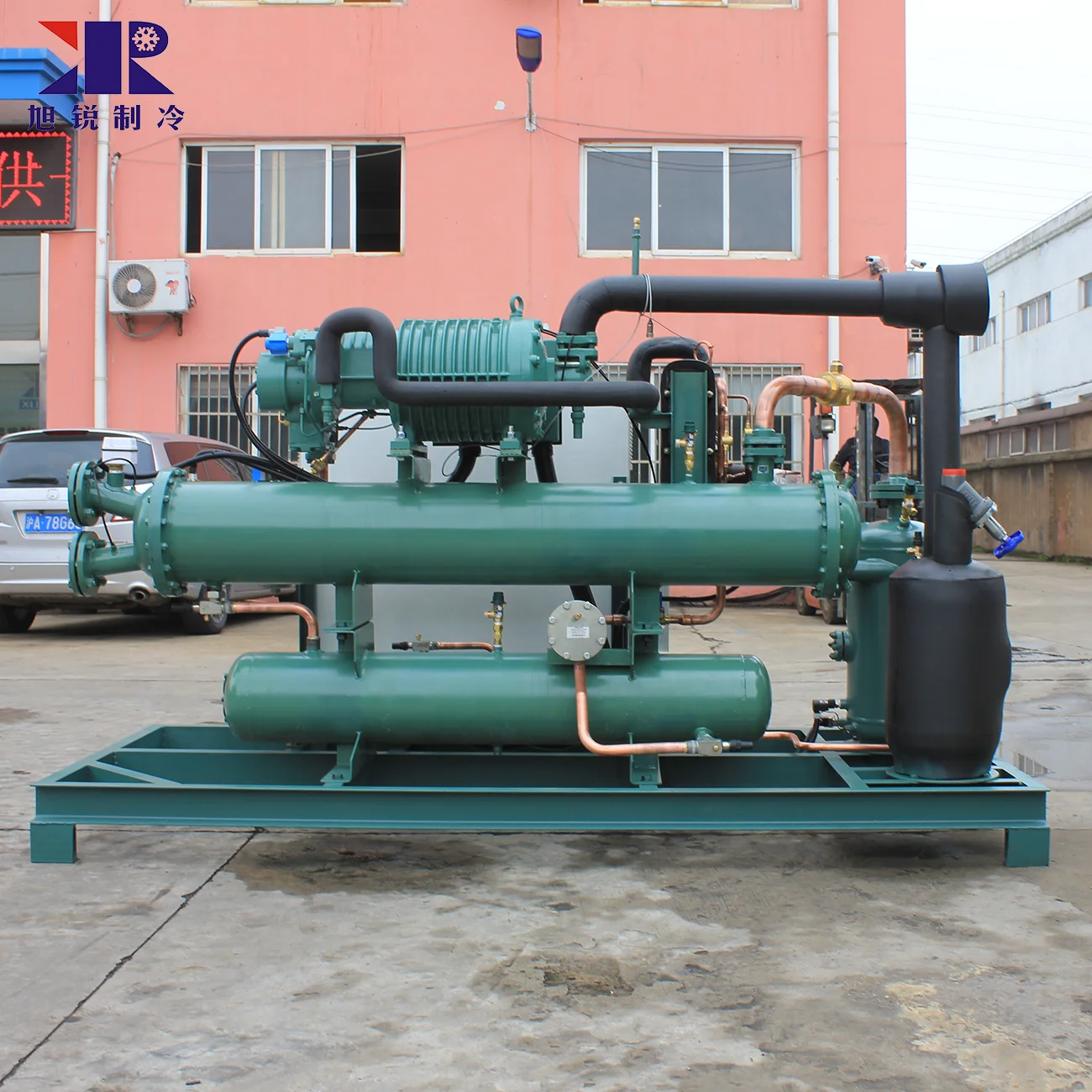

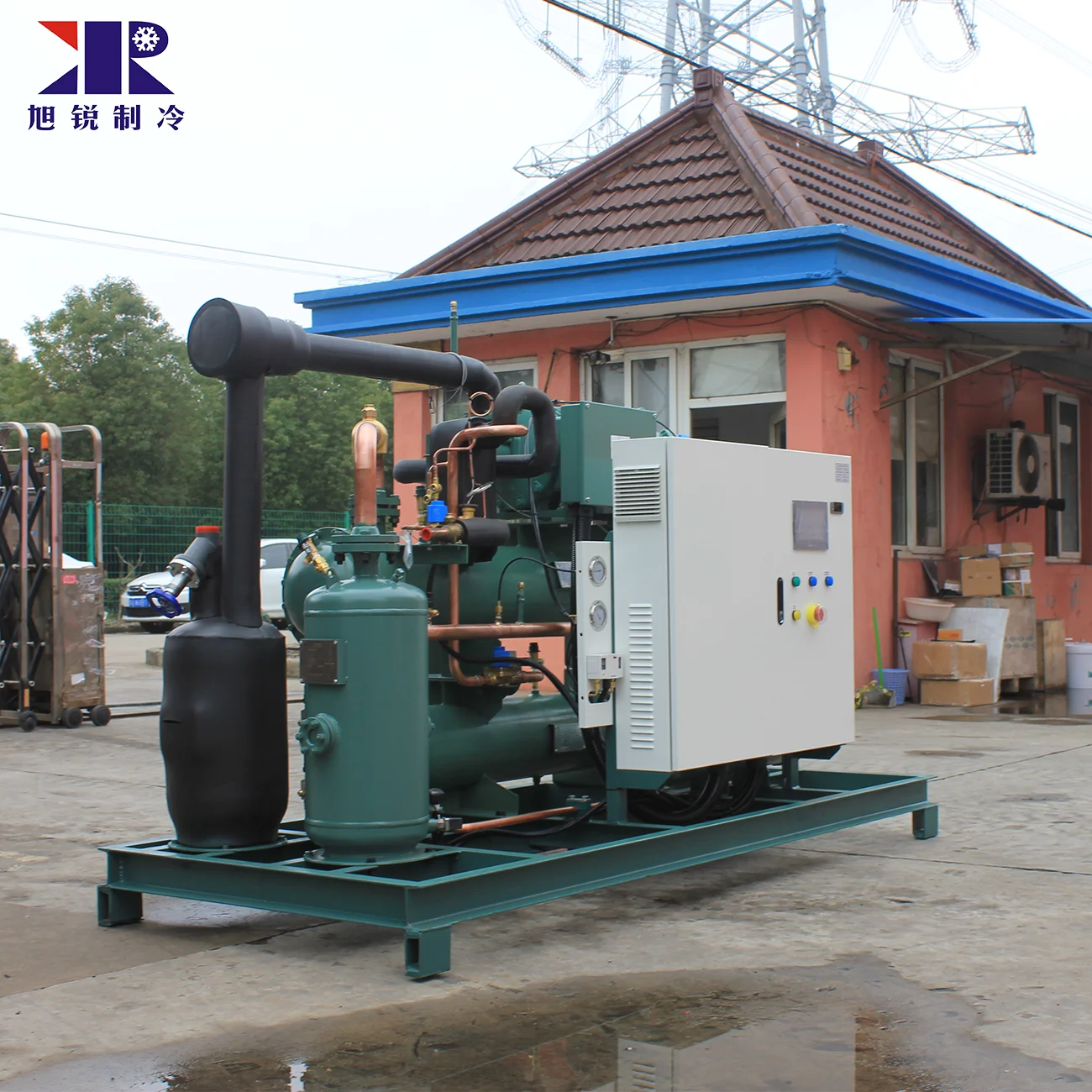

Air cooled Water cooled low temperature HSN7471-75 screw condensing racks for cold room blast freezer tunnel
Condensing Unit Features
Description
Shanghai Xurui Refrigeration Equipment Co. Ltd developed screw compressor racks series according to the manufacturing process of refrigeration industrial. Adopt the most advanced world famous compressors, matched with high efficient condenser, microcomputer control elements, professional design, advanced manufacturing processes and strict testing to ensure safe operation. Compact
structure, smooth operation, excellent energy regulation system, low noise, easy operation, safe and reliable and many other advantages. This series units adhering to our concept of science and technology innovation, contains many leading technology to provide users with the perfect solutions. They are widely used for machinery, electronics, plastic, textiles, food, medicine, chemical and renewable energy industries and other fields, make the modern industrial production more safe, efficient and stable.
structure, smooth operation, excellent energy regulation system, low noise, easy operation, safe and reliable and many other advantages. This series units adhering to our concept of science and technology innovation, contains many leading technology to provide users with the perfect solutions. They are widely used for machinery, electronics, plastic, textiles, food, medicine, chemical and renewable energy industries and other fields, make the modern industrial production more safe, efficient and stable.
Features
Effective Energy-saving
1. Energy saving can be achieved by controlling adjust the number of compressors, multi-capacity regulation, variable frequency etc. to match the actual energy requirement automatically, ensure system run efficiently, achieve energy saving.
1. Energy saving can be achieved by controlling adjust the number of compressors, multi-capacity regulation, variable frequency etc. to match the actual energy requirement automatically, ensure system run efficiently, achieve energy saving.
2. Matching different compressor, provide multiple capacity regulation. Cooling capacity output will be more stable dynamic to match the actual load.
3. Intelligent computer control adjust the unit running under best curve, save a lot of electricity for the owners.
4. Precise pipeline design to minimize the temperature loss, improve the efficiency.
Reliable Operation
1. With high quality condenser excellent efficient and long life design to ensure equipment running safely.
2. Unique accumulator design, prevent liquid strike effectively.
3. Minimize the downtime, more reliable.
Intelligent Control

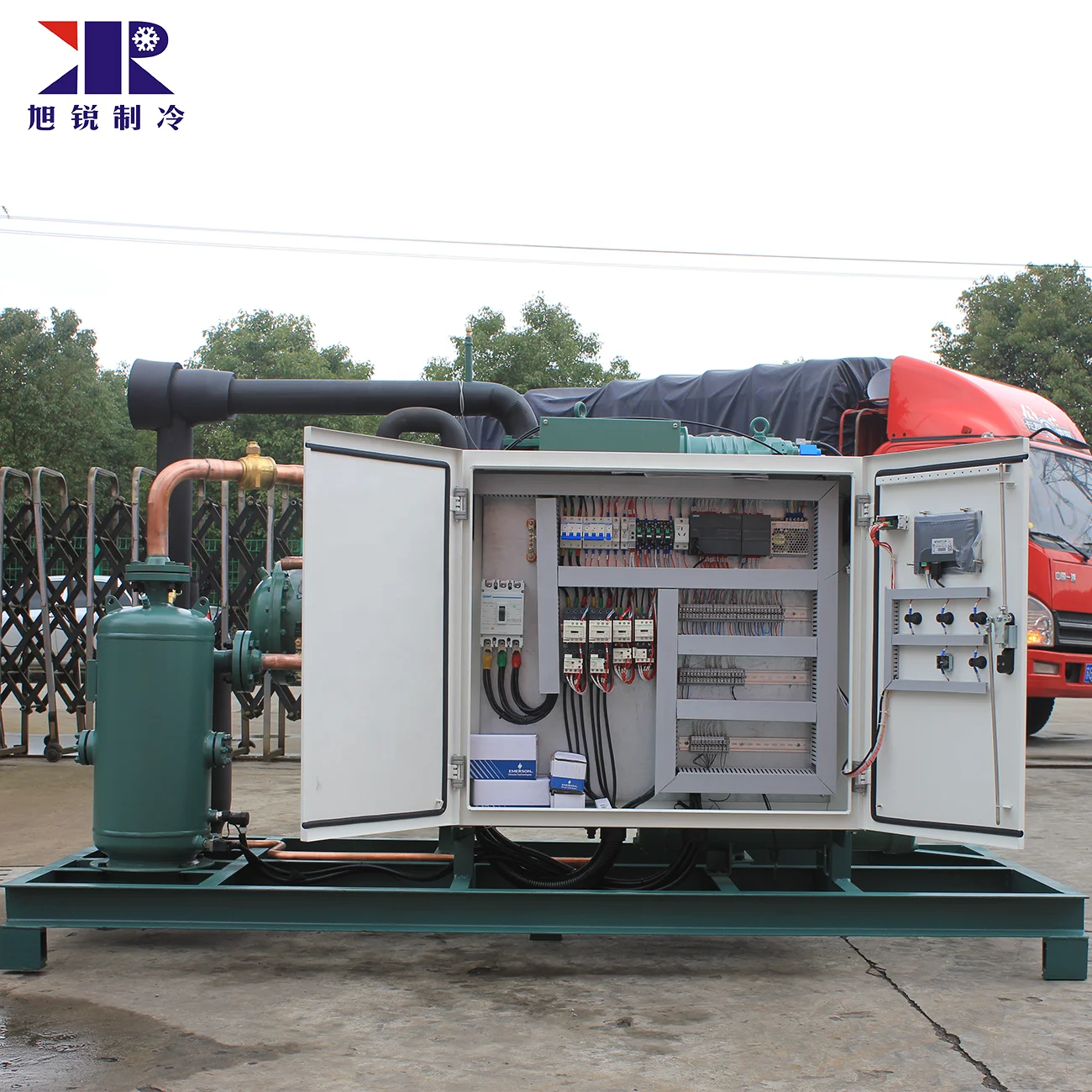

1. Adopt PLC programmable control, automatic operation, which can realize the unattended operation, lower management cost. Optional remote management programs, feedback the running information to realize the remote service.
2. All this series products have a complete set protection devices for compressor wrong direction, over heating, over loading, over discharging temperature, low oil level, over high/low pressure of oil flow etc
Easy Installation and Maintenance
1. Multiple compressors sharing oil separato, accumulator, condenser. liquid receiver, control system &rack.
2. Provide the “modular" installation, reduce copper consumption, shorten the construction period
3. Fault display system with failure which is useful to determinate and remove the trouble in time
Reliable Operation
1. With high quality condenser excellent efficient and long life design to ensure equipment running safely.
2. Unique accumulator design, prevent liquid strike effectively.
3. Minimize the downtime, more reliable.
Intelligent Control
1. Adopt PLC programmable control, automatic operation, which can realize the unattended operation, lower management cost. Optional remote management programs, feedback the running information to realize the remote service.
2. All this series products have a complete set protection devices for compressor wrong direction, over heating, over loading, over discharging temperature, low oil level, over high/low pressure of oil flow etc
Easy Installation and Maintenance
1. Multiple compressors sharing oil separato, accumulator, condenser. liquid receiver, control system &rack.
2. Provide the “modular" installation, reduce copper consumption, shorten the construction period
3. Fault display system with failure which is useful to determinate and remove the trouble in time
Suitable Temperature for Various Products
Temperature | Condensing Unit Type | Suitable Products |
-5°C ~ +5°C | Single stage piston/scroll/screw compressor condensing unit | Vegetables, Fruit, Drink, Beer, Medicines, Vaccine... |
-15°C ~ -25°C | Single stage piston/scroll/screw compressor condensing unit | Meat, Fish, Medicines, Seafoods, Ice Cream... |
-30°C ~ -40°C | 2-stage compressor condensing unit | Meat, Fish, Blood... |
-45°C ~ -70°C | Cascade condensing unit | Tuna, Vaccine... |
Available Condensing Unit Types
Piston condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Scroll condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Screw condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Cascade condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: -40~-70℃
Temperature range: -40~-70℃
Monoblock condensing unit
Type: box top blow type and box side blow type
Condenser: air cooled
Temperature range: +10~-5℃, -15~-20℃
Temperature range: +10~-5℃, -15~-20℃
Water chiller
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: ≥0℃, -10~-15℃, -35℃
Temperature range: ≥0℃, -10~-15℃, -35℃
Successful Cases
Condensing Unit Application
Cold Storage
Ice Cream Production Line
Quick-freezing Tunnel
Ice Maker
Industrial Cold Water
Cryogenic Aquaculture
Application
Company Profile
About us
Shanghai Xurui is located in Shanghai with 11 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel...
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
