1200.C Лаборатории Атмосферы вакуумной сердечно сосудистых заболеваний трубчатой печи с доставкой в течение 3 каналы смешивания газовый регулятор массового расхода
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60777323612):
Product Overview
Description

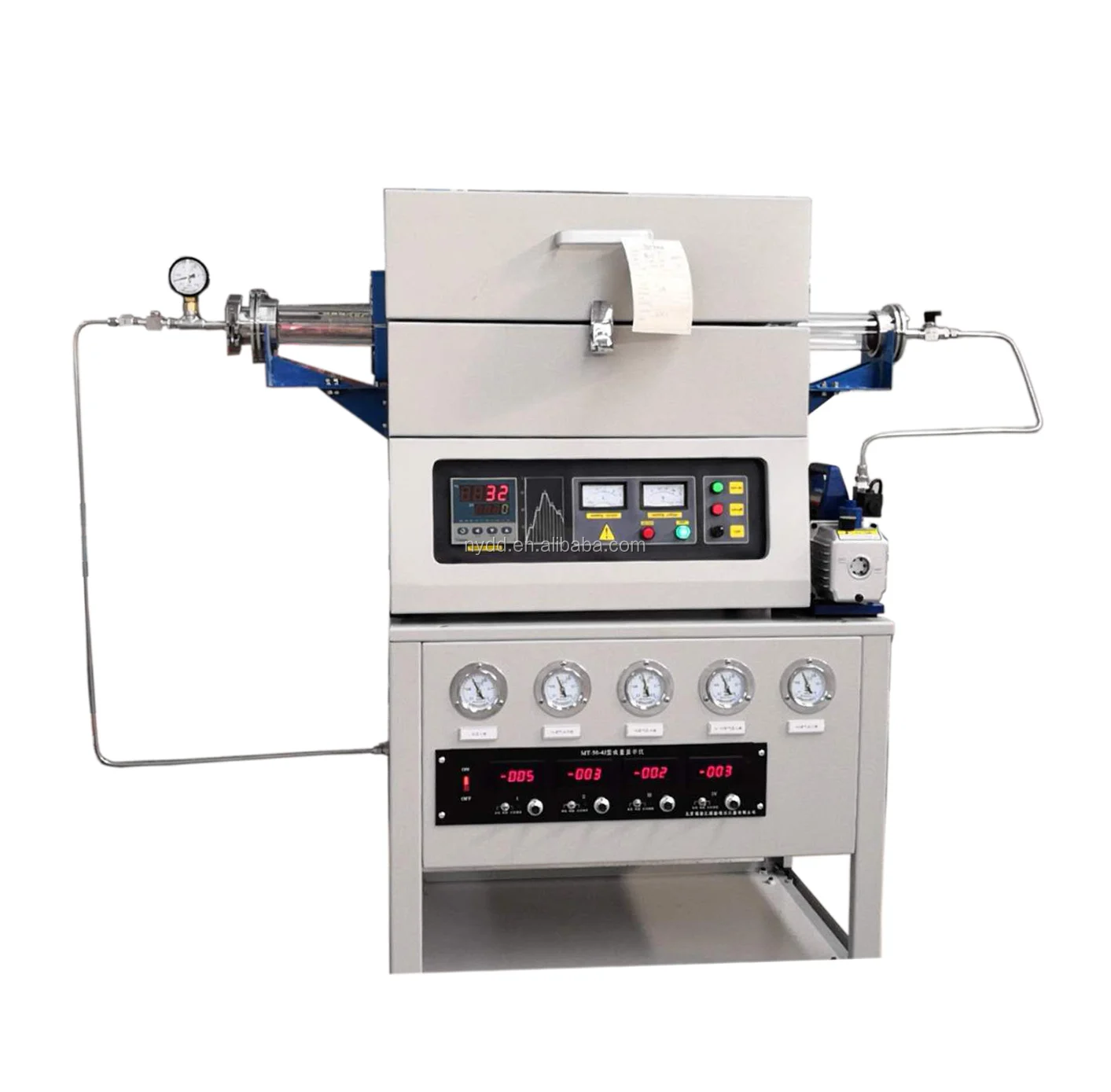

1200.C Laboratory Atmosphere Vacuum CVD Tubular Furnace With 3-Channels Mixing Gas Mass Flow Controller
It is used for CVD experiment in wide variety of reaction temperature about 1100°C, also be used: vacuum sintering, vacuum sintering atmosphere, nano materials making, battery material preparation and other many research fields.
Specifications
Electric Vacuum CVD Tube furnace Application:
Tube furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipmen.
1200.C Atmosphere Vacuum CVD Tube Furnace details specification :
| Rated Voltage & Power: | AC 220V 50/60Hz, 5KW; |
| Inner Chamber Size: | Quartz tube OD80mmxheating zone 300mm L; Single/ 2/3/5 or more heating zone optional. |
| Max. Temperature: | 1200.C for short time; |
| Continuous Working Temperature: | 1100.C Max. |
| Max. Heating Rate: | 0-30.C /min, suggest to be 20.C/Min; |
| Temperature Controller: | PID automatic control and auto-tune function, 30 programmable segments for precise process. Each heating zone with one controller. |
| Temperature Accuracy: | +/- 1 .C. |
| Heating Element: | 1200.C grade Fe-Cr-Al Alloy doped by Mo. |
| Thermocouple : | K type |
| Vacuum: | lower rough vacuum -0.1Mpa; |
| Atmosphere | Inert gas,N2,O2,CO2,Air gas available. |
| Gas mixing system: | 2/3/4/5 Float flowmeter gas control/MFC gas control system; With One mixing tank; flowmeter range: 0.03-0.3SLM,10-100SCCM,16-160ml/min,25-250cc/min optional; For precision gas control, you can choose digital mass flow Control system instaed of float-meter. SCCM 0~5,10,20,30,50,100,200,500 SLM 0~1, 2, 3, 5, 10,15, 20, 30 |
| Standard Parts: | Vacuum pump 1pc, high temperature gloves 1 pair , one user manual. |
| Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop. |

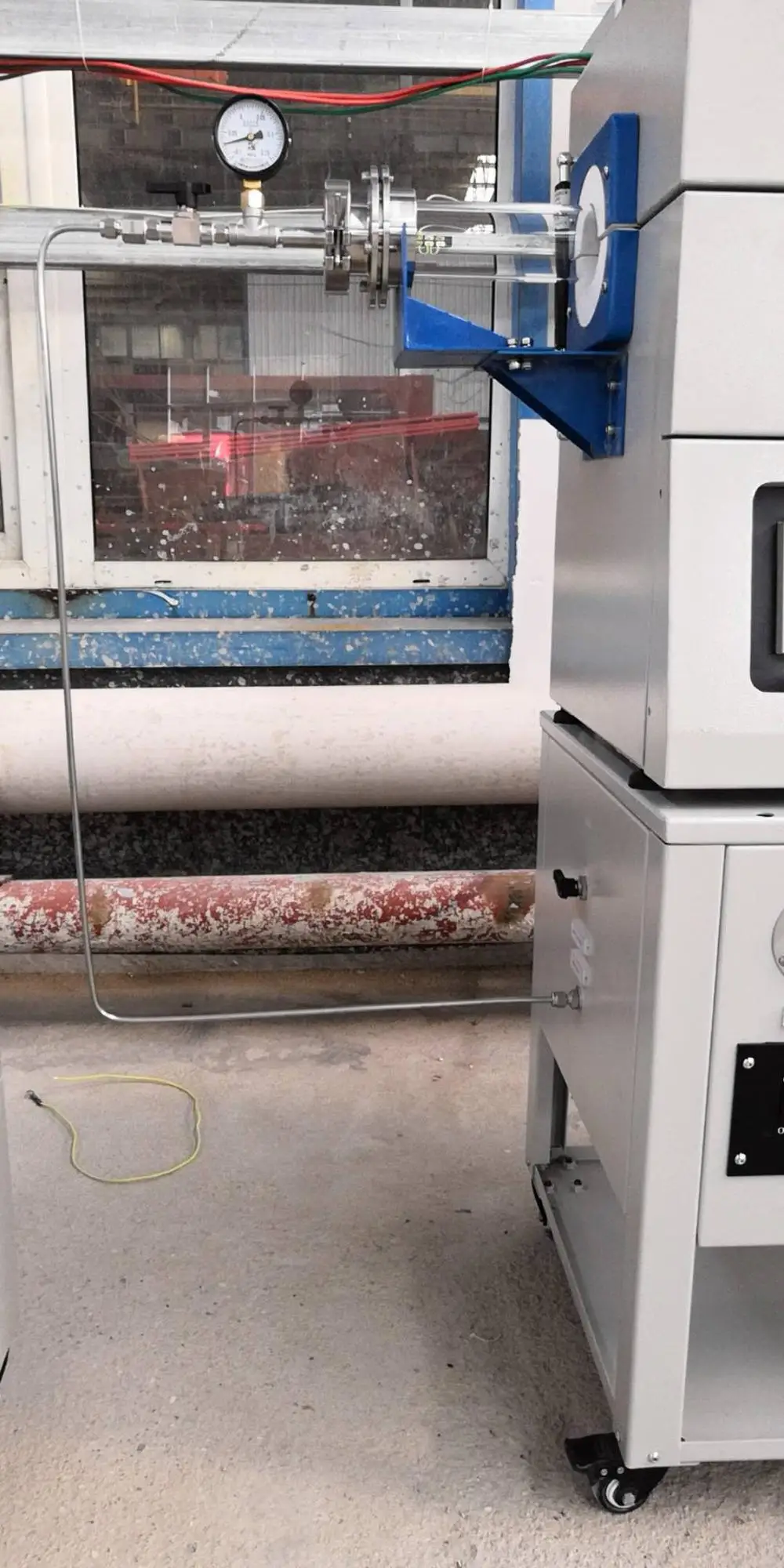

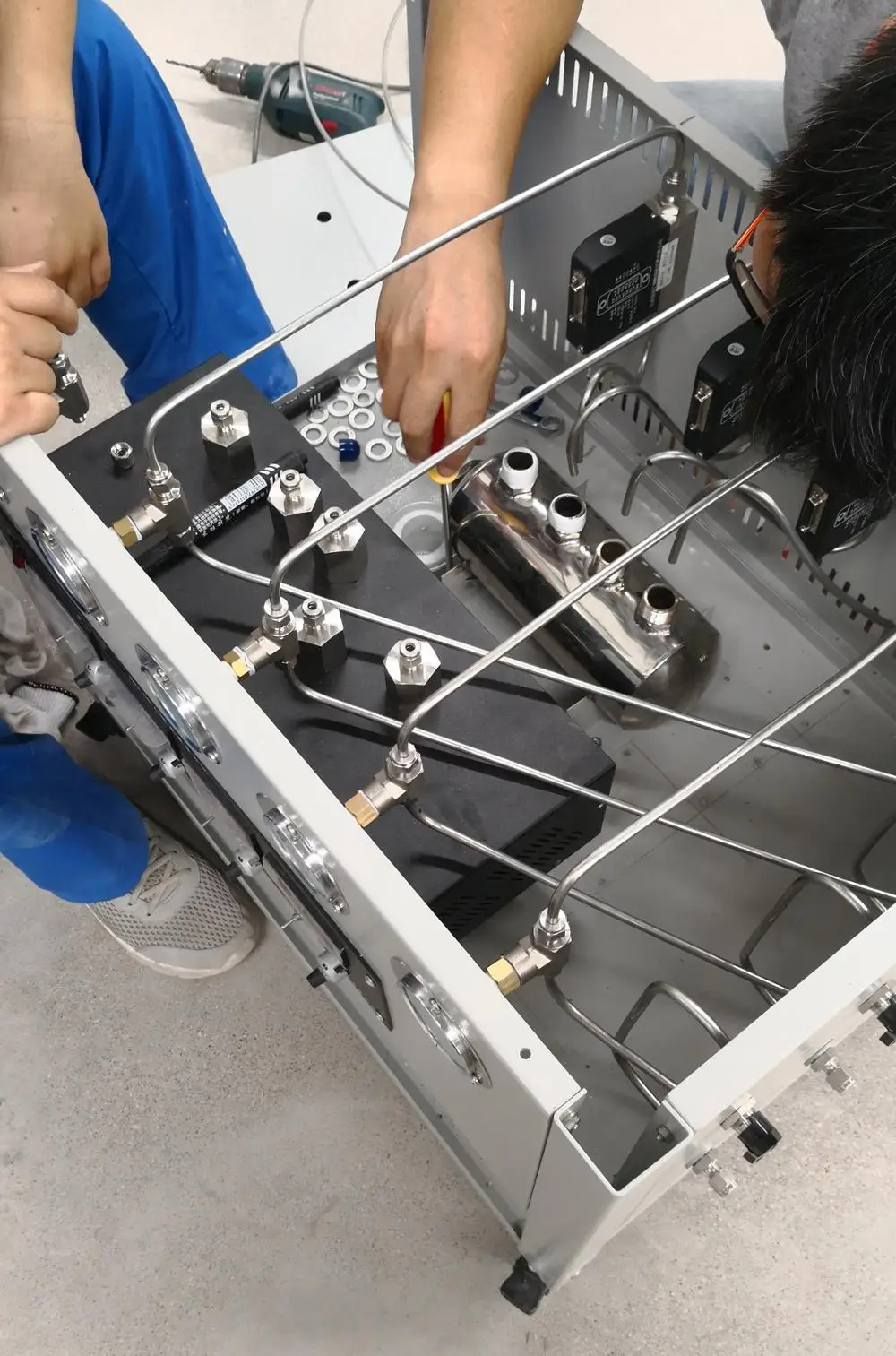

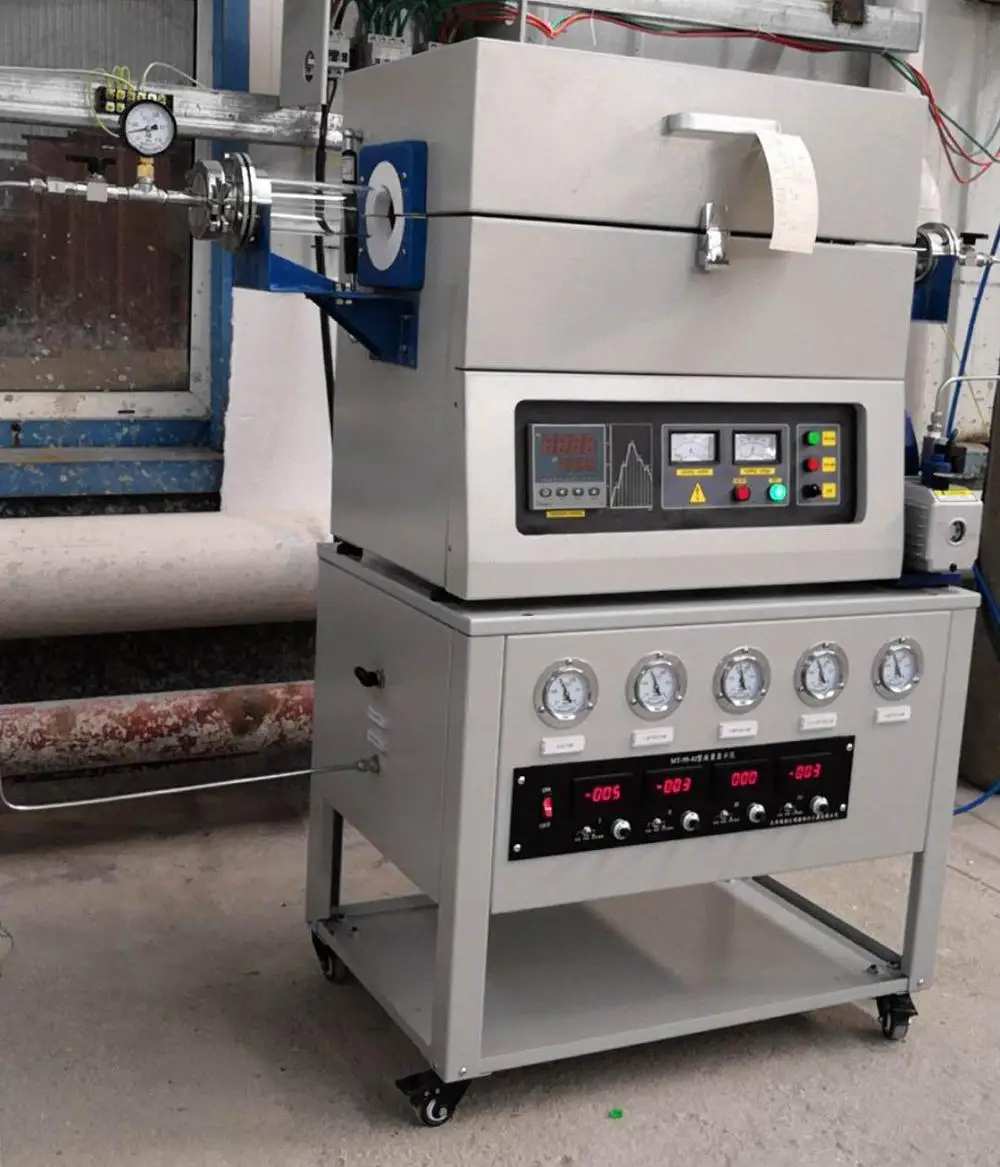

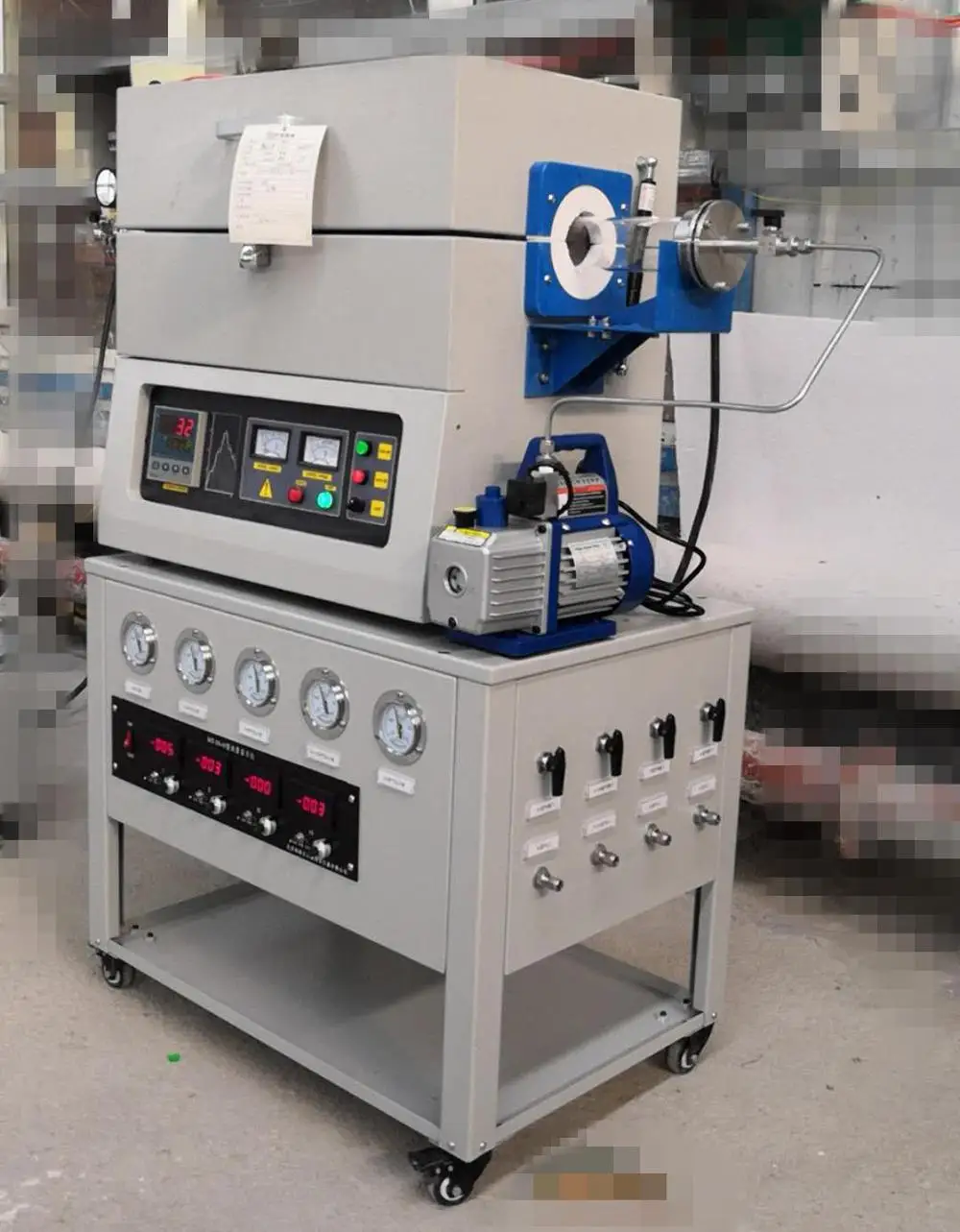

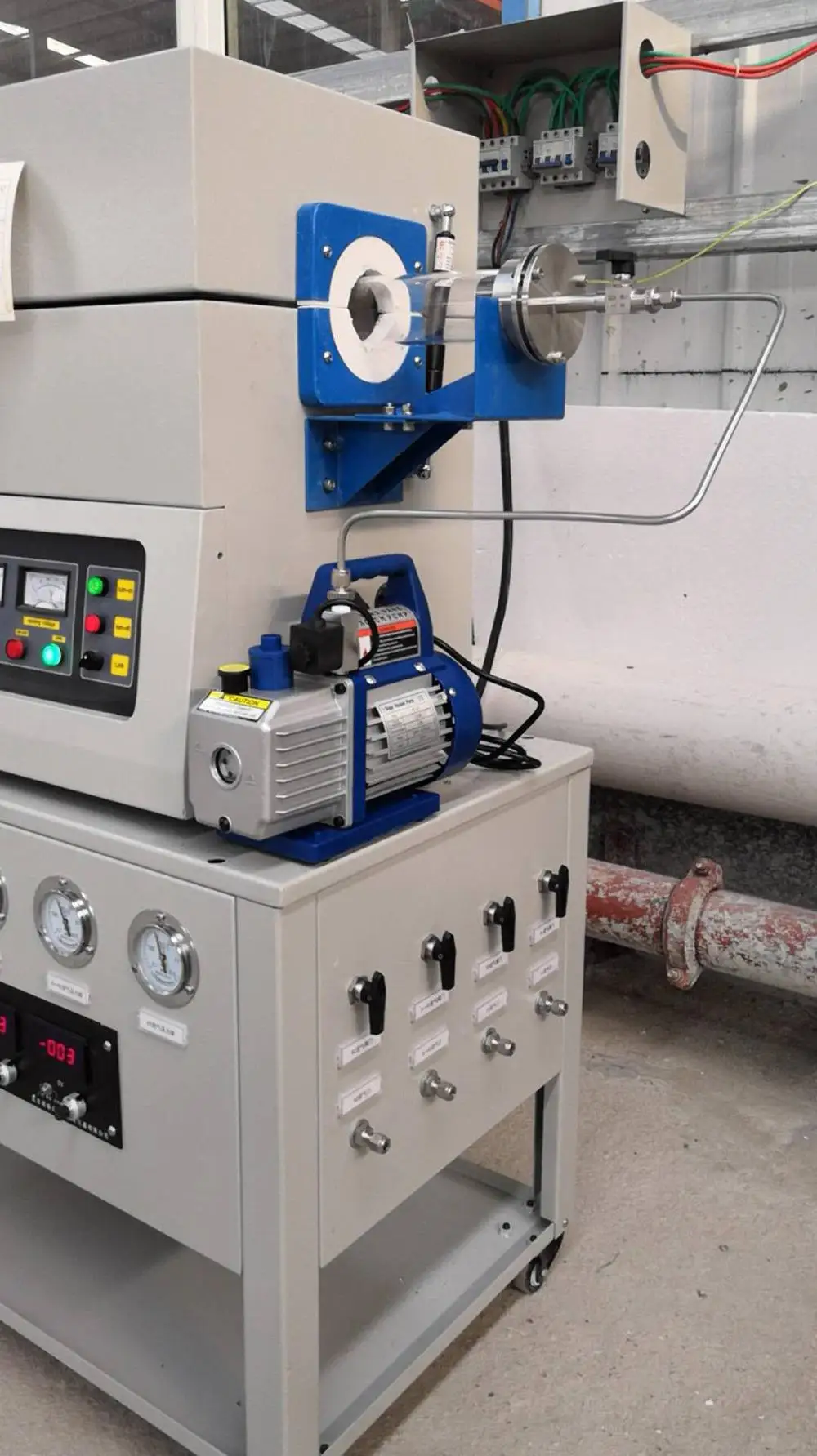

The pictures of 1200.C atmosphere vacuum furnace:
Warranty: One year limited warranty with lifetime support, excluding heating element,cooling fans, thermocouple and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.
Mainly products:
Car bottom furnace | High vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
Why choose us?
1. Factory Advantages
Xinyu was founded in 2005. We have nearly 17 years of experience in the design and production of high-temperature experimental equipment, with stable quality and a comprehensive daily output of more than 10 sets.
Independent design and research department, constantly innovate and optimize product structure, reduce customer costs and improve product quality.
2. Product materials
The product is made of international standard high-quality ceramic fiber board and ceramic fiber cotton, and the shell is made of SPCC cold-rolled carbon steel plate.
Furnace Shell Structure: Double-layer carbon steel plate shell, surface sprayed with heat resistant plastic powder coating to
ensure that the outer surface temperature of the furnace is ≤40.C.
3. Quality control
Professionals are responsible for each process to check the quality of raw materials and packaging.
Installation test will be carried out before packaging to ensure that each product is intact.
4. After sales service
7 * 24-hour after-sales service to solve all your concerns.
Related products
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.
How to make an order
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
