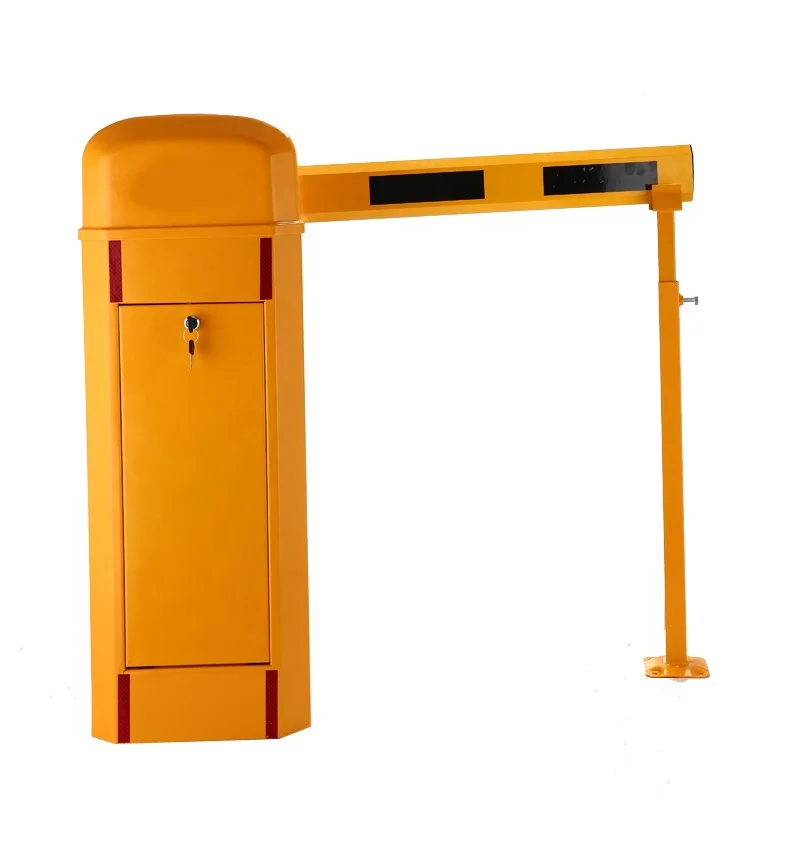

China Factory Price IP44 traffic barrier/ private car parking barrier Boom Security Gate 6m arm barrier gate

Share on (60777325733):


Price:

Quantity:


Product Overview

Description


barrier series





Main Features



*Can work continuously, it will not be stop because of the temperature



*In case of power failure, the barrier can be opened and closed manually after release clutch



*Can be connected with photocell, ground sensor and automatic vehicle identification system etc

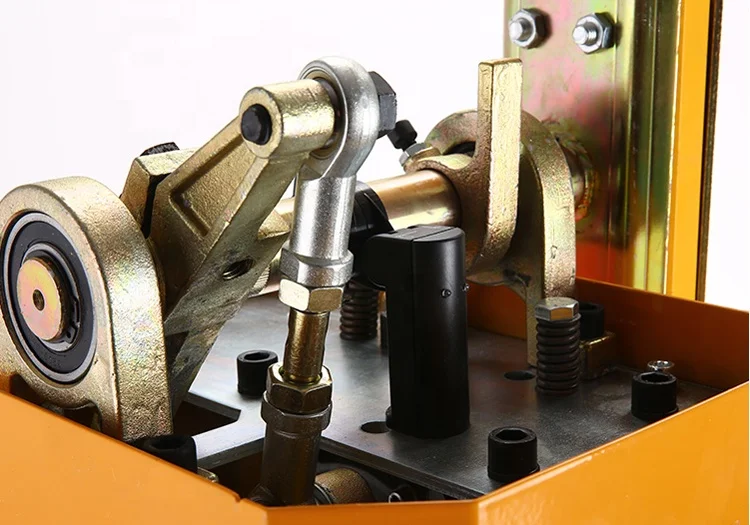

* Self-lock oil immersed electromechanical maintenance-free gear motor

* Overheat and overload dual protections

* Manual operation in case of power failure



* Automatic closing with adjustable timing



* Safety obstruction reverse (infrared photocell must be installed)



* Built-in control panel, available to IC card reader, loop detector, infrared photocell, alarm lamp and remote control



* Proximity limit switch



* Base plate provided for floor installation(options for right and left)



* Standard configuration: 2 remote transmitters, 1 crank handle, 1 arm bracket



* Optional: Infrared photocell, alarm lamp



Specifications



Model

JD-1A

Power Supply

120V/230V AC

Power

280W

Motor Speed

480r/min

Time for up/down

6s(6m)

Noise

56dB

Limit Switch

Photoelectric

Working Temperature

-40℃~+70℃

Protection Class

IP 44

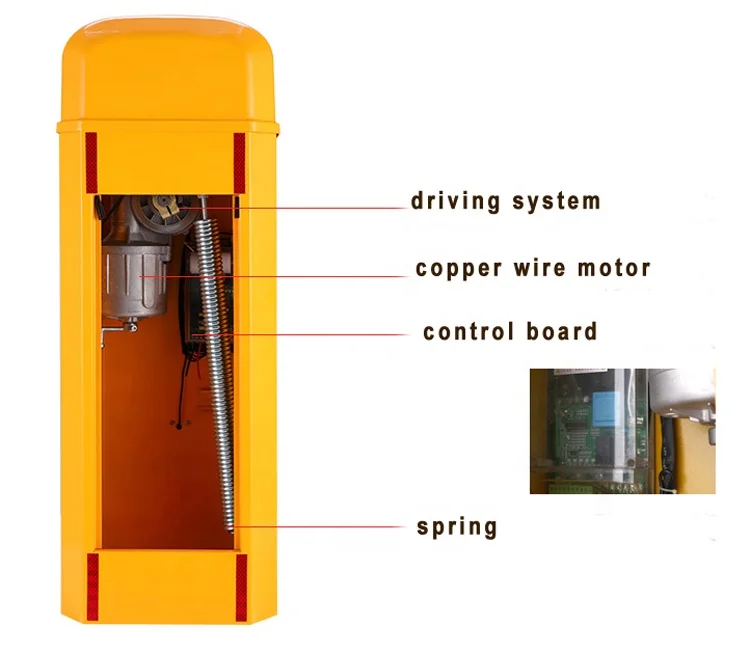

Detailed Images

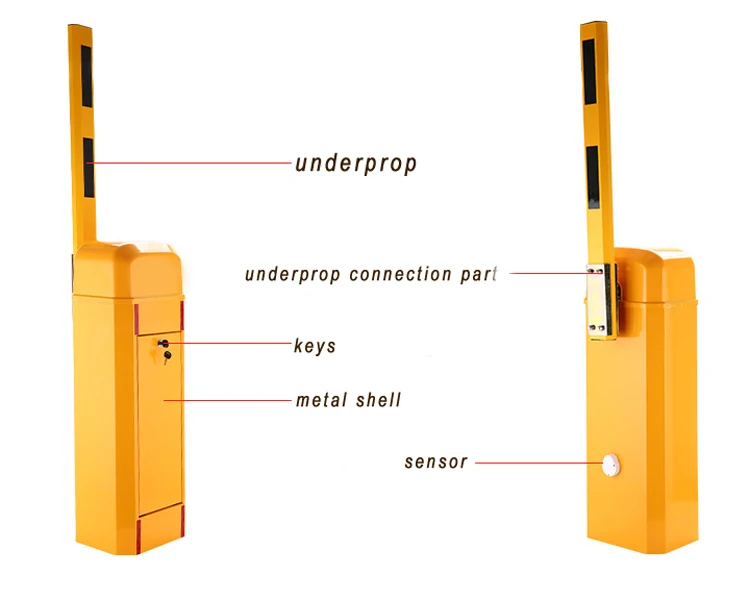

 BK500-3
