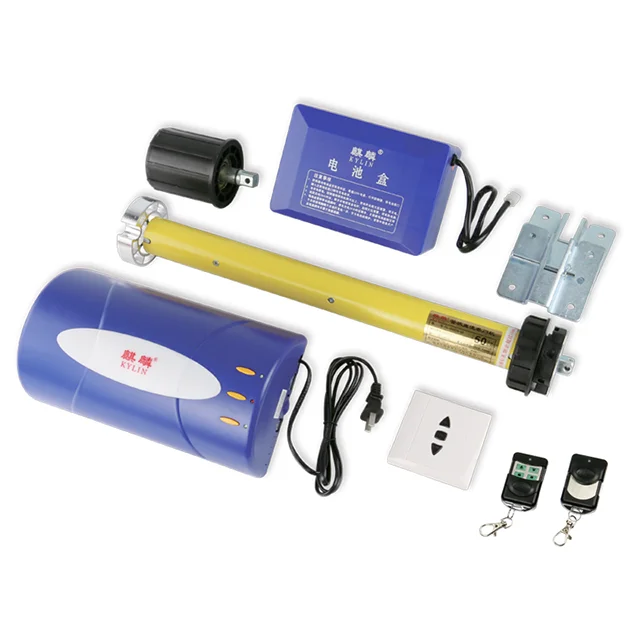

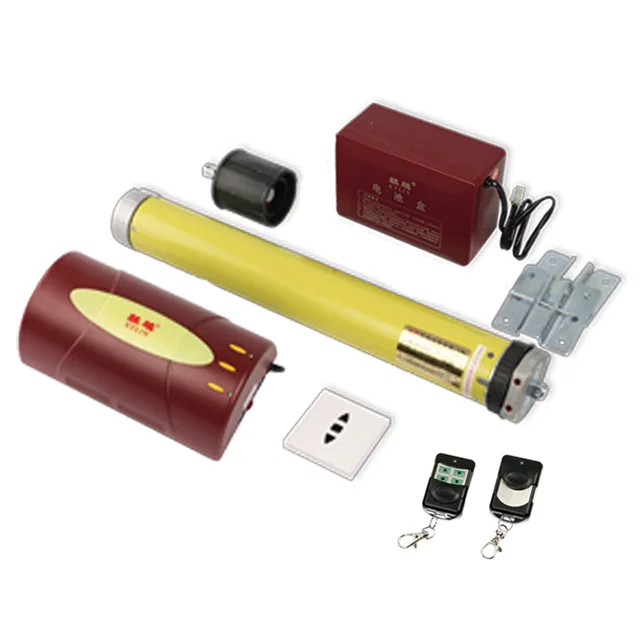

140N Nice Motorised Electronic Limit Switch Tubular Motor For Roller Blinds

Product Overview

Description

140N Nice Motorised Electronic Limit Switch Tubular Motor For Roller Blinds

Model	Power  Voltage	Motor  Voltage	Rated  Current	Rated  Power	Output  Speed	Output  torque	Limit  Revolution	Constant  working  Time
QL-G59DE-50	220V 50Hz	DC 12V	8.5A	100W	7r/min	50 N.m	20 turn	<5min
QL-G59DE-60	220V 50Hz	DC 12V	10A	120W	7r/min	60 N.m	20 turn	<5min
QL-G59DE-80	220V 50Hz	DC 24V	7A	170W	7r/min	80 N.m	20 turn	<5min
QL-G59DE-100	220V 50Hz	DC 24V	8.5A	200W	7r/min	100 N.m	16 turn	<5min
QL-G59DE-140	220V 50Hz	DC 24V	10A	240W	7r/min	140 N.m	16 turn	<5min

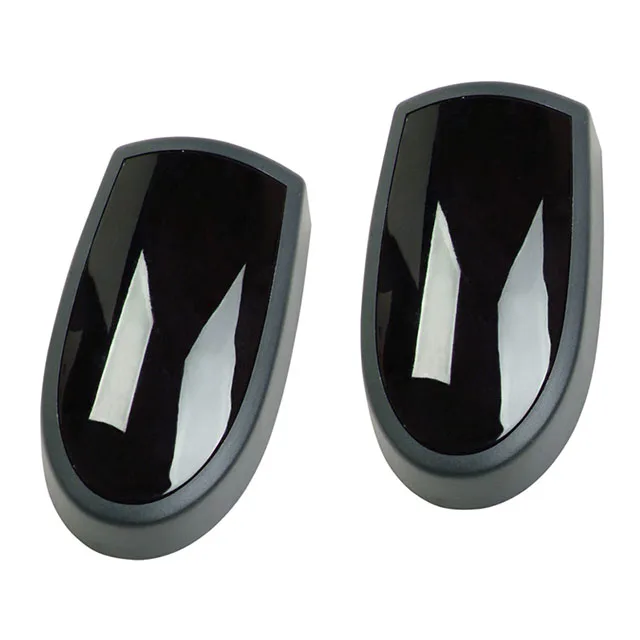

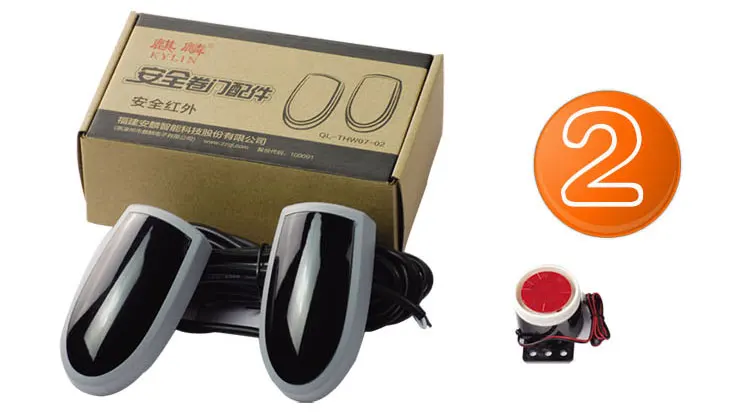

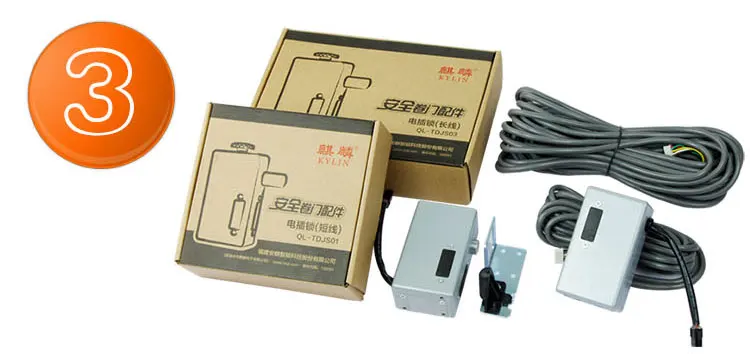

Wireless Safety Edge Can add wireless safety edge, and set up stop, rebound times is 0.5s/2s /to up limit mode when meet obstacle(on the module setting). Can add wireless safety edge and alarm system. When door is opened by thief or pried to higher than 5cm, it can alarm of upto 105 decibels.Infrared sensor Can add infrared sensor. When the infrared meet obstacle, the motor stop operating and the door is no running. When the shutter door moving up and infrared meeting obstacle, the shutter door stop. When the shutter door moving down and infrared meeting obstacle, the shutter door according to the dialer response action( Dialer in infrared sensor) Can set up stop, rebound times is 0.5s/2s /to up limit mode when meet obstacle (on the module setting)Electronic Side Lock When the door closing to down limit a automatically locked, press up key when opening the door, electric locks automatically open, the door up. Open the door without the key, people can't pry, safer, make sure safety.
