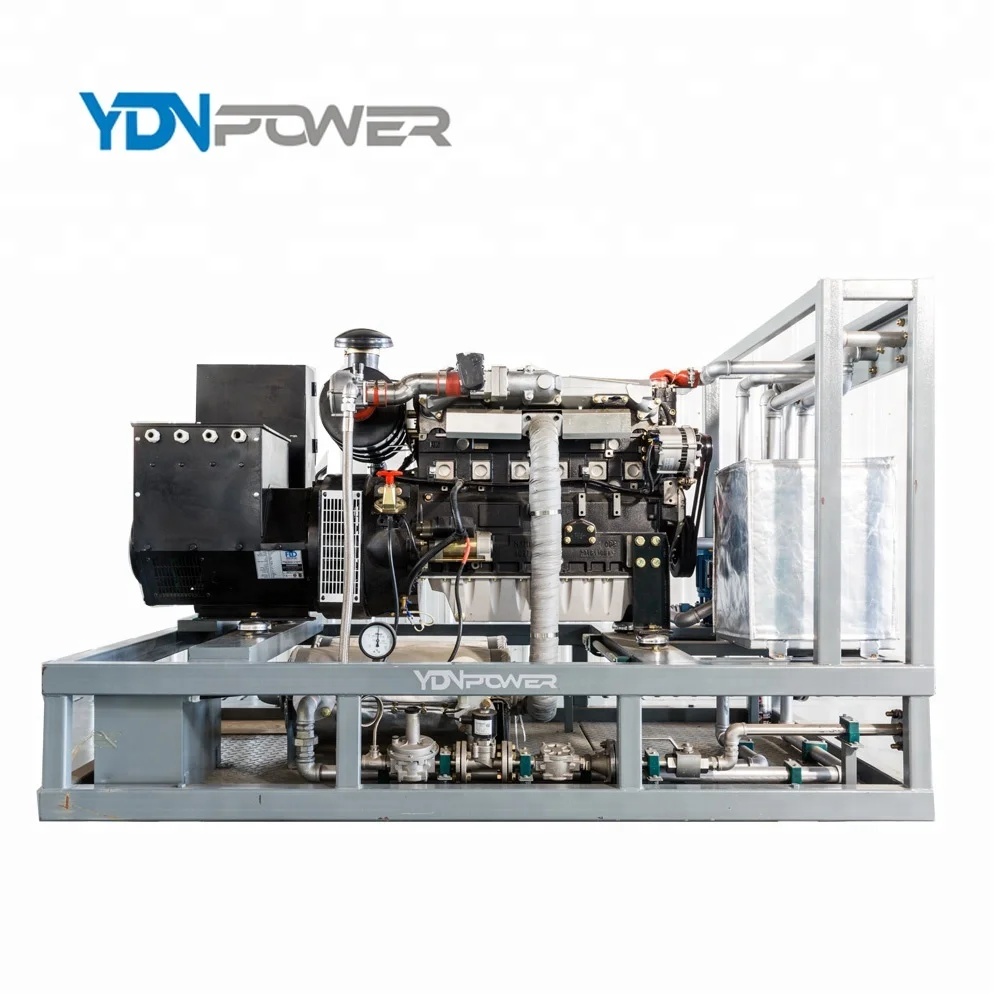

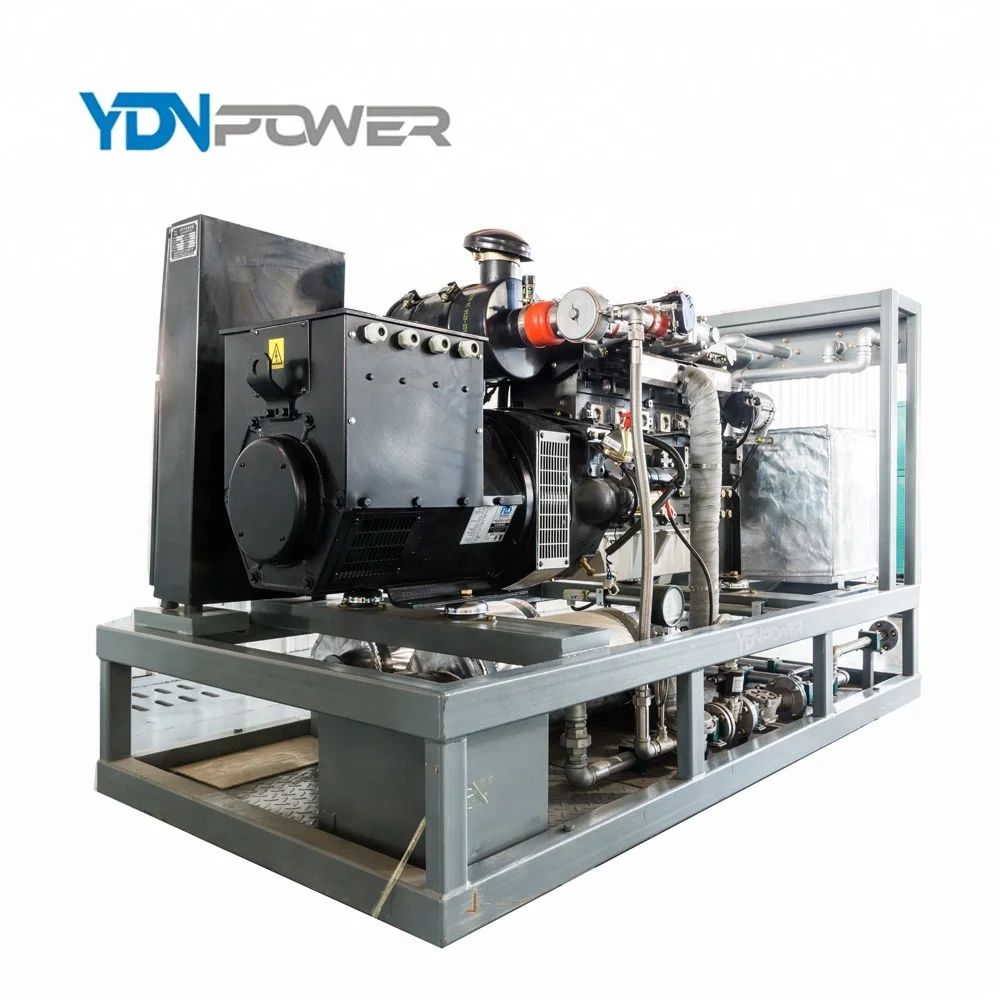

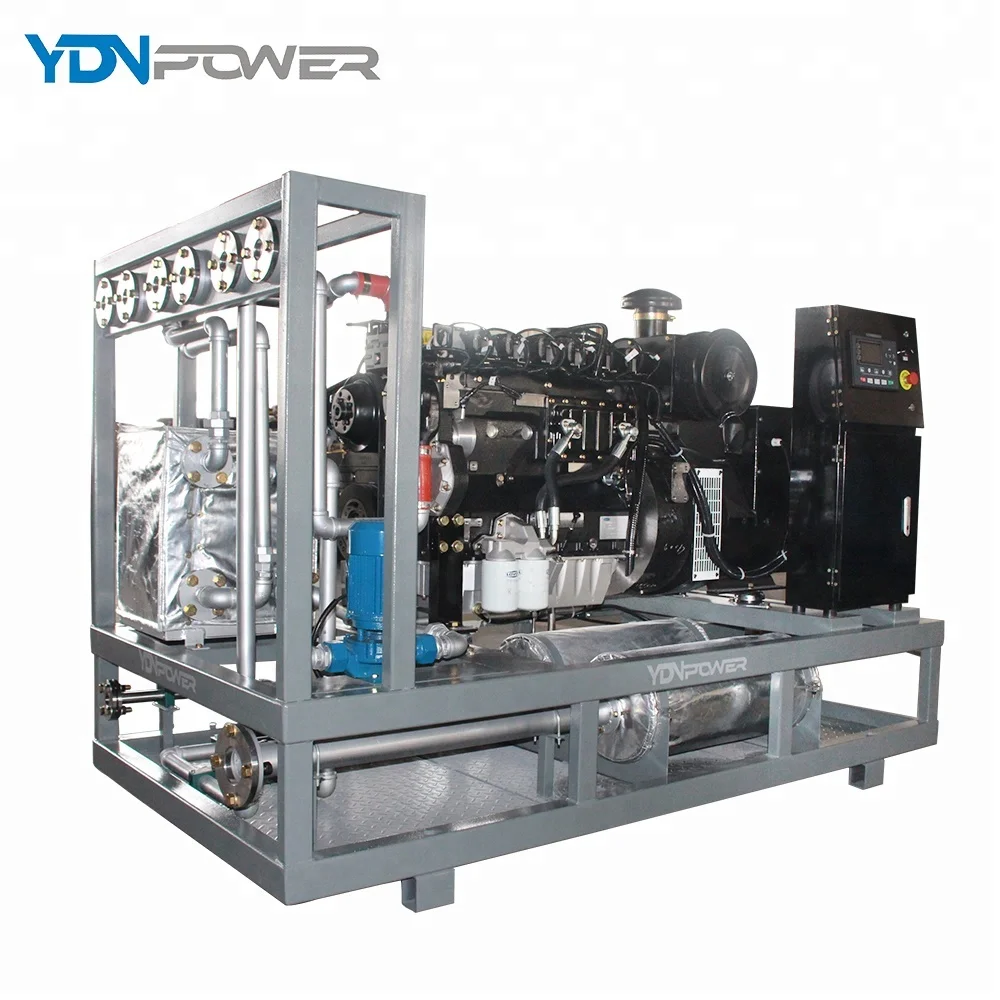

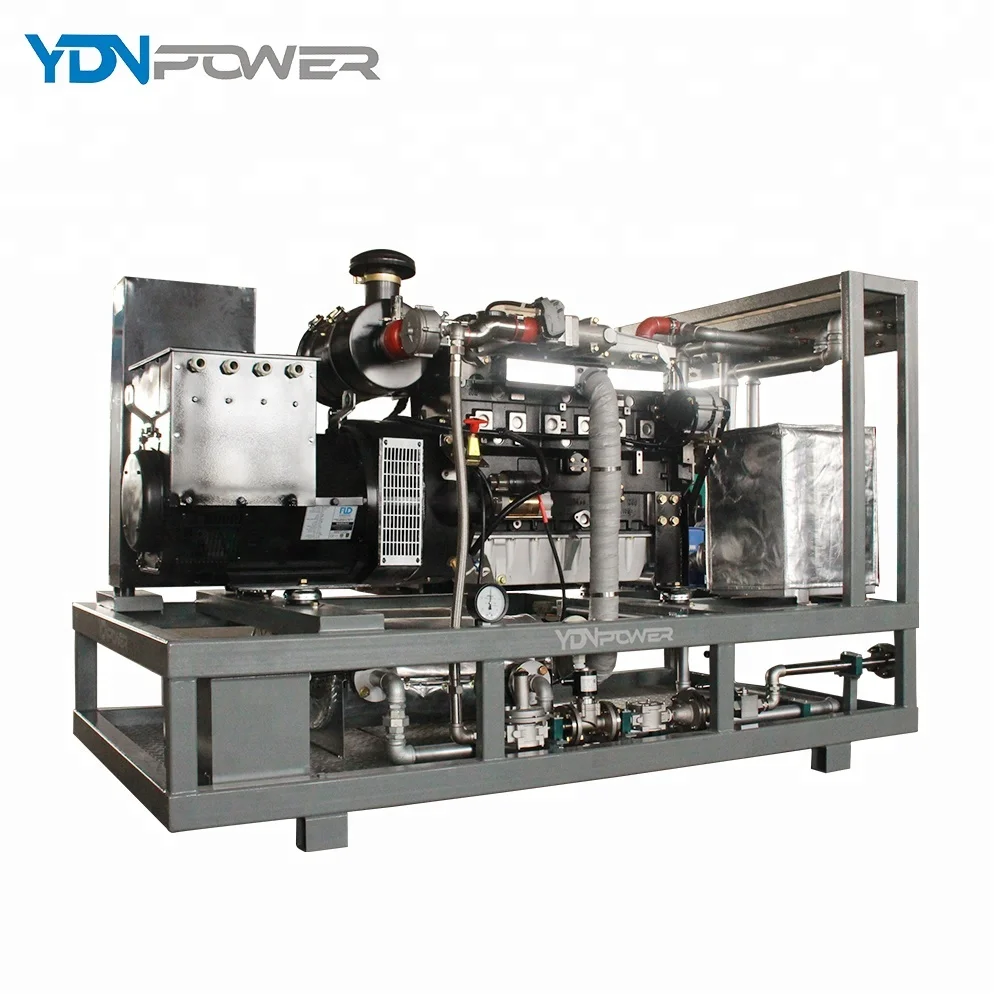

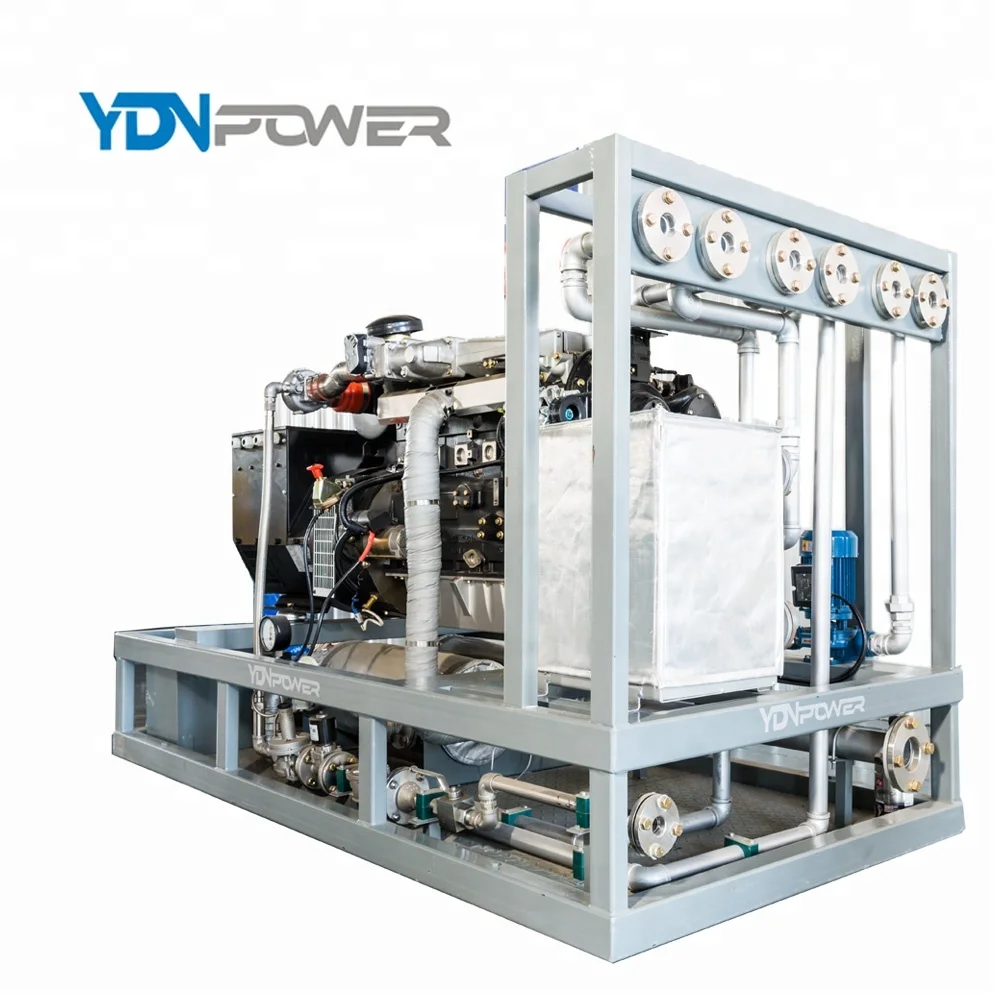

50kw biogas generator with CHP
- Category: >>>
- Supplier: Weifang Yidaneng Power Co. Ltd.
Share on (60777380309):
Product Overview
Description
Product Description
50kw biogas generator with CHP | ||||
Genset Model | YDNL-50 | |||
Rated Power (kW/kVA) | 50Kw/62.5Kva | |||
Rated Current (A) | 80 | |||
Dimension (mm) | 2150*800*1430 | |||
Gross Weight (kg) | 1100 | |||
Brand | YDN | |||
Model | Chinese engine | |||
Configuration | Water-cooled, 4-stroke, 6 cylinder in-line | |||
Rated Power (kW/kVA) | 55Kw/68.75Kva | |||
Rated Speed (rpm) | 1500/1800 | |||
Cylinder No. | 6 | |||
Bore*Stroke (mm) | 100*127 | |||
Oil Consumption (g/kw.h) | 1 | |||
Gas Consumption (m3/h) | 32.5@100%@ load | |||
Starting method | 24V DC electric | |||
Brand | Leroy Somer | |||
Model | TAL-A42-H | |||
Rated Power (kW/kVA) | 50/62.5 | |||
Efficiency | 92.50% | |||
Voltage Regulation | ≦±1 | |||
Voltage Regulation | Brushles, Self Excitation | |||
Insulation Class | H | |||
Brand | SMARTGEN （DSE） | |||
Model | HGM6110 | |||
Working Voltage | DC8.0V to DC35.0V, continuous | |||
Overall Dimensions (mm) | 197*152*47 | |||
Panel Cutout (mm) | 186*141 | |||
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |||
Weight | 0.56kg | |||
Requirments for natural gas
1.Methane should be at least 55%
2.The biogas temperature should be between 0-60 ℃3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 5500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Certifications
Detailed Images
Control System
Name: Electronic throttle
Brand: BOSCH
Original: Germany
Control the supply of gas flow
Mixed system
Name: MIXER
Brand: IMPCO
Original: USA
Mix gas and air for combustion
Regulator System
Name: Regulator
Brand: MADAS
Original: Italian
Regulate the pressure of gas supply
Central control system
Name: ECU
Brand: YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.
Our Factory
Case show
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1750(L) * 740 (W) * 1250 (D) | |
Weight | 0.68 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
