OUORO M20*1.5 (6 12mm) Strain relief metal glands

Product Overview

Description

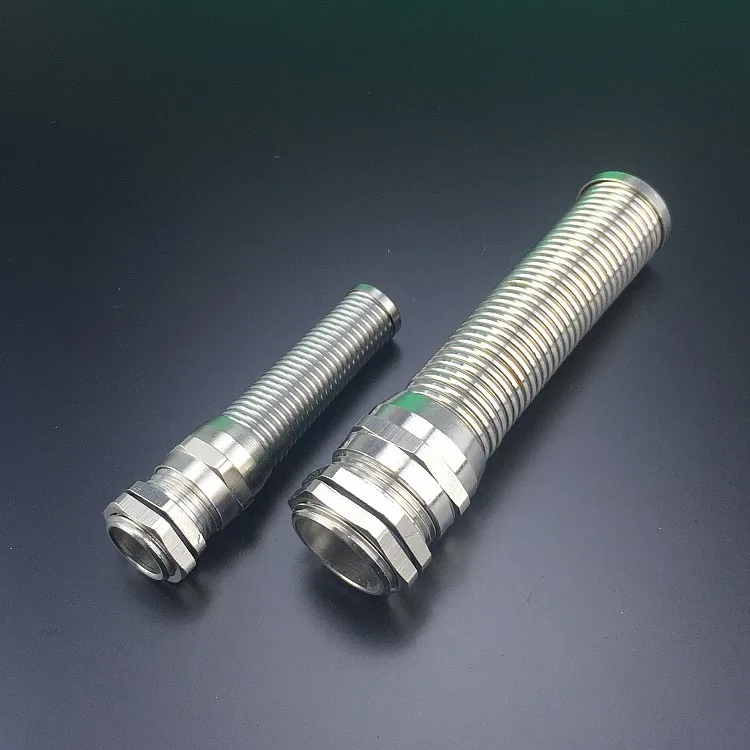

OUORO M20*1.5 (6-12mm) Strain relief metal cable glands

Material: Nickel plated brass
Prevent bending spring:stainless steel 1.4310/ASTM301/SUS301
Clamping part: Nylon PA, UL94-V2
Sealing element:NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262/EN62444
Protection class: IP68(O-ring and the wire/cable under the condition of clamping range )
Ambient temperature:-40℃ to +100℃
Function: used to protect the cable outlet to prevent excessive bending of metal cable gland.
suggestion: If you need other marterial of sealing element, such as Silicone, EPDM,etc.
Please feel free to contect us!

Series	Thread		GL	H		AG	Panel Mounting Hole	order NO.	Qty/bag
		mm	mm	mm	mm	mm	mm
M F	M12x1.5	3-6.5	5	53	14	12	12-12.3	T.M120506F	50
	M12x1.5	2-5	5	53	14	12	12-12.3	T.M120505F	50
	M12x1.5	4-8	6	66	17	12	12-12.3	T.M120608F	50
	M12x1.5	2-6	6	66	17	12	12-12.3	T.M120607F	50
	M14x1.5	4-8	6	66	17	14	14-14.3	T.M140608F	50
	M14x1.5	2-6	6	66	17	14	14-14.3	T.M140606F	50
	M16x1.5	4-8	6	66	17	16	16-16.3	T.M160608F	50
	M16x1.5	2-6	6	66	17	16	16-16.3	T.M160606F	50
	M16x1.5	5-10	6	77	20	16	16-16.3	T.M160610F	20
	M16x1.5	3-7	6	77	20	16	16-16.3	T.M160607F	20
	M18x1.5	5-10	6	77	20	18	18-18.3	T.M180610F	20
	M18x1.5	3-7	6	77	20	18	18-18.3	T.M180607F	20
	M20x1.5	6-12	6.5	88	22	20	20-20.3	T.M200712F	20
	M20x1.5	5-9	6.5	88	22	20	20-20.3	T.M200709F	20
	M20x1.5	10-14	6.5	98	24	20	20-20.3	T.M200714F	20
	M20x1.5	7-12	6.5	98	24	20	20-20.3	T.M200713F	20
	M22x1.5	10-14	6.5	98	24	22	22-22.3	T.M220714F	20
	M22x1.5	7-12	6.5	98	24	22	22-22.3	T.M220712F	20
	M24x1.5	12-14	6.5	98	24/27	24	24-24.3	T.M240714F	10
	M24x1.5	7-12	6.5	98	24/27	24	24-24.3	T.M240712F	10
	M25x1.5	13-18	7	111	30	25	25-25.3	T.M250718F	10
	M25x1.5	9-16	7	111	30	25	25-25.3	T.M250716F	10
	M27x1.5	13-18	7	111	30	27	27-27.3	T.M270718F	10
	M27x1.5	9-16	7	111	30	27	27-27.3	T.M270716F	10
	M28x1.5	13-18	7	111	30	28	28-28.3	T.M280718F	10
	M28x1.5	9-16	7	111	30	28	28-28.3	T.M280716F	10
	M30x1.5	13-18	8	111	30/32	30	30-30.3	T.M300818F	10
	M30x1.5	9-16	8	111	30/32	30	30-30.3	T.M300816F	10



1.Q:Do you have your own factory?

   A:Yes,H-V-S Company is  manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.

2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?

   A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.

3.Q:How can I visit your factory?

   A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.

4.Q:Do you provide free sample?

   A:Yes, we always do, but first time you'd better pay the delivery charge.

5.Q:Could you print our company logo on nameplate and package?

   A:Yes,we can do that.

6.Q:Do you accept custom design on size?

   A:Yes, if the size is reasonable.

7.Q:What's your delivery time?

   A:H-V-S is factory, so we can efficiently control the production time.
