5 200x 2.0mp Members Print Archive Reports Scalp Hair Follicles Detection Pen,Hair Testing Tools High Quality Dermatoscope

Product Overview

Description

5-200x 2.0mp Members Print Archive Reports Scalp Hair Follicles Detection Pen,Hair Testing Tools High Quality Dermatoscope

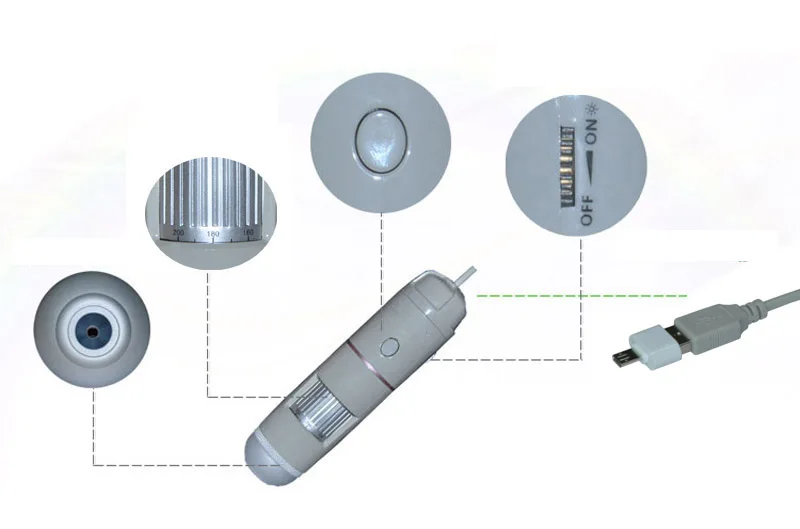

ST-B30S this model, for hair testing tools 5-200X HD 2.0MP scalp hair follicles detection pen-style microscope
Scalp hair USB Digital Microscope USB+OTG function, Digital Microscope for scalp and hair checking.
Advantage and Description:
Scalp hair detector skin analyser, portable health-care analyser
Personal auxiliary beauty-health tool
Portable beauty-care detector
Connection: usb cable
HD presentation of magnified effect
Software supports analyse results and generates documents for detailed analysis
Hair follicles detector, beauty-care tool, health-care instrument.
Used in windows system PC / Andriod tablet or mobile phone with OTG function, to help users visualize and understand the condition of scalp, hair follicle, clogged pores state, hair growth, hair loss, white hair, scalp hair damaged state, etc.
Model: ST-B30S (Scalp / hair Microscope USB+OTGfunction)
Controller: High Speed DSP(M-jpeg)/CMOS Sensor
Magnification Range: 5X ~ 200X
Take Images: SNAP Shot
Pixels: 2.0 MP
Light Source: Build-in 8 White-light LED/0-30000LUX
Video Capture Resolution: 640x480, 1600x1200
Focus Range: 0~4cm
Support O/S: WIN XP/VISTA: WIN 7, WIN 8, WIN 10, Mac, Andriod(Android phone or tablet with OTG Connection)
Connection: USB interface
Software: HotBeauty(PC), HotMicroscope(Andriod)
Power supply: USB(5V DC)
Frame Rate: 30f/s Under 500 LUX Brightness

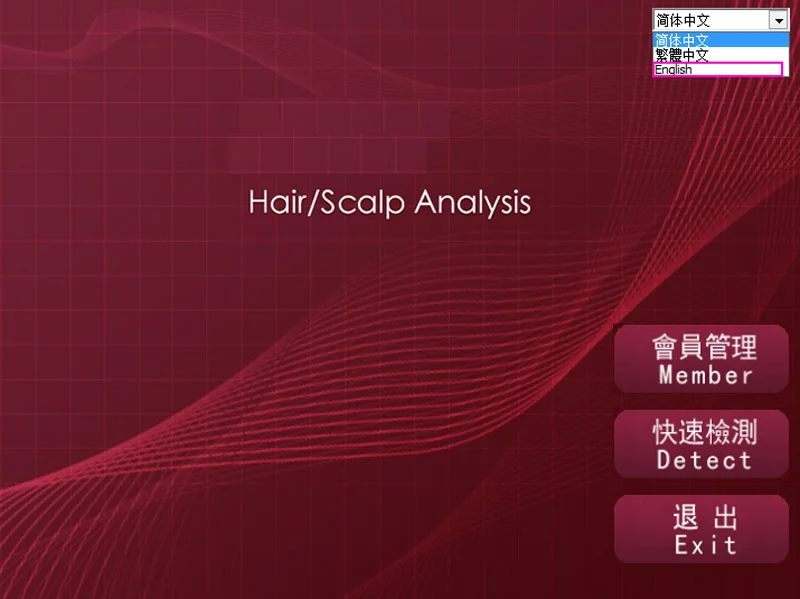

Software Language: Chinese/English/Korean (other languages more added,under Order OEM)
Color: Silver (other colors available, under Order OEM)

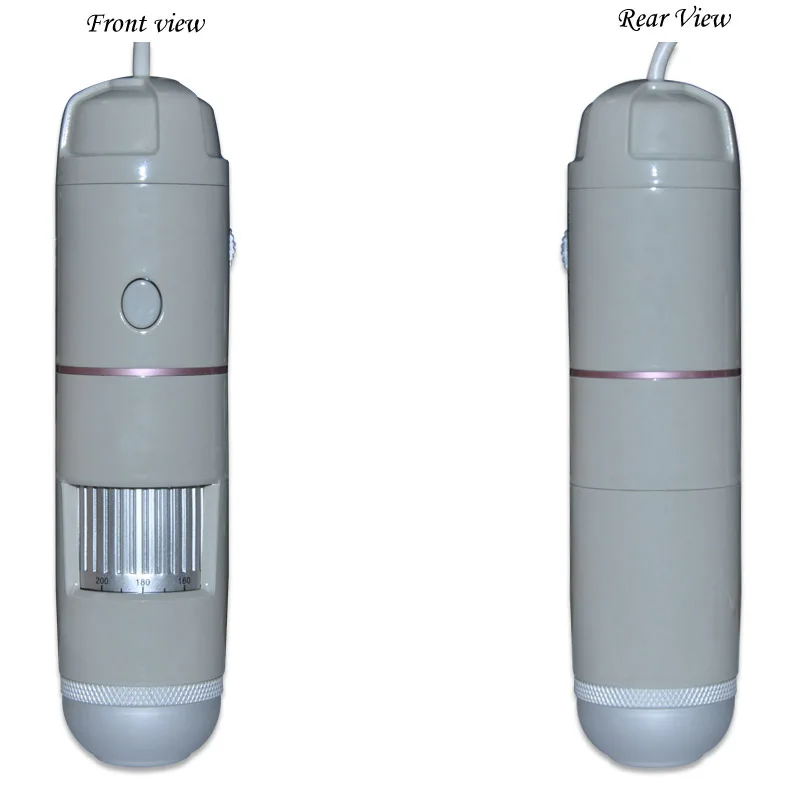

Product Dimension: 144 mm (L)* 37 mm (D)
GW: 550 G

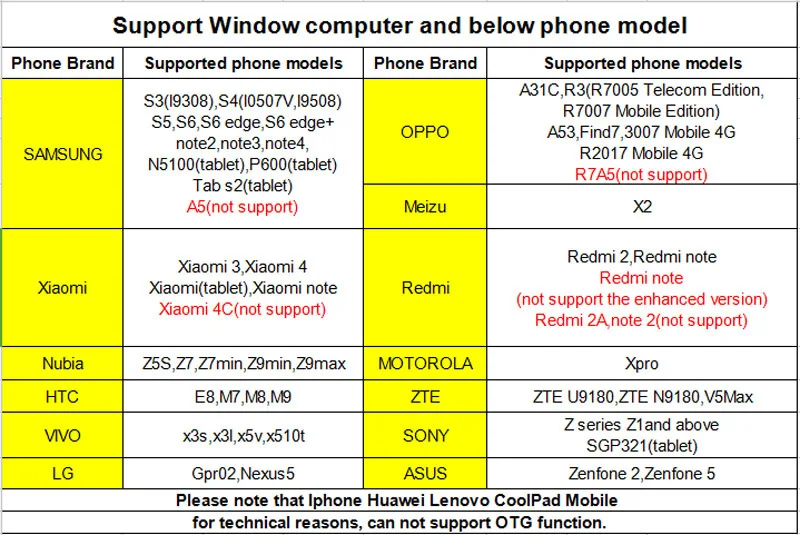

OTG function support some mobile phone with OTG function,See the table on supported
models,The found their phones is not listed on the form,You can try to conect ,It shows
an image support,No inmage is not supported,Because most mobile phone manufacturers,
due to safety concerns,Shielding external camera,Only support external U disk,mouse,
and other standard equipment.


Professional testing software features:

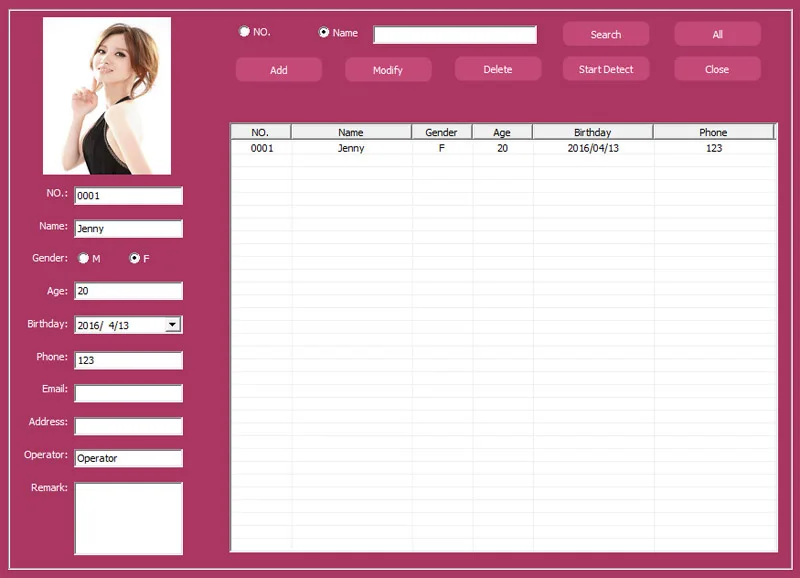

1. Member Archive

2. Save the file: View customer information

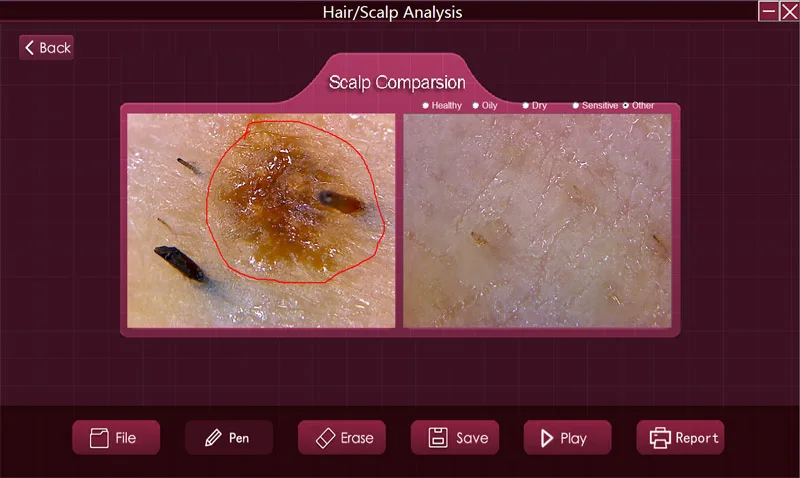

3. Brush feature: There are some marked abnormality

4. Rubber Function: Erase brush marked lines

5. Save function: Photo

6. Play / freeze function: Freeze the image and playback

7. Scaling function: To learn to detect the area

8. You can view full screen

9. The first point to save the image, and then point the report, the picture is displayed in the report, the causes and suggestions for improvement through image comparison to manually enter test results

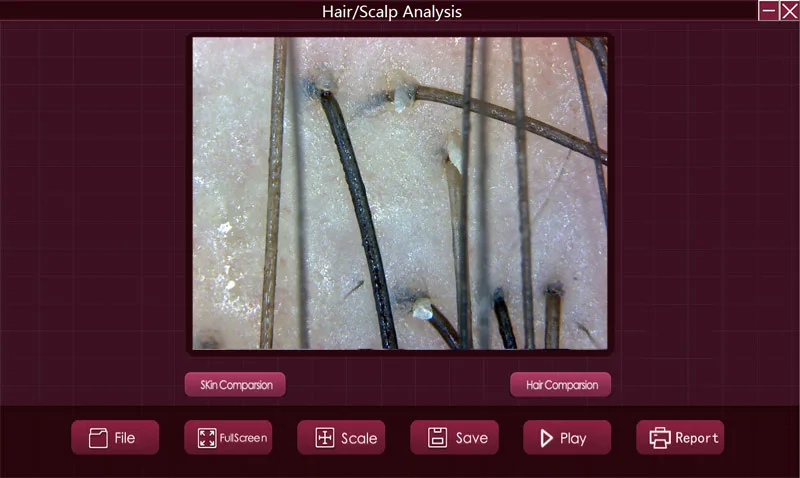

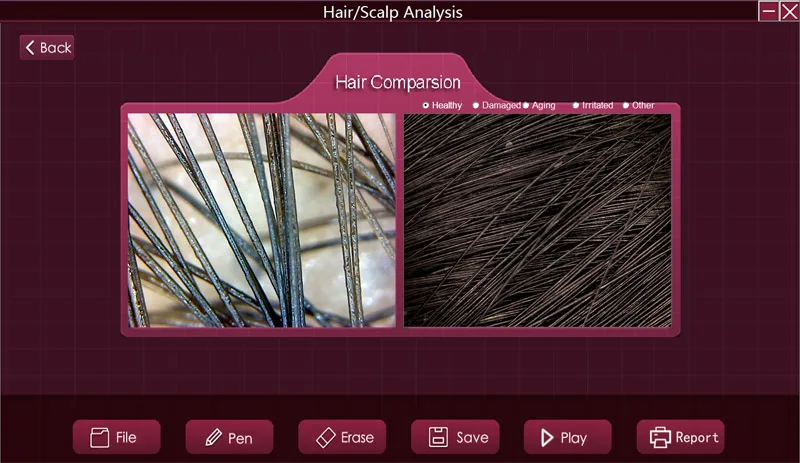

software interface

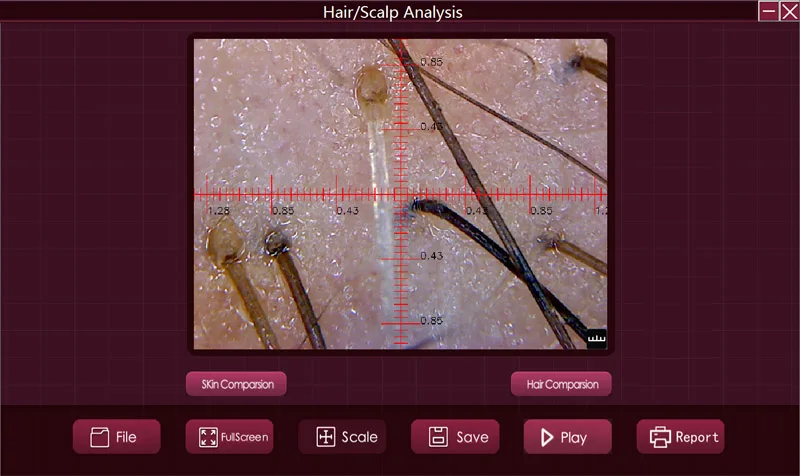

200 times the ratio of the cross-scale observation, detection area can be calculated, it can be seen from the figure a small observation area equal to 0.085mm length X width, seen from the figure, a length of 2.9mm, the width of 2.044mm, 2.9X2.044 = 5.93 mm, 5.93 mm Pingfang 200 times the area under observation, namely 0.0593 cm  Pingfang

First Click Save, then click the report, the picture will appear in the test report, and then manually enter the test results, It can be directly connected printer, but also save the test report as a Word document, and then edit print



Fitting:
1X Skin hair detector 1pcs
1X CD 1pcs
1X U disk dongle 1pcs

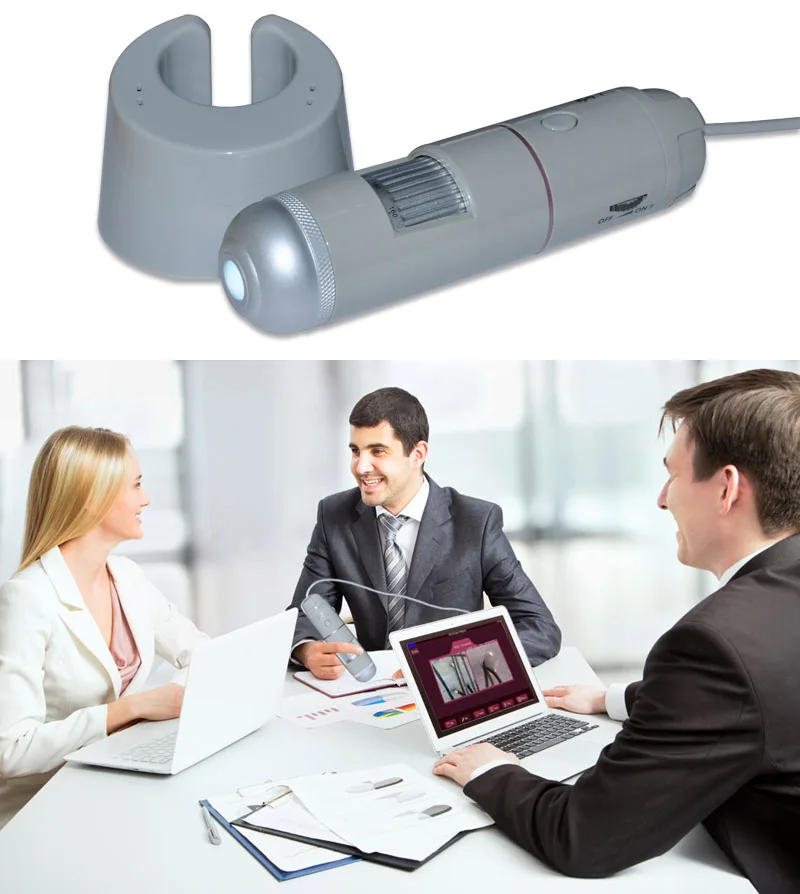

1X Special base 1pcs
1X User manual 1pcs
