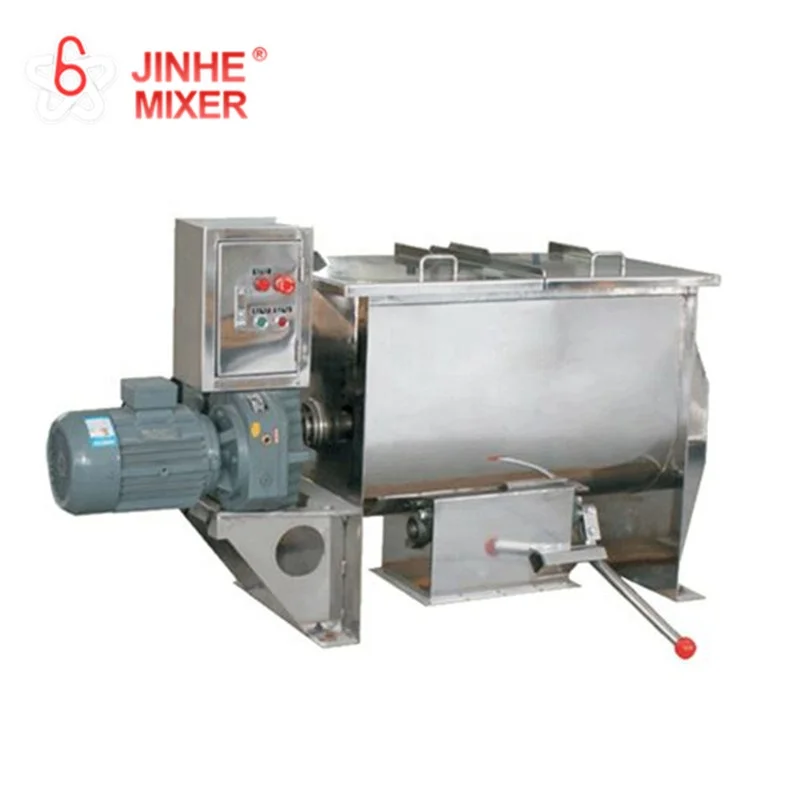

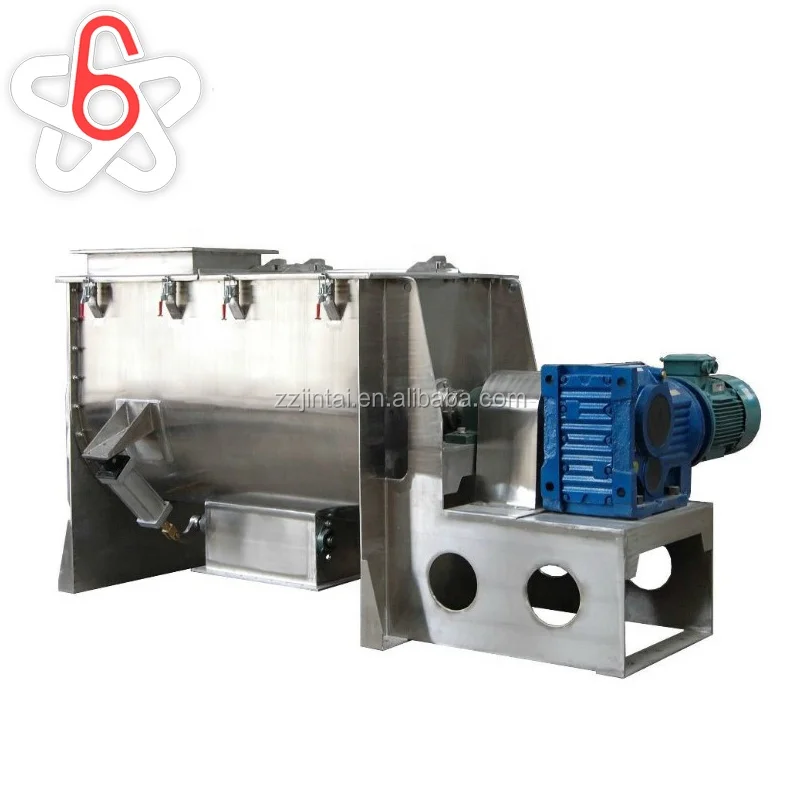

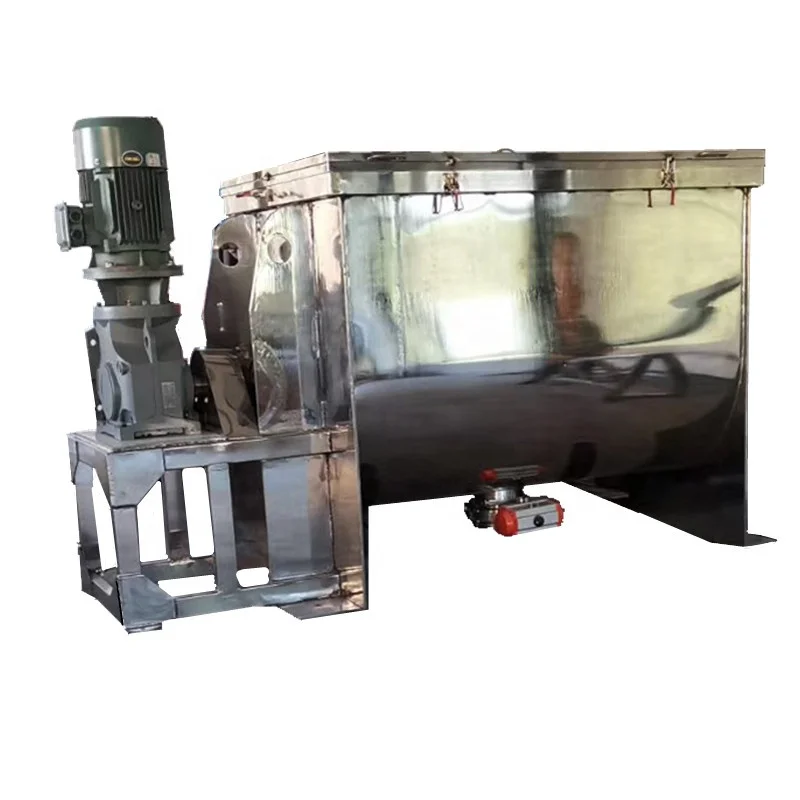

JINHE brand JHRB series Low Price horizontal ribbon mixer U shape powder mixer blender machine

Product Overview

Description

JINI brand JHRB series Low Price horizontal ribbon mixer U shape powder mixer blender machine

How stainless steel ribbon mixer price work?

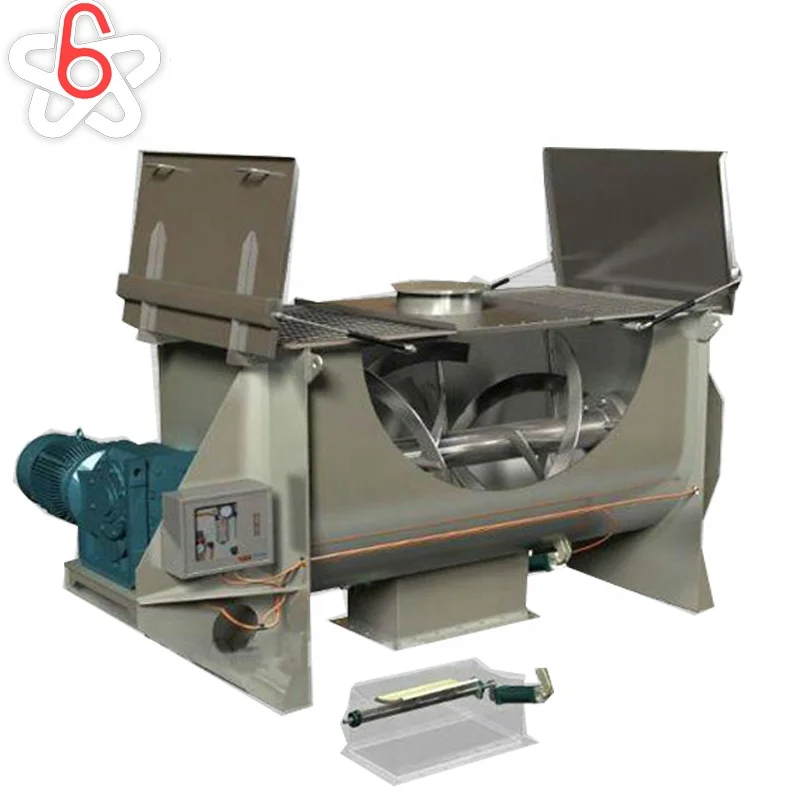

stainless steel ribbon mixer price consist of a U-shaped horizontal trough and a specially fabricated ribbon agitator. A ribbon agitator consists of a set of inner and outer helical blades. The outer ribbon moves materials toward the center of the trough, and the inner ribbon moves the materials toward the outside of the trough. The ribbon also rotates at approx. 50rpm, thus moving materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 70% of the rated capacity of the blender.

General Introduction:

JHRB horizontal ribbon blender is widely used in chemical, pharmaceuticals, food, and construction line.
It can be used to mix powder with powder, powder with liquid, and powder with granule. especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material.

Two feeding methods:

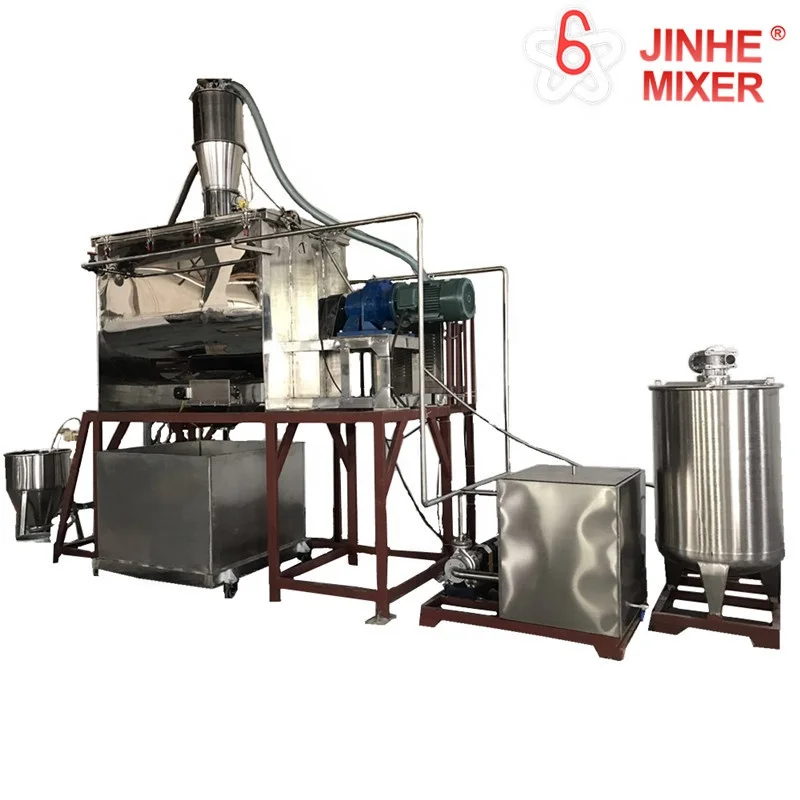

1. Vacuum feeding machine:

2. Screw feeding machine:

Technical parameters of JHRB series horizontal ribbon mixer:

Model Project	Total Volume (M³)	Loads coefficient	Electrical machiney power (KW)	Size(mm)× Max-diameter ×High	Equipment weight (kg)
JHRB-150	0.15	0.4-0.8	3	1190×740×770	330
JHRB-300	0.3	0.4-0.8	4	2030×630×980	720
JHRB-500	0.5	0.4-0.8	7.5	2320×730×1130	980
JHRB1000	1	0.4-0.8	11	2800×920×1320	1700
JHRB1500	1.5	0.4-0.8	11	3180×1020×1550	1800
JHRB2000	2	0.4-0.8	15	3310×1120×1640	2100
JHRB3000	3	0.4-0.8	18.5	3750×1290×1820	3000
JHRB4000	4	0.4-0.8	22	4220×1400×1990	3980
JHRB5000	5	0.4-0.8	22	4220×1500×2100	4620
JHRB6000	6	0.4-0.8	30	4700×1610×2260	6180
JHRB8000	8	0.4-0.8	37	4420×2150×2470	8200
JHRB10000	10	0.4-0.8	45	5520×2960×2720	8920
JHRB12000	12	0.4-0.8	45	5720×3010×2840	9520
JHRB15000	15	0.4-0.8	55	5840×3540×2940	9

2.The driven unit

Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.

Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3.High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
 The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4.Excellent discharging unit

The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5.Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.

The top cover can be designed as fully-opened lid for easy cleaning.

6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket

sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.
