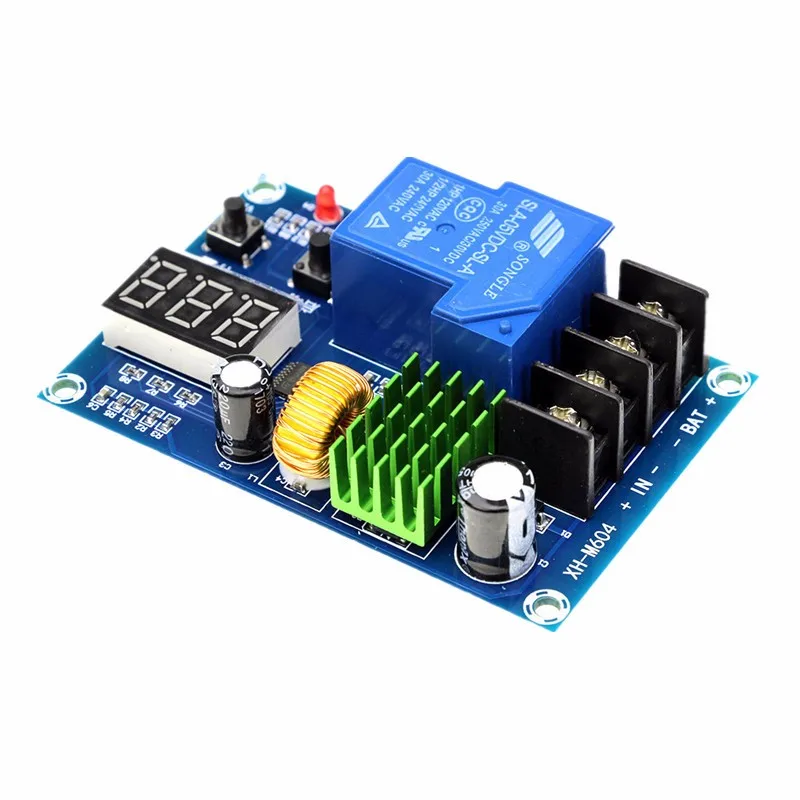

XH M604 Battery Charger Control Module DC 6 60V Switch Protection Board Storage Lithium Battery Charging Control Module

Summary

Type : Voltage Regulator
Operating Temperature : standard
Model Number : XH-M604 Battery Charger Control Module
is_customized : Yes
Application : Computer
Brand Name : diymore
Dissipation Power : standard
Supply Voltage : DC 6-60V
Condition : New
Package : other

Product Features

Description Input Voltage:DC 6-60V Display Accuracy:0.1V Control Accuracy:0.1V Output Type:direct output Voltage Tolerance:±0.1V Apply For:6-60V MAX 80V battery Dimension:81*54*18mm Use: In the setting voltage value, start button play button raised, about stop button role to down key 1. Set the start voltage: Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value. 2. Set Stop voltage: Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value. 3. Setting Error: Energized state while holding down the start / stop button, digital display 888, which is the factory setting. Package Included: 1 x Digital display Lead acid Battery Charge Control Module Catalogue
