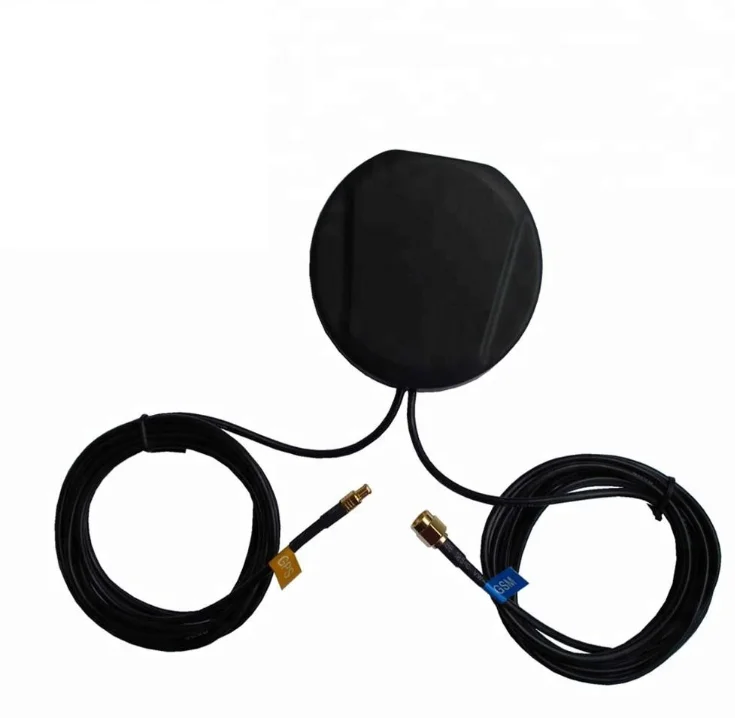

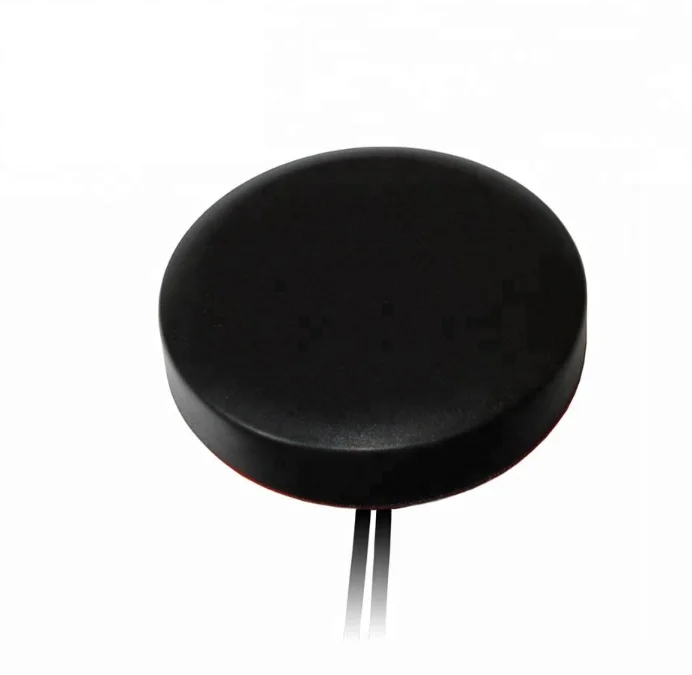

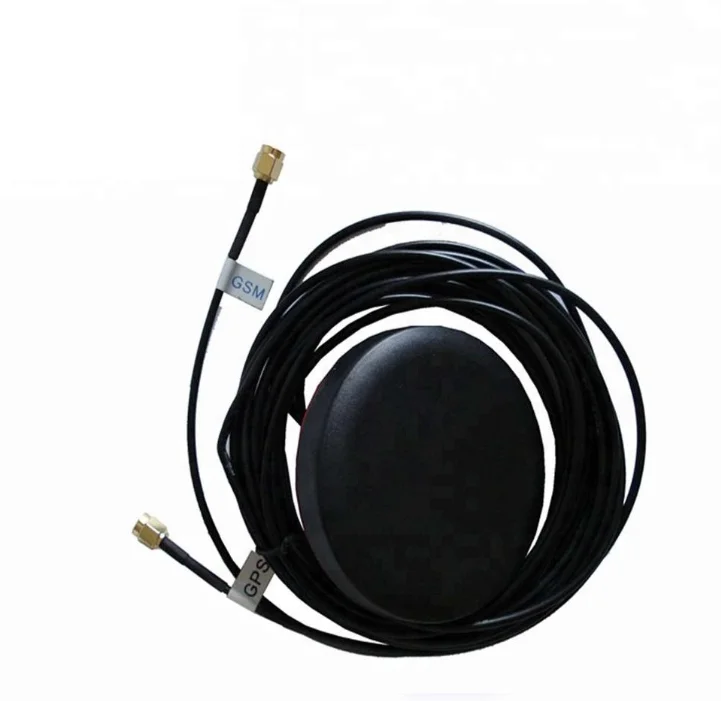

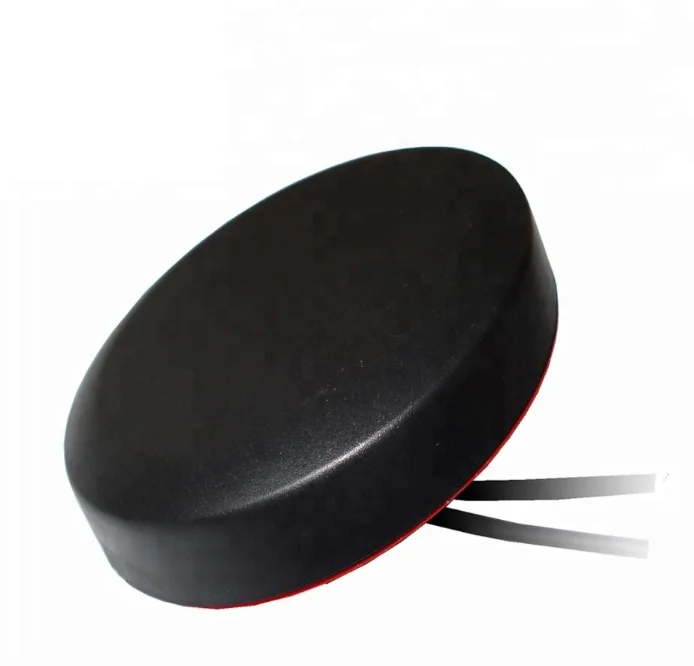

2022 Hot selling 1575.42MHz / 800~1900MHz GPS GSM Combo Combination Antenna with RG174 Cable SMA M Connector

Product Overview

Description

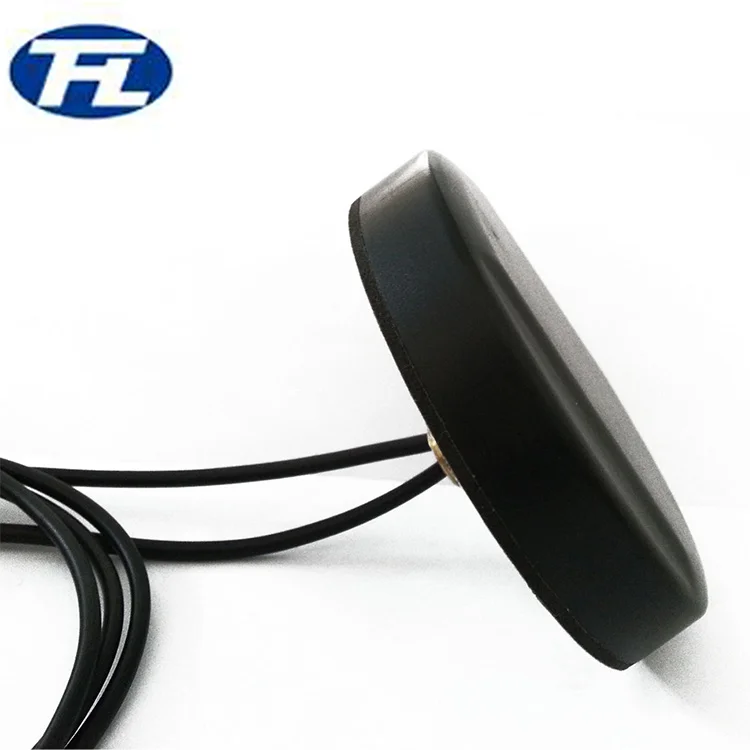

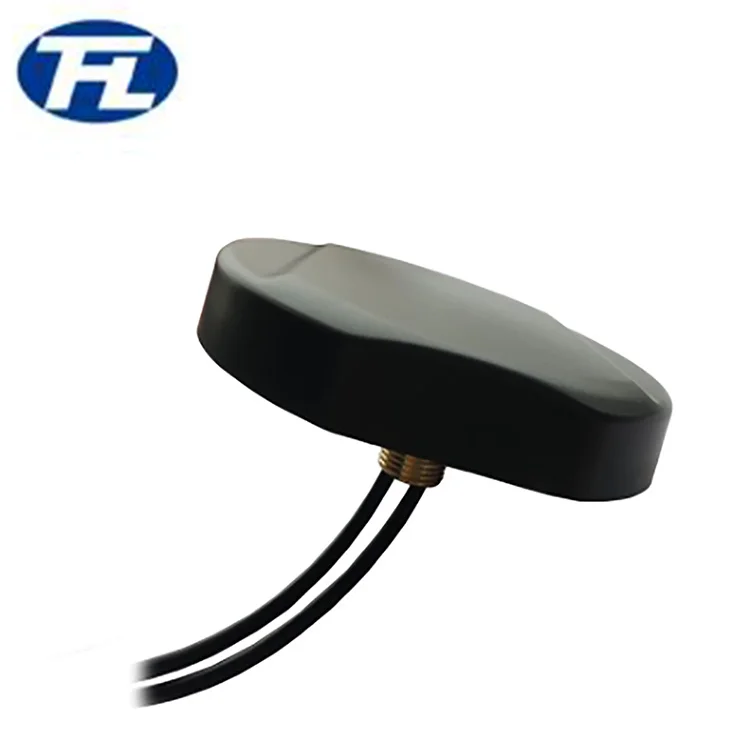

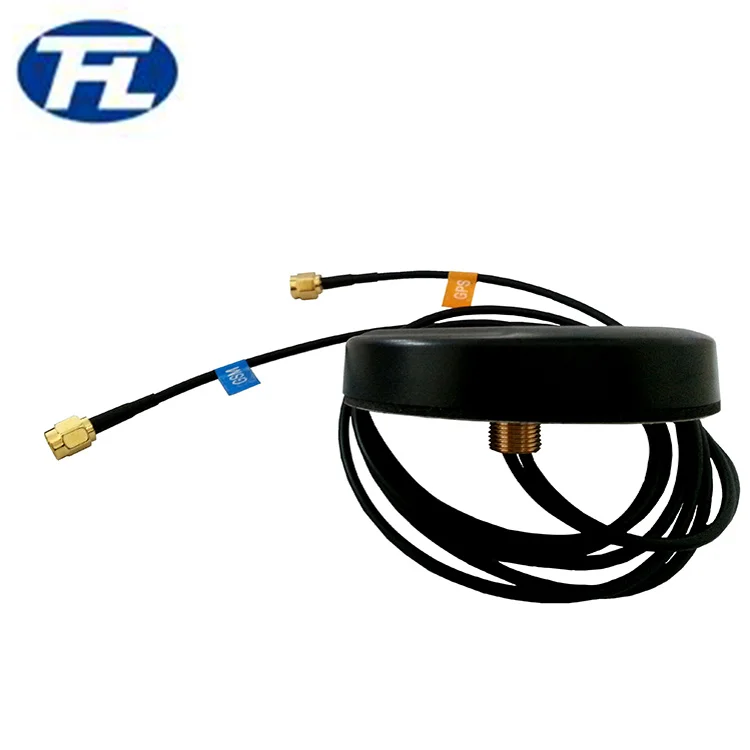

Combination Antenna FL-X202
Specification
1) Dielectric Antenna
Center Frequency	1575.42 MHz±3 MHz
V.S.W.R	1.5:1
Band Width	±5 MHz
Impedance	50 ohm
Polarization Type	R.H.C.P
2) LNA/Filter
LNA Gain(w/o cable)	30 dB Typical
Noise Figure	1.5 dB
DC Voltage	2.2~5 V
DC Current	5~15 mA
3) GSM Antenna
Frequency Range	824~894 MHz/1710~1990 MHz
	880~960 MHz/1920~2170 MHz MHz
V.S.W.R	2.0:1
Impedance	50 ohm
Typical Gain(w/o cable)	2 dBi
Polarization Type	Vertical or Horizontal
4) Mechanical
Size	D78*15mm

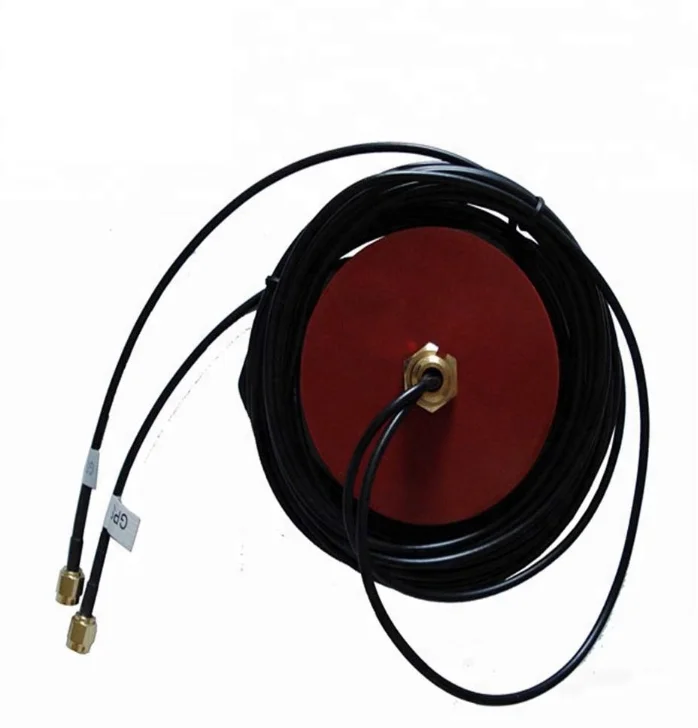

Mounting	Adhesive
Housing	Black
Package	120*95*30mm
Cable	RG174, 3m or others
Connector	SMA/MCX/FME or others
5) Environmental
Working Temp.	-40℃~+85℃
Humidity	55%~75%RH
Waterproof	IP67









Q: Can I get one sample?

A: Yes, sample is for free.

Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal

Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.

Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.

Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
