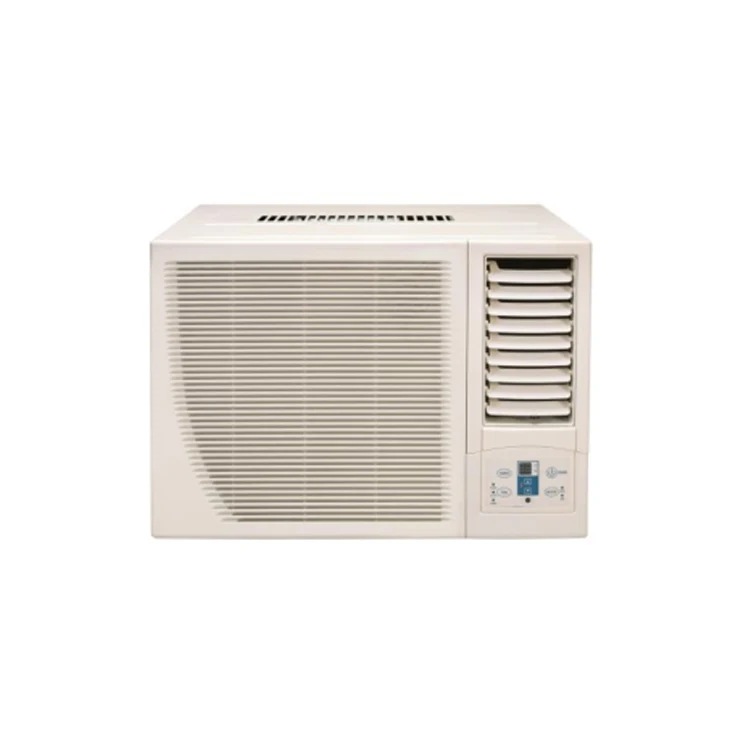

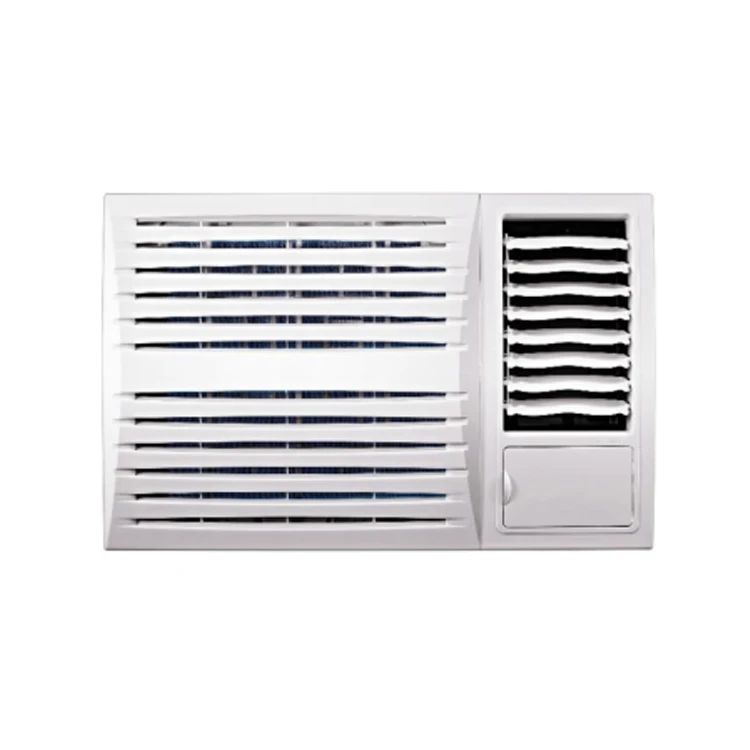

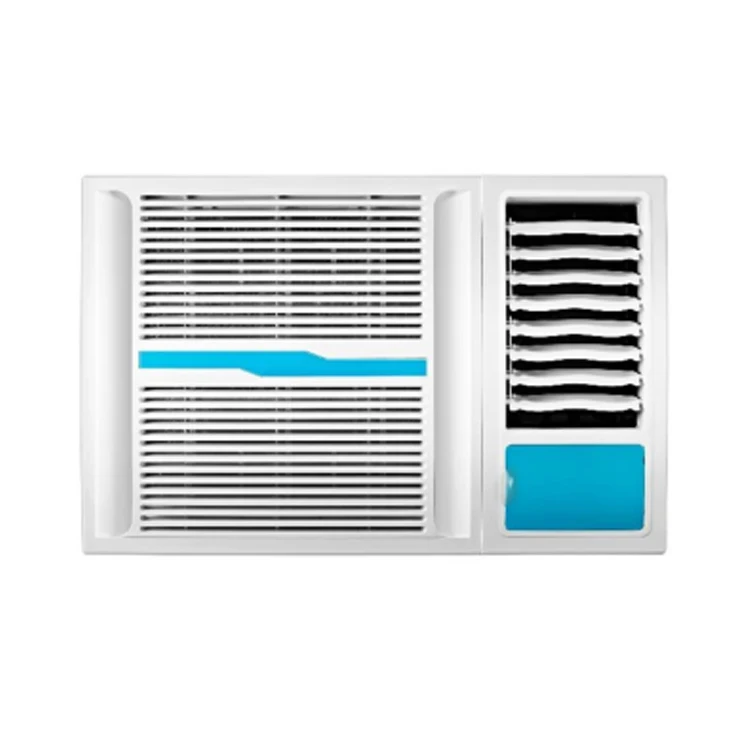

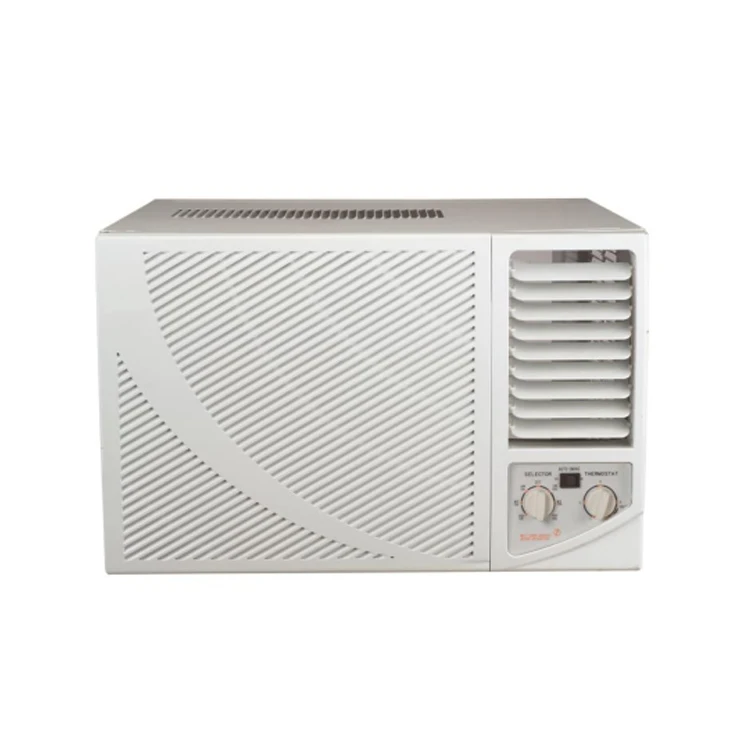

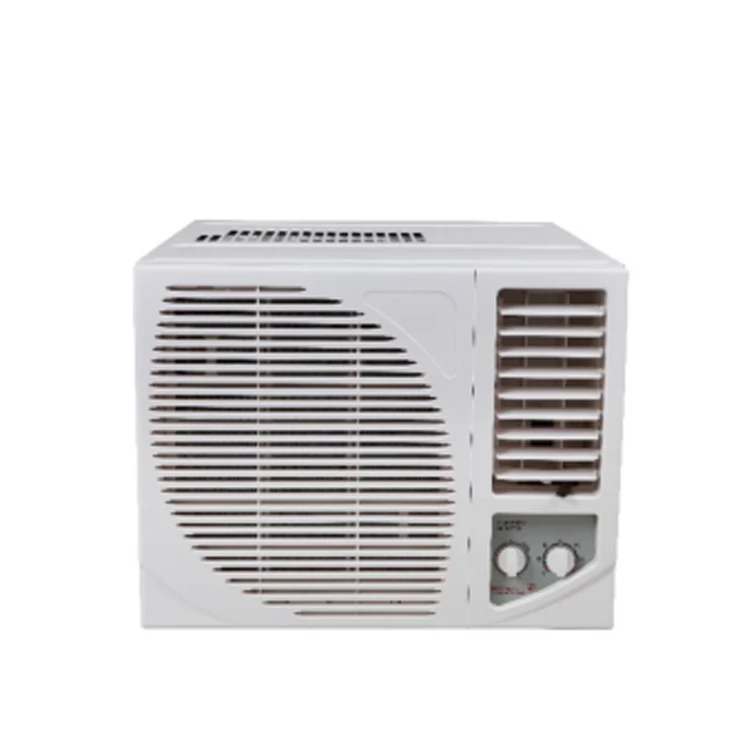

2021 Good design high efficiency dc inverter R410a window air conditioner
- Category: Air Conditioners >>>
- Supplier: Shenzhen Midas Electronics Co. Ltd.
Share on (60777596074):
Product Overview
Description
Product Description
| Project NO. | 1.0HP | ||
| Code | mechanical | ||
| New code | 22020320000863 | ||
| Factory model | PH-KC25/N1-F2F(C1) | ||
| Sale model | MWF2-09CMN1-NC1 | ||
| Power supply | Ph-V-Hz | 1Ph,220-230V~ 60Hz, | |
| Cooling | Capacity | Btu/h | 9100 |
| Input | W | 852 | |
| Current | A | 4.1 | |
| EER | W/W | 3.06 | |
| Moisture Removal | L/h | 1.0 | |
| Rated input consumption | W | 1180 | |
| Rated current | A | 5.3 | |
| Starting current | A | 20 | |
| Compressor | Model | ASM89N1VEZ | |
| Type | Hermetic Motor | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 10100/10185 | |
| Input | W | 708/712 | |
| Rated current(RLA) | A | 3.2/3.15 | |
| Locked rotor Amp(LRA) | A | 20 | |
| Thermal protector | BF785-MA | ||
| Thermal protector position | EXTERNAL | ||
| Capacitor | uF | 25 | |
| Refrigerant oil/oil charge | ml | ESTER OIL VG74.300.ml | |
| Fan motor | Model | YKTS-78-4-1 | |
| Input | W | 125/109/103 | |
| Capacitor | uF | 2.5 | |
| Speed(Hi/Mi/Lo) | r/min | 1430/1320/1230 | |
| Evaporator | a.Number of rows | 4 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | |
| f.Coil length x height x width | mm | 245x294x53.48 | |
| g.Number of circuits | 4 | ||
| Condenser | a.Number of rows | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | Unhydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | ¢5, innergroove tube | |
| f.Coil length x height x width | mm | 370x331.5x34.8 | |
| g.Number of circuits | 2 | ||
| Refrigerant type | kg | R410A/0.45 | |
| Design pressure | MPa | 4.2/1.5 | |
| Plug type | 18# / SP008 | ||
| Control type | Mechanical Control | ||
| Operation temp | indoor(cooling/heating) | ℃ | 17-32/--- |
| outdoor(cooling/heating) | ℃ | 18-43/--- | |
| Application area (Cooling Standard) | m2 | 12-18 | |
| Dimension(W*D*H) | mm | 450x585x346 | |
| Packing (W*D*H) | mm | 640x505x420 | |
| Net/Gross weight | Kg | 32/34.6 | |
| Loading quantity 20’ /40’ /40'HQ | Pieces | 200/410/492 | |
