Types of Cartridge Vegetable Oil Liquid Bag Filter Machine
- Category: >>>
- Supplier: Shanghai JCI Technology Co. Ltd.
Share on (60777615539):
Product Overview
Description
Product Introduction
BTT Series Bag Filter
Brief introduction

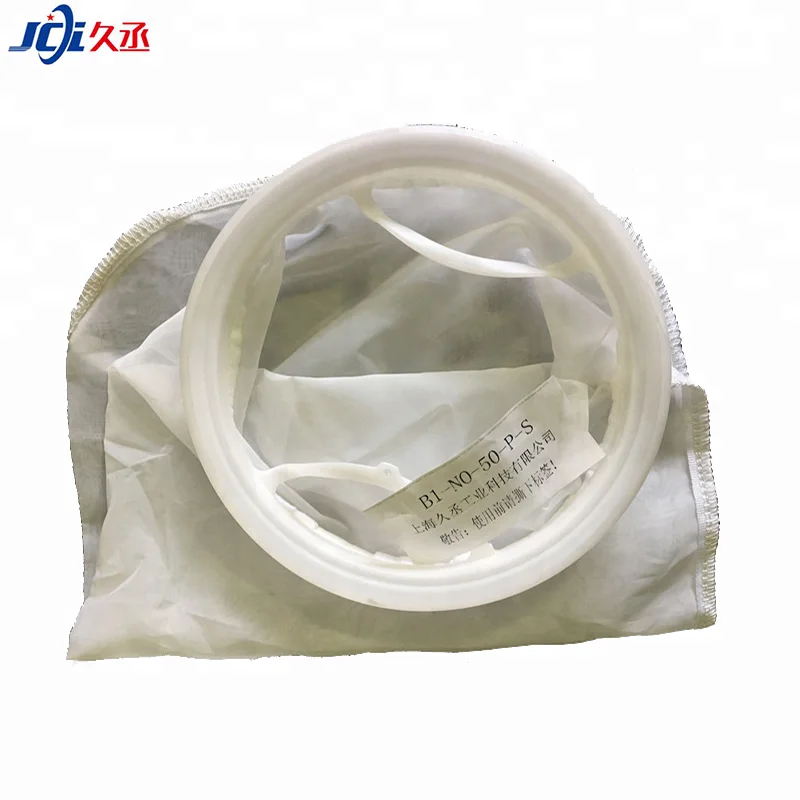

BT Filter is designed with filter bag that serves as the filter element. The filter bag is supported by metal mesh basket. BT Filter applies to precision filtration of fluid and removal of the micro amount of tiny impurities contained in fluid. It has distinct advantages such as concise structure, swift and flexible operation, and economical consumables. Matched with multiple kinds of high-performance filter bags, it can fulfill a majority of requirements for precision filtration.
BT Filter is a kind of pressure-type filtration device which mainly consists of filtering cylinder, roof cover, quick-open device and supporting mesh basket, etc. Fluid will flow in via the inlet and flow out via the outlet after being filtrated by the filter bag. As impurities are held up in the filter bag, replacement of filter bag would be the only thing to do at the time of maintenance.

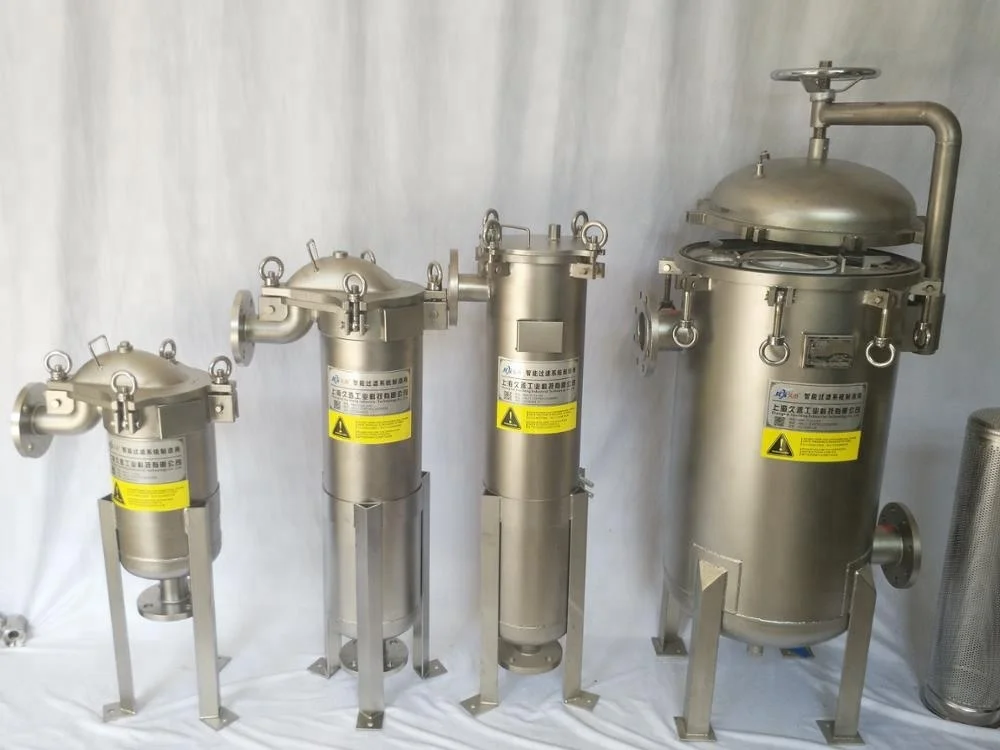

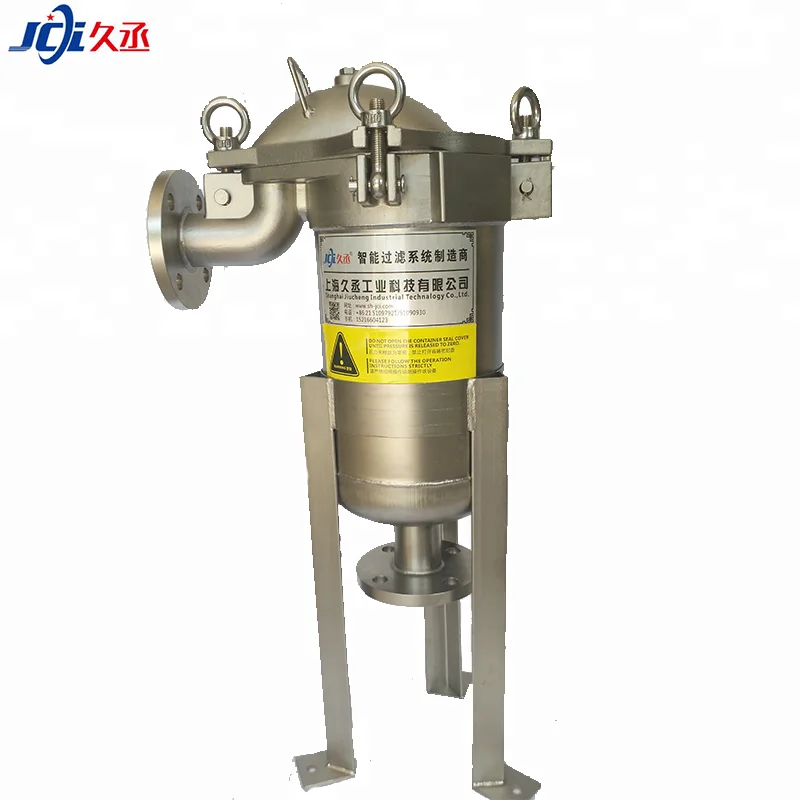

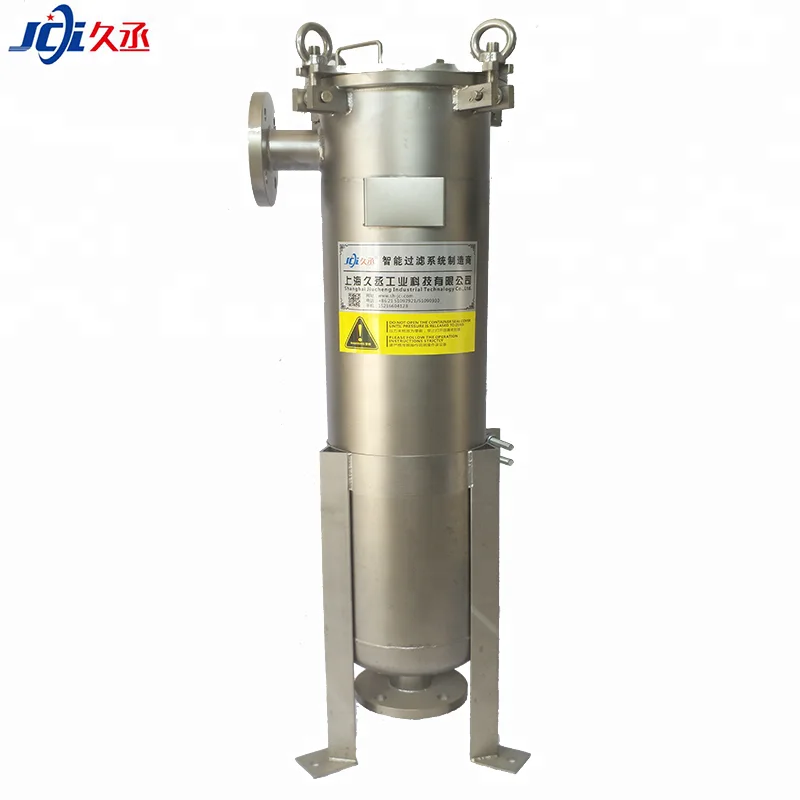

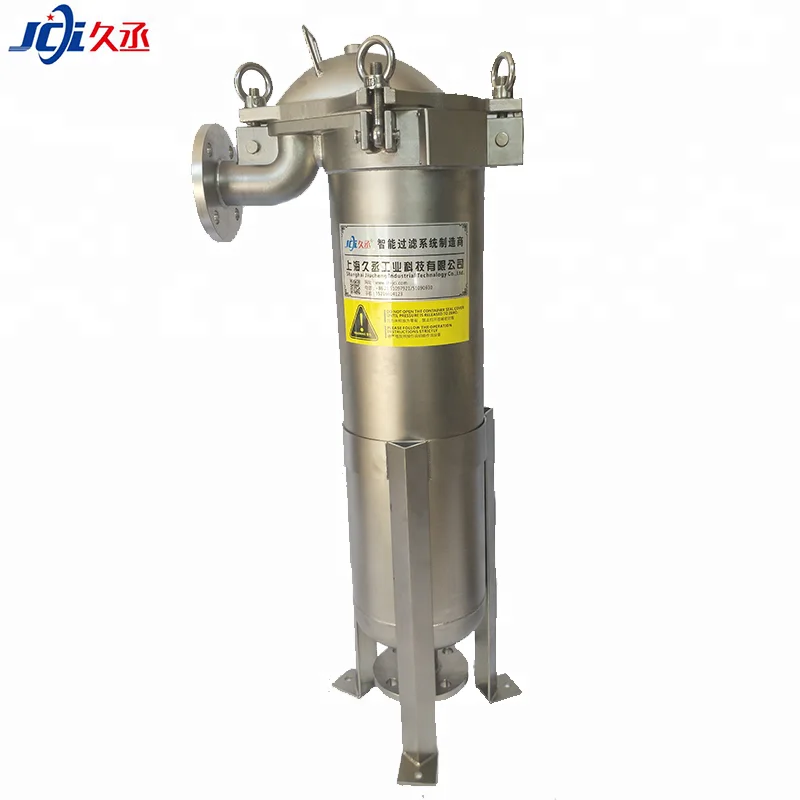

BTT series: single-bag top-entry filter applies to small flow rate and high-precision occasions.
Product Details Show
How Does It Work?
| Liquid enters the filter bag from the inlet, | |
| particles larger than the filtration pore are | |
| blocked on the surface or inside the filter bag. | |
| Liquid pass across and goes to outlet. When the | |
| particles accumulated and increase the pressure | |
| drop to 0.05-0.1MPa, replace the clogged bag | |
| and continue filtering. | |
Technical Parameters & Specifications
| Model No. | BTT Series | ||
| Optional filter bags | PP/PE/NO | ||
| Single filter rate | 1-1,000m3/h | ||
| Design pressure | 0.6-1.0MPa(Higher pressure can be customized.) | ||
| Single filtering area | 0.1-24m2 | ||
| Filter accuracy | 0.5-1,250μm | ||
| Number of stand-alone filter bag | 1-24 | ||
| Applicable viscosity | 1-20,000cp | ||
| Housing material | 304/316L/CS | ||
Technical features and advantages
1. Compact structure, reasonable size. Simple to install and operate, convenient, small occupation.
2. High filtration accuracy, for any fine particles or suspended matter, Range from 0.5 to 1,000 microns.
3. Unit filter area is large, a smaller filtration resistance, high filtration efficiency.
4. It can be used for coarse filtration, medium filter or fine filter.
6. The liquid bag filter is free of cleaning, convenient, efficient, and time-saving.
7. Various specifications are available: top-entry, side-entry, vertical, horizontal, multi-bags, etc.
Product Application
Part of Applicable Industries
Applicable liquids: Extremely wide applicability scope; applicable to various fluids containing micro amount of impurities.
Main filtration function: Removing various sizes of particles, purifying water and protecting key equipment.
Filter type: Filtration of particles; regular manual replacement of filter bag.
Part of Our Valued Customers
Customer On-site Photos
Related Products
Our Company
Company Profile
Shanghai JCI Technology Co., Ltd. is a leading company in design and manufacturing around the world filtration industry. The company specializes in automatic and intelligent filtration, especially holds an important status in the field of self-cleaning filtration.
We have a large group of excellent technical personnel concentrating on filtration R&D. The company has strict control on all processes ranging from design to production, inspection and after-sales service as conducted by its well-experienced engineers. The awareness of quality and service as well as the spirit of detail-focused manufacturing has been penetrated into every detail of the company. Through carrying out scientific and normative management and establishing follow-up service archive for every product, we can ensure that every product and every detail of it is excellent, safe and reliable.
We are a global professional company. Over the years, we have possessed many R&D, management and manufacturing centers, marketing and service networks throughout the world. Headquartered in Shanghai, the company has two production bases in Kunshan, Jiangsu and Taiwan, China, and has agents in Singapore, Malaysia and Myanmar. In the future, JCI will become a leader in the field of automatic filtration system and industrial purification technology, to enable efficient and safe filtering products to serve the whole world.
Certifications
Why Choose Us
Professional marketing personnel
1. At least 2 months of technical product training before work.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
2. Business English major and Communicate smoothly.
Professional design team
1. At least 2 months of technical product training before work.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
2. Business English major and Communicate smoothly.
Professional design team
1. Custom-built filters to meet your project requirements.
2. Design in 2 hours for free.
3. After sales service engineers available to service machinery overseas or making phone calls. Solving problems in 1 hour.
We are factory
1. Self-marketing.
2. We have strict control on all processes ranging from R&D design, production, inspection and after-sales service.
3. Warmly welcome to our factory for a visit.
Product Processing
Welding Assembling Pressure Test Packing
