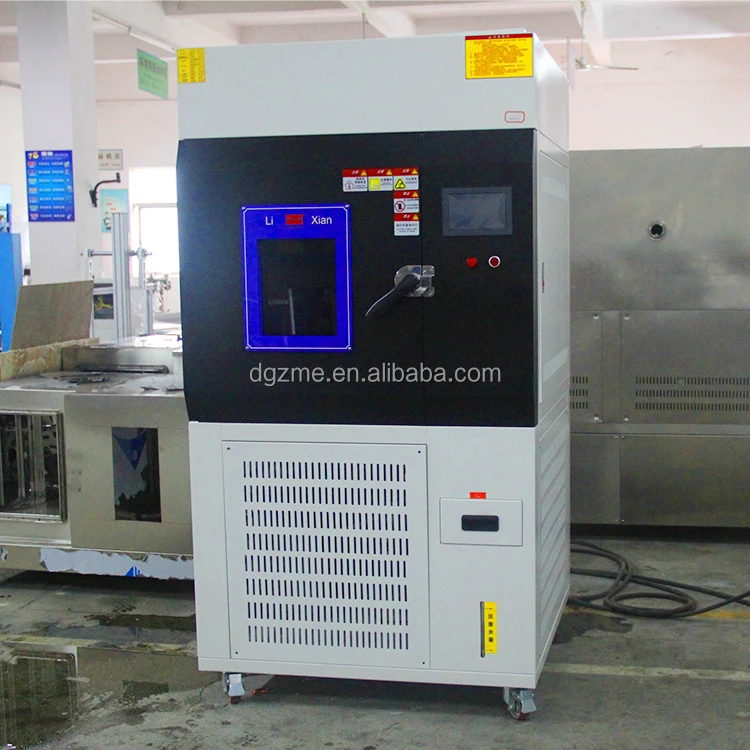

Xenon Lamp Aging Testing Chamber
Xenon ARC Lamp Tester is a comprehensive climate testing machine, can do climatic aging test and
the lightfastness testof polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidityto test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;
Corresponding standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing
SQ: Simulation of solar radiation on the ground
Applicable industries of the climatic chamber:
Xenon ARC Lamp Tester applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace,
medical care ... and so on.
Techincal parameterof the climatic chamber:
Model | ZME-2011 Xenon ARC Lamp Tester | |
Testing room D×W×H | 500*600*500mm | |
index | Temperature range | RT+10°C~80°C |
Humidity range | 65% to 98%R·H | |
Spray time | 1 to 9999min, abjustable | |
Spray cycle | 1-240min, interval adjustable | |
spectral wavelength | 290nm to 800nm (550w/m2) | |
light source | Full spectrum xenon lamp (air-cooled) | |
Xenon lamp power | 2.5 kw (longevity: 1600H) | |
Control system | Time controller | Import controller from Moeller |
Accourate range | Temperature: ±0.1 degree / humidity: ±0.1R·H | |
Sensor | Platinum resistance Pt 100Ω/mv | |
Heating system | Independent system, nickel chromium alloy electric heating type heater | |
Humidity system | stainless steel, external Isolated humidifier | |
Blackboard temperature | Bimetal thermometer blackboard 55~75 degree | |
Water supply | Humidification water supply with automatic control, xenon lamp cooled by water recycling | |
Temperature controller | Import controller | |
humidity | Irradiation: 30%~65%RH darkly: up to 90%RH | |
Cycle system | low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel | |
material | Outside material | Advanced spray color plate /SUS304 stainless steel |
Inside material | SUS304 stainless steel | |
Sample holder material | SUS304 stainless steel | |
insulation | High and low temperature aging of silicone rubber | |
standard | a set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2 | |
protector | Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection. | |
Power | AC380V±10% 50±0.5HZ , Three-phase five-wire system | |
Environmental temperature | ±5+30 ≤85%R·H |
Dongguan ZME Machine Trading Co.,td is one of the leading manufacturers of advanced testing instruments, founded on 2000, located in Dongguan, Guangdong province in China. Dongguan ZME Machine Trading Co.,td located in Dongguan city, covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions, Tsinghua University, Aeronautics University's project. We have 30000+ buyers in domestic market, succeed in establishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang, Wuhan, Chongqing, Shenyang, Changsha. Our products owned CE/ISO/ASTM/ ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on.
ZME Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory* trade (integration).15 years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 25 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support, and help customer solve problems encountered while using our product, handles guest problems and complaints professionally and timely. All instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be gone abroad to training, repair and others help you need.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
