High Quality Manual Chain Hoist / Chain Block

Share on (60777656671):


Price:

Quantity:


Product Overview

Description


Product Description

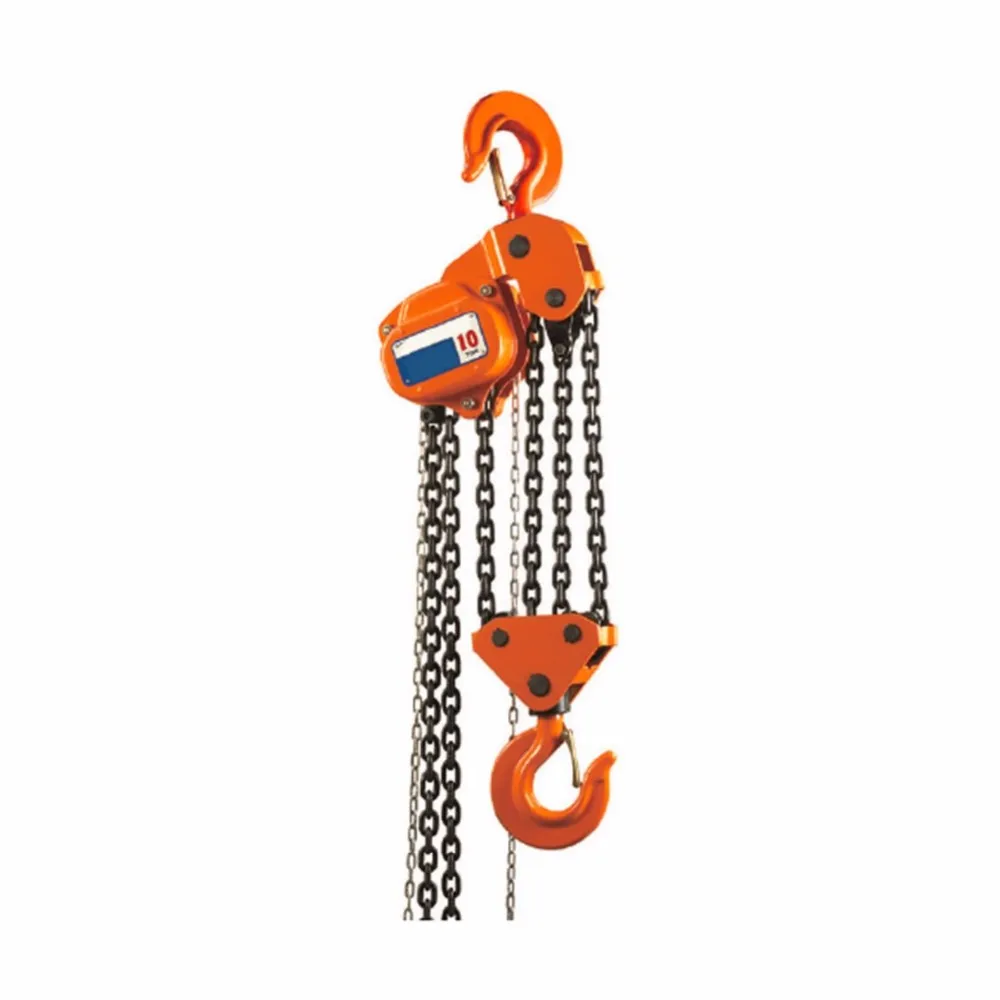

Manual Chain Hoist HSZ-B

▲ Robust all-steel construction.
▲ Top and bottom hooks are fitted with safely latches as standard.
▲ With brake mechanism.
▲ Double ratchet pawls.
▲ Hand chain cover and slots accurately guide the hand chain.
▲ Stripper ensure accurate alignment of the load chain over the load sheave.
▲ Powder metal bushing.
▲ Conform to CE safety standard.

Detailed Images
Packing & Delivery
\t
Model
\t
\t
HSZ-05B
\t
HSZ-10B
\t
HSZ-20/1B
\t
HSZ-20/2B
\t
HSZ-30/1B
\t
HSZ-30/2B
\t
HSZ-50B
\t
HSZ-100B
\t
Capacity
\t
(kg)
\t
500
\t
1000
\t
2000
\t
2000
\t
3000
\t
3000
\t
5000
\t
10000
\t
Standard lift
\t
(m)
\t
3
\t
3
\t
3
\t
3
\t
3
\t
3
\t
3
\t
3
\t
Running test load
\t
(Kn)
\t
7.3
\t
14.7
\t
29.4
\t
29.4
\t
44
\t
44
\t
73.5
\t
147
\t
Effort required to lift rated load
\t
(N)
\t
157
\t
314
\t
323
\t
314
\t
333
\t
323
\t
412
\t
441
\t
Strands of load chain
\t
\t
1
\t
1
\t
1
\t
2
\t
1
\t
2
\t
2
\t
4
\t
Load chain diameter
\t
(mm)
\t
6
\t
6
\t
8
\t
6
\t
10
\t
8
\t
10
\t
10
\t

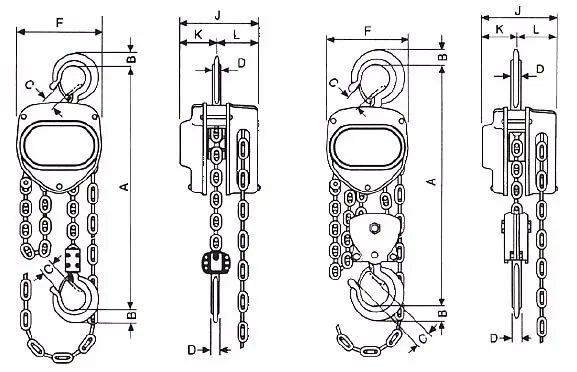

Dimensions
\t
Amin.(mm)
\t
295
\t
345
\t
450
\t
440
\t
530
\t
530
\t
620
\t
735
\t
\t
B (mm)
\t
16
\t
21
\t
37
\t
27
\t
46
\t
35
\t
45
\t
60
\t
\t
C (mm)
\t
22
\t
27
\t
37
\t
30
\t
46
\t
37
\t
46
\t
52
\t
\t
D (mm)
\t
11
\t
15
\t
25
\t
20
\t
29
\t
24
\t
30
\t
40
\t
\t
F (mm)
\t
125
\t
147
\t
183
\t
147
\t
215
\t
183
\t
215
\t
360
\t
\t
J (mm)
\t
111
\t
125
\t
142
\t
125
\t
163
\t
142
\t
163
\t
163
\t
\t
K (mm)
\t
52
\t
57
\t
68
\t
57
\t
79
\t
68
\t
79
\t
79
