C89 Light Gauge Steel Villa Steel Frame Forming Machine
US $85000-$95000
Gypsum board manufacturing plant cost in india
- Category: Board Making Machinery >>>
- Supplier: Shandong Tengfei Mechanical And Electrical Technology Co. Ltd. [Shandong China]Shandong
Share on (60777739219):
Product Overview
Description
Gypsum board manufacturing plant cost in india
Shandong Tengfei Mechanical and Electrical Technology Co., Ltd located at the foot of the famous Mountain Tai, our company near the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed, 104 State Road. We are a integrated science and technology joint-stock enterprises, and we can design,manufacture,install,commission gypsum board and gypsum powder and gypsum block machine ourselves. At present, our company have the ability to design and manufacture gypsum board production line with annual capacity from 2 Million M2 to 50 Million M2, gypsum block production line with annual capacity from 100,000 M2 to 1.5 Million M2, gypsum powder production line and phosphogypsum powder production line and FGD gypsum powder production line and fluorine gypsum powder production line with annual capacity from 30,000 tons to 500,000 tons, and we also can produce PVC laminated gypsum board equipment and gypsum board light frame equipment.
Annual capacity(m2) | Day capacity(sheet) 1200*2400*9mm |
Drier layer |
Heating system | Control system | Fuel |
2 Million | 2000 | 4 |
Heat ex-changer (vertical Air-blow) | PLC |
Coal, gas, oil .etc |
3-4Million | 3000-4000 | 6 | PLC | ||
5-8Million | 5000-8000 | 8 |
DCS computer control | ||
10-15Million | 10000-15000 | 10 | |||
20-50Million |
20000-50000 | 12 | Heat ex-changer(Horizontal Air-blow) |
production capacity | 2 to 50million square meter per year |
Finished product | paper-faced gypsum board/ fire resistance gypsum board water resistance paper-faced gypsum board |
specification | thickness from 6.5-16mm length from 2100-3600mm width from 1220mm |
Quality standard | over the international standard GB9775-1999 |
Property | full automatic |
fuel variety | oil,coal,gas .etc |
Product Overviews
Gypsum board manufacturing plant adopts advanced technology. We adopts the horizontal flow, vertical airflow heat exchanger heating system, the raw material feeding system and edge cutting and edge sealing and edge grinding and recycling system and stacking system are all controlled by computer. All the whole line is full automation.
1 .Raw material supplying system
Raw material is transported and lifted to feeding hopper, after measurement it comes to vertical mixer. Face and back paperboard are lifted to each shelf. They are tensioned with special tension unit. Mixed material from vertical mixer falls down to back paperboard, then formed into shape and covered with face paperboard, after last flattening the semi finished plasterboard is completed.
2.Mixer
It will mix the raw material completely.
Vesicant and starch and powder and water will be blended in the mixer.
3.Conveying system
Semi-finished plasterboard from formation section is automatically edge trimmed into continuous palsterboard, conveyed to concreting station and automatically cut.
4. Transferring system
Transferring section Concreted plasterboard automatically transferred and cut in middle, saving raw material.

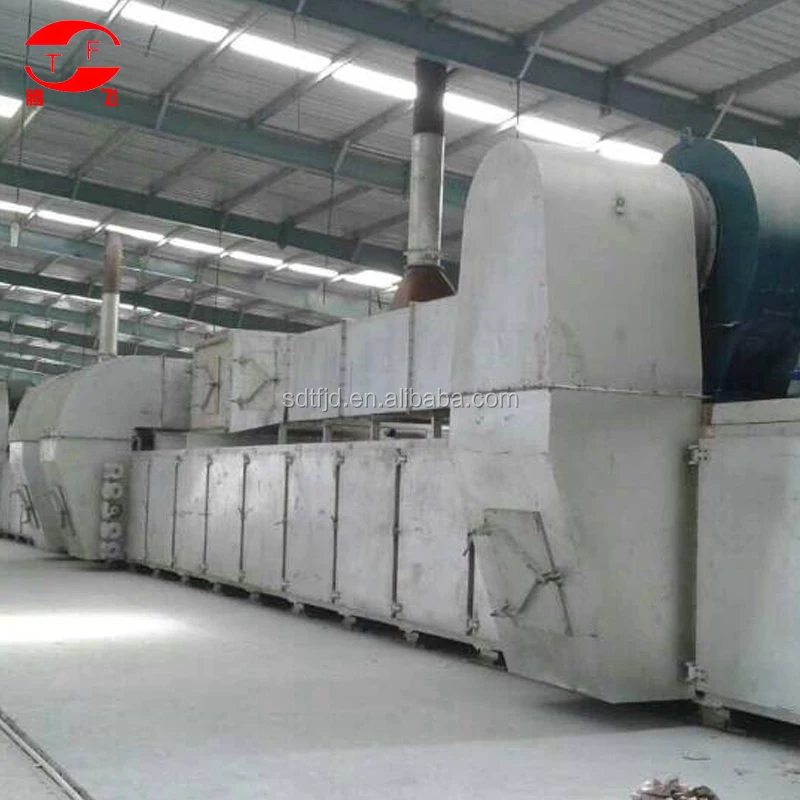

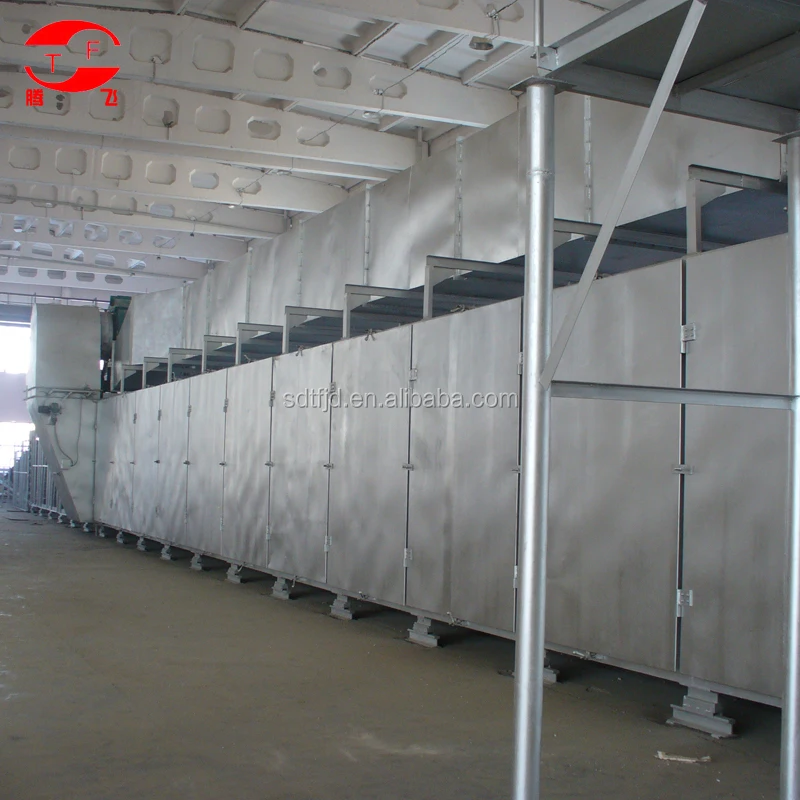

5. Drying system
Plasterboard Transferred automatically into drying room which has shelves 5-storey or 6-storey supporting 2 lapped sheets, with 50m, 60m, 70m, and 90meters length range.
6. Stacker system
Automatically cut into dimensions you pre-set to avoid defect product occurrence and higher efficiency.
7. Gypsum board controlling system
