As a professional drying equipment manufacturer, we provide more than hundred sets of equipment for our users. The heating media such as high temperature heat transfer oil, middle temperature steam and low temperature hot water are available for our products. When drying viscous materials, we can design the special “copying” mechanism or set balls in the tank for you.
Applications
It is suitable for concentration, mixing and drying of powder, granular and fibrous materials in such industries as chemical industry, medicine, food, etc., and materials that require low temperature drying(such as biochemical products), and is more suitable for drying of materials that are easy to oxidize, volatize, heat sensitive materials, irritant and poisonous materials, and materials in which breaking of crystals is not allowed.

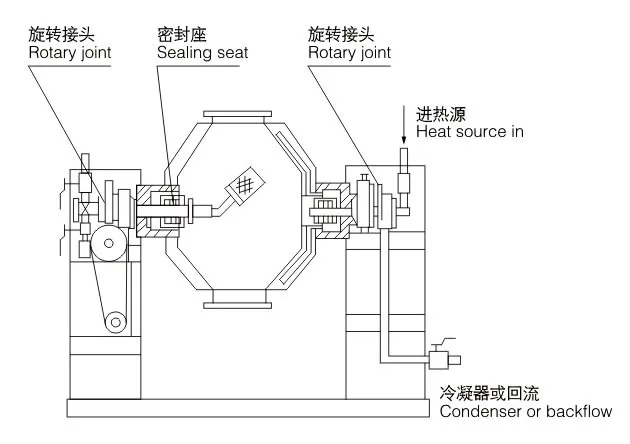

Principle
• After the heat source(such as hot water, low pressure steam or heat transfer oil) is connected to the closed jacket, the heat is transferred from the inner shell to the materials to be dried.
• Driven by the power, the tank makes slow rotation and the materials in the tank are continuously mixed so as to realize the purpose of drying.
• When the materials are under vacuum, the steam pressure reduces to make the moisture(solvent) on material surtaces reach the saturation status and evaporate, and discharged and recovered timely from the vacuum pump. The moisture(solvent) inside the materials is penetrated, evaporated and discharged towards the surfaces. The three processes are carried out continuously, so that the materials are dried within a very short time.
Features
• During oil heating, automatic constant temperature control is adopted to dry biochemical products and mineral raw materials.
Temperatures vary within the range of 20-160℃.
• The heat efficiency is 2 times higher than that of common ovens.
• Indirect heating will cause no pollution to the materials, conforming to GMP requirements. The equipment is simple to repair and operate and easy to clean.

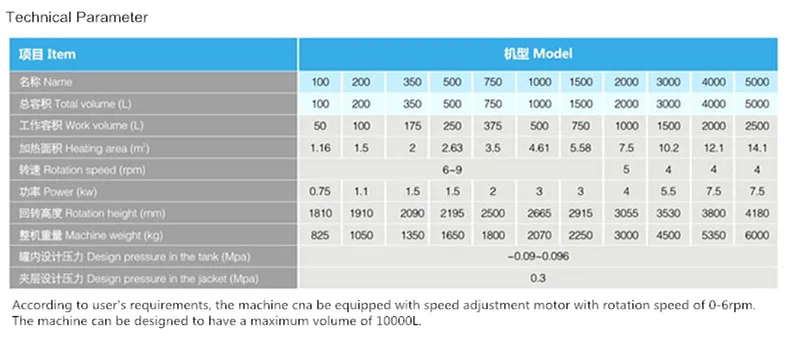

Technical parameter
Packaging & Shipping
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Air bubble film and stretch film.
Delivery Details: about 40 workdays after payment.
Our Services
Pre-sales service
1) Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1) Training how to install and use the machine
2) Engineers available to service machinery overseas.
3)one year guarantee,whole life service.Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
