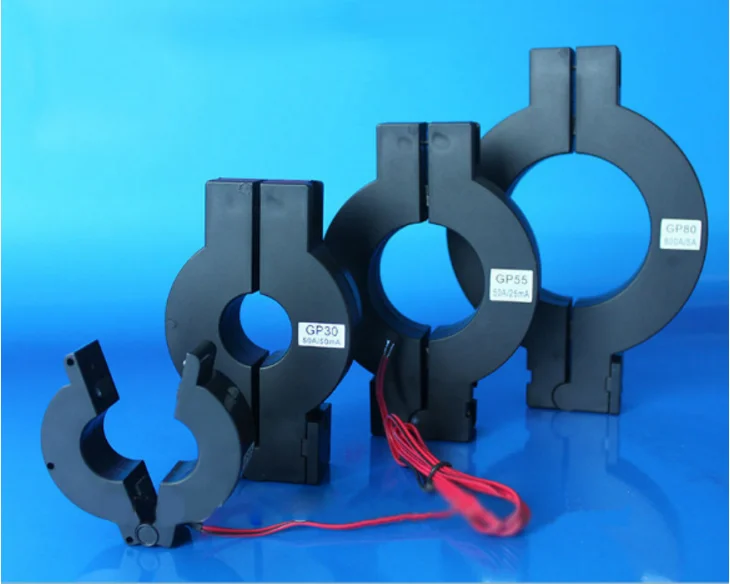

Split Core CT GP 80 magnetic core clamp on current transformer with busbar
- Category: >>>
- Supplier: Yueqing Heyi Electrical Co. Ltd.
Share on (60777790077):
Product Overview
Description
HEYI Electrical Co., LTD. is a comprehensive multi-business industry and trade integration of high-tech enterprises.
We own one strong R&D and QC team continues to innovate new solutions for customers in the area of Smart
Grid Industry all covering distribution, Saving&Protecting&Metering Electicty, and Power System.
Product Description
Features
1) The structure of the self-locking, safe, easy to install, portable
2) Wide inner window, allowing clamping of big cables or bus-bars
3) Wide range of sizes to accommodate all the existing installations
4) Isolated plastic case recognized according to UL94-V0

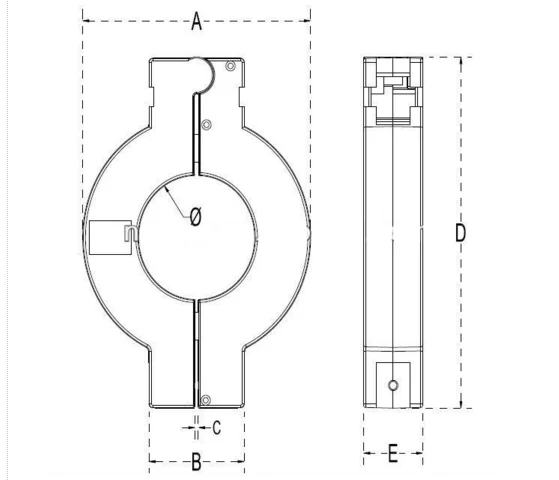

Specification
| Model | Dimension(mm) | Input | Output | Class | |||||
| Φ | A | B | C | D | E | ||||
| GP-16 | 16 | 38.5 | 14 | 2 | 55 | 18.5 | 5~100A | 0~50mA/0.333V | 0.5,1.0,3.0 |
| GP-25 | 25 | 57 | 14 | 2 | 75.5 | 20.5 | 20~200A | 0~100mA/0.333V | 0.5,1.0,3.0 |
| GP-30 | 30 | 83 | 45 | 2 | 129 | 28 | 200~500A | 5A | 0.5,1.0,3.0 |
| GP-55 | 55 | 108 | 45 | 2 | 154 | 28 | 150~1000A | 5A | 0.5,1.0,3.0 |
| GP-80 | 80 | 137 | 45 | 2 | 192 | 28 | 500~2000A | 5A | 0.5,1.0,3.0 |
Note: The Current Ratio above are common type, that's ok to customise the ration according to
customers' requirement.
Applications
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.
Packaging & Shipping
Delivery (Global courier, Ocean transpor, Air transport)
