Product Overview
Description
Smart Security SIP-E323CVML-2812 2.0mp 30fps CMOS IMX323+3516CV300 cctv Full Hd Ip Camera PCB Poe, Ip Camera Module
Product Description

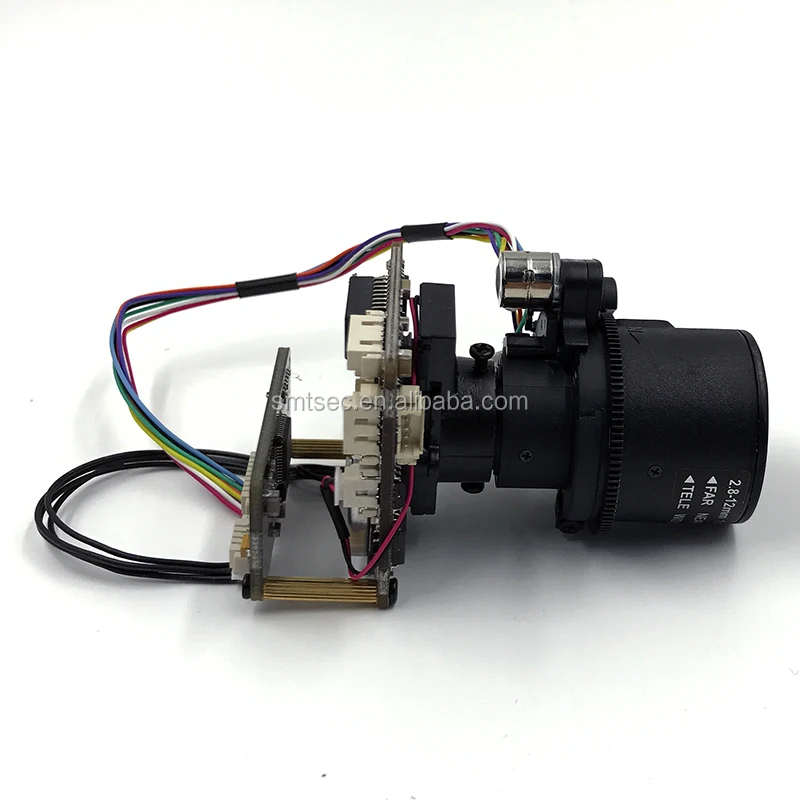

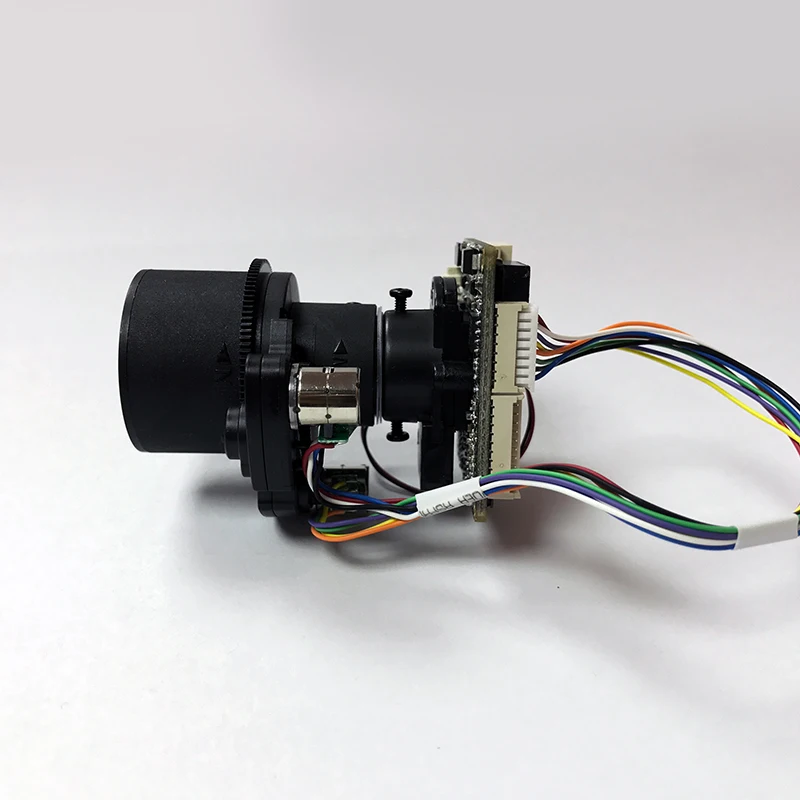

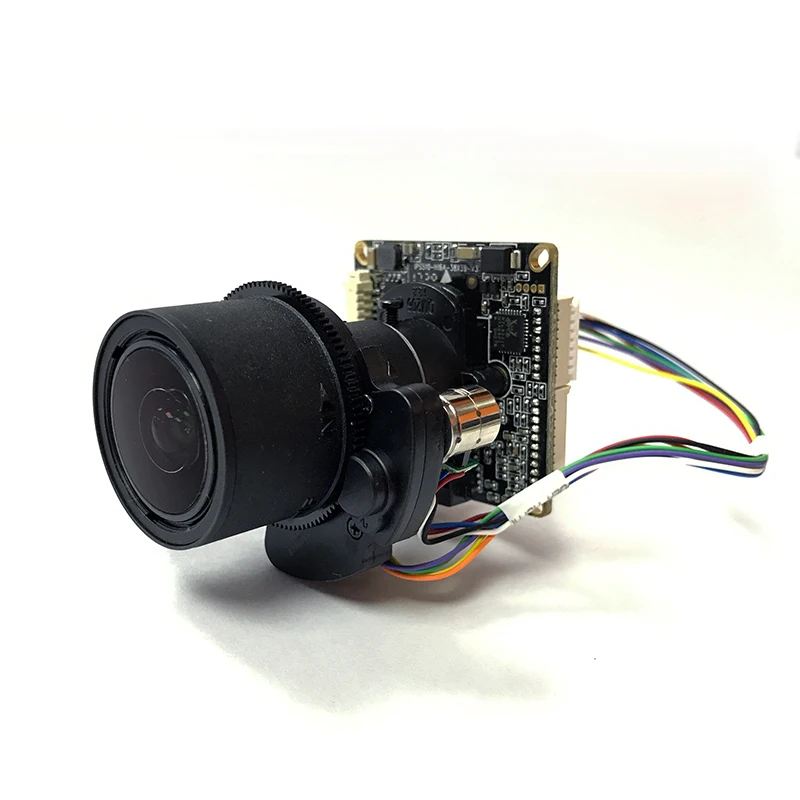

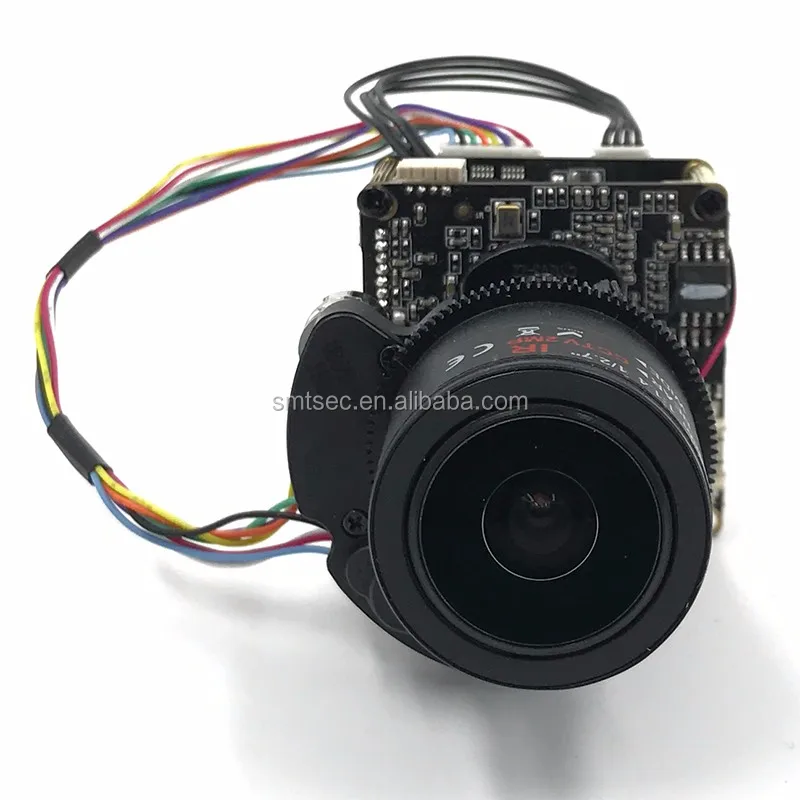

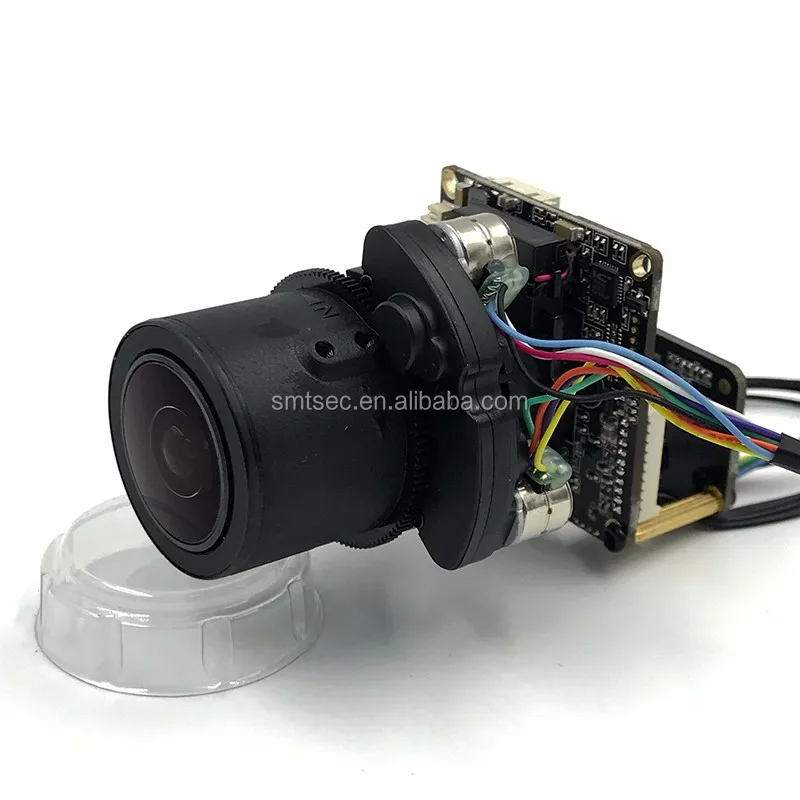

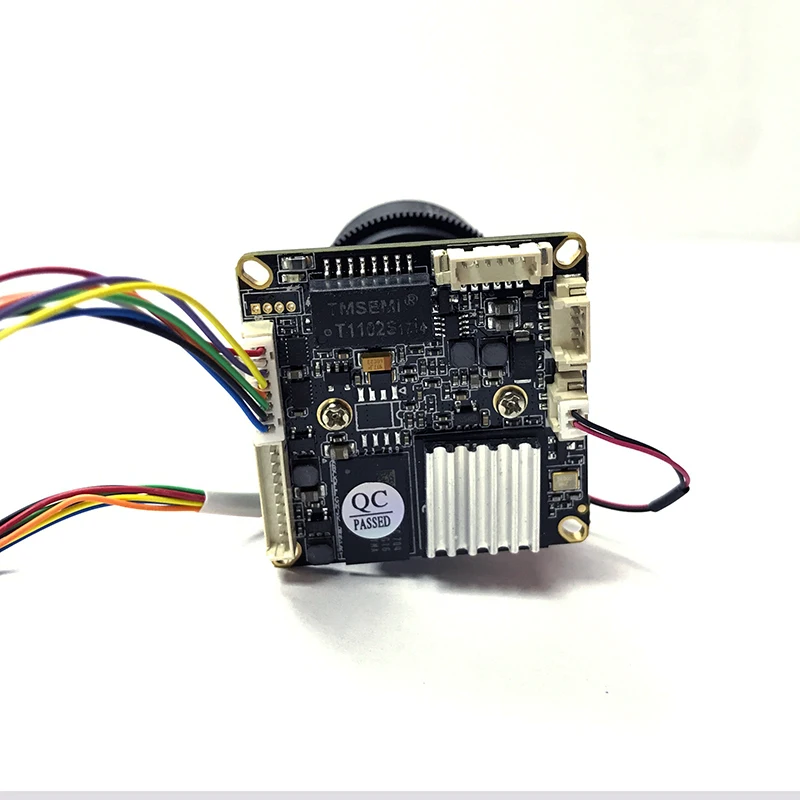

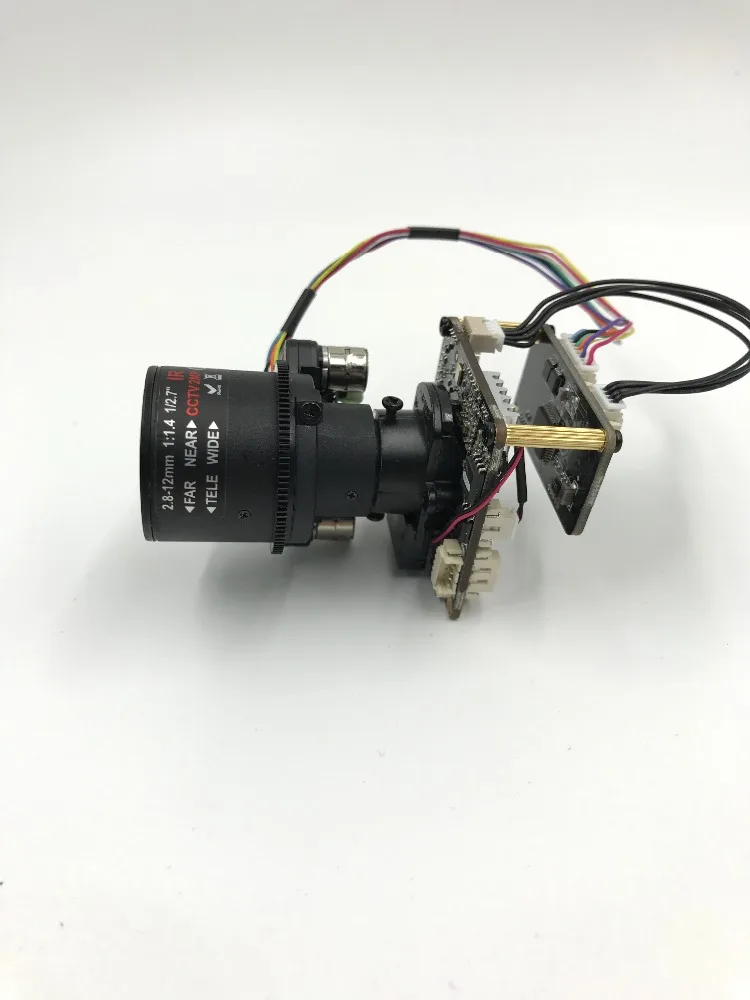

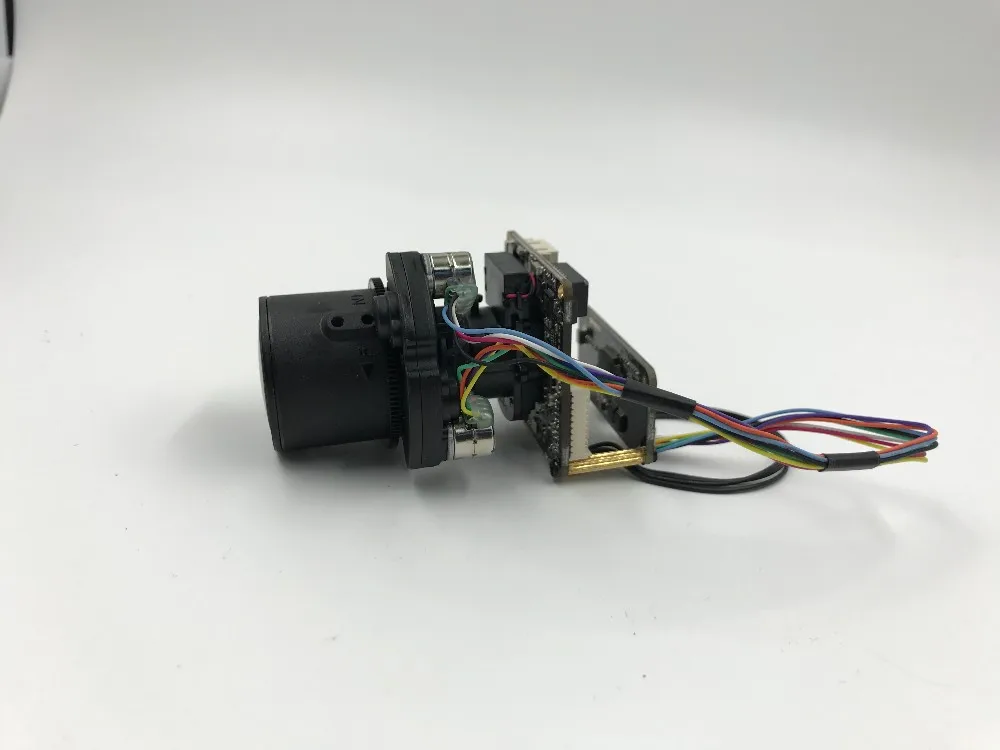

1080P Hi3516CV300 IP Camera Module 2.8-12 mm Motorized Focus Auto Zoom Lens 2MP IMX323 PCB Board Camera
SIP-E323CVML-2812
| Model | SIP-E323CVML-2812 |
| Camera Type | H.265/H.264 2.0mp IP Camera Module |
| Camera | |
| Image Sensor | 1/2.9" CMOS 2.0mp Image Sensor IMX323 |
| DSP | Hisilicon 3516CV300 |
| Effective Pixels | 1920X1080 |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.01Lux/F1.2,B/W 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| WDR | DWDR:>80db |
| Lens Mount | ¢14mm Mount |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Lens | |
| Lens Type | 3MP ø14 2.8-12mm motorized focus auto zoom lens |
| Video/Audio | |
| Video Compression | H.265 Main Profile coding; H.264 Baseline,Main Profile,High Profile coding |
| Resolution | Main Stream:1920X1080,1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| V2.4 | |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Support iPhone, iPad, Android View |
| Interface | |
| Audio | 1ch Audio MIC input/ line input, 1ch output |
| BNC Video out | 1 CH CVBS Video Output |
| USB | 1pcs USB interface,Support Micro SD/TF card storage expansion(MAX128G) |
| Reset | Support |
| Optional function# | |
| Memory Card Slot# | Support Micro SD/TF Card |
| WIFI # | 802.11b/g/n |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 15mm |
| Net Weight | 0.15kg |
| #Remark: WiFi,POE,TF Card functions are optional,If need,please consult with us. | |
