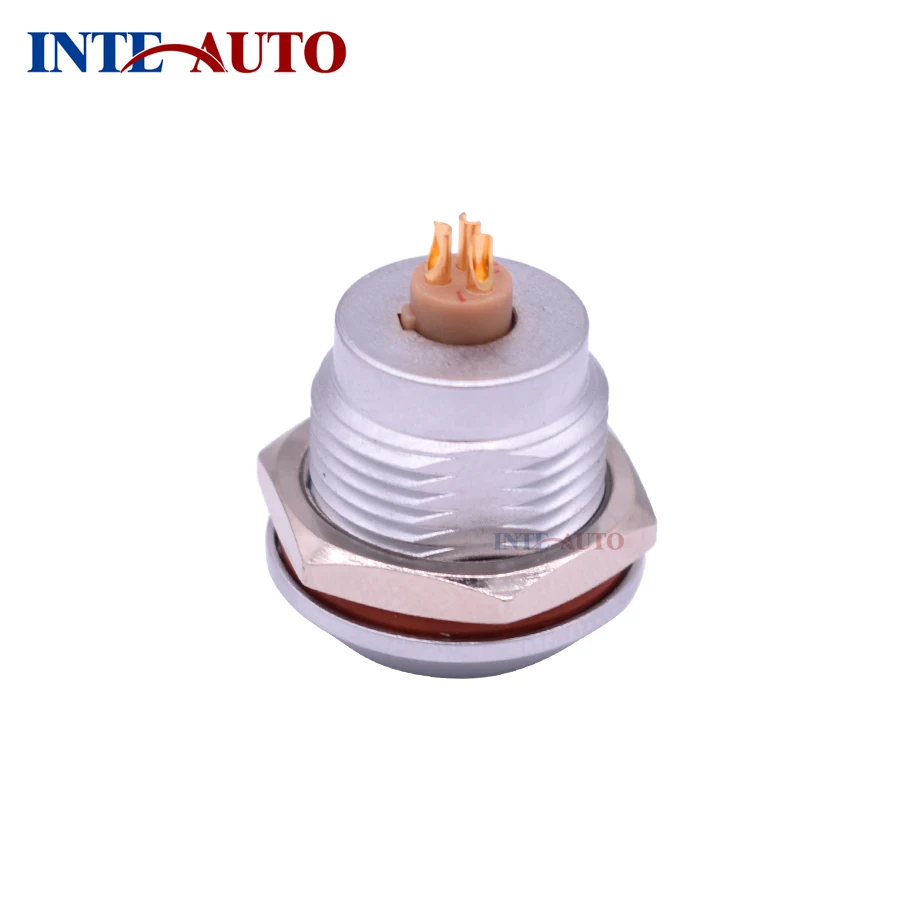

Pearl Chrome PPS solder seal wire connector substitute K ZGG 3 pin automotive waterproof connector
- Category: >>>
- Supplier: Shenzhen Yinte Electronic Technology Co. Ltd.
Share on (60777845117):
Product Overview
Description
Advantages
*Sample Free:1-2 PCS.
*Fast lead time: 3-5 work days if the QTY is under 200 PCS.
*Flexiblity payment way:T/T,PayPal,Westunion,Credit card.
*24 hours service for clients.
*Competitive price & stable production.
*Certified TUV,CE and RoHS.

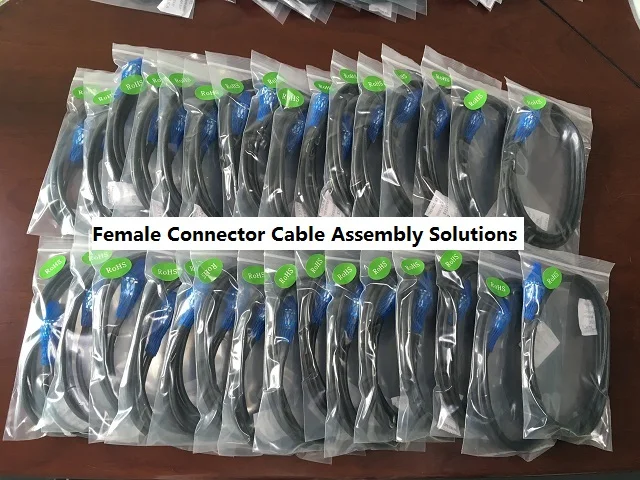

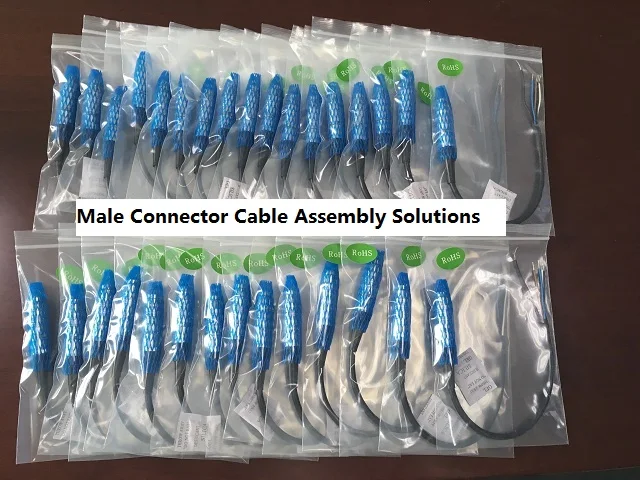

*OEM/ODM/Cable Assemble.
*World-class customer service.
Product Description
0K series connectors have the same insulators as the B series and have the following main features:
1.Security of the Push-Pull latching system
2.Watertight connection (IP 68/IP 66)
3.Multipole types 2.3.4.5.6.7.9 contacts
4.Solder, crimp or print (straight or elbow) contacts
5.Keying system («G» key standard) for connector alignment
6.Multiple key options to avoid cross mating of similar connectors
7.360° screening for full EMC shielding
8.High packing density for space savings
9.Rugged housing for extreme working conditions.
Product Parameters
| Number | INT-ZGG.0K.303CLL |
| Size/Series | 0K (Metal (Mechanical Keying)) |
| Shell Style/Model | Fixed receptacle,nuts fixing |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 68 |
Insulator specs for K series:

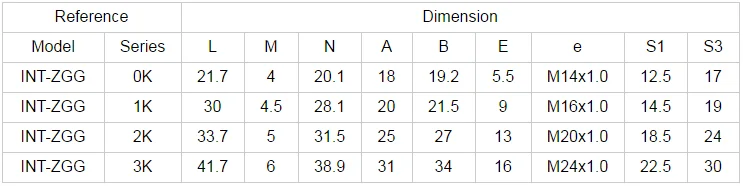

Prodcut Size:
FAQ
(Shenzhen INTE-AUTO Technology Co.,LTD)
Expert in making high quality push pull connector & cable assemble.
Promotion items with more than 8 years’ experience!
Our goal is to provide customers with the best service possible and to produce excellent quality.
Brand identification products will meet or exceed your expectations.
All items coming with certification and we have excellent team offering best connector solution for your application.
FAQ:
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery.
one-year warranty for ≥6000 mating cycles.
Strictly quality control, connectors certified by TUV/CE/ROHS.
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Proofing fee & shipping cost will be charged in sample new design.
Q3: How long is your delivery time?
A: Sample is 1-3 work days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: Metal and plastic push pull self-locking connectors, actual or picture or part No. will assist to get a competitive price soon.
Q5: What’s the connector made of?
Metal type materials as below:
Out-shell: Brass plated pearl chrome
collet nut: Brass plated pearl chrome
insulator: PPS
collet: Brass plated nickel
contact: Brass, gold plated
split insert carrier: Brass plated nickel
Bend relief: PSU
Plastic type materials as below:
Out-shell: PC
Insulator: PPS
Contacts: Brass
Gold plated is not less than 0.2μ
Bend relief: PSU
Q6: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q7: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
