Turntable Type Automatic Sand Blasting Machine for Glass Bottle
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (60777934419):
Product Overview
Description
Product Description

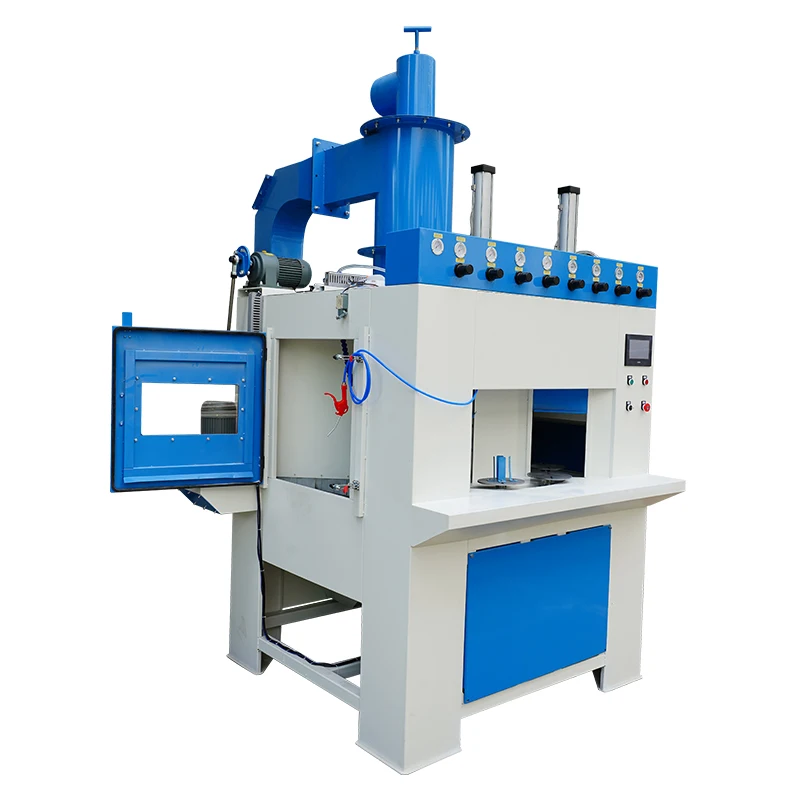

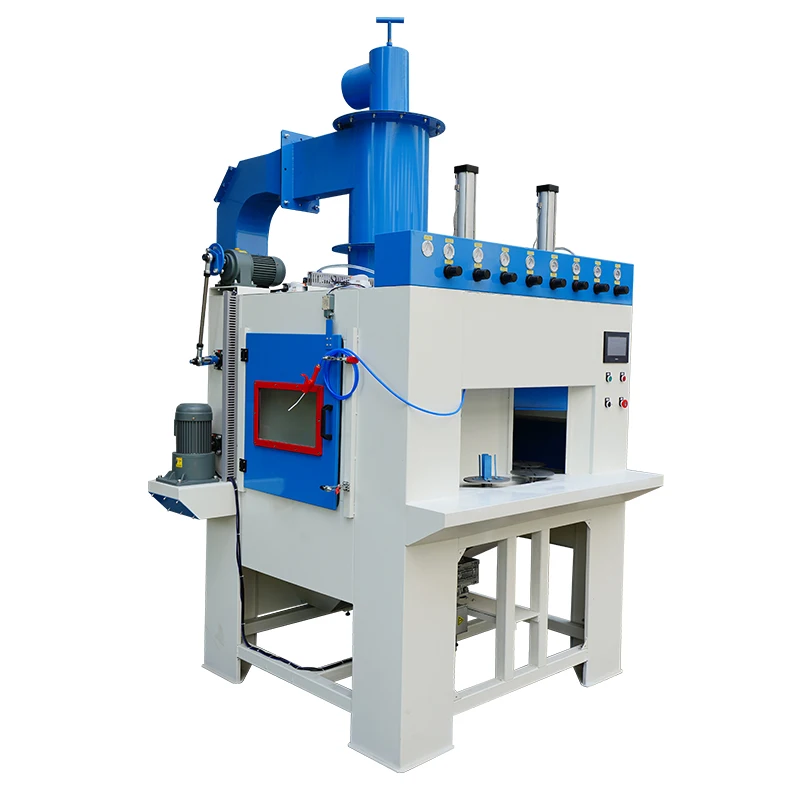

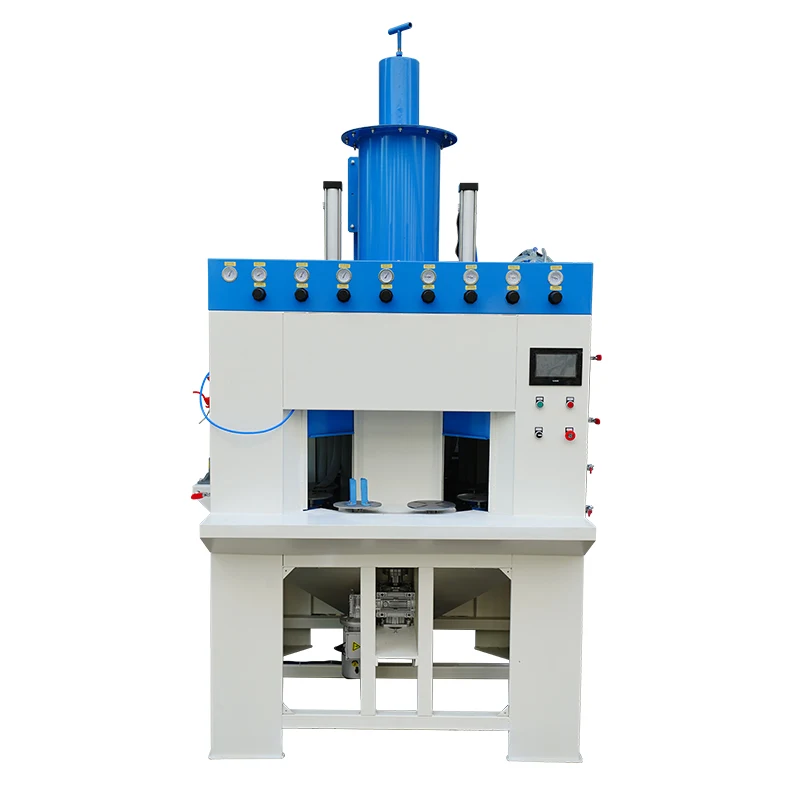

Glass Bottle Specially Turntable Type Automatic Sand Blasting Machine
This automarc sand blasting machine is equipped with multi-independently rotating work stations on an indexing table that itself rotates through the cabinet, all in a satellite arrangement. The turntable design is particularly suitable for sandblasting of cylindrical workpieces in batches, such as glass bottles, pots, etc.
Details Images
Turntable Type Automatic Sand Blasting Machine Features
1 The blast gun group can be set for fixed blasting or swinging blasting with adjustable speed and angle.
2 Small turtables drives through an independent motor, stepless speed regulation by converter.
3 Blasting time, blasting distance between parts and gun also can be adjusted to optimize processing.
4. High automation task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production.
5. Specially custom fixtures based on workparts, provided for quick and solid clipping to improve efficiency.
6. The cabinet size, blasting guns or satellite stations all can be custom-made depending on the part size and production demands.
2 Small turtables drives through an independent motor, stepless speed regulation by converter.
3 Blasting time, blasting distance between parts and gun also can be adjusted to optimize processing.
4. High automation task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production.
5. Specially custom fixtures based on workparts, provided for quick and solid clipping to improve efficiency.
6. The cabinet size, blasting guns or satellite stations all can be custom-made depending on the part size and production demands.
Loading Place
Pressure Regulating Valve
Rotary Table
Automatic Blasting Gun

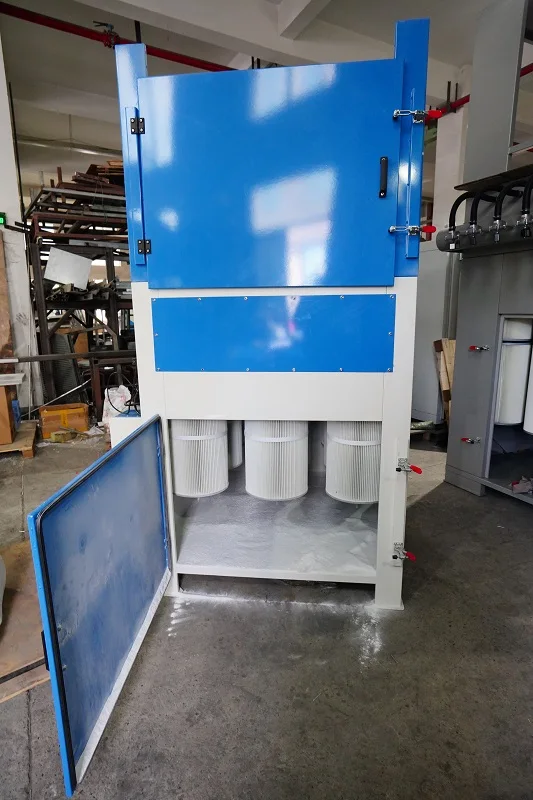

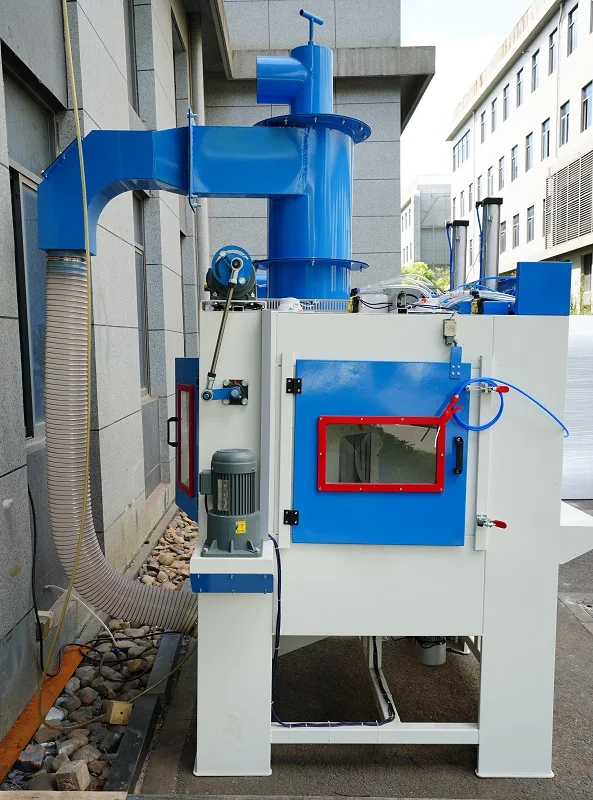

Cyclone Dust Removal System
PLC Control
Model No | KF-1719-12A | KF-1512-8A |
Number of stations | 12pcs | 8pcs |
Fan motor of Dust Collector | 20kgs | 20kgs |
Blast Gun Number | 12pcs | 8pcs |
Station diameter | 150 /180 mm | 150 /180 mm |
Turntable diameter | 1400×20mm | 1000×15mm |
Max. part size (diam x H) | 350*450mm | 250*350mm |
Power supply | As required | As required |
Fan motor of Dust Collector | 5.5kw | 5.5kw |
Total Power | 7kw | 7kw |
Dust collector size(L*W*H)mm | 1400*1400*1700 | 1200*1200*1700 |
Overall diameter (L*W*H)mm | 1700*1900*2350 | 1200*1500*2000 |
Total weight | 4150kgs | 3850kgs |
Application

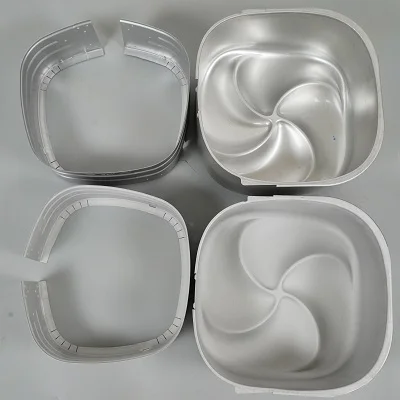

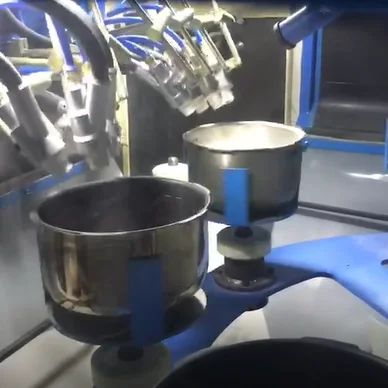

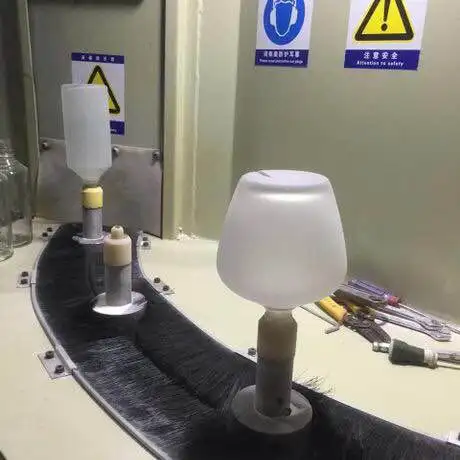

This turntable type automatic sand blasting machine is specially designed for batch finishing of inner and outer surfaces of round disc, cylinder or polygon shaped product, such as handicrafts, glass & metal lampshade, non-stick pan, flashlight, baking pan, stainless steel wash basin, wine bottle, glass cup or others workpieces.
Recommend Products
Product packaging
Company Profile
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
